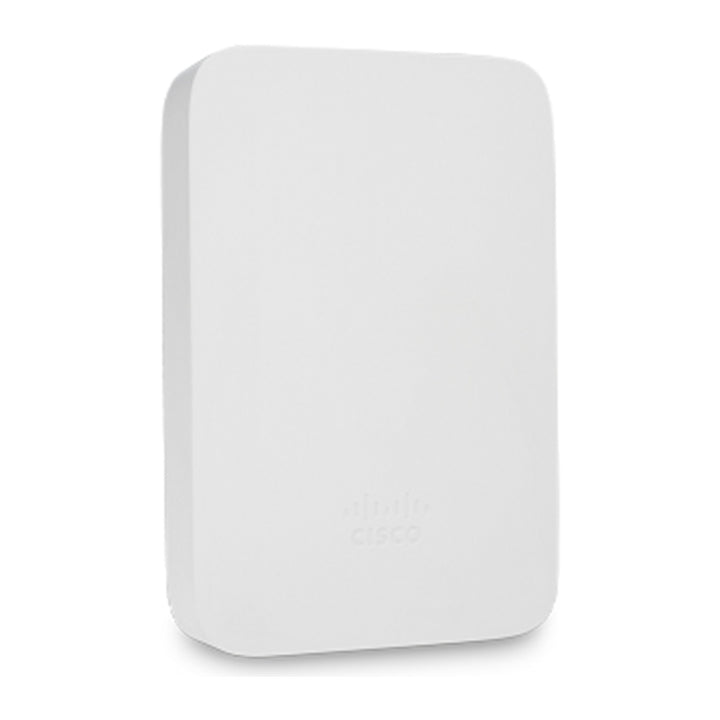

Cisco Meraki MR36H Wi-Fi 6 Wall Plate Access Point, 2x2 MU-MIMO, 3x GbE LAN with PoE Out
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Meraki MR36H Wi-Fi 6 Wall Plate Access Point (MR36H-HW) — Lifetime Hardware Warranty
Wi-Fi 6 in a wall plate form factor
The Cisco Meraki MR36H is a cloud-managed 802.11ax (Wi-Fi 6) access point built to mount over a standard junction box or sit on a desk. It suits hotel rooms, student housing, dormitories, clinics and branch offices where each room needs its own Wi-Fi and wired ports.
2x2 MU-MIMO on two client radios
Separate 2.4 GHz and 5 GHz client-serving radios each run 2x2 MIMO with two spatial streams. Meraki lists up to 1,201 Mbps on 5 GHz and 286 Mbps on 2.4 GHz, for a 1.5 Gbps maximum dual-radio aggregate frame rate in the MR36H data sheet.
Integrated gigabit switch with PoE output
Alongside the radios, the MR36H provides three Gigabit Ethernet LAN ports, one of which supplies 802.3af PoE to a phone, camera or IoT device, plus a non-managed passthrough port.
Dedicated security and Bluetooth radios
A third dual-band radio scans continuously for WIDS/WIPS (Air Marshal), spectrum analysis and location analytics, and a Bluetooth Low Energy radio supports beacons and BLE scanning. All four radios operate concurrently.
Managed from the Meraki dashboard
The MR36H is configured, monitored and updated from the Cisco Meraki cloud dashboard, with zero-touch provisioning, WPA3 security and automatic firmware updates. A Meraki access point licence is required.
Cisco Meraki MR36H Datasheet — Technical Specifications
Radios
| Wi-Fi standard | IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac |
| Client radios | 2.4 GHz 802.11b/g/n/ax and 5 GHz 802.11a/n/ac/ax |
| MIMO | 2x2 MIMO, two spatial streams, MU-MIMO and OFDMA |
| Maximum data rates | 5 GHz: up to 1,201 Mbps; 2.4 GHz: up to 286 Mbps; 1.5 Gbps dual-radio aggregate frame rate |
| Additional radios | Dual-band WIDS/WIPS, spectrum analysis and location analytics radio; 2.4 GHz Bluetooth Low Energy radio (beacon and scanning) |
Interfaces & Power
| Uplink | 1 x 10/100/1000BASE-T Ethernet (RJ-45), rear, PoE input |
| LAN ports | 2 x Gigabit Ethernet (RJ-45) + 1 x Gigabit Ethernet with 802.3af PoE output |
| Passthrough | 1 x passthrough port (non-managed) |
| PoE input | 37-57 V, 802.3at compatible |
| Power consumption | 30 W maximum (802.3at) |
Security
| Encryption | WPA3-Personal, WPA3-Enterprise, WPA3-Enhanced Open (OWE), AES |
| Authentication | 802.1X |
| Intrusion prevention | Real-time WIDS/WIPS (Air Marshal) |
Physical & Environmental
| Dimensions | 15.5 x 11 x 2.3 cm (6.1 x 4.33 x 0.9 in.) |
| Weight | 492 g (17.35 oz) |
| Mounting | Desktop, wall and ceiling mount capable; ceiling tile rail compatible; security screws and Kensington lock hardpoint |
| Operating temperature | 0 °C to 40 °C |
| Humidity | 5% to 95% non-condensing |
Compatibility & Software Support
Cloud management
The MR36H is managed exclusively through the Cisco Meraki cloud dashboard. Configuration, RF optimisation, firmware and monitoring are handled from the dashboard; there is no local controller.
Licensing
Cisco Meraki states that a Meraki access point licence is required to operate the MR36H. The licence is purchased separately for the term required.
Power sources
Power the MR36H from an 802.3at (PoE+) switch port or injector. The PoE output LAN port can then supply an 802.3af device.
Warranty
Sold by SourceIT as a Singapore unit. Cisco Meraki states a lifetime hardware warranty with advanced replacement included in its MR36H data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Meraki MR Ordering Information
In the Box
- MR36H cloud-managed access point
- Mount cradle
- Mount kit: eject/security screw tool, wall screws (Phillips), wall screw anchors, Torx security screw, Phillips security screw
- UTP jumper cable (links the rear PoE uplink port to the rear passthrough port)
Cisco Meraki Wi-Fi 6 Access Point Family
| Model | Key difference |
| MR36H (this listing) | Indoor wall plate, 2x2:2, 3 x GbE LAN with one PoE output |
| Cisco Meraki MR46E | Indoor 4x4:4 with external antenna connectors, multigigabit uplink |
| Cisco Meraki MR76 | Outdoor IP67, 2x2:2, external antennas |
| Cisco Meraki MR86 | Outdoor IP67, 4x4:4, 2.5 GbE uplink, external antennas |
Datasheet & Downloads
| Document | Link |
| Cisco Meraki MR36H data sheet | documentation.meraki.com |
| Cisco Meraki MR36H installation guide | documentation.meraki.com |
| Cisco Meraki MR36H product page | cisco.com |
Frequently Asked Questions — Cisco Meraki MR36H
Does the MR36H need a licence?
Yes. Cisco Meraki states that a Meraki access point licence is required.
Can the MR36H power a desk phone?
Yes. One of the three LAN ports provides 802.3af PoE output, provided the MR36H itself is powered from 802.3at (PoE+).
What is the passthrough port for?
It is a non-managed port that carries a separate cable run through the wall plate. The included UTP jumper cable can link it to the rear PoE uplink port.
Can it be mounted on a desk?
Yes. Meraki lists desktop, wall and ceiling mounting, and the unit has a Kensington lock hardpoint.
What warranty applies?
Cisco Meraki states a lifetime hardware warranty with advanced replacement for the MR36H.
