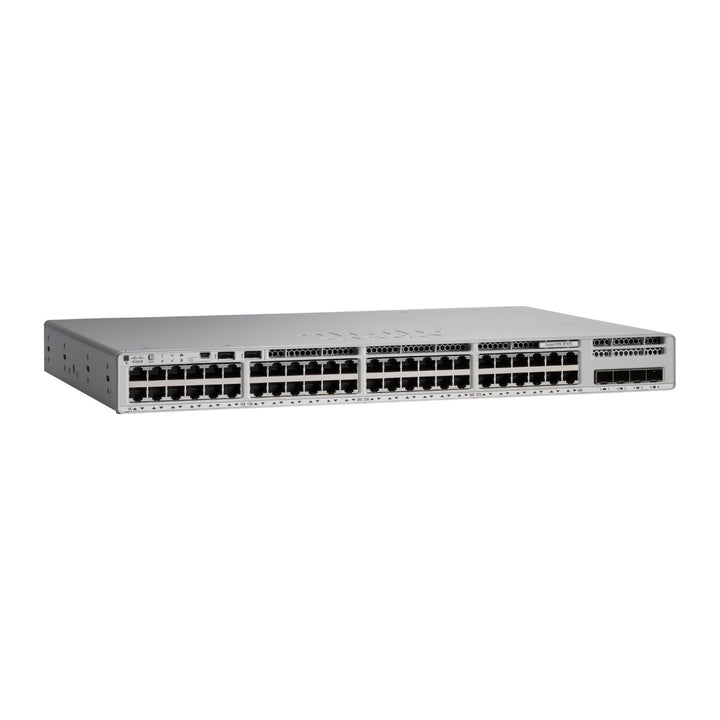

Cisco Meraki Catalyst 9200L 48-Port Gigabit, 4x 1G SFP Cloud-Managed Switch
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Cisco Meraki Catalyst 9200L C9200L-48T-4G-M Cloud-Managed Switch — Lifetime Hardware Warranty
Catalyst hardware, Meraki dashboard simplicity
The Cisco C9200L-48T-4G-M is a Catalyst 9200L-M switch, which Cisco Meraki describes as combining the simplicity of the Meraki dashboard with Catalyst switching hardware. It is managed from the cloud-based Meraki dashboard with zero-touch remote provisioning.
48 Gigabit ports, 4 x 1G SFP uplinks
The switch provides 48 x 1G data ports and four fixed 1G SFP uplinks, with switching capacity of 104 Gbps and a forwarding rate of 77.38 Mpps.
Layer 3 features
Static routing, OSPFv2, PIM-SM multicast routing, VRRP (warm spare) and DHCP server/relay are supported, alongside 802.1X RADIUS/MAB, Adaptive Policy with Security Groups, IPv4/IPv6 ACLs, DHCP snooping and dynamic ARP inspection.
Redundant power and fans
The switch ships with its default power supply and two pre-installed hot-swap fans, and supports dual redundant hot-swappable power supplies. Hardware stacking is available with the optional C9200L-STAK-KIT-M.
Cisco Meraki C9200L-48T-4G-M Datasheet — Technical Specifications
Interfaces
| Access ports | 48 x 1G RJ45 (data only) |
| Uplinks | 4 x 1G SFP (fixed) |
| Stack ports | 2 x 80G hardware stack ports (require C9200L-STAK-KIT-M) |
| Management interface | 1 x dedicated management port |
Performance
| Switching capacity | 104 Gbps (184 Gbps stack bandwidth) |
| Forwarding rate | 77.38 Mpps (137 Mpps stack) |
| PoE | Not supported (data-only model) |
| MAC table | 16K entries |
| VLANs | Up to 4,094 (512 active with STP enabled) |
Software & Security
| Management | Cisco Meraki dashboard (cloud), local management page |
| Layer 3 | Static routing, OSPFv2, PIM-SM multicast, VRRP (warm spare), DHCP server/relay |
| Security | 802.1X RADIUS/MAB, Adaptive Policy (Security Groups), IPv4/IPv6 ACLs, DHCP snooping, DAI |
| Firmware | Automatic upgrades with scheduling control |
Power
| Default power supply | PWR-C5-125WAC |
| Redundancy | Dual hot-swappable power supplies supported |
| Power consumption | 33.85 W idle / 47.33 W max |
Physical & Environmental
| Dimensions (H x W x D) | 4.4 x 44.5 x 32.9 cm (1.73 x 17.5 x 12.9 in) |
| Weight | 4.53 kg (9.97 lb) |
| Form factor | 1U rack mount |
| Fans | 2 x hot-swap fans |
| Operating temperature | -5°C to 45°C |
| Humidity | 5% to 90% |
| MTBF | 508,700 hours |
Compatibility & Software Support
Management
The C9200L-48T-4G-M is the Meraki-managed (-M) version of the Catalyst 9200L and is configured through the Cisco Meraki dashboard. Cisco notes that a standard Catalyst 9200L can also be migrated to a Meraki-managed persona, where it functions as its 9200L-M equivalent.
Meraki licence required (sold separately)
Every Cisco Meraki hardware device requires a Meraki cloud licence to be managed, and Meraki sells licences and hardware separately — no licence is included with this switch. Meraki states that without a valid licence the equipment can no longer be configured or changed and stops passing traffic to the internet. The 48-port C9200L-M uses LIC-C9200L-48E (Enterprise) or LIC-C9200L-48A (Advanced), in 1, 3 or 5-year terms. See the Meraki Licensing FAQs.
Supported optics
1G SFP uplinks support Meraki MA-SFP-1GB-SX and MA-SFP-1GB-LX10 modules.
Warranty
Sold by SourceIT as a Singapore unit. Cisco states a full lifetime hardware warranty with next-day advanced replacement for the Catalyst 9200L-M (accessories such as SFP modules, stacking cables and power cords carry a 1-year warranty) in its data sheet. Keep your SourceIT invoice as proof of purchase for warranty claims.
Package Contents & Cisco Meraki Catalyst 9200L-M Ordering Information
In the Box
- Cisco C9200L-48T-4G-M switch
- 1 x default power supply (PWR-C5-125WAC)
- Rack mount brackets
- 2 x pre-installed fans
Stacking adapters are not included; order the C9200L-STAK-KIT-M for each switch that will be stacked.
Cisco Meraki Catalyst 9200L-M Family
| Model | Key difference |
| C9200L-24T-4G-M | 24 x 1G data, 4 x 1G SFP, 125 W PSU |
| C9200L-24P-4G-M | 24 x 1G PoE+, 4 x 1G SFP |
| C9200L-48T-4G-M (this listing) | 48 x 1G data, 4 x 1G SFP, 125 W PSU |
| C9200L-48P-4G-M | 48 x 1G PoE+ (740 W / 1,440 W), 4 x 1G SFP, 1 kW PSU |
| C9200L-48PL-4G-M | 48-port PoE+ variant, 4 x 1G SFP |
| C9200L-24T-4X-M / 48T-4X-M | 10G SFP+ uplink versions |
| C9200L-STAK-KIT-M | Stack kit: two adapters and one 50 cm stack cable |
| Cisco Catalyst 9200L C9200L-48P-4G-E | Same 48-port PoE+ hardware with Cisco DNA Network Essentials licensing |
Datasheet & Downloads
| Document | Link |
| Catalyst 9200L-M Datasheet | documentation.meraki.com |
| Catalyst 9200L-M Series Installation Guide | documentation.meraki.com |
| Cisco Catalyst 9200 Series data sheet | cisco.com |
| Meraki Licensing FAQs | documentation.meraki.com |
Frequently Asked Questions — Cisco C9200L-48T-4G-M
Does the C9200L-48T-4G-M need a licence?
Yes. A Meraki licence (LIC-C9200L-48E or LIC-C9200L-48A) is required for cloud management and is sold separately.
Does the C9200L-48T-4G-M support PoE?
No, it is a data-only model. The C9200L-48P-4G-M is the PoE+ version.
Can it be stacked?
Yes, using the optional C9200L-STAK-KIT-M (two stack adapters and a 50 cm cable). Stack ports are not active without the kit.
How is it different from a C9200L-...-E or -A model?
The -M model is the Meraki-managed version, configured through the Meraki dashboard with a Meraki licence. The -E (Network Essentials) and -A (Network Advantage) models are the Cisco DNA-licensed versions of the same hardware.
What warranty applies?
Cisco Meraki lists a full lifetime hardware warranty with next-day advanced replacement for the Catalyst 9200L-M.
