Avocor H Series AVH-8620 86" 4K UHD PCAP Interactive Touch Display
Shipping calculated at checkout.
PRODUCT DESCRIPTION
Avocor H Series AVH-8620 86" 4K UHD PCAP Interactive Touch Display (AVH-8620) - 3 Years Warranty

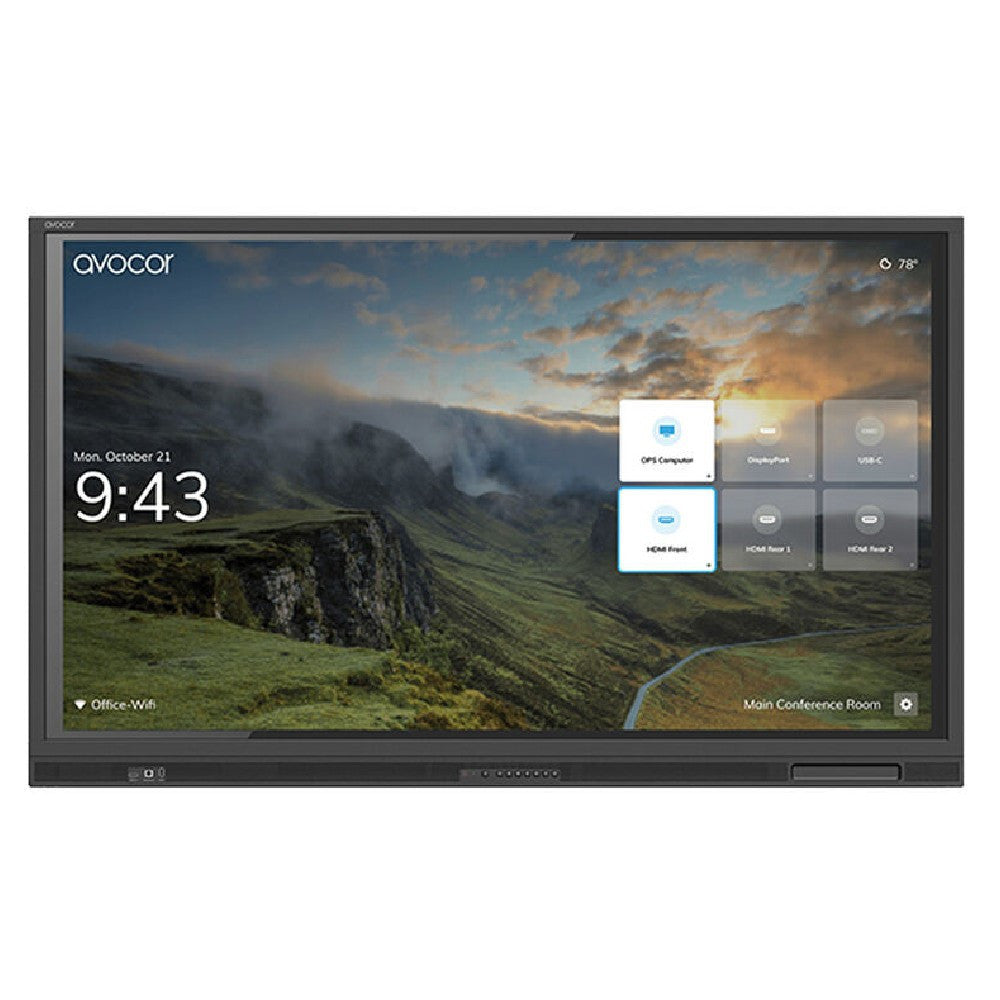

The Avocor H Series AVH-8620 is a 86-inch 4K UHD interactive display with a 3 mm ultra-thin bezel, 40-point PCAP touch on 2 mm optically bonded glass, 100W USB-C single-cable BYOD and Avocor UiQ and FUSE built in - a sleek, UC-agnostic collaboration display for meeting rooms of every size.
Key Features
- 86" 4K UHD (3840 x 2160) direct-lit LED panel, 400 cd/m2, 5000:1 contrast, 10-bit colour, 8 ms response.
- Up to 40-point projected capacitive (PCAP) touch with stylus; 2 mm zero-parallax optically bonded anti-glare, anti-fingerprint glass.
- Ultra-thin 3 mm bezel with edge-to-edge glass; 24 GHz radar presence sensor and ambient light sensor.
- USB-C with 100W power delivery for single-cable BYOD; 4 x HDMI 2.0 (HDCP 2.3), DisplayPort 1.4, HDMI out; OPS slot; Wi-Fi 6 module included.
- Avocor UiQ touch interface, FUSE cloud remote management, DisplayNote Montage, Rise Vision and Lucidspark; UC platform agnostic (Teams, Zoom, Webex).
- NDAA and TAA compliant; 2 x 16W spatial-stereo speakers; wall mount included.
Avocor AVH-8620 Datasheet — Technical Specifications
General
| Product Name | Avocor H Series AVH-8620 86" 4K UHD PCAP Interactive Touch Display |
| Brand | Avocor |
| Part Number | AVH-8620 |
| Series | Avocor H Series |
| Warranty | 3 years (Avocor Asia region, return to base); optional 2-year extension available (AVC-EW-H86) |
| Compliance | NDAA and TAA compliant; Google EDLA certified |
| Country of Origin | China (per distributor price list) |
Display
| Screen Size | 86" (16:9, landscape) |
| Panel | LCD, direct-lit LED backlight |
| Resolution | 3840 x 2160 (4K UHD) @ 60Hz |
| Brightness | 400 cd/m2 (with bonded glass) |
| Contrast Ratio | 5000:1 |
| Response Time | 8 ms |
| Viewing Angle | 178 / 178 degrees |
| Colour | 10-bit, 1.07 billion colours |
| Bezel | 3 mm all sides |
| Glass | 2 mm zero-parallax optically bonded, anti-glare, anti-fingerprint |
Touch
| Touch Technology | Projected capacitive (PCAP) |
| Touch Points | Up to 40 points + 1 stylus (40-point in Windows PC mode; Linux single touch) |
| Touch Interface | 2 x USB-B 2.0, 1 x USB-C |
| Supported OS | Windows 8 and later, macOS, Linux |
Sensors & Audio
| Sensors | 24 GHz radar presence detector, ambient light sensor |
| Speakers | 2 x 16W spatial-stereo, downward facing |
| Microphone / Camera | None / None |
Connectivity
| Top | 1 x USB-A 3.0 hub |

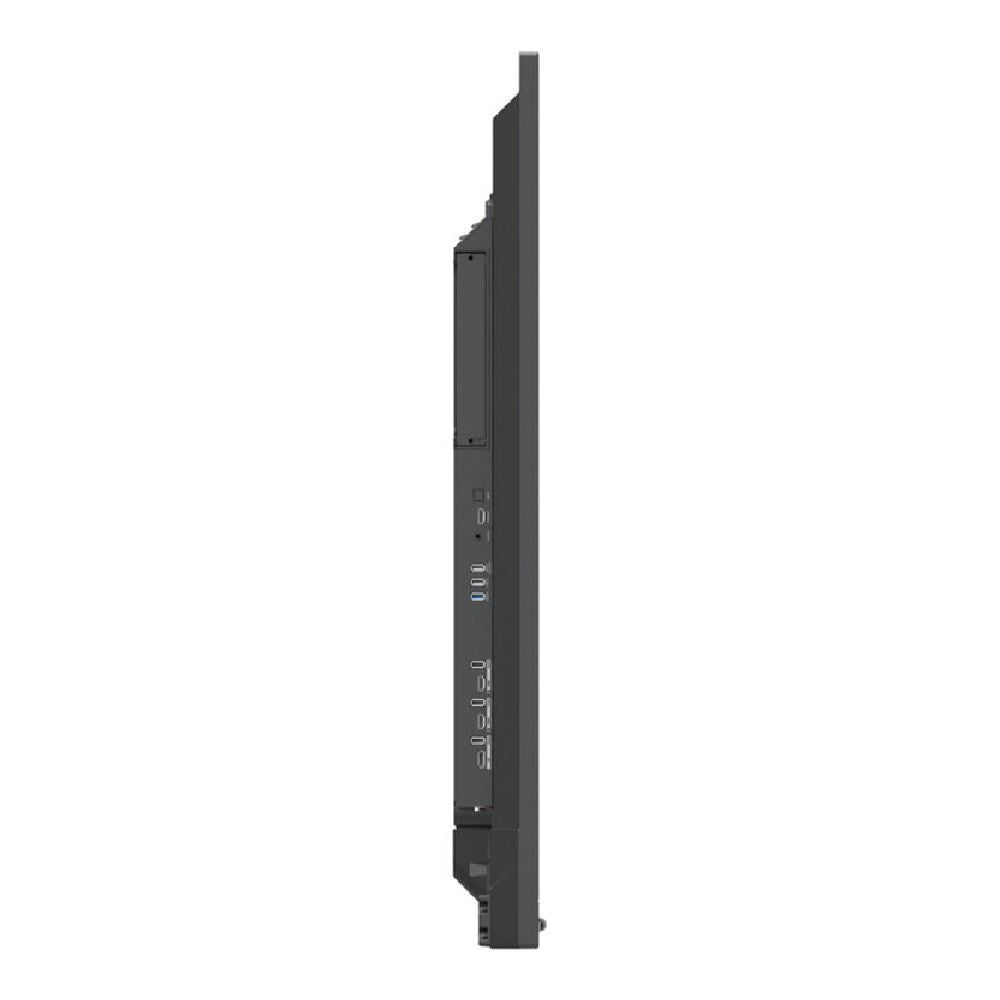

| Side | 1 x USB-C (100W PD when no OPS installed), 4 x HDMI 2.0 (HDCP 2.3), 1 x DisplayPort 1.4, 3 x USB-B 2.0, 2 x USB-A 3.0 hub, 1 x USB-A service, 1 x HDMI 2.0 out |
| Audio | 1 x 3.5 mm audio out, 1 x optical S/PDIF |
| Control / Network | 1 x RS-232, 2 x RJ-45 LAN |
| OPS Slot | Yes (1) |
| Wi-Fi | Pluggable Wi-Fi 6 (802.11ax) module included |
| IPC Mount | 100 x 100 mm and 80 x 80 mm |
Power & Physical
| Max Power | 390W |
| Operating Temperature | 0 to 40 C, 20-85% humidity |
| Dimensions (W x D x H) | 1962 x 80 x 1141 mm |
| Shipping Dimensions | 2110 x 225 x 1270 mm |
| Net / Gross Weight | 61 kg / 81 kg |
| VESA | 800 x 600 mm (wall mount included) |
| Handles | 2 |
Compatibility & Software Support
Meeting Platforms
| Microsoft Teams / Zoom / Webex | UC platform agnostic - runs on an OPS PC or a connected PC; CollabTouch bundles with Logitech Rally Bar or Jabra PanaCast 50 |
| BYOD | Single-cable USB-C (100W PD) or HDMI; monitor-only mode |
Software Included
| Avocor UiQ | Tile-based touch interface |
| Avocor FUSE | Cloud remote device management |
| DisplayNote Montage | Wireless screen sharing |
| Rise Vision | Digital signage |
| Lucidspark | Cloud whiteboarding |
| DisplayNote Launcher | Requires a Windows OPS PC |
Expansion
| OPS PC modules | i5 Gen 11 OPS, i7 Gen 11 OPS, i7 Gen 12 OPS, Google EDLA Android OPS |
| CollabTouch kit | Avocor CollabTouch Accessory Kit ACT-RBK |
| Powered stylus | H Series Powered Stylus PENPLUS-LP (2 per set) |
| Mobile stand | Avocor Mobile Stand AVC-STND1 |
| Extended warranty | 2-Year Extended Warranty AVC-EW-H86 |
Package Contents & H Series Ordering Information
In the Box
- 1 x Remote control with batteries
- 2 x Soft-tip passive styluses
- 1 x Wall mount
- AC power cords (UK, EU, US, AUS)
- 1 x USB-B 3.0 cable (3 m)
- 1 x USB-C cable (1.8 m)
- 1 x HDMI cable (3 m)
- 1 x Wi-Fi module
- 1 x Quick start guide
Avocor H Series Interactive Displays
Datasheet & Downloads
| Product page | Avocor H Series |
| Datasheet | Avocor H Series Datasheet (PDF) |
| Support | Avocor H Series Support |
| Warranty | Avocor Global Warranty by Region |
Frequently Asked Questions — Avocor AVH-8620
PCAP or IR touch?
The H Series uses projected capacitive touch, the same technology as a tablet, for fast, accurate writing with finger or stylus on bonded glass.
Can I power my laptop from the display?
Yes. The side USB-C port delivers up to 100W when no OPS module is installed, carrying video, touch and power on one cable.
Does it include wireless sharing?
Yes, DisplayNote Montage is built in; Avocor FUSE provides free cloud management.
What warranty applies in Singapore?
3 years return to base under Avocor's Asia-region warranty; a 2-year extension (AVC-EW-H86) is available.
