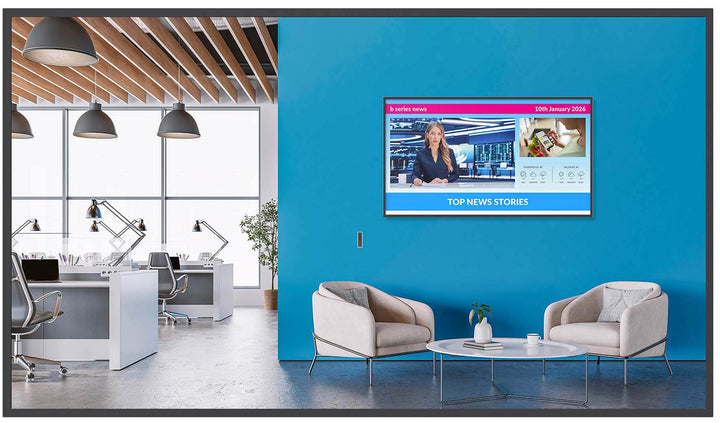

Avocor B Series AVB-8610 86" 4K UHD 700-nit Digital Signage Display
Shipping calculated at checkout.
PRODUCT DESCRIPTION
Avocor B Series AVB-8610 86" 4K UHD 700-nit Digital Signage Display (AVB-8610) - 3 Years Warranty
The Avocor B Series AVB-8610 is a 86-inch professional 4K UHD digital signage display rated for 24/7 operation in portrait or landscape, with 700-nit brightness for bright indoor spaces, an embedded Android 14 SoC, an 80-pin OPS slot and a slim 70 mm profile - CMS-agnostic signage for corporate, retail, transport and hospitality.
Key Features
- 86" 4K UHD (3840 x 2160) direct-lit LED panel, 700 nit, 4000:1 contrast, 6.5 ms response, >=90% DCI-P3.
- 24/7 operation, landscape or portrait; slim 70 mm profile with even ~13 mm bezels; fanless.
- Embedded Android 14 SoC (8-core Cortex-A72/A53, 4GB RAM / 64GB) for player-free signage; 80-pin OPS slot for Windows, MDEP, Chrome OS or Google EDLA modules.
- 2 x HDMI 2.0 in, HDMI 2.0 out for daisy-chaining, Gigabit LAN, RS-232 and IP control; Wi-Fi 5.
- CMS-agnostic: Rise Vision preloaded, with Korbyt, Spectrio, Appspace, BrightSign, NowSignage and more supported; FUSE zero-touch provisioning and remote management.
- 2 x 10W speakers; wall mount bracket and 3 m HDMI cable included; NDAA compliant.
Avocor AVB-8610 Datasheet — Technical Specifications
General
| Product Name | Avocor B Series AVB-8610 86" 4K UHD 700-nit Digital Signage Display |
| Brand | Avocor |
| Part Number | AVB-8610 |
| Series | Avocor B Series (B-10) digital signage |
| Warranty | 3 years (Avocor Asia region, return to base); optional 2-year extension available (AVC-EW-B86) |
| Compliance | NDAA compliant |
Display
| Screen Size | 86" (16:9, landscape or portrait) |
| Panel | Direct-lit LED LCD, anti-glare (25% haze), non-touch |
| Resolution | 3840 x 2160 (4K UHD) @ 60Hz |
| Brightness | 700 nit |
| Contrast Ratio | 4000:1 |
| Response Time | 6.5 ms |
| Viewing Angle | 178 / 178 degrees |
| Colour | 1.07 billion colours (8-bit + FRC), >=90% DCI-P3 / 85% NTSC |
| Bezel | 13.9 mm |
| Operation Time | 24/7 |
Android / Compute
| Operating System | Android 14 |
| Processor | 8-core ARM (4 x Cortex-A72 + 4 x Cortex-A53), Mali-G52 MC3 GPU |
| Memory / Storage | 4GB RAM / 64GB |
| OPS Slot | Yes, 80-pin (Windows 11 / Windows IoT / MDEP / Chrome OS / Google EDLA OPS optional) |
| Wi-Fi | Wi-Fi 5, 2.4 / 5 GHz |
Audio
| Speakers | 2 x 10W built-in |
Connectivity
| Inputs | 2 x HDMI 2.0, 1 x USB-A 3.0, 1 x USB-B (service) |
| Outputs | 1 x HDMI 2.0 out (4K@60Hz / 1080p@60Hz) |
| Audio | 1 x S/PDIF optical out, 1 x 3.5 mm line out |
| Control / Network | RJ-45 LAN (10/100/1000), RS-232 (DB9), IP control |
Power & Physical
| Power Consumption (typical / max) | 250 / 420W (300 / 500W with OPS) |
| Operating Temperature | 0 to 40 C, 20-80% humidity |
| Dimensions (W x H x D) | 1928.6 x 1099.2 x 69 mm |
| Shipping Dimensions | 2100 x 1250 x 230 mm |
| Net / Gross Weight | 46.9 kg / 61.6 kg |
| VESA | 700 x 500 mm (M8) (wall mount included) |
| Cooling | Fanless |
Compatibility & Software Support
Content Management
| Preloaded | Rise Vision CMS; Avocor UiQ; DisplayNote Montage; Lucidspark |
| Supported CMS partners | Korbyt, Spectrio, ComQi, Appspace, BrightSign, NowSignage and other Android APK or OPS-based players |
| Remote management | Avocor FUSE cloud DMS with zero-touch provisioning |
| Control | IR remote, RS-232, IP control; third-party control-system integration |
Expansion
| OPS PC modules | i5 Gen 11 OPS, i7 Gen 11 OPS, i7 Gen 12 OPS, Google EDLA Android OPS |
| Mobile stand | Avocor Mobile Stand AVC-STND1 |
| Extended warranty | 2-Year Extended Warranty AVC-EW-B86 |
Package Contents & B Series Ordering Information
In the Box
- 1 x Remote control with batteries
- 1 x AC power cord
- 1 x HDMI cable (3 m)
- 1 x Wall mount bracket
- 1 x Quick start guide
Avocor B Series Digital Signage Displays
Datasheet & Downloads
| Product page | Avocor B Series |
| Datasheet | Avocor B Series Datasheet |
| Brochure | Avocor B Series Brochure (PDF) |
| User manual | AVB-xx10 Series User Manual |
| Warranty | Avocor Global Warranty by Region |
Frequently Asked Questions — Avocor AVB-8610
Can it run 24/7?
Yes. The B Series is engineered for continuous 24/7 operation in landscape or portrait orientation.
Do I need a separate media player?
Not necessarily. The embedded Android 14 SoC runs Rise Vision and other CMS apps directly; an OPS slot is available for Windows or Chrome OS players.
Is it a touch display?
No. The B Series is a non-interactive signage display.
What warranty applies in Singapore?
3 years return to base under Avocor's Asia-region warranty; a 2-year extension (AVC-EW-B86) is available.
