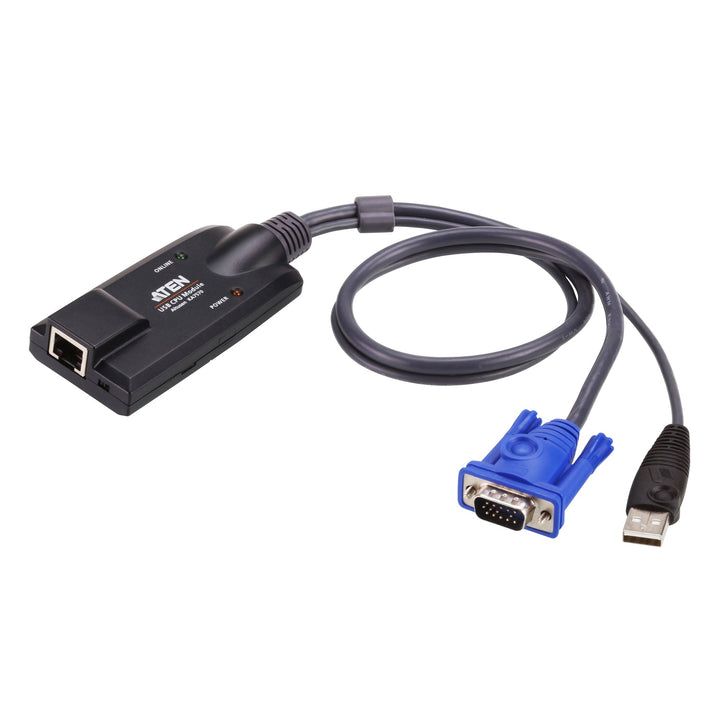

ATEN KA7570 USB VGA KVM Adapter
PRODUCT DESCRIPTION
ATEN KA7570 USB VGA KVM Adapter - 2 Years Local Warranty
Connect USB VGA Servers to a Cat 5 KVM
The ATEN KA7570 is the computer-side module for ATEN Cat 5 KVM switches. It plugs into a server's USB and VGA ports and links to the switch over standard Cat 5e/6 cable through its RJ-45 port.
Keyboard and Mouse Emulation
Emulation keeps each server running smoothly even when it is not selected or is disconnected from the switch's KVM port, avoiding keyboard errors at boot.
Up to 1920 x 1200
Supports video resolutions up to 1920 x 1200 (reduced blanking); achievable resolution depends on the cable distance supported by the connected KVM switch.
Hot Pluggable, Upgradable
Add or remove servers without powering down the switch, and benefit from lifetime firmware upgrades. A rack mount kit is included.
Planning a Cat 5 KVM installation for a server room? Email sales@sourceit.com.sg for a project quote covering switch, adapters and cabling.
ATEN KA7570 Datasheet — Technical Specifications
General
| Product Name | ATEN USB VGA KVM Adapter |
| Model | KA7570 |
| Order Code | KA7570-AX |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Link Connector | 1 x RJ-45 Female (to KVM switch) |
| Computer Connectors | 1 x USB Type-A Male, 1 x HDB-15 Male |
Video
| Max. Resolution | Up to 1920 x 1200 (reduced blanking) |
Features
| Keyboard / Mouse | Emulation |
| Hot Pluggable | Yes |
| Firmware | Upgradable |
LEDs
| Online | Green |
| Power | Orange |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
Physical
| Housing | Plastic |
| Weight | 0.15 kg |
| Dimensions (L x W x H) | 9.00 x 4.30 x 2.18 cm |
Compatibility & Applications
Compatible ATEN KVM Switches
ATEN lists the KA7570 for the KH1508A, KH1516A and KH1532A Cat 5 KVM switches, KH2508A and KH2516A 2-console switches, KH1508Ai and KH1516Ai KVM over IP switches, and the KL1508A, KL1508Ai, KL1516A and KL1516Ai LCD KVM switches.
Typical Use
Connecting USB servers with VGA video to an ATEN Cat 5 KVM switch in server rooms and data centres, using structured Cat 5e/6 cabling instead of bulky KVM cables.
Selection Tip
Order one KA7570 per server. For servers that need virtual media or smart card support, see the KA7168 (HDMI) or KA7169 (DisplayPort).
Package Contents & ATEN KVM Adapter Ordering Information
In the Box
1 x KA7570 USB KVM Adapter Cable (CPU Module), 1 x rack mount kit, 1 x rack mounting guide.
ATEN KVM Adapter Models
| Model | Key feature |
| KA7570 (this listing) | USB VGA KVM adapter |
| KA7170 | USB VGA KVM adapter with composite video support |
| KA7168 | USB HDMI virtual media KVM adapter with smart card support |
| KA7169 | USB DisplayPort virtual media KVM adapter with smart card support |
| KA7183 | USB-C virtual media KVM adapter |
| KA7189 | USB DisplayPort virtual media KVM adapter |
Datasheet & Downloads
| KA7570 datasheet | KA7570 Datasheet (PDF) |
| ATEN product page | KA7570 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting KA7570-AX.
Frequently Asked Questions — ATEN KA7570
What does the KA7570 connect to?
It connects a server's USB and VGA ports to an ATEN Cat 5 KVM switch over Cat 5e/6 cable via its RJ-45 port.
Which ATEN switches is it compatible with?
ATEN lists the KH1508A, KH1516A, KH1532A, KH2508A, KH2516A, KH1508Ai, KH1516Ai and KL1508A/KL1516A (and Ai) series.
What resolution does it support?
Up to 1920 x 1200 (reduced blanking). Resolution varies with cable distance; check the connected switch's specification.
Can I hot-plug servers?
Yes. The adapter is hot pluggable.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
