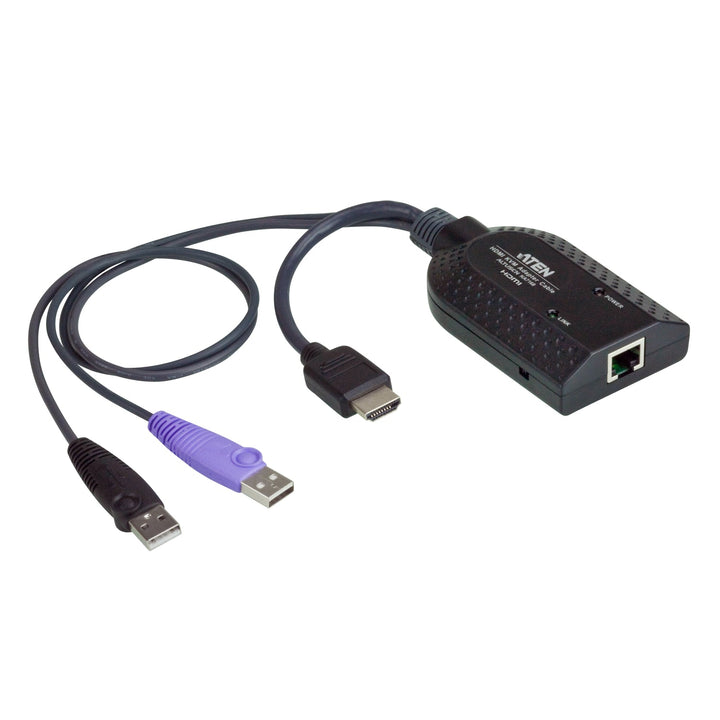

ATEN KA7168 USB HDMI Virtual Media KVM Adapter with Smart Card Support
PRODUCT DESCRIPTION
ATEN KA7168 USB HDMI Virtual Media KVM Adapter with Smart Card Support - 2 Years Local Warranty
Connect HDMI Servers to ATEN Cat 5 KVM
The KA7168 plugs into a computer's HDMI and USB ports and links it to an ATEN Cat 5 or KVM over IP switch over a standard RJ-45 cable.
Virtual Media and Smart Card Support
With compatible ATEN switches, the KA7168 supports virtual media, so remote operators can mount drives and images on the server, and smart card / CAC reader access for secure authentication.
Auto Signal Compensation
ASC tunes video for different cable lengths with no DIP switches, supporting up to 1920 x 1200 (reduced blanking).
Keeps Servers Running Smoothly
Keyboard and mouse emulation keeps the server responsive when the console is switched away. Built-in ASIC, compact housing and lifetime firmware upgrades.
Fitting out a rack with HDMI servers on ATEN KVM over IP? Email sales@sourceit.com.sg for configuration advice and volume pricing.
ATEN KA7168 Datasheet — Technical Specifications
General
| Product Name | ATEN USB HDMI Virtual Media KVM Adapter with Smart Card Support |
| Model | KA7168 |
| Order Code | KA7168-AX |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors
| Link | 1 x RJ-45 Female |
| Computer | 1 x HDMI Male, 2 x USB Type-A Male |
Video
| Maximum Resolution | 1920 x 1200 (reduced blanking); may vary with transmission distance |
| Signal Compensation | Auto Signal Compensation (ASC), no DIP switch setting needed |
Features
| Virtual Media | Supported with compatible switches |
| Smart Card / CAC Reader | Supported with compatible switches |
| Emulation | Keyboard and mouse emulation |
| Firmware | Lifetime firmware upgrades |
| LEDs | Link (green), Power (orange) |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
Physical
| Housing | Plastic |
| Weight | 0.11 kg |
| Dimensions (L x W x H) | 9.10 x 5.60 x 2.12 cm |
Compatible ATEN KVM Switches (as listed by ATEN)
| Cat 5 KVM | KH1532A, KH1508A, KH1516A, KH2508A, KH2516A |
| KVM over IP | KN2124VB, KN2132VB, KN4064VB, KN4032VB, KN4024VB, KN2116VB, KN4016VB, KN1132VB, KN8032VB, KN8064VB, KN1108VA, KN1116VA, KN2116A, KH1508Ai, KH1516Ai, KN2116VA, KN4116VA |
| LCD KVM | KL1116V, KL1108V, KL1508A, KL1508Ai, KL1516A, KL1516Ai |
| Remote Control & Monitoring | RCM416A, RCM416VA, RCM432VA, RCM464VA, RCM816A |
| Virtual media / CAC not supported on | KH1508A, KH1516A, KH1508Ai, KH1516Ai, KL1508A, KL1516A, KL1508Ai, KL1516Ai, KH2508A, KH2516A, KN2116A, KN4116, KN2132, KN4132 |
Compatibility & Applications
Typical Computers
Servers, PCs and appliances with an HDMI output and USB ports.
Typical Use
Connecting HDMI servers to ATEN KN-series KVM over IP switches for remote OS installs, patching and secure smart card logins, or to KH-series Cat 5 and KL-series LCD KVM switches for local control.
Selection Tip
Virtual media and CAC need a switch that supports them; ATEN lists models such as the KH1508A and KL1508A as not supporting these functions. For DisplayPort servers choose the KA7169.
Package Contents & ATEN KVM Adapter Ordering Information
In the Box
1 x KA7168 KVM adapter cable.
ATEN KVM Adapter Models
| Model | Key feature |
| KA7570 | USB VGA KVM adapter |
| KA7170 | USB VGA KVM adapter with composite video support |
| KA7168 (this listing) | USB HDMI virtual media KVM adapter with smart card support |
| KA7169 | USB DisplayPort virtual media KVM adapter with smart card support |
| KA7189 | USB DisplayPort virtual media KVM adapter with audio de-embedder |
| KA7183 | USB-C virtual media KVM adapter |
| KH1508A | 8-port Cat 5 KVM switch with daisy-chain |
Datasheet & Downloads
| Datasheet | KA7168 Datasheet (PDF) |
| ATEN product page | KA7168 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting KA7168-AX.
Frequently Asked Questions — ATEN KA7168
Which KVM switches is it for?
ATEN lists KH-series Cat 5 switches (KH1508A, KH1516A, KH1532A, KH2508A, KH2516A), KN-series KVM over IP switches, KL-series LCD KVM switches and RCM-series units. See the full list in the specifications.
Will virtual media work on every listed switch?
No. ATEN states virtual media and CAC reader functions are not supported on KH1508A, KH1516A, KH1508Ai, KH1516Ai, KL1508A, KL1516A, KL1508Ai, KL1516Ai, KH2508A, KH2516A, KN2116A, KN4116, KN2132 and KN4132.
Why are there two USB plugs?
The adapter connects to the computer with one HDMI and two USB Type-A plugs, carrying keyboard/mouse and the virtual media and smart card functions.
What resolution does it support?
Up to 1920 x 1200 (reduced blanking), depending on transmission distance.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
