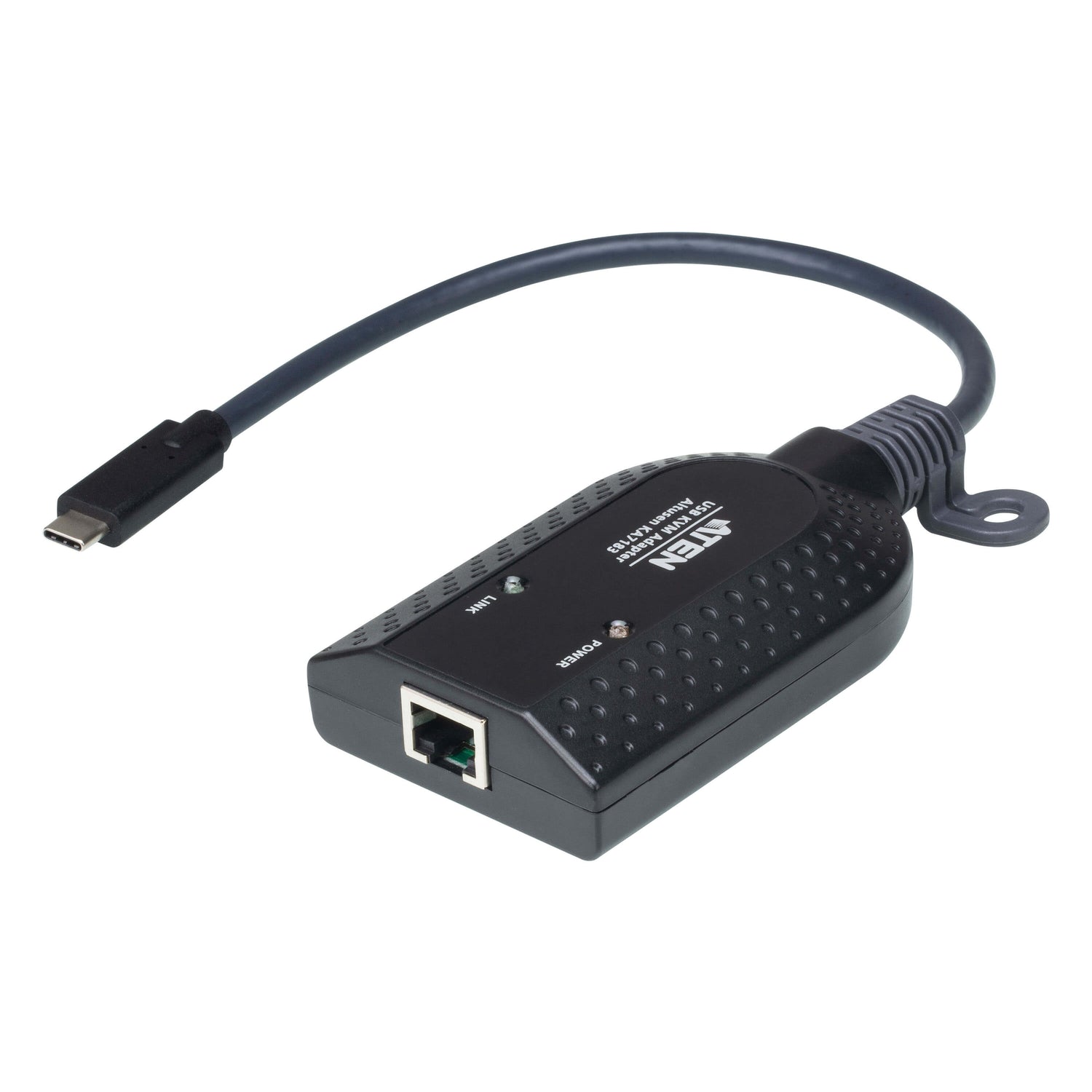

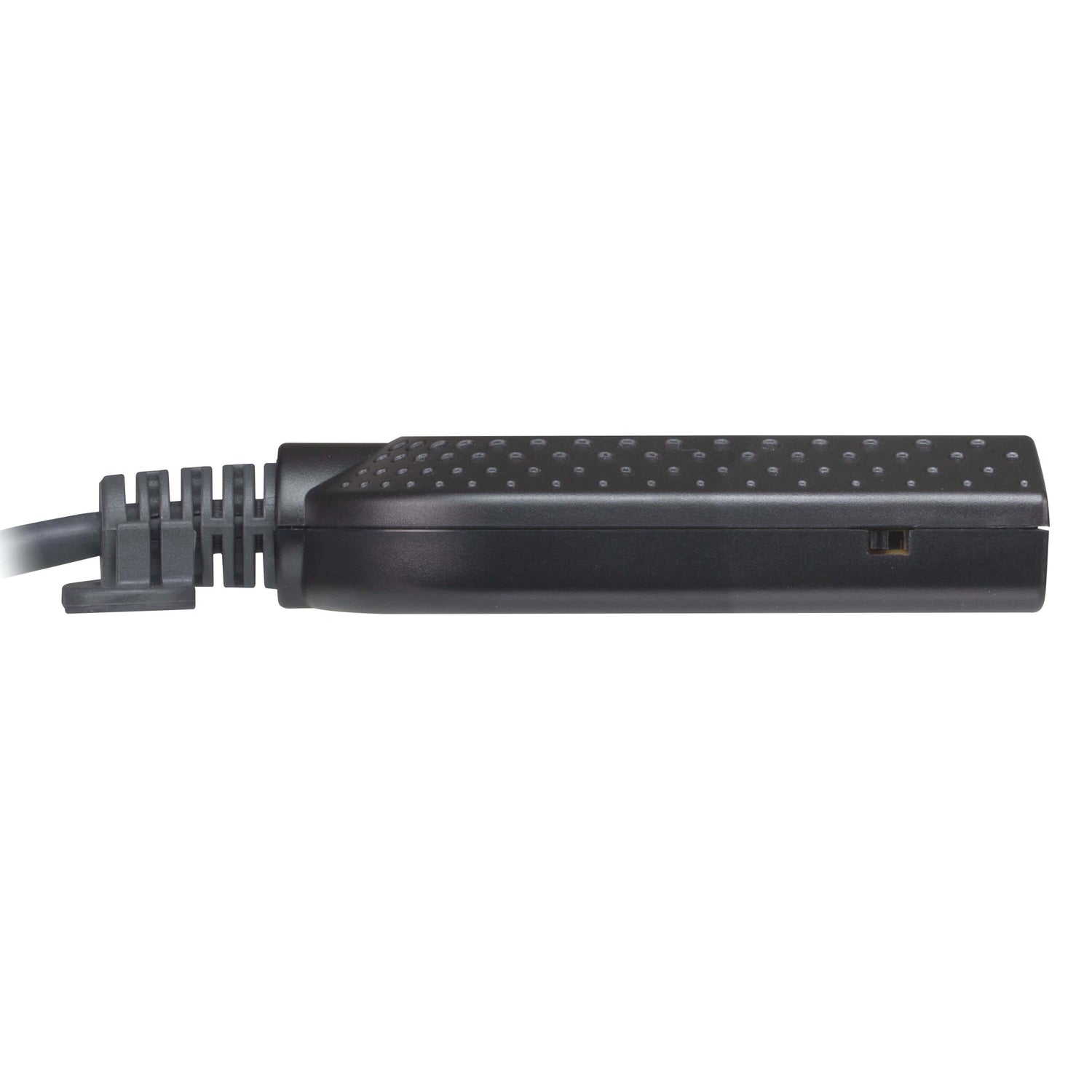

ATEN KA7183 USB-C Virtual Media KVM Adapter
PRODUCT DESCRIPTION
ATEN KA7183 USB-C Virtual Media KVM Adapter - 2 Years Local Warranty
One USB-C Plug to the Computer
The KA7183 connects a computer to an ATEN Cat 5 KVM switch through a single USB-C connector, carrying video and USB keyboard/mouse in one plug, with an RJ-45 link to the switch.
Full HD Video
Supports Full HD up to 1920 x 1200, with Auto Signal Compensation so no DIP switches need setting for different cable lengths.
Virtual Media and Smart Card
Supports virtual media and smart card / CAC readers with compatible ATEN switches, plus keyboard and mouse emulation to keep the computer running smoothly.
Hot Pluggable, With Holder Kit
Hot-plugging support and a built-in ASIC; a USB holder kit is included to keep the connection secure.
Bringing USB-C machines onto an ATEN Cat 5 KVM? Email sales@sourceit.com.sg for configuration advice and volume pricing.
ATEN KA7183 Datasheet — Technical Specifications
General
| Product Name | ATEN USB-C Virtual Media KVM Adapter |
| Model | KA7183 |
| Order Code | KA7183-AX |
| Local Warranty (Singapore) | 2 years carry-in warranty |
Connectors

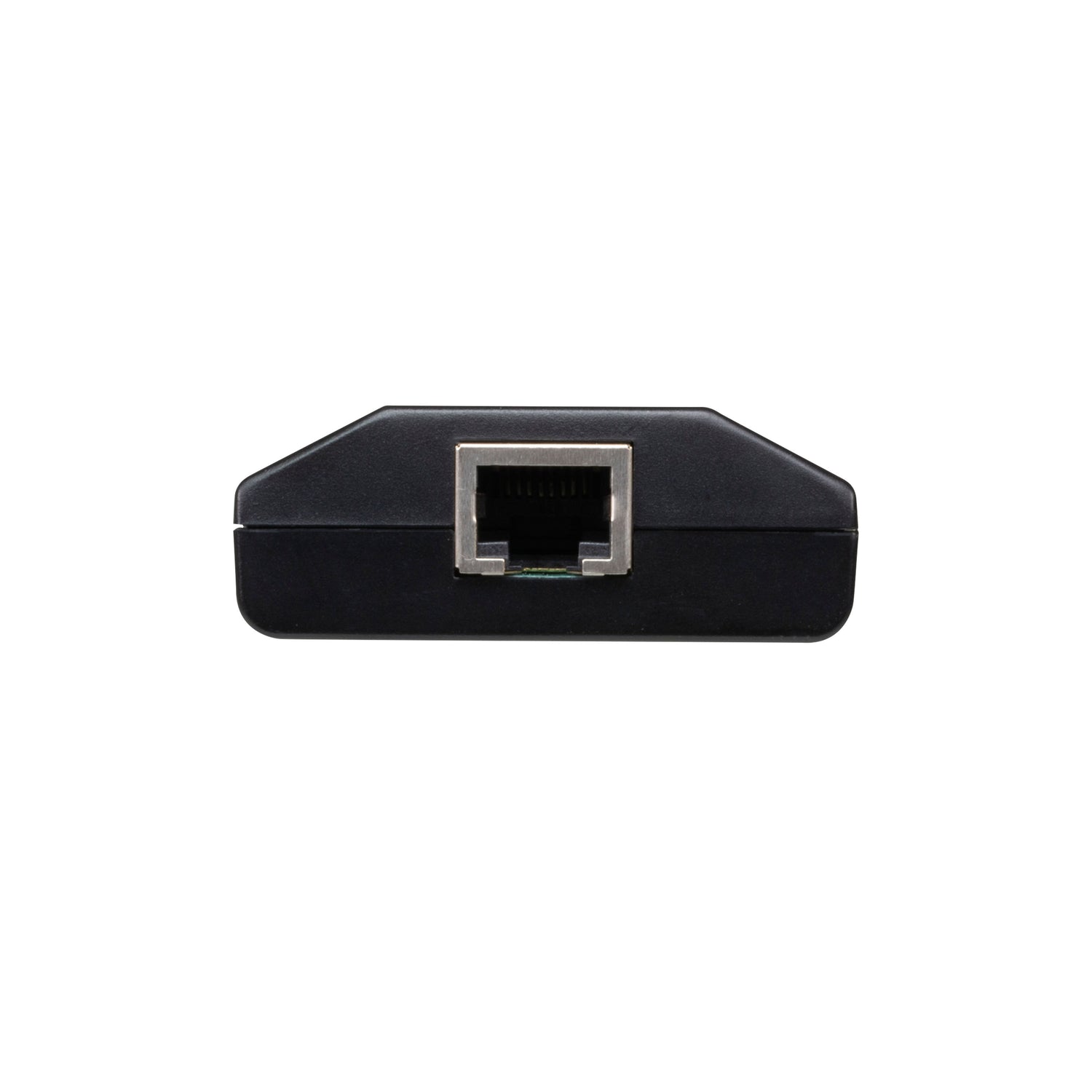

| Link | 1 x RJ-45 Female |
| Computer | 1 x USB Type-C Male |
Video
| Maximum Resolution | Full HD up to 1920 x 1200; may vary with transmission distance |
| Signal Compensation | Auto Signal Compensation (ASC), no DIP switch setting needed |
Features
| Virtual Media | Supported with compatible switches |
| Smart Card / CAC Reader | Supported with compatible switches |
| Emulation | Keyboard and mouse emulation |
| Hot Pluggable | Yes |

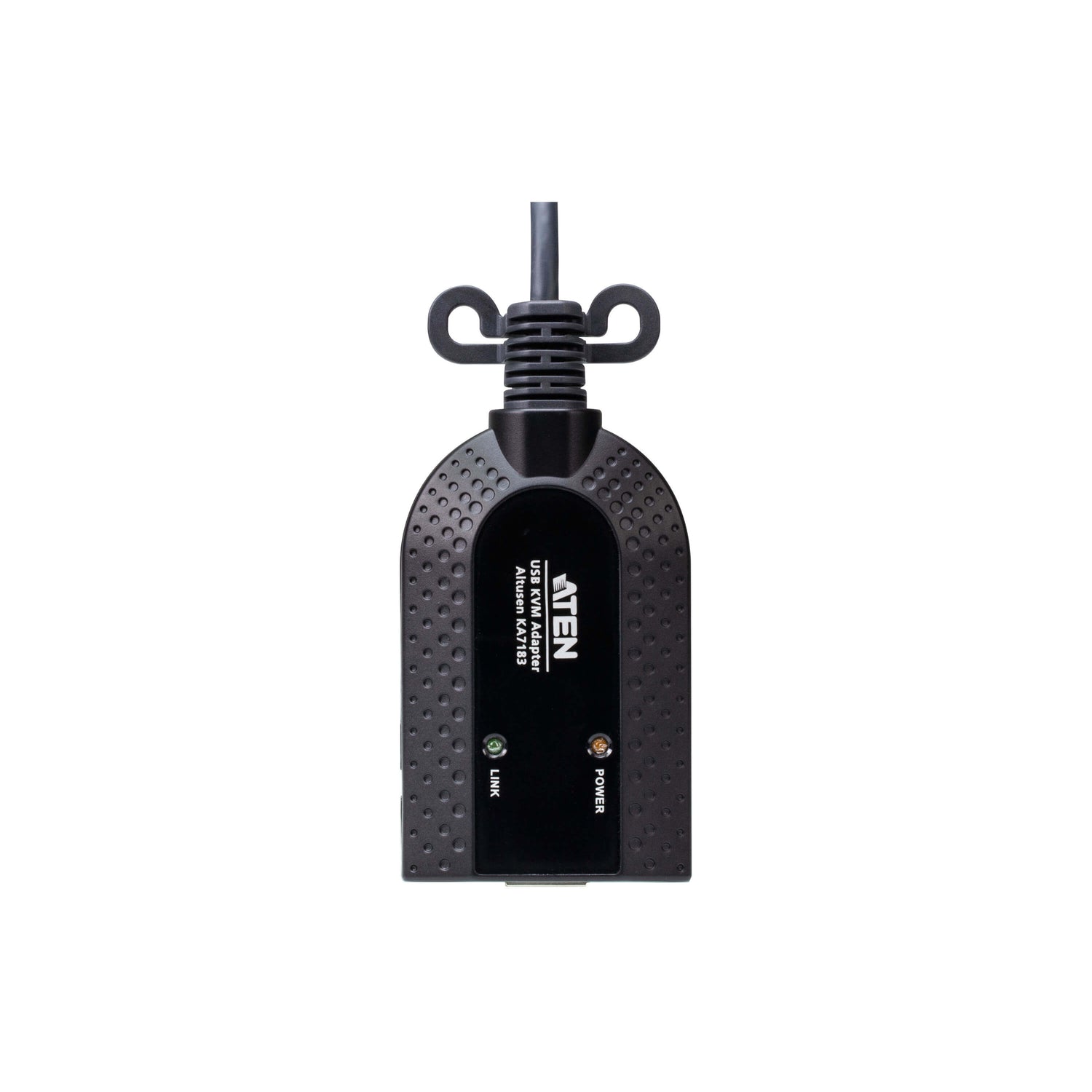

| LEDs | Link (green), Power (orange) |
Power
| Power Consumption | DC 5 V, 2.61 W (12 BTU) |
Environmental
| Operating Temperature | 0–50 °C |
| Storage Temperature | -20–60 °C |
Physical
| Housing | Plastic |
| Weight | 0.07 kg |
| Dimensions (L x W x H) | 9.10 x 5.60 x 2.12 cm |
Compatible ATEN KVM Switches (as listed by ATEN)
| Cat 5 KVM | KH1508A / KH1516A / KH1532A (FHD version) |
| LCD KVM | KL1508A / KL1516A (FHD version) |
Compatibility & Applications
Typical Computers
Laptops, mini PCs and other computers that use a USB-C port for display and USB connection.
Typical Use
Adding USB-C computers to an existing ATEN KH-series Cat 5 KVM switch or KL-series LCD KVM switch in server rooms, labs and control rooms.
Selection Tip
ATEN lists the FHD versions of the KH1508A, KH1516A, KH1532A, KL1508A and KL1516A for this adapter; check ATEN's KVM adapter compatibility list for your switch before ordering.
Package Contents & ATEN KVM Adapter Ordering Information
In the Box
1 x KA7183 USB-C Virtual Media KVM Adapter, 1 x USB holder kit, 1 x user instructions.
ATEN KVM Adapter Models
| Model | Key feature |
| KA7570 | USB VGA KVM adapter |
| KA7170 | USB VGA KVM adapter with composite video support |
| KA7168 | USB HDMI virtual media KVM adapter with smart card support |
| KA7169 | USB DisplayPort virtual media KVM adapter with smart card support |
| KA7189 | USB DisplayPort virtual media KVM adapter with audio de-embedder |
| KA7183 (this listing) | USB-C virtual media KVM adapter |
| KH1508A | 8-port Cat 5 KVM switch with daisy-chain |
Datasheet & Downloads
| Datasheet | KA7183 Datasheet (PDF) |
| ATEN product page | KA7183 on aten.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting KA7183-AX.
Frequently Asked Questions — ATEN KA7183
Which KVM switches is it for?
ATEN lists the KH1508A, KH1516A, KH1532A, KL1508A and KL1516A (FHD version).
How does it connect to the computer?
With a single USB Type-C plug that carries video and USB.
What resolution does it support?
Full HD up to 1920 x 1200, depending on transmission distance.
Does it support virtual media?
Yes, along with smart card / CAC reader support, with compatible ATEN switches.
What warranty do I get?
2 years local carry-in warranty. Supplied by SourceIT with a GST invoice.
