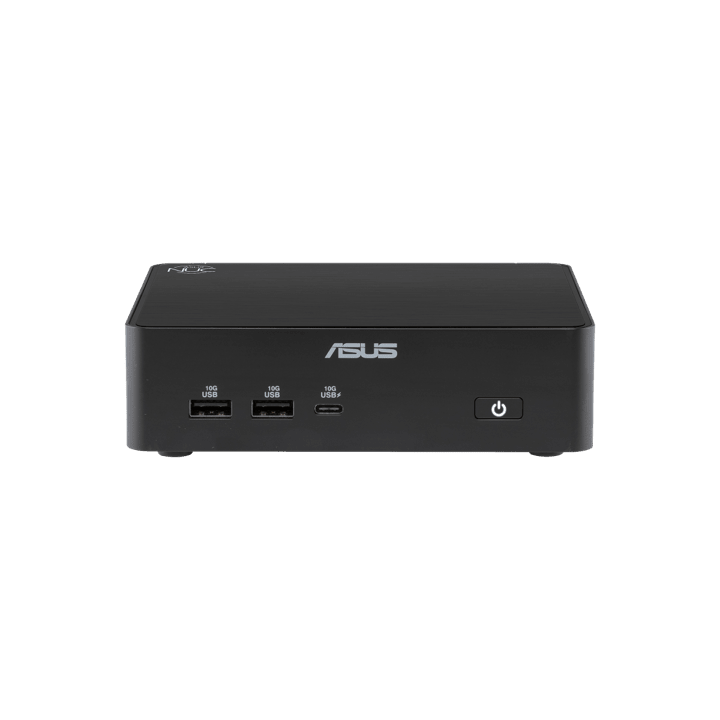

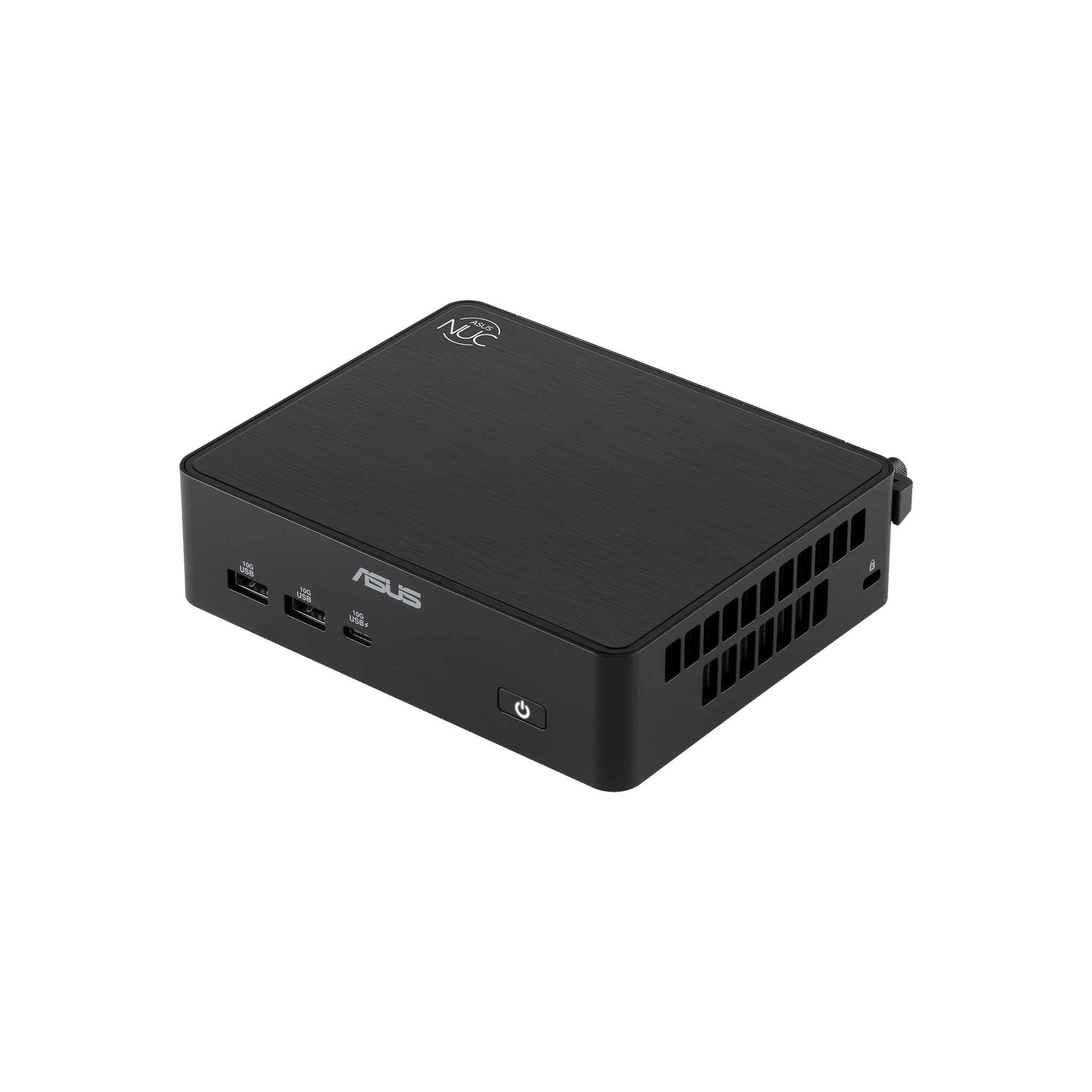

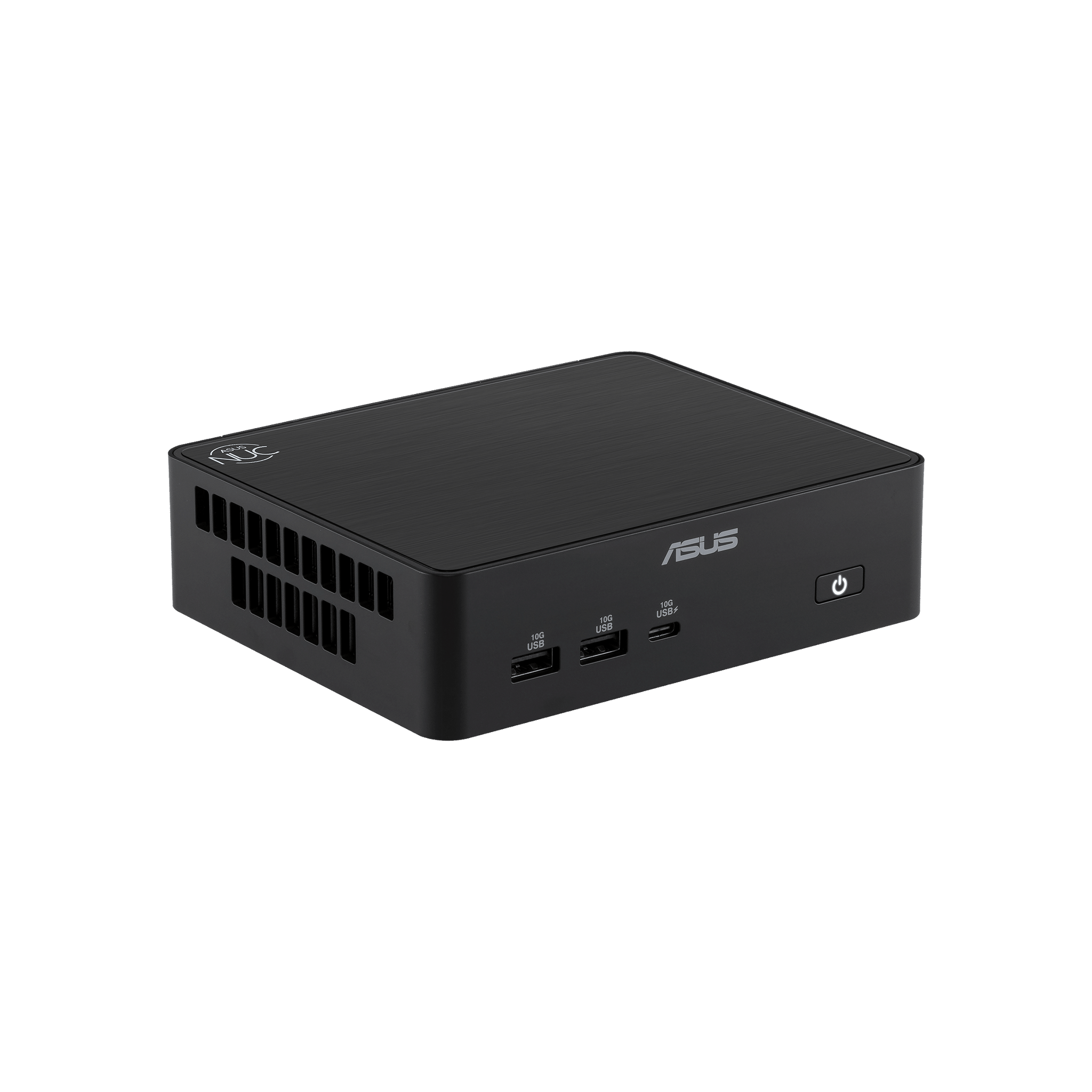

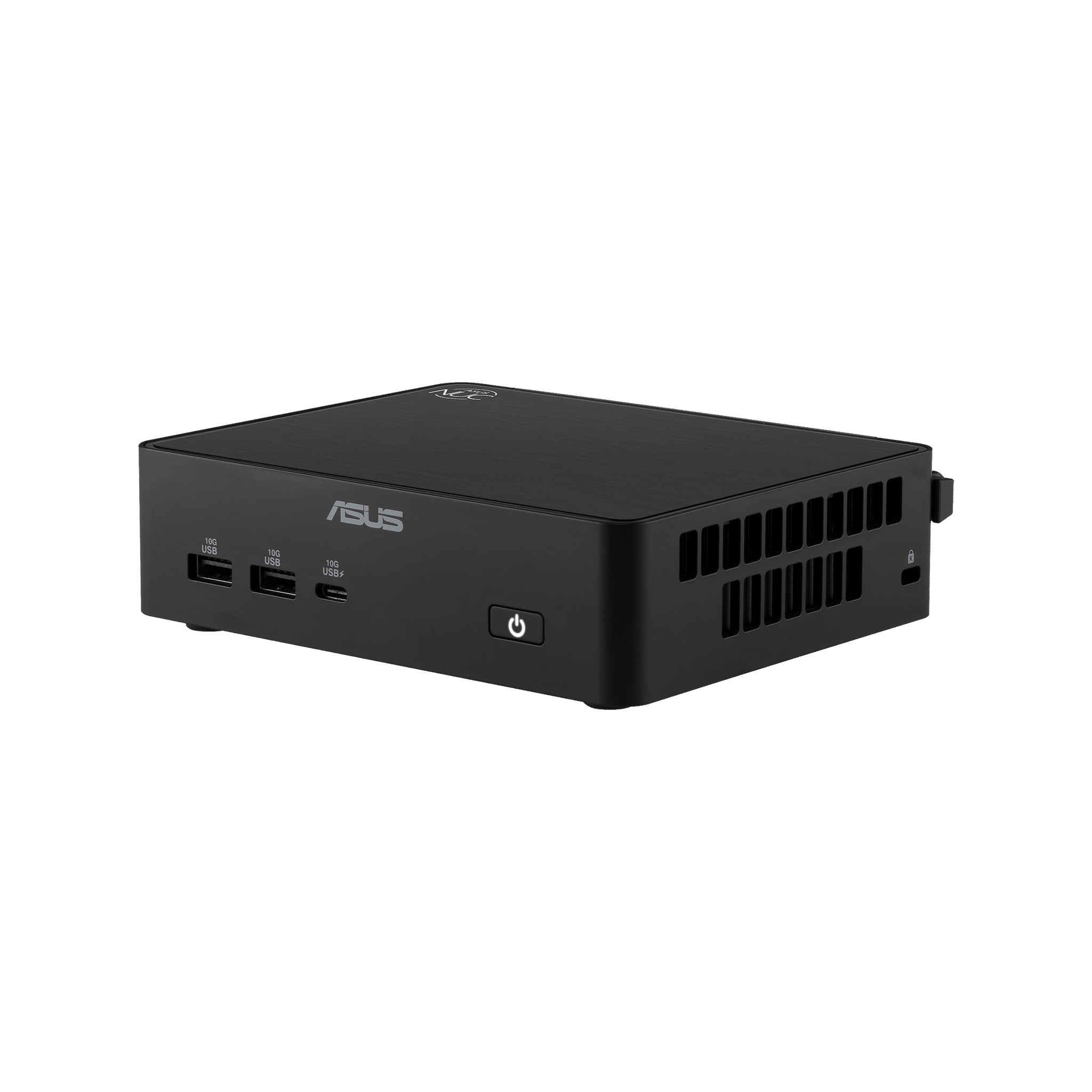

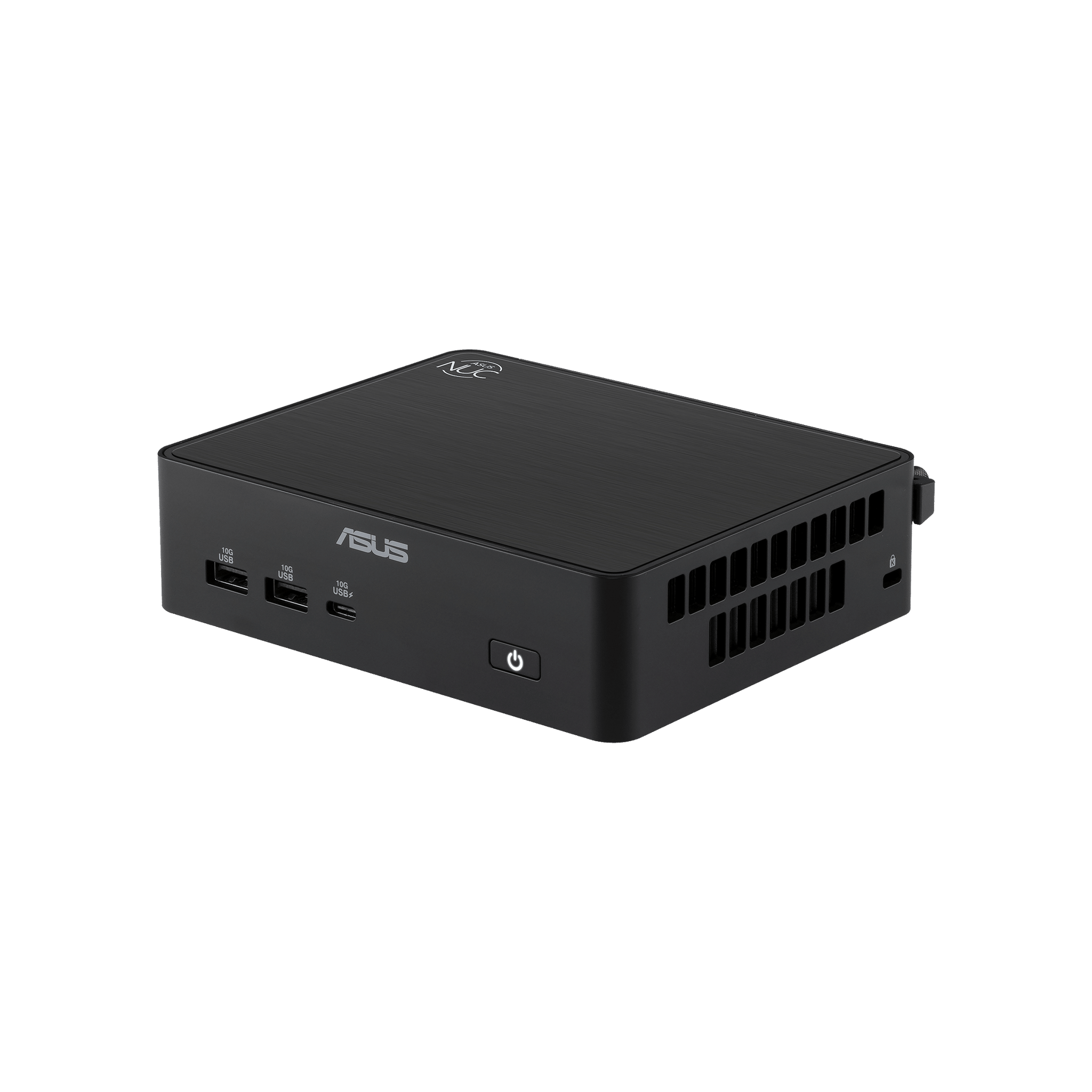

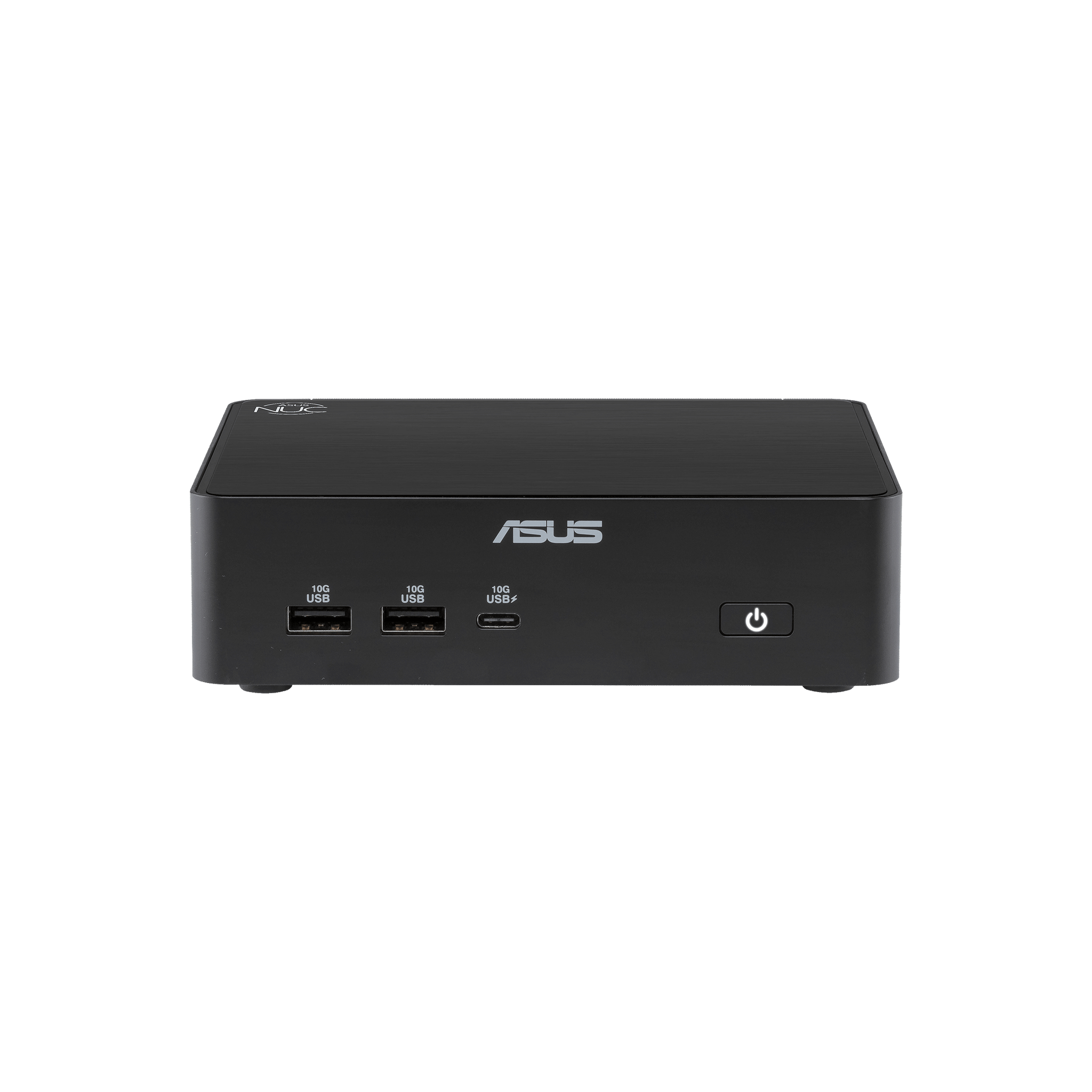

ASUS NUC 16 PRO Intel Ultra x9 388H/ LPDDR5 32GB/ 1TB/ Win 11 Pro
PRODUCT DESCRIPTION
ASUS NUC 16 Pro Intel Core Ultra X9 388H / LPDDR5 32GB / 1TB SSD / Windows 11 Pro (RNUC16GDKX96C4N3) - 3 Years Onsite Local Warranty
The Fastest Processor in the NUC 16 Pro Range, 32 GB Configuration
The ASUS NUC 16 PRO RNUC16GDKX96C4N3 is a complete Windows 11 Pro system built on Intel's Panther Lake platform: the Intel Core Ultra X9 388H — the top processor tier ASUS offers in the NUC 16 Pro line — 32 GB of high-bandwidth LPDDR5x memory and a 1 TB NVMe SSD are already fitted, ready to sign in as soon as a monitor, keyboard and mouse are connected. For a Singapore business running CPU or GPU-bound workloads on a mini PC footprint, this is the performance configuration in the range, at a lower entry cost than the 64 GB sibling below.
Intel Core Ultra X9 388H — Panther Lake, Intel Arc B390 Graphics
The Core Ultra X9 388H is a 16-core processor and the highest processor tier ASUS fits to the NUC 16 Pro, paired with the same Intel Arc B390 integrated GPU used across the Panther Lake tier of this range. Against the Core Ultra X7 358H one step below it, the X9 388H delivers a higher core clock ceiling for CPU-bound work — video encoding, compilation, virtualisation and similar sustained-load tasks — while sharing the same GPU and NPU. The on-chip Intel AI Boost NPU is the Panther Lake generation, a step up from the earlier-platform Core Ultra 5/7 configurations elsewhere in our catalogue.
32 GB Soldered LPDDR5x — Faster, but Fixed
Memory ships as 32 GB of LPDDR5x, soldered directly to the board rather than fitted as removable SO-DIMM modules. LPDDR5x runs at materially higher effective bandwidth than DDR5 SO-DIMM, which matters directly to the Arc B390 GPU that draws all its bandwidth from system memory — but the capacity is fixed at the factory. If 32 GB may not be enough headroom for your workload, particularly running local AI models or heavy virtualisation, order the 64 GB configuration (RNUC16GDKX96D4N3) instead of planning to upgrade this one, since a field upgrade is not possible.
1 TB NVMe SSD, Storage Expansion Available
Storage is a 1 TB M.2 NVMe PCIe SSD. Unlike the soldered memory, storage on this chassis remains a conventional M.2 slot, and the platform supports additional M.2 storage if 1 TB is eventually outgrown — ask SourceIT to fit a second drive before delivery.
Dual Thunderbolt 4, Dual HDMI 2.1, Dual 2.5G LAN

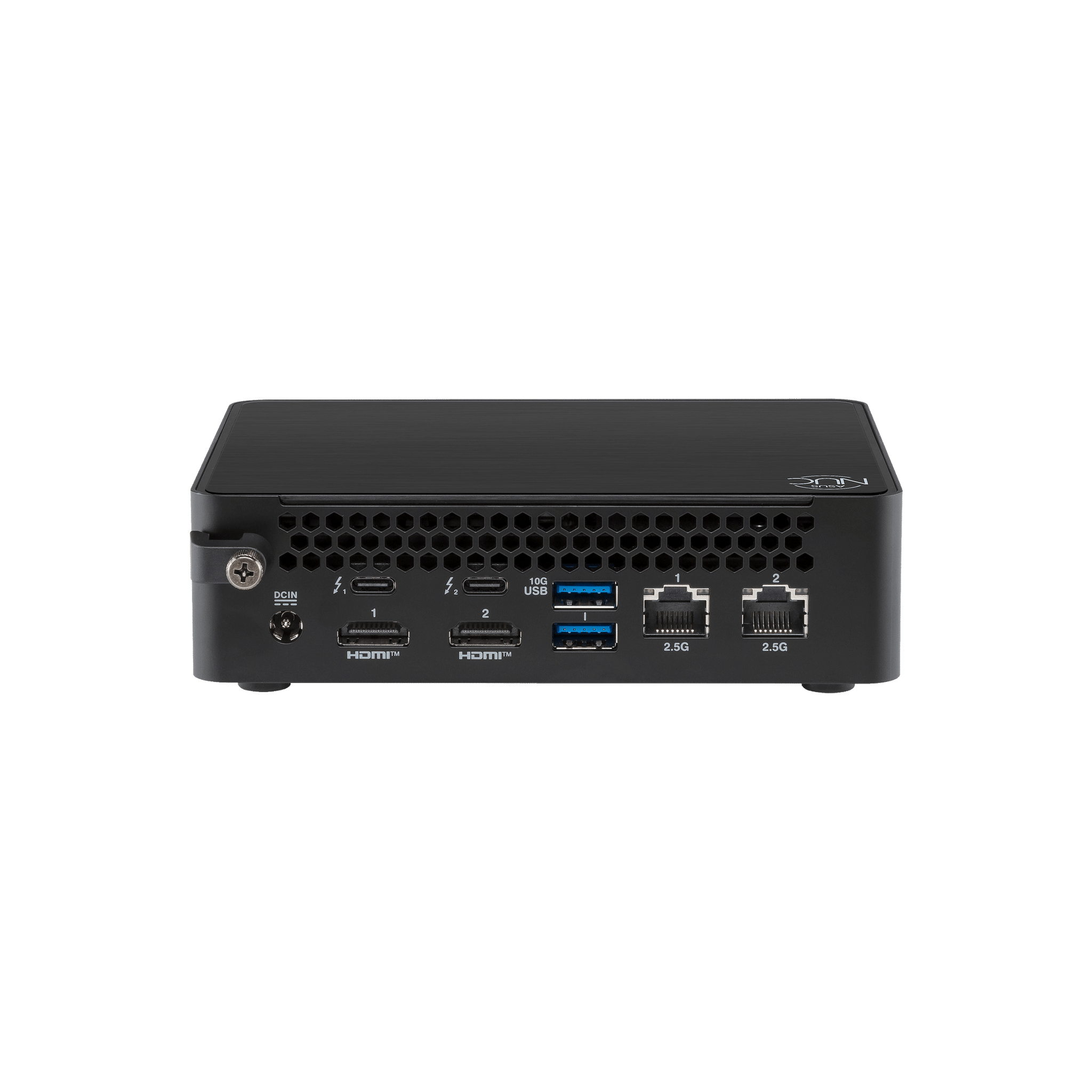

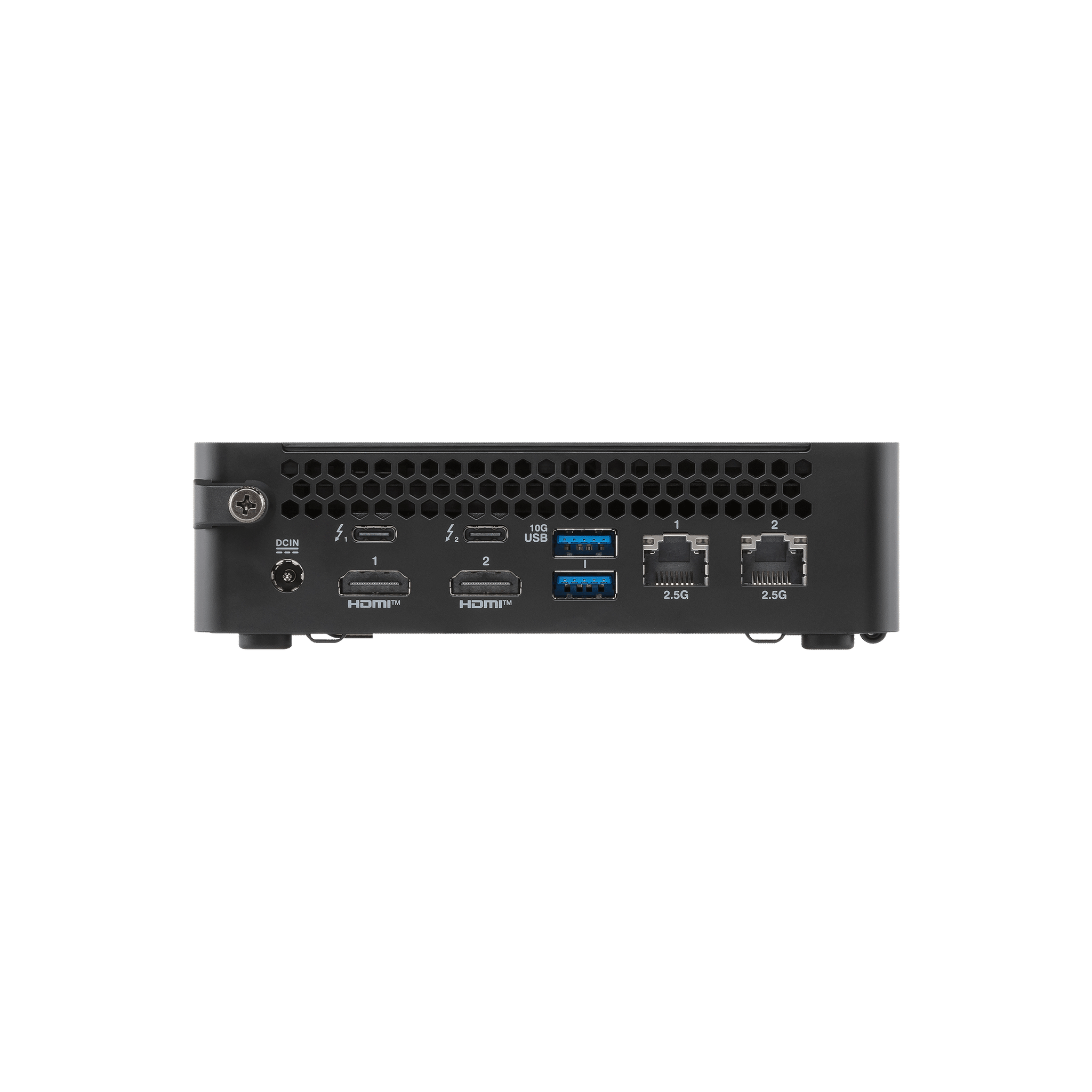

Display output is two Thunderbolt 4 Type-C ports (DisplayPort 2.1 capable) plus two HDMI 2.1 ports. Wired networking is dual Intel I226-V 2.5 Gigabit Ethernet, wireless is Intel Wi-Fi 7 with Bluetooth 6.0. The chassis measures a compact 144 x 117 x 42 mm.
Deploying a Fleet Across Both Platform Tiers
Because ASUS kept the external chassis dimensions and VESA mounting pattern identical across both the SO-DIMM and Panther Lake tiers of the NUC 16 Pro, a Singapore business that needs to mix this top-tier processor configuration on selected desks with lower-cost Core Ultra 5/7 SO-DIMM units elsewhere in the same fleet does not need to plan different mounting hardware or desk clearances. The physical deployment story stays consistent even though the internal platform, memory type and GPU differ substantially between tiers.
Supplied Locally, with GST Invoice and Singapore Onsite Warranty
SourceIT supplies the ASUS NUC 16 PRO RNUC16GDKX96C4N3 with a full GST invoice and local Singapore support. ASUS backs this system with a 3-year onsite warranty, so a qualifying hardware fault is resolved at your premises rather than a courier round trip.
Need more memory headroom on the same processor? Our ASUS NUC 16 PRO RNUC16GDKX96D4N3 is the identical Core Ultra X9 388H build with 64 GB of LPDDR5x instead of 32 GB. Email sales@sourceit.com.sg and we will help you pick the right memory tier.
ASUS RNUC16GDKX96C4N3 Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS NUC 16 PRO, Full System |
| SKU | RNUC16GDKX96C4N3 |
| Internal Item Code | 90AS00Q1-M00140 |
| Range | ASUS NUC 16 Pro, Panther Lake / soldered LPDDR5x tier, Core Ultra X9 configuration |
| Form Factor | Ultra-compact desktop mini PC |
| Manufacturer Warranty | 3-Year Onsite Warranty (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Processor & Graphics
| Processor | Intel Core Ultra X9 Processor 388H (Panther Lake, cTDP 65W) — top processor tier in the NUC 16 Pro range |
| Cores | 16 cores |
| Graphics | Intel Arc B390 integrated GPU |
| Neural Processing Unit | Intel AI Boost NPU (integrated), Panther Lake generation |
Memory & Storage
| Memory Installed | 32 GB LPDDR5x, soldered — not user-upgradeable |
| Storage Installed | 1 TB M.2 NVMe PCIe SSD |
| Storage Expansion | Additional M.2 storage supported; tool-less chassis access |
Connectivity & Display
| Wireless LAN | Intel Wi-Fi 7, Bluetooth 6.0 |
| Wired LAN | 2 x Intel I226-V 2.5 Gigabit Ethernet |
| Display Outputs | 2 x Thunderbolt 4 Type-C (DisplayPort 2.1 capable), 2 x HDMI 2.1 |

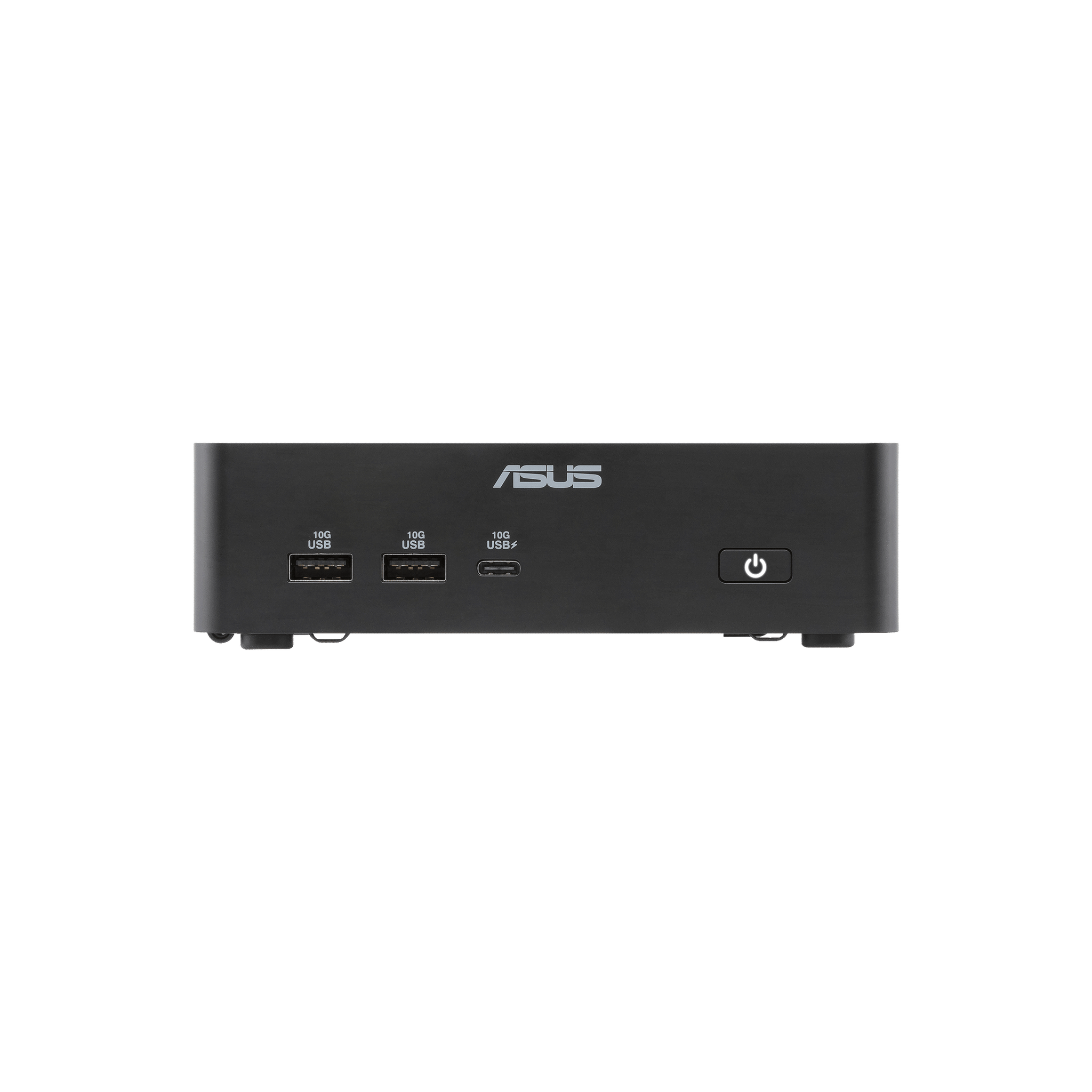

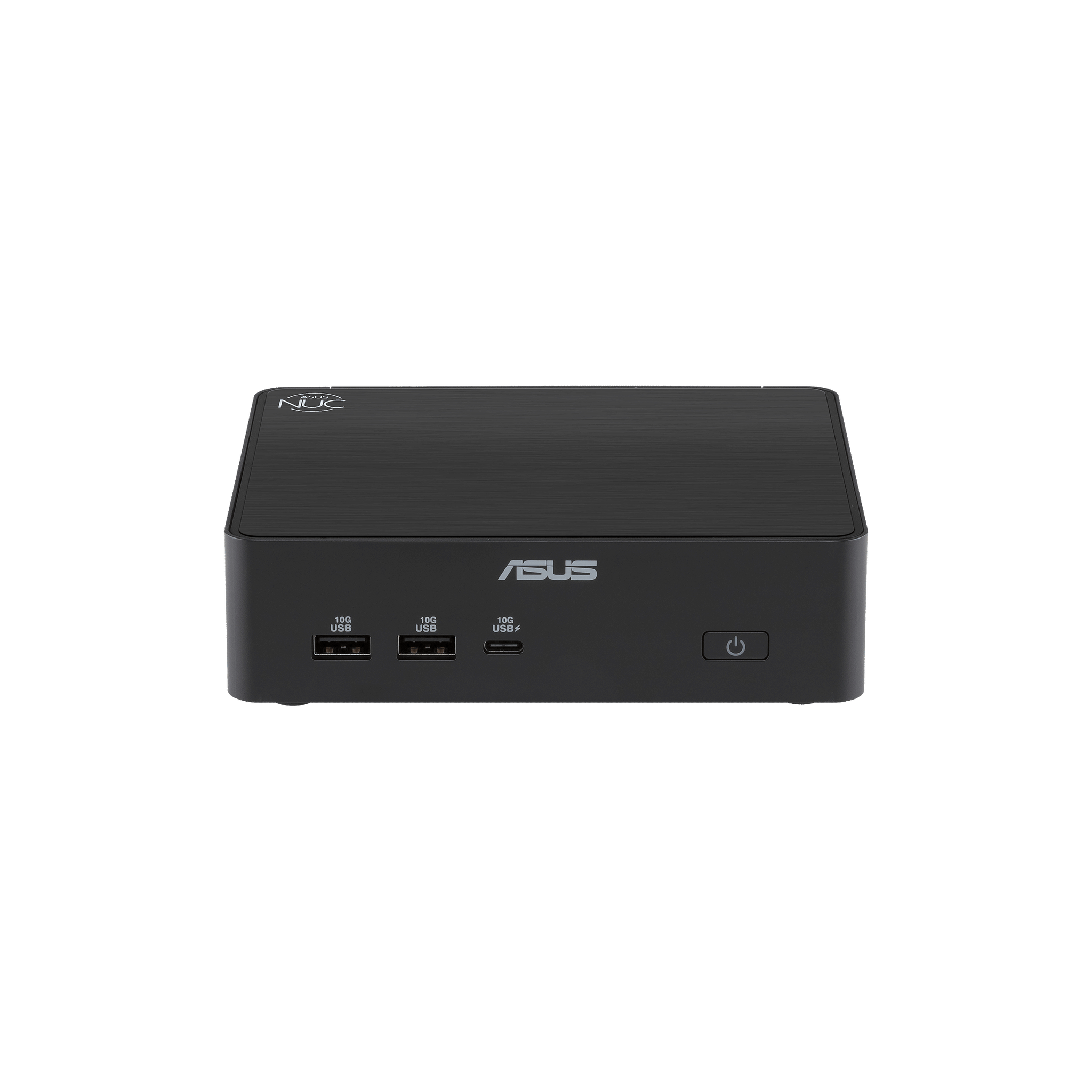

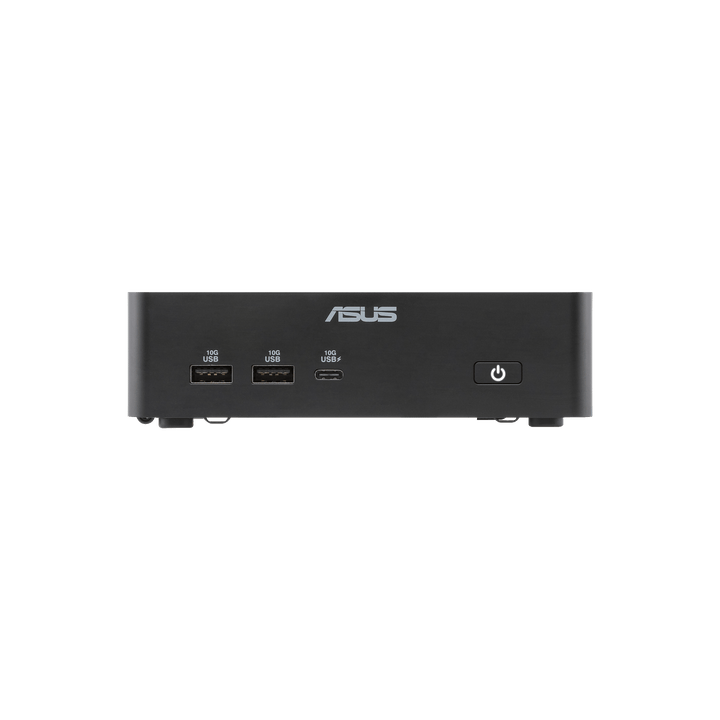

| USB | USB 3.2 Gen2 Type-A and Type-C ports (front and rear) |
Physical & Security
| Dimensions | 144 x 117 x 42 mm |
| Chassis | Tool-less access to storage; memory is soldered |
| Security | Kensington lock slot |
| Power Adapter | External DC power adapter (included) |
| Operating System | Windows 11 Pro, pre-installed |
Connectivity & Setup / Expansion
Why 32 GB vs 64 GB Matters Here
Memory on this Panther Lake tier is soldered LPDDR5x, chosen for the bandwidth the Arc B390 GPU needs, but fixed at the factory with no field upgrade path. This SKU is the 32 GB configuration; the identical Core Ultra X9 388H processor is also available with 64 GB (RNUC16GDKX96D4N3) for workloads such as local AI model inference, heavy virtualisation or large in-memory datasets that outgrow 32 GB. Decide capacity before ordering — it cannot be changed afterwards.
Storage Upgrade Path
The 1 TB primary SSD sits in a tool-less M.2 bay, and the platform supports additional M.2 storage. Ask SourceIT to supply and fit a second drive before delivery if you would rather not open the chassis later.
Dual 2.5G LAN and Networking Setup
Two Intel I226-V 2.5 Gigabit Ethernet ports are fitted as standard on this range — useful for a failover WAN connection or a lightweight two-port gateway role. Wireless is Intel Wi-Fi 7 with Bluetooth 6.0.
CPU Headroom Over the Core Ultra X7 358H
Both X7 and X9 Panther Lake configurations share the same Arc B390 GPU and NPU. The X9 388H's advantage over the X7 358H is on the CPU side — a higher clock ceiling that benefits sustained CPU-bound work such as compilation, encoding and multi-VM virtualisation more than it benefits everyday office use.
Sizing Memory Correctly the First Time
Because this tier cannot be upgraded after purchase, it is worth spending a moment on sizing before ordering rather than after. If your current workload is comfortably inside 32 GB — general office use, a handful of VMs, typical browser and productivity load — this configuration is the right size at lower cost than the 64 GB sibling (RNUC16GDKX96D4N3). If you are running local AI inference on larger models, several concurrent VMs each with their own memory allocation, or large in-memory data processing, the 64 GB configuration is the safer starting point. Email us your workload and we will help you decide rather than guess.
Package Contents & Ordering Information
In the Box
ASUS NUC 16 Pro system, AC power adapter and power cord, screw pack, user manual and warranty card. Keyboard, mouse and monitor are not included and are ordered separately.
ASUS NUC 16 Pro Range — Ordering Information
SourceIT carries the following ASUS NUC 16 Pro full-system configurations. These are referenced here by SKU for comparison only — email sales@sourceit.com.sg quoting the SKU to check stock and lead time.
| RNUC16GDKU5663N3 | Core Ultra 5 325, SO-DIMM tier, 16GB DDR5, 512GB SSD |
| RNUC16GDKU7664N3 | Core Ultra 7 356H, SO-DIMM tier, 16GB DDR5, 512GB SSD |
| RNUC16GDKX76C4N3 | Core Ultra X7 358H, Panther Lake / Arc B390, 32GB soldered LPDDR5x, 1TB SSD |
| RNUC16GDKX96C4N3 (this listing) | Core Ultra X9 388H, Panther Lake / Arc B390, 32GB soldered LPDDR5x, 1TB SSD |
| RNUC16GDKX96D4N3 | Core Ultra X9 388H, Panther Lake / Arc B390, 64GB soldered LPDDR5x, 1TB SSD |
For a barebone NUC 16 Pro build with no memory, storage or OS fitted, ask SourceIT — ASUS also sells this range as a barebone for system integrators who fit their own components.
Datasheet & Downloads
ASUS hosts the official product and specification pages for this model. The links below are ASUS's current Singapore product and specification pages for this model family.
| ASUS Singapore product page | ASUS NUC 16 Pro — Overview |
| ASUS Singapore specifications page | ASUS NUC 16 Pro — Full Specifications |
For the PDF datasheet, user manual or driver downloads, email sales@sourceit.com.sg quoting RNUC16GDKX96C4N3 and we will send you the current files directly.
Frequently Asked Questions — ASUS NUC 16 PRO RNUC16GDKX96C4N3
Is this a complete system or a barebone unit?
Complete system. It ships with the Intel Core Ultra X9 388H processor, 32 GB LPDDR5x memory and a 1 TB NVMe SSD already fitted, with Windows 11 Pro pre-installed and ready for first sign-in.
Is this the fastest NUC 16 Pro configuration you sell?
The Core Ultra X9 388H is the top processor tier ASUS offers in the NUC 16 Pro line. This SKU and RNUC16GDKX96D4N3 both use it; the only difference between the two is memory capacity — 32 GB here, 64 GB there.
Can I upgrade the memory later?
No. Memory on this Panther Lake tier is soldered to the board at 32 GB and is not field-upgradeable. If your workload might need more, order the 64 GB configuration (RNUC16GDKX96D4N3) instead.
Can I upgrade the storage?
Yes. Storage remains a conventional M.2 slot, and the platform supports additional M.2 storage alongside the 1 TB primary drive. Ask SourceIT to supply and fit it before delivery.
How does the X9 388H compare with the X7 358H?
Both share the same Arc B390 GPU and NPU; the X9 388H has a higher clock ceiling on the CPU side, which benefits sustained CPU-bound work more than everyday office tasks.
Does it have dual LAN?
Yes — two Intel I226-V 2.5 Gigabit Ethernet ports are standard on this range, useful for a failover link or a lightweight gateway role.
How many monitors can it drive?
Four displays across two Thunderbolt 4 (DisplayPort 2.1) ports and two HDMI 2.1 ports.
Can I mix this with SO-DIMM tier units in the same fleet?
Yes, physically. The external chassis dimensions and VESA mounting pattern are identical across both platform tiers of the NUC 16 Pro, so desk fit-out and mounting hardware do not need to differ even when the internal platform, memory type and GPU do.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every ASUS NUC 16 PRO RNUC16GDKX96C4N3 sold by SourceIT comes with local Singapore support and a GST invoice; ASUS backs this system with a 3-year onsite warranty.
