Asus GQE20A-G5040UN Room Kit for Google Meet Large Room
PRODUCT DESCRIPTION
Asus GQE20A-G5040UN Room Kit for Google Meet Large Room (ASU-90MS02U2-M00180) - 3 Year Local Warranty
The Top of ASUS's Current Google Meet Room Kit Range
The ASUS GQE20A-G5040UN Large Room Kit is the top tier in ASUS's current Google Meet room kit line-up, built for rooms above 10 people — boardrooms, training rooms and large conference rooms — where the Starter and Small/Medium Room kits' wide fixed-shot cameras run out of reach. The kit pairs the same compute platform used across the range with a genuinely different camera: a true optical pan-tilt-zoom unit rather than the electronic PTZ camera fitted to the two smaller kits.

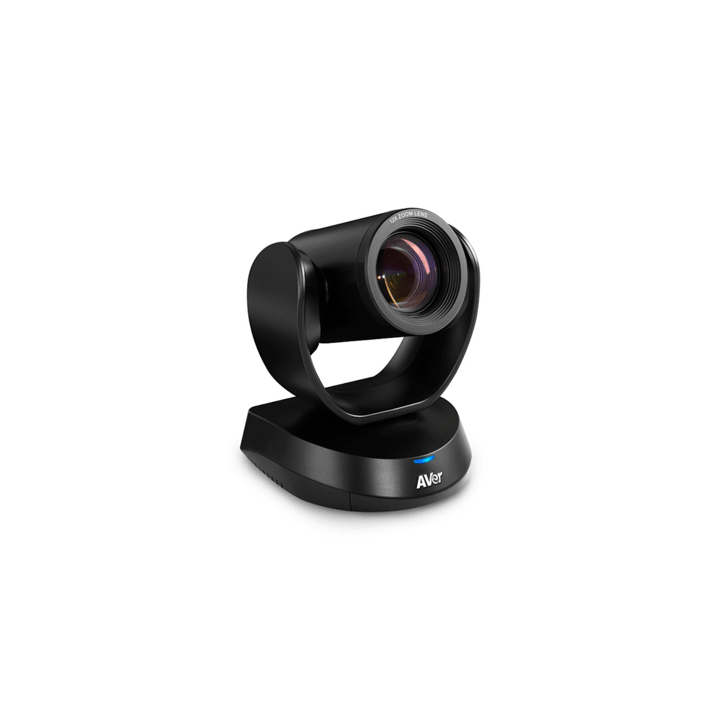

True PTZ Camera with 24x Optical Zoom
Where the Starter and Small/Medium Room kits use an ePTZ camera — a fixed lens with digital reframing inside one wide shot — the Large Room Kit's camera is a true PTZ unit that physically pans, tilts and zooms, with up to 24x optical zoom. That is a meaningful difference for a big room: the camera can genuinely move to frame a speaker at the far end of a long boardroom table rather than just cropping into a fixed wide shot, and AI-powered auto-framing with smart composition keeps the shot centred on whoever is talking as the meeting moves around the room.
10.1-Inch Touch Control Panel, Same as Small/Medium Room
Control is via the same 10.1-inch capacitive touchscreen fitted to the Small/Medium Room kit, running at 1280 x 800 resolution, with one-touch meeting join, volume and camera control, and participant management. Like the Small/Medium Room kit, this is fixed touch-panel control, not the Starter Kit's handheld remote.
Speakerphone, Daisy-Chainable to Cover a Bigger Room
Audio uses the same daisy-chainable conference speakerphone family as the rest of the range, with 360° omnidirectional pickup, roughly 6 metres of range per unit, and echo cancellation and noise suppression. Daisy-chaining matters more here than in the smaller kits — a large room or boardroom is exactly the scenario where a single speakerphone's pickup range may not reach every seat, and additional linked units extend coverage without adding a second, separate audio system.
Same Compute Platform, Sized for the Extra Camera Workload
The Large Room Kit runs the same Intel Core i5-1335U compute unit, 16GB DDR4 memory and 256GB NVMe SSD as the rest of the current range, with ChromeOS, eight years of documented auto-update support and Google Admin Console management. The processor headroom that is comfortable margin in the smaller kits is put to more active use here, driving the true PTZ camera's continuous auto-framing and tracking alongside the video call itself.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the GQE20A-G5040UN as a currently stocked ASUS product with a full GST invoice and local Singapore warranty support, matched to ASUS's 3-year on-site service term for this Google Meet room kit generation.
Not sure if your room genuinely needs the Large Room tier, or if Small/Medium Room would do? Email sales@sourceit.com.sg with your room dimensions and typical headcount and we will confirm before you order.
Asus GQE20A-G5040UN Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS Room Kit for Google Meet — Large Room |
| Model | GQE20A-G5040UN |
| Part Number (SKU) | ASU-90MS02U2-M00180 |
| Product Type | Complete Google Meet Rooms video conferencing kit: compute unit, true PTZ camera, speakerphone and touch control panel |
| Recommended Room Capacity | Large conference rooms and boardrooms, above 10 people (up to around 20) |
| Manufacturer Warranty | 3-Year On-Site Service (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Compute Unit
| Processor | Intel Core i5-1335U (13th Generation), 10 cores / 12 threads |
| Memory | 16GB DDR4 |
| Storage | 256GB NVMe SSD |
| Operating System | ChromeOS, built for Google Meet Rooms |
| Management | Google Admin Console, centralised over-the-air updates; ASUS documents eight years of auto-update support |
Camera
| Camera Type | True PTZ (physical pan-tilt-zoom) camera — not the electronic PTZ camera used in the Starter and Small/Medium Room kits |
| Video Resolution | Full HD output |
| Zoom | Up to 24x optical zoom |
| AI Features | Auto-framing and intelligent participant/speaker tracking, smart composition |
| Positioning | Built for capturing participants clearly across a large room or long boardroom table, where a fixed wide shot is not sufficient |
Audio System
| Device | Conference speakerphone |
| Microphone Pickup | 360° omnidirectional |
| Pickup Range | Up to approximately 6 metres per unit |
| Audio Processing | Echo cancellation and background noise suppression |
| Expandability | Daisy-chainable — recommended for large rooms where one unit's pickup range does not reach every seat |
Meeting Control
| Control Method | Fixed touchscreen control panel |
| Panel Size / Resolution | 10.1-inch capacitive touchscreen, 1280 x 800 |
| Functions | One-touch meeting join, volume and microphone control, camera control and meeting management |
Connectivity & Ports
| Wired Network | 2.5G Ethernet LAN |
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Video Output | 2 x HDMI output |
| USB | USB-C and USB 3.2 ports for the PTZ camera, speakerphone and touch panel |
Physical & Mounting
| Compute Unit Mounting | Magnetic stand and wall mounting kit included; supports mounting behind the display, under a table or on a wall |
| Security | ChromeOS Verified Boot, on-device encryption, centralised management via Google Admin Console |
Connectivity & Setup

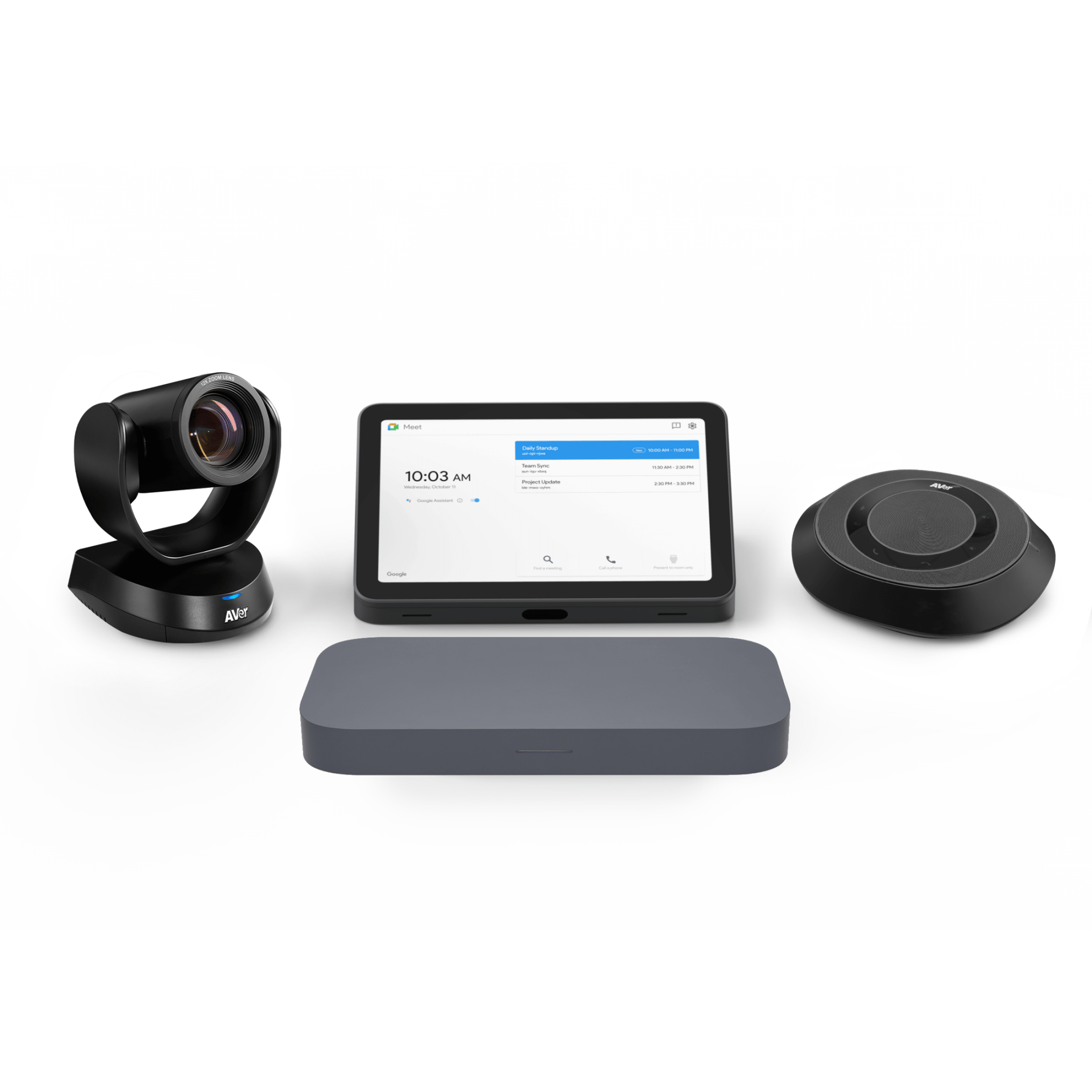

A Matched Set for Bigger Rooms
Compute unit, true PTZ camera, speakerphone and touch panel ship together as one matched kit. Because the PTZ camera is a more capable, physically moving unit than the ePTZ cameras in the smaller kits, ASUS pairs it specifically with this tier rather than selling it as an option on the Starter or Small/Medium Room kits.
Cabling and Display Connection
The compute unit connects to the room display over HDMI (two HDMI outputs are provided, useful where a large room has more than one display), to the network over 2.5G wired LAN or Wi-Fi 6E, and to the PTZ camera, speakerphone and touch panel over USB.
Camera Placement in a Large Room
Because the camera physically pans, tilts and zooms rather than just digitally cropping a wide shot, placement matters more here than with an ePTZ camera — position it with a clear line of sight down the length of the table so its auto-framing and speaker-tracking can actually move to follow the conversation. We can advise on placement for a specific room layout on request.
Mounting
The compute unit mounts on a magnetic stand, on a wall, or under a table using the included hardware. The touch panel typically sits on the table or a nearby wall mount for easy reach from anywhere in a larger room.
Enrolment and Google Workspace Setup
The kit enrols as a Google Meet Rooms device through the Google Admin Console, inheriting your organisation's calendar integration, room booking and centralised update policy automatically.
Stepping Down a Tier
If a room turns out to be smaller than expected, or a training room is being reconfigured into a few smaller huddle spaces, the Small/Medium Room and Starter kits use the same compute platform with a simpler ePTZ camera — email us if you are reallocating hardware across rooms and want to check what will and won't carry over.
Package Contents & Ordering Information
In the Box
ASUS Google Meet compute unit, true PTZ camera, conference speakerphone, 10.1-inch touch control panel, mounting kit, power adapter, cables, user documentation.
ASUS Google Meet Room Kit Range — Current Models
| GQE20A-G5037UN — Compute Unit Only | Compute unit only, no peripherals | Bring your own camera/audio, or spare unit |
| GQE20A-G5039UN — Starter Kit | Compute + ePTZ camera + speakerphone + remote control | Up to around 9 people, remote control |
| GQE20A-G5010UN — Small/Medium Room Kit | Compute + ePTZ camera + speakermic + 10.1in touch panel | Up to around 8-9 people, touch-panel control |
| GQE20A-G5040UN — Large Room Kit (this listing) | Compute + true PTZ camera (24x optical zoom) + speakerphone + 10.1in touch panel | Above 10 people, up to around 20 |
Need additional speakerphone units to daisy-chain across a bigger room, or a spare PTZ camera? Email sales@sourceit.com.sg with the quantity you need and we will confirm current availability.
Datasheet & Downloads
ASUS's Singapore product page describes the current Google Meet room kit range, including the Large Room Kit's true PTZ camera and touch-panel configuration.
| ASUS Singapore product page | ASUS Room Kit for Google Meet — Product Page |
| ASUS technical specifications page | ASUS Room Kit for Google Meet — Tech Specs |
For the full PDF datasheet or user manual, email sales@sourceit.com.sg quoting GQE20A-G5040UN and we will send you the current document directly.
Frequently Asked Questions — Asus GQE20A-G5040UN
What makes this different from the Small/Medium Room Kit, which also has a touch panel?
The camera. Both kits use the same 10.1-inch touch panel for control, but this kit's camera is a true PTZ unit that physically pans, tilts and zooms up to 24x optically, while the Small/Medium Room kit's ePTZ camera is a fixed lens with digital cropping inside one wide shot. The Large Room kit's camera is built to reach across a bigger space.
How many people does this kit suit?
ASUS positions it for large conference rooms and boardrooms above 10 people, up to around 20.
Does the camera actually move, or is it digital zoom like the smaller kits?
It physically moves — true pan-tilt-zoom with up to 24x optical zoom, plus AI-powered auto-framing and speaker tracking, rather than the electronic pan-tilt-zoom (digital cropping) used in the Starter and Small/Medium Room kits.
Will one speakerphone cover a large boardroom?
It depends on the room's length — each unit has roughly 6 metres of pickup range. The speakerphone is daisy-chainable, so additional linked units can be added to cover a longer table or an oddly shaped room.
Can I plug a laptop in for a local presentation?
Yes — the 10.1-inch touch panel supports one-touch join and meeting control; check with us on current HDMI presentation-input wiring for your specific room layout if you need laptop content sharing on the room display.
How is it managed and updated?
Through the Google Admin Console, the same as ASUS's other current Google Meet kits. ASUS documents eight years of auto-update support on this compute generation.
Is the compute performance different from the smaller kits?
No — it is the same Intel Core i5-1335U platform used across the Starter, Small/Medium Room and compute-only listings. The difference in this kit is the camera and the audio coverage needed for a bigger room, not raw compute power.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every GQE20A-G5040UN sold by SourceIT comes with local Singapore warranty support and a GST invoice; ASUS backs this kit with a 3-year on-site service term.
