Asus GQE20A-G5010UN Room Kit for Google Meet Small/Medium Room
PRODUCT DESCRIPTION
Asus GQE20A-G5010UN Room Kit for Google Meet Small/Medium Room (ASU-90MS02U2-M000A0) - 3 Year Local Warranty
The Touch-Panel Step Up From Starter
The ASUS GQE20A-G5010UN Small/Medium Room Kit targets the same room size as our Starter Kit — up to around 9 participants — but replaces the Starter's handheld remote control with a fixed 10.1-inch touchscreen control panel and swaps the speakerphone for a Google Meet speakermic with HDMI presentation input built into the panel. If your room needs someone to walk up and tap the screen to join, or needs a laptop plugged straight into the panel for local presentations, this is the kit in our range built for that, rather than the Starter Kit's remote-and-keyboard approach.

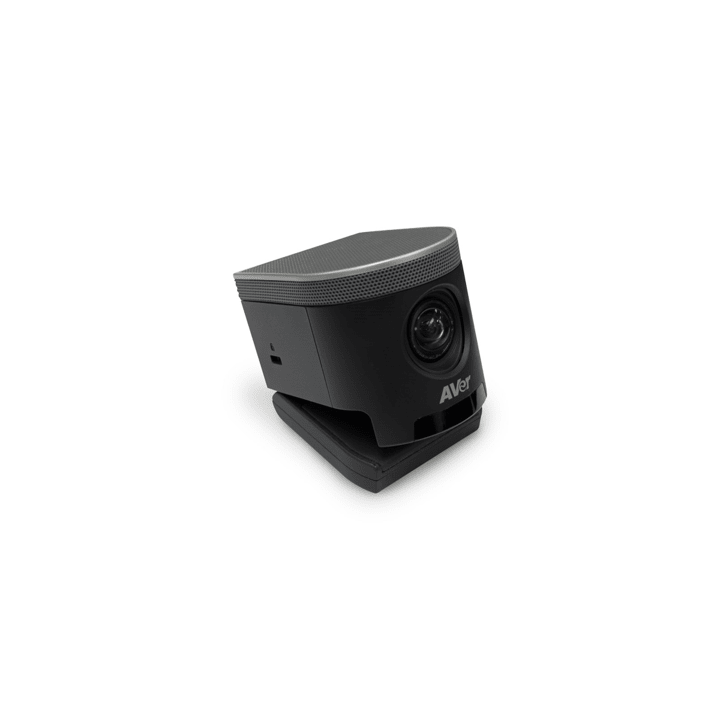

ePTZ Camera — Same Class as Starter, Not the Large Room's PTZ
The bundled camera is the same ePTZ (electronic pan-tilt-zoom) class fitted to the Starter Kit: a 4K UHD image sensor with an ultra-wide roughly 120° field of view and up to 4x digital zoom in Full HD output, with wide dynamic range and distortion correction for clear video across the room. This is a fixed-lens, digitally-framed camera, not the physically moving true PTZ camera in our Large Room kit — it suits a room where the table sits within one wide shot, which is the room size ASUS positions this kit for.

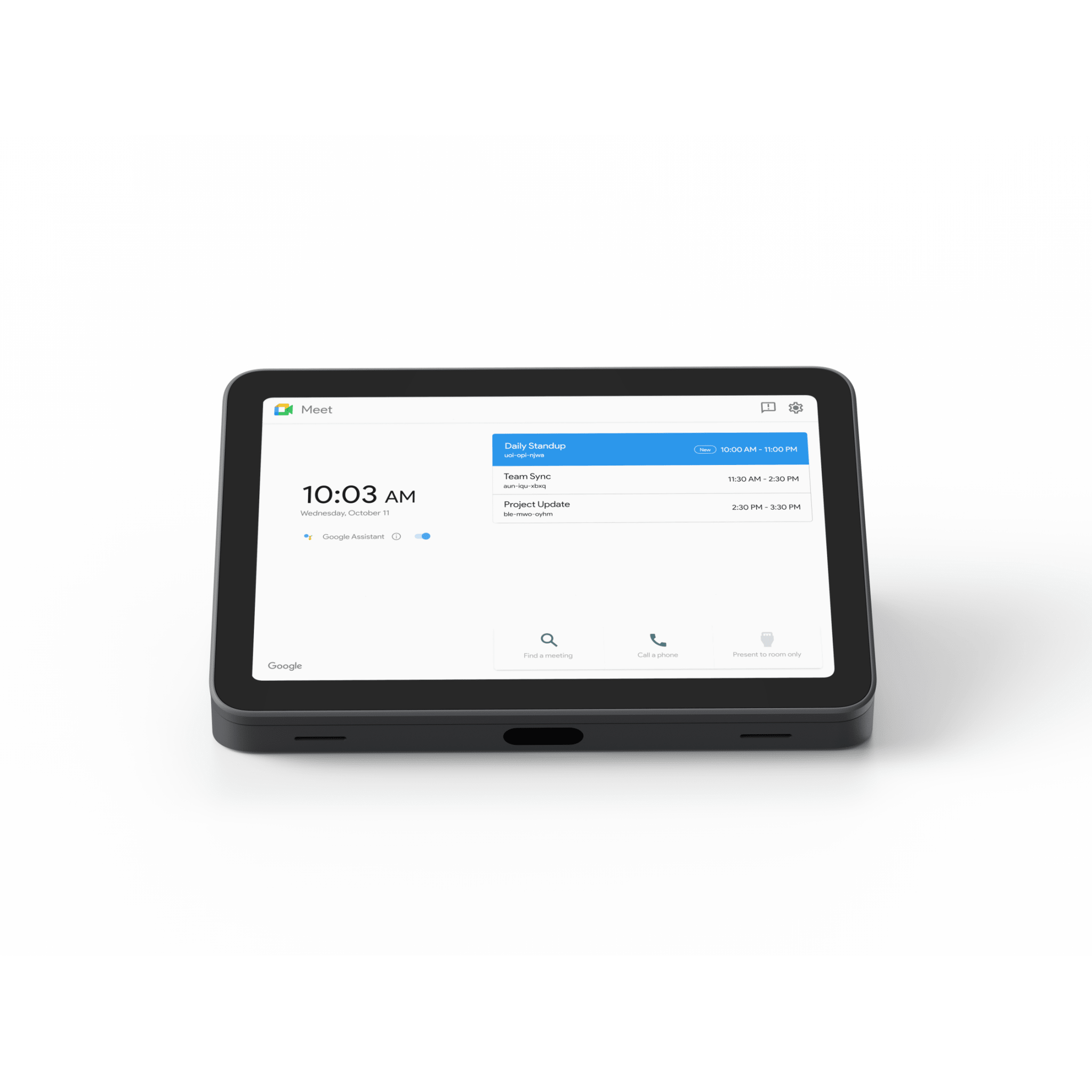

10.1-Inch Touch Control Panel with HDMI Input
The touch panel is a 10.1-inch capacitive touchscreen that handles one-touch meeting join and exit, volume and camera control, and participant management, and it carries an HDMI input so a laptop can be plugged in directly for local presentation without needing to be added as a Google Meet participant. That HDMI-in is a genuine practical difference from the Starter Kit, which has no dedicated presentation input on its remote control.

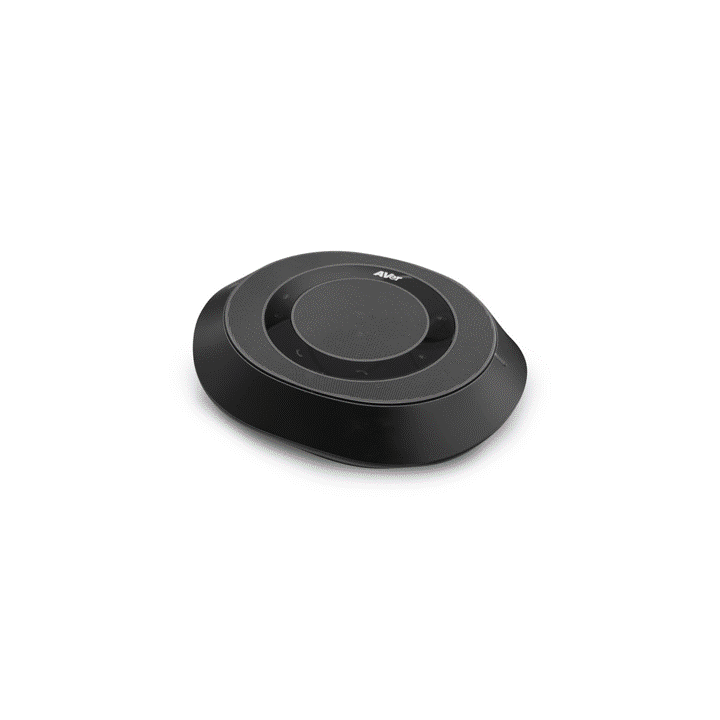

Speakermic with 360° Pickup, Daisy-Chainable
Audio is handled by a Google Meet speakermic with 360° omnidirectional pickup, up to roughly 6 metres of range, and echo cancellation and noise suppression processing — daisy-chainable in the same way as the Starter Kit's speakerphone, so a room that turns out to need broader coverage can add linked units rather than replace the audio system outright.
Same Compute Platform, Same Update Support
Underneath the camera and control differences, the Small/Medium Room Kit runs the identical Intel Core i5-1335U compute unit, 16GB DDR4 memory, 256GB NVMe SSD and ChromeOS build used across ASUS's current Google Meet range, with the same eight years of documented auto-update support and Google Admin Console management as the Starter and Large Room kits.
Supplied Locally, with GST Invoice and Singapore Warranty
SourceIT supplies the GQE20A-G5010UN as a currently stocked ASUS product with a full GST invoice and local Singapore warranty support, matched to ASUS's 3-year on-site service term for this Google Meet room kit generation.
Weighing up Starter against Small/Medium Room, or wondering whether your room is really a Large Room job? Email sales@sourceit.com.sg with your room dimensions and seating count and we will recommend the right tier.
Asus GQE20A-G5010UN Datasheet — Technical Specifications
General
| ASUS Product Name | ASUS Room Kit for Google Meet — Small/Medium Room |
| Model | GQE20A-G5010UN |
| Part Number (SKU) | ASU-90MS02U2-M000A0 |
| Product Type | Complete Google Meet Rooms video conferencing kit: compute unit, camera, speakermic and touch control panel |
| Recommended Room Size | Small to medium meeting rooms, up to around 8-9 participants |
| Manufacturer Warranty | 3-Year On-Site Service (ASUS) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Compute Unit
| Processor | Intel Core i5-1335U (13th Generation), 10 cores / 12 threads |
| Memory | 16GB DDR4 |
| Storage | 256GB NVMe SSD |
| Operating System | ChromeOS, built for Google Meet Rooms |
| Management | Google Admin Console, centralised over-the-air updates; ASUS documents eight years of auto-update support |
Camera
| Camera Type | ePTZ (electronic pan-tilt-zoom) UHD camera |
| Image Sensor | 4K UHD sensor |
| Field of View | Ultra-wide, approximately 120° |
| Zoom | Up to 4x digital zoom in Full HD output |
| Image Processing | Wide dynamic range and distortion correction |
Audio System
| Device | Google Meet speakermic |
| Microphone Pickup | 360° omnidirectional |
| Pickup Range | Up to approximately 6 metres |
| Audio Processing | Echo cancellation and noise suppression |
| Expandability | Daisy-chainable with additional linked units |
Meeting Control
| Control Method | Fixed touchscreen control panel — no handheld remote in this kit |
| Panel Size | 10.1-inch capacitive touchscreen |
| Functions | One-touch meeting join and exit, camera and volume control, participant management |
| Presentation Input | HDMI input on the panel for local laptop presentation |
Connectivity & Ports
| Wired Network | 2.5G LAN |
| Wi-Fi | Wi-Fi 6E |
| Bluetooth | Bluetooth 5.3 |
| Video Output | HDMI to the room display |
| USB | USB-C and USB 3.2 ports for camera, speakermic and touch panel |
Physical & Mounting
| Compute Unit Mounting | Magnetic stand and wall mount included; supports mounting behind the display, under a desk or on a wall |
| Security | ChromeOS Verified Boot, on-device encryption, remote management via Google Admin Console |
Connectivity & Setup

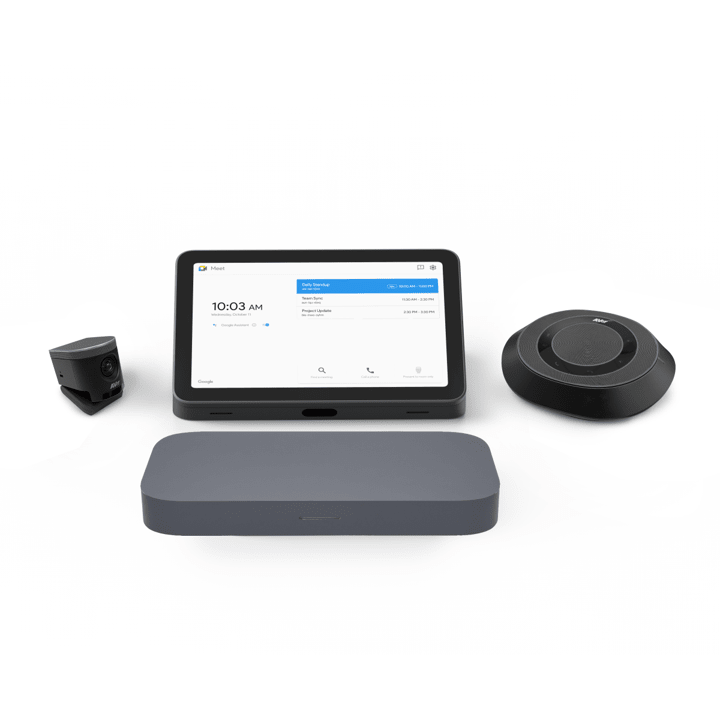

A Matched Set Out of the Box
Compute unit, camera, speakermic and touch panel ship together as one matched kit, already compatible with each other — there is no separate peripheral compatibility check needed before ordering, unlike the compute-only GQE20A-G5037UN listing.
Cabling and Display Connection
The compute unit connects to the room display over HDMI, to the network over 2.5G wired LAN or Wi-Fi 6E, and to the camera, speakermic and touch panel over USB. The touch panel's own HDMI input takes a laptop feed for local presentation separately from the room display connection.

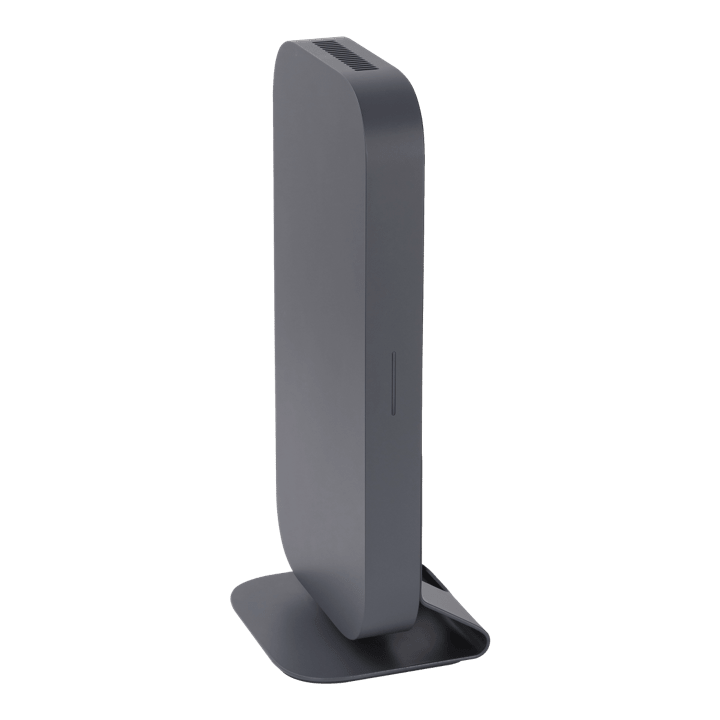

Mounting
The compute unit mounts on a magnetic stand behind the display, on a wall, or under a desk, using the included hardware. The touch panel is typically mounted on the meeting table or a nearby wall/stand for easy reach, and the camera sits above or beside the display.
Enrolment and Google Workspace Setup
The kit enrols as a Google Meet Rooms device through the Google Admin Console, inheriting your organisation's calendar integration and centralised update policy. The touch panel is ready for one-touch join as soon as a meeting is scheduled on the room's calendar.
Choosing Between Starter, Small/Medium Room and Large Room
Against the Starter Kit, this kit's advantage is the fixed touch panel with HDMI presentation input rather than a handheld remote — the camera and target room size are otherwise the same. Against the Large Room kit, the difference is the camera: this kit's ePTZ camera gives a wide fixed shot suited to a room where everyone sits within view, while the Large Room kit's true optical PTZ camera physically reframes across a bigger space. If your room seats more than around nine people, or is long and narrow rather than compact, the Large Room kit is the better match.
Package Contents & Ordering Information
In the Box
ASUS Google Meet compute unit, ePTZ UHD camera, Google Meet speakermic, 10.1-inch touch control panel, mounting kit, power adapter, cables, user documentation.
ASUS Google Meet Room Kit Range — Current Models
| GQE20A-G5037UN — Compute Unit Only | Compute unit only, no peripherals | Bring your own camera/audio, or spare unit |
| GQE20A-G5039UN — Starter Kit | Compute + ePTZ camera + speakerphone + remote control | Up to around 9 people, remote control |
| GQE20A-G5010UN — Small/Medium Room Kit (this listing) | Compute + ePTZ camera + speakermic + 10.1in touch panel | Up to around 8-9 people, touch-panel control |
| GQE20A-G5040UN — Large Room Kit | Compute + true PTZ camera + speakerphone + 10.1in touch panel | Above 10 people, optical zoom PTZ camera |
Need an additional speakermic for daisy-chaining, or a spare touch panel? Email sales@sourceit.com.sg with the quantity you need and we will confirm current availability.
Datasheet & Downloads
ASUS's Singapore product page describes the current Google Meet room kit range, including the Small/Medium Room Kit's camera and touch-panel configuration.
| ASUS Singapore product page | ASUS Room Kit for Google Meet — Product Page |
| ASUS technical specifications page | ASUS Room Kit for Google Meet — Tech Specs |
For the full PDF datasheet or user manual, email sales@sourceit.com.sg quoting GQE20A-G5010UN and we will send you the current document directly.
Frequently Asked Questions — Asus GQE20A-G5010UN
What's the real difference between this kit and the Starter Kit?
The camera and room size target are the same. The difference is control and presentation: this kit has a fixed 10.1-inch touch panel with an HDMI input for a laptop, while the Starter Kit has a wireless remote control with no dedicated presentation input.
What's the difference between this kit and the Large Room Kit?
Both use a fixed touch panel for control, but this kit's camera is an ePTZ (digitally framed, fixed-lens) camera suited to a room the whole table fits within one wide shot, while the Large Room Kit's camera is a true optical PTZ that physically pans, tilts and zooms up to 24x for bigger or longer rooms.
Can I plug a laptop into the room for a local presentation?
Yes — the touch control panel has an HDMI input built in, so a laptop can present to the room display without joining as a separate Google Meet participant.
How many people does this kit suit?
ASUS positions it for small to medium meeting rooms, up to around 8-9 participants, based on the ePTZ camera's field of view.
Can I add more microphone coverage later?
Yes — the bundled speakermic is daisy-chainable, so additional linked units can be added if the room needs wider audio pickup than one unit provides.
How is it managed and updated?
Through the Google Admin Console, the same as any other Google Meet Rooms device. ASUS documents eight years of auto-update support on this compute generation.
Does it need a wired network connection?
Wired 2.5G Ethernet is recommended for a permanent installation; Wi-Fi 6E is available as an alternative.
Does it come with a Singapore warranty and a GST invoice?
Yes. Every GQE20A-G5010UN sold by SourceIT comes with local Singapore warranty support and a GST invoice; ASUS backs this kit with a 3-year on-site service term.
