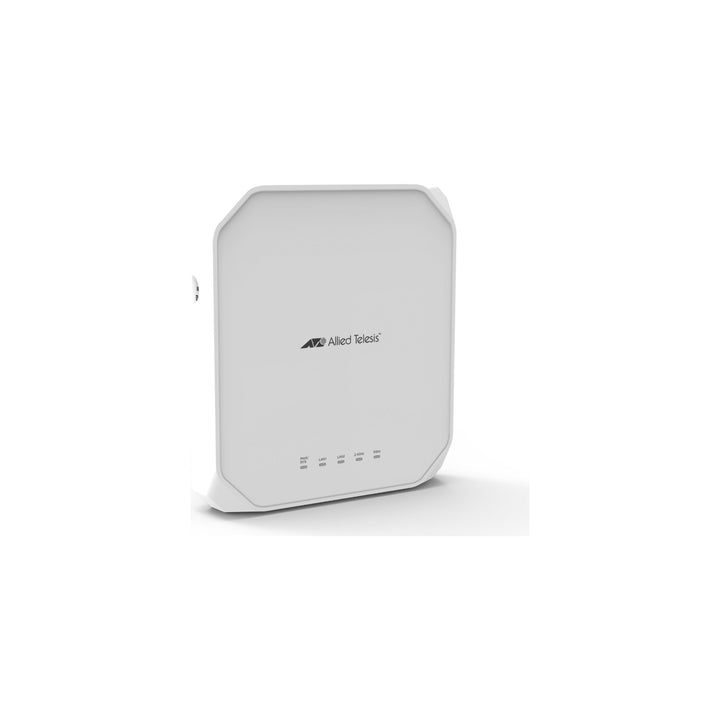

Allied Telesis TQ6602 GEN2 Hybrid Wi-Fi 6 4x4 Wireless Access Point with Dual Multi-Gigabit Uplinks
PRODUCT DESCRIPTION
Allied Telesis TQ6602 GEN2 Hybrid Wi-Fi 6 Access Point - Local Warranty
3.55Gbps of Wi-Fi 6 Capacity
The TQ6602 GEN2 pairs a 4x4 2.4GHz radio with a 4x4 5GHz radio, both 802.11ax, for a raw capacity of 3.55 Gigabits. OFDMA and bi-directional MU-MIMO let the access point serve many clients at once, making it a strong fit for classrooms, wards, offices and other busy spaces.
Hybrid Mode: Speed and Seamless Roaming Together
With Allied Telesis Autonomous Wave Control (AWC), the AP can run multi-channel for maximum throughput, single-channel Channel Blanket so all APs look like one virtual AP for roaming devices, or both at once in hybrid mode. AWC also continually tunes channels and transmit power to reduce interference and coverage gaps.
Two Multi-Gigabit Uplinks
Two 100M/1G/2.5G/5G RJ-45 ports remove the wired bottleneck behind a Wi-Fi 6 AP, and can be aggregated with static or LACP link aggregation for resiliency and up to 5Gbps of uplink capacity. Power comes from 802.3at PoE+ or an optional AC adapter.
Flexible Management and Access Control
Manage APs centrally with AWC in Vista Manager EX or from a compatible Allied Telesis switch or firewall, or run a single AP standalone through its web GUI. Captive portal, multiple SSIDs on virtual APs, Passpoint, WPA3 and fast roaming (802.11k/v/r) are supported.
TQ6602 GEN2 Datasheet — Technical Specifications
General
| Product Name | Allied Telesis TQ6602 GEN2 Enterprise-Class Hybrid Wi-Fi 6 Access Point |
| Model | TQ6602 GEN2 |
| Order Code | AT-TQ6602 GEN2-00 |
| Series | TQ6000 GEN2 Series |
| Regulatory Domain | -00 = other countries (Singapore IMDA certified with firmware 8.0.2-1.1 or later) |
Wireless
| Standards | IEEE 802.11a/b/g/n/ac/ax, 4x4:4ss MU-MIMO |
| Radios | 4x4 2.4GHz + 4x4 5GHz |
| Raw Capacity | 3.55 Gbps |
| Max Data Rates | 802.11ax up to 2401.9Mbps (MCS0-11); 802.11ac up to 1733.3Mbps |
| Modulation | 802.11ax OFDMA, up to 1024QAM |
| Supported Frequencies | 2.412–2.472 GHz; 5.150–5.350 GHz; 5.500–5.720 GHz; 5.745–5.825 GHz |
| Antennas | Embedded omni-directional; peak gain 4.38 dBi (2.4GHz), 5.92 dBi (5GHz) |
| Wireless Features | OFDMA, bi-directional MU-MIMO, band steering, airtime fairness, RF load balancing, spatial reuse, Zero Wait DFS, WMM, WDS, Wi-Fi scheduler |
| Standalone Capacity | Up to 500 clients per radio |
Wired Interfaces
| Uplink Ports | 2 x 100M/1G/2.5G/5G RJ-45 (one PoE-in) |
| Link Aggregation | Static or LACP (IEEE 802.1AX), up to 5Gbps |
| Ethernet Standards | 802.3, 802.3u, 802.3ab, 802.3bz, 802.3x, 802.1Q |
Security
| Authentication | IEEE 802.1X with RADIUS, WPA/WPA2/WPA3 Enterprise and Personal |
| Encryption | CCMP (AES), TKIP; WPA3 CCMP/GCMP (AES/CNSA) |
| Captive Portal | External RADIUS, click-through, redirection page, walled garden |
| Other | MAC filtering (up to 3072), SSID hiding, client isolation, neighbour AP detection, Kensington lock |
Power
| Power Input | IEEE 802.3at PoE+ or optional AC adapter (100-240VAC) |
| Power Consumption (PoE) | 13W average; 16.9W maximum |
| Power Consumption (AC) | 15W average; 19W maximum |
| Max Heat Dissipation | 57.62 BTU/h (PoE); 64.79 BTU/h (AC) |
Physical
| Dimensions (W x D x H) | 200 x 240 x 45 mm (7.88 x 9.45 x 1.78 in) |
| Weight | 1.2 kg (2.64 lb) |
| Mounting | Desktop, wall or ceiling |
Environmental
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -25°C to 70°C |
| Operating Humidity | 5% to 90% non-condensing |
| Operating Altitude | Up to 3,048 m |
| Safety | EN 62368-1, UL 62368-1, UL 2043 |
Features & Applications
Key Features
| AWC | Autonomous Wave Control centrally analyses the wireless network and optimises AP settings automatically |
| AWC Channel Blanket (AWC-CB) | Single-channel and hybrid operation for seamless roaming (licence required) |
| AWC Smart Connect (AWC-SC) | Plug-and-play wireless uplinks between APs, no data cable needed (licence required) |
| MDX | Wireless Multi-Dimensional Exchange for real-time and historical device tracking |
| Passpoint & OpenRoaming | Automatic, secure client onboarding |
| Fast Roaming | 802.11k, 802.11v and 802.11r |
| Virtual APs | Multiple SSIDs mapped to VLANs |
| QR Code Connect | Generate a QR code for quick client connection |
| AMF-Security | Automatic quarantine of threatening wireless clients (AMF-Sec controller and Vista Manager AWC required) |
Typical Deployments
Education, healthcare, manufacturing and warehouses, offices and busy commercial venues that need high client density and smooth roaming.
Selection Tip
The TQ6602 GEN2 suits most enterprise spaces with its 4x4 + 4x4 radios. For the highest capacity, the TQ6702 GEN2 adds an 8x8 5GHz radio for up to 4.8Gbps raw capacity.
Package Contents & TQ6000 GEN2 Series Ordering Information
In the Box
1 x TQ6602 GEN2 access point. The AC adapter and PoE injectors are optional accessories ordered separately.
Regulatory Domain Suffix
-00 = other countries (including Singapore), -01 = United States, -02 = Taiwan, -03 = Canada.
TQ6000 GEN2 Series Models
| Model | Key difference |
| TQ6602 GEN2 (this listing) | 4x4 2.4GHz + 4x4 5GHz, 3.55Gbps raw capacity |
| TQ6702 GEN2 | 4x4 2.4GHz + 8x8 5GHz, 4.8Gbps raw capacity |
Related Official Accessories & Licences
| AT-PWRADP-01 | AC adapter |
| AT-6101GP-30 | Gigabit Ethernet PoE+ (802.3at) injector, UK power cord |
| AT-7101GHTm-30 | Multi-Gigabit PoE++ (802.3bt) injector, UK power cord |
| AT-BRKT-CONV-AP1 | Bracket converter for replacing Cisco or Fortinet wall-mounted APs |
| AT-FL-VISTA-AWC10-1/5YR | Vista Manager EX AWC plug-in licence for 10 APs |
| AT-FL-VISTA-CB10-1/5YR-2022 | Vista Manager AWC-CB and AWC-SC licence for 10 APs |
| AT-SW-AWC10-1/5YR / AT-SW-CB10-1/5YR-2022 | Switch-based AWC and AWC-CB/SC licences for 10 APs |
| AT-RT-AWC5-1/5YR / AT-RT-CB5-1/5YR-2022 | AR4050S firewall AWC and AWC-CB/SC licences for 5 APs |
Datasheet & Downloads
| TQ6602 GEN2 product page | TQ6602 GEN2 on alliedtelesis.com |
| TQ6000 GEN2 Series datasheet | TQ6000 GEN2 Series Datasheet (PDF) |
Frequently Asked Questions — Allied Telesis TQ6602 GEN2
How is the TQ6602 GEN2 powered?
By IEEE 802.3at PoE+ on its PoE-in port (16.9W maximum), or by the optional AT-PWRADP-01 AC adapter.
Do I need a controller?
No. It can run standalone via its web GUI. For centralised management use AWC in Vista Manager EX or on a compatible Allied Telesis switch or firewall.
Are Channel Blanket and Smart Connect included free?
No. Both require an AWC-CB licence together with an AWC licence. Basic AWC manages 5 APs free on supported switches and the AR4050S.
Is the -00 version approved for Singapore?
Yes. The datasheet lists IMDA certification for Singapore, with firmware release 8.0.2-1.1 or later.
What warranty do I get?
Supplied by SourceIT with local warranty and a GST invoice.
