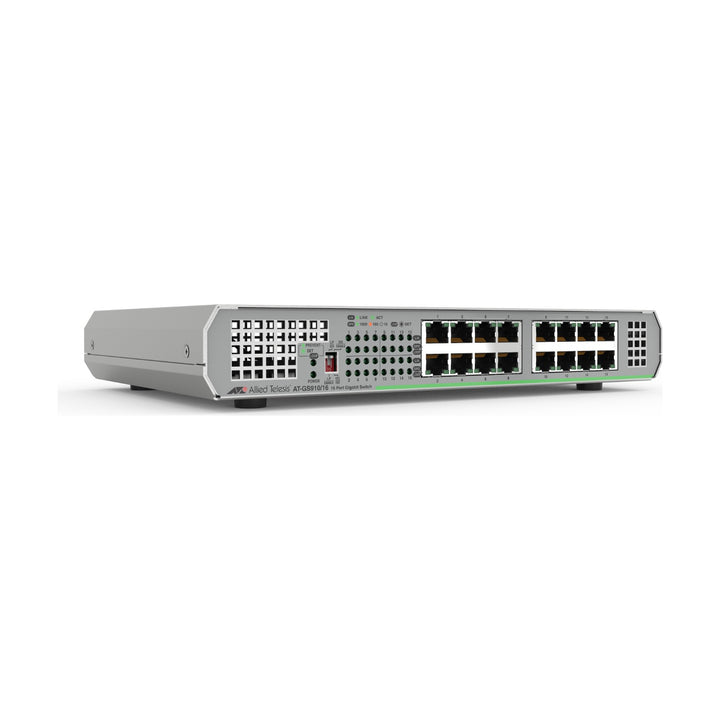

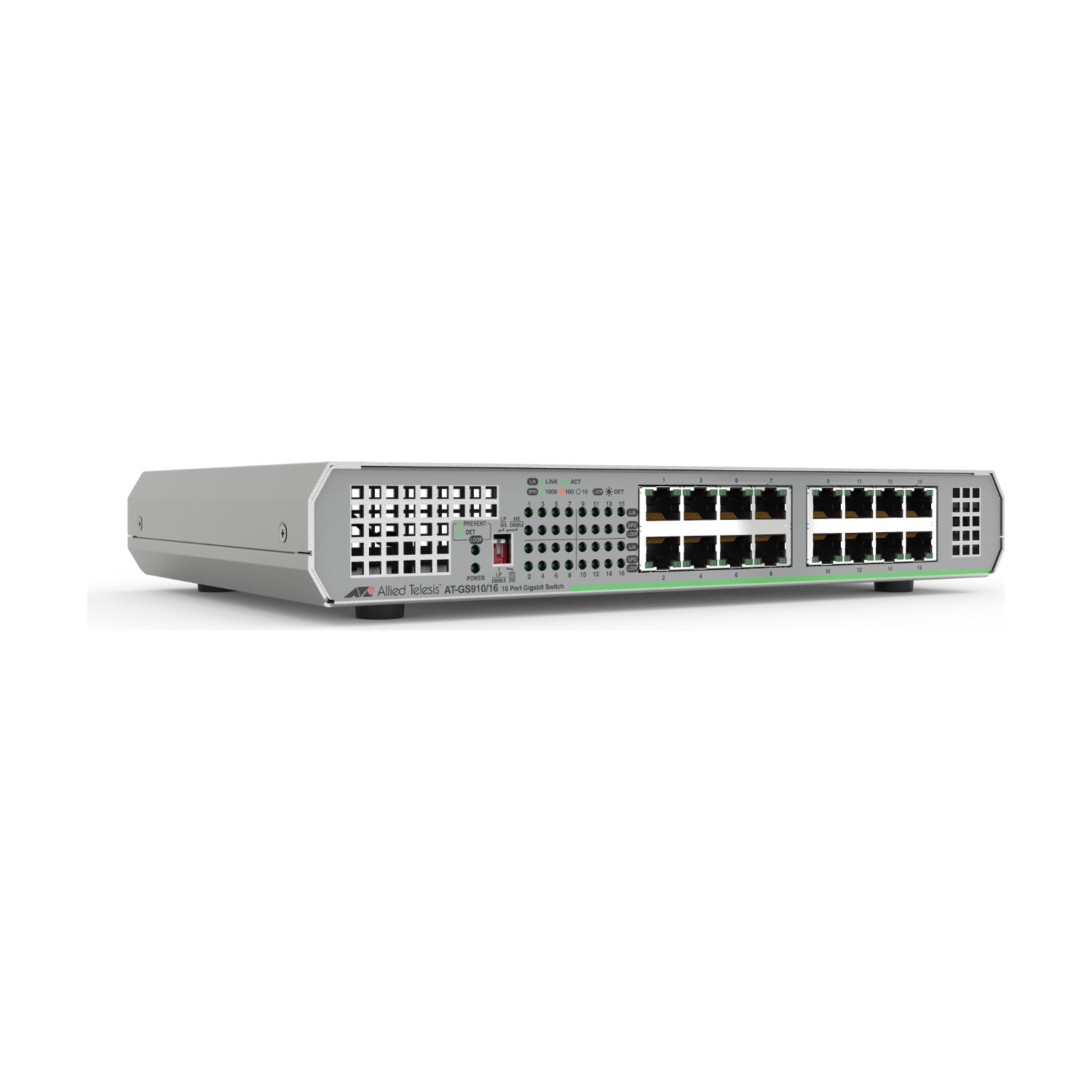

Allied Telesis GS910/16 16-Port Gigabit Unmanaged Switch with Internal PSU
PRODUCT DESCRIPTION
Allied Telesis GS910/16 16-Port Gigabit Unmanaged Switch - Local Warranty
Plug-and-Play Gigabit Connectivity
The CentreCOM GS910/16 provides 16 auto-negotiating 10/100/1000T RJ-45 ports with Auto MDI/MDI-X, so it connects to existing infrastructure with little or no setup.
Wire-Speed, Non-Blocking Switching
A 32 Gbps switching capacity and 23.8 Mpps throughput let every port run at full Gigabit speed for bandwidth-hungry traffic such as video and large file transfers.
Loop Guard Protection
Loop Detection Frames spot accidental network loops and shut the affected port to prevent broadcast storms, then recover the port automatically once the loop is removed.
Silent, Eco-Friendly Design
A fanless metal case with an internal power supply runs silently, while link-down power saving, cable length detection and IEEE 802.3az Energy Efficient Ethernet cut power use.
GS910/16 Datasheet — Technical Specifications
General
| Product Name | CentreCOM GS910/16 Gigabit Ethernet Unmanaged Switch |
| Model | GS910/16 |
| Order Code | AT-GS910/16-30 |
| Series | CentreCOM GS910 Series |
Ports / Interfaces
| 10/100/1000T (RJ-45) Ports | 16 |
| Port Features | Auto-negotiation, Auto MDI/MDI-X, half/full duplex, full-duplex flow control |
Performance
| Switching Capacity | 32 Gbps |
| Throughput | 23.8 Mpps |
| MAC Addresses | Max 8K |
| Packet Buffer | 524 KB |
| Jumbo Frames | 10 KB |
| EAP / BPDU Passthrough | Yes |
Power
| Power Supply | Internal |
| Power Input | 100-240 V AC, 50-60 Hz |
| Power Current | 0.3 A |
| Max Power Consumption | 12 W |
Physical
| Dimensions (W x D x H) | 263 x 179 x 38 mm |
| Weight | 1.5 kg |
| Cooling | Fanless (silent operation) |
| Mounting | Wall-mount or desktop; bracket supplied |
Environmental
| Operating Temperature | 0°C to 50°C |
| Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az |
| Approvals | CE, FCC Class A, VCCI Class A, RCM, UL60950-1, EU RoHS |
Features & Applications
Key Features
- Network loop guard using Loop Detection Frames, with automatic port recovery
- EAP and BPDU passthrough
- Wire-speed, non-blocking architecture
- Auto-negotiating Gigabit ports with Auto MDI/MDI-X
- Full-duplex flow control
- Power saving: link-down power savings and cable length detection
- IEEE 802.3az Energy Efficient Ethernet
- Sturdy metal case, fanless and silent
Typical Deployments
Desktop and small-office networks, meeting rooms, classrooms and lab benches, or expanding port count beside a managed switch where no configuration is required.
Selection Tip
The GS910/16 is the compact 16-port option; the GS910/24 offers 24 ports. For 5 or 8 ports choose the GS910/5, GS910/8 or their external-adaptor E versions. If you need VLANs or PoE, step up to the GS950 V2 Series.
Package Contents & GS910 Series Ordering Information
In the Box
1 x GS910/16 switch with internal power supply, UK power cord and mounting bracket.
Power Cord Option
The -30 suffix denotes a UK power cord. Other Allied Telesis suffixes: -10 US, -20 no cord, -40 Australian, -50 European.

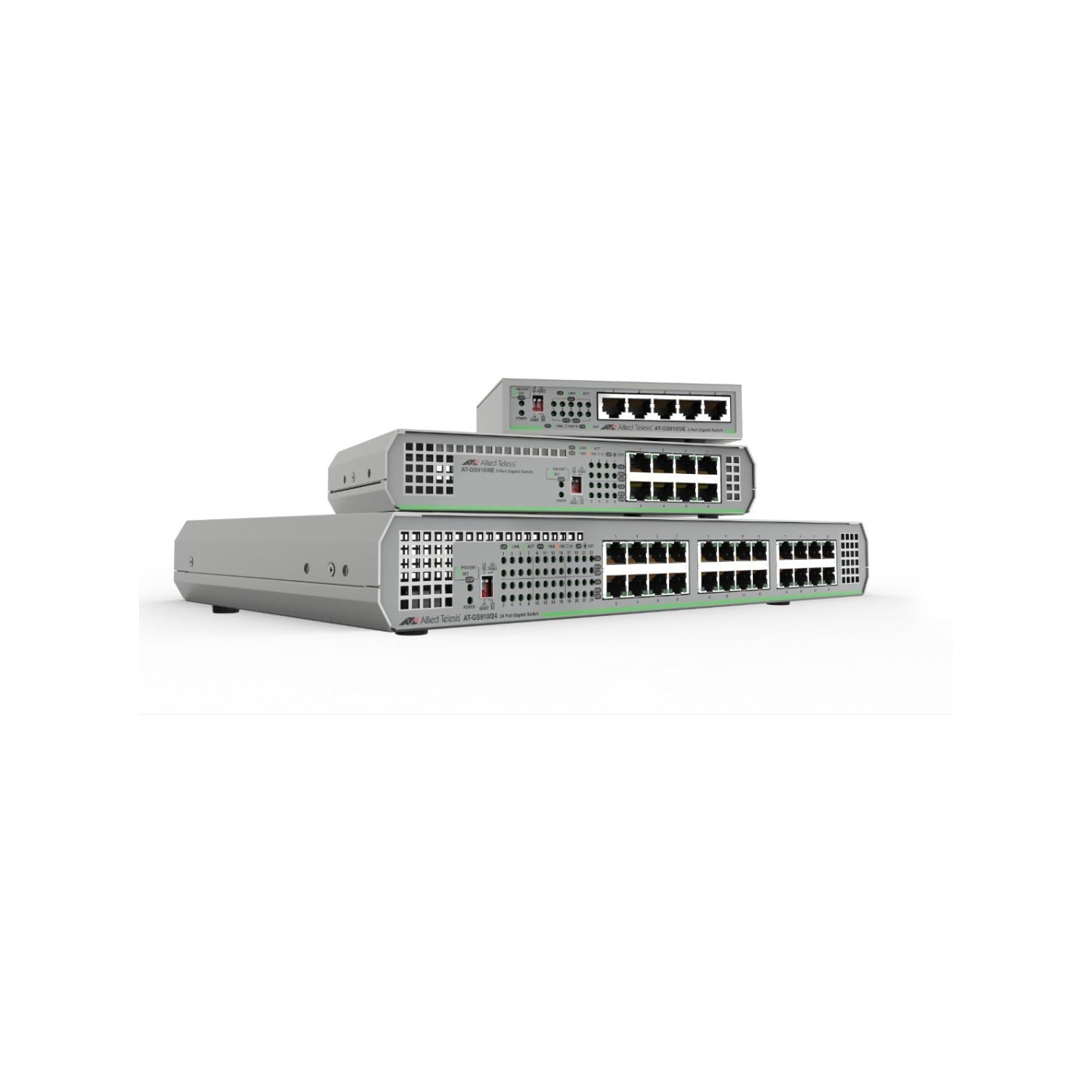

GS910 Series Models
| Model | Key difference |
| GS910/5E | 5 x Gigabit, external AC adaptor |
| GS910/5 | 5 x Gigabit, internal PSU |
| GS910/8E | 8 x Gigabit, external AC adaptor |
| GS910/8 | 8 x Gigabit, internal PSU |
| GS910/16 (this listing) | 16 x Gigabit, internal PSU, 32 Gbps |
| GS910/24 | 24 x Gigabit, internal PSU, 48 Gbps |
Datasheet & Downloads
| Official series page | GS910 Series on alliedtelesis.com |
| Datasheet | GS910 Series Datasheet (PDF) |
Frequently Asked Questions — Allied Telesis GS910/16
Does the GS910/16 need configuration?
No. It is an unmanaged switch: connect power and cables and it works, with auto-negotiation and Auto MDI/MDI-X on every port.
Is it noisy?
No. The switch is fanless and runs silently.
What happens if someone creates a network loop?
Loop guard detects the loop, shuts down the affected port to stop a broadcast storm, and re-enables the port automatically once the loop is cleared.
Does it support PoE or VLANs?
No. The GS910 Series is unmanaged and does not supply PoE. For VLANs and PoE+ see the GS950 V2 Series.
What warranty do I get?
Supplied by SourceIT with local warranty and a GST invoice.
