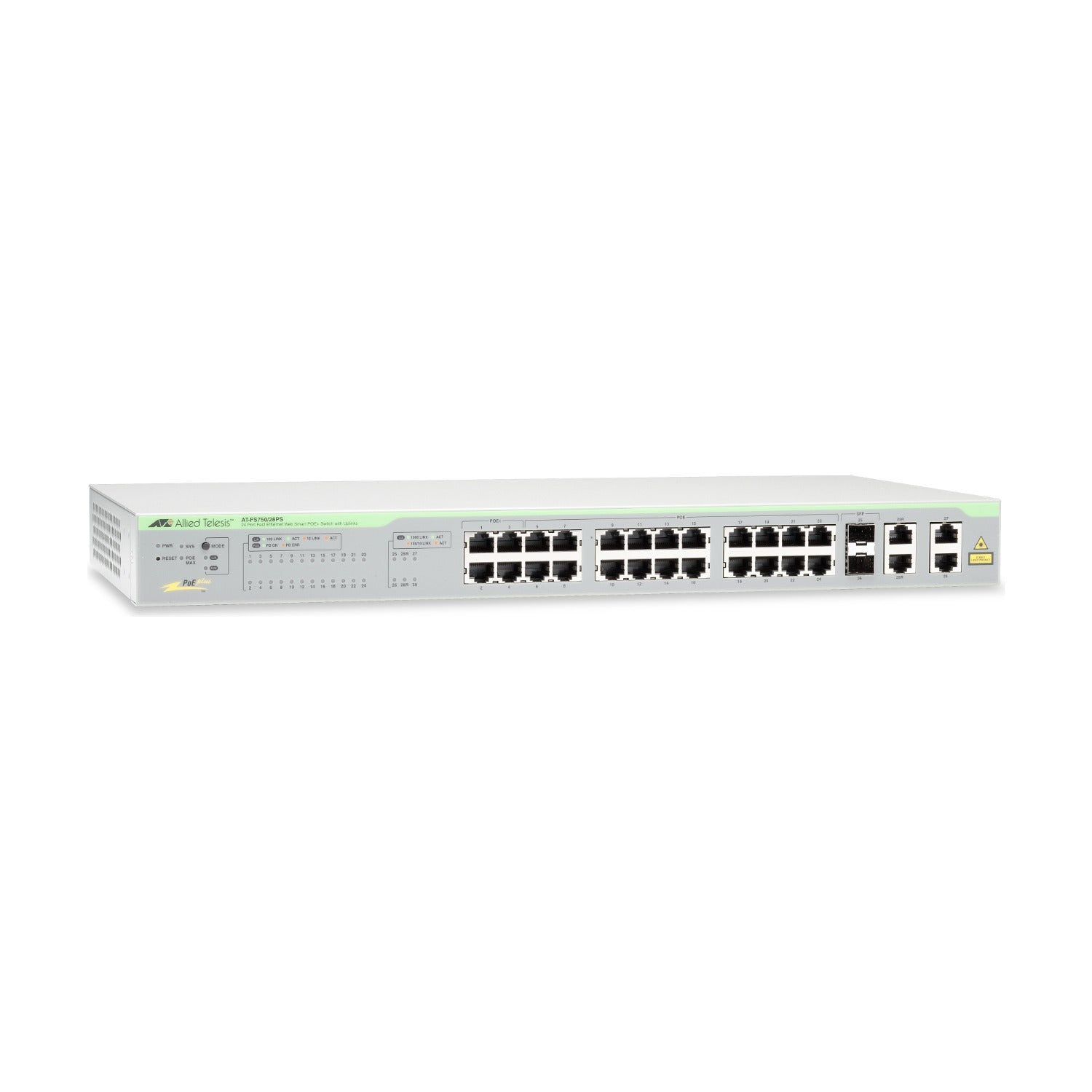

Allied Telesis FS750/28PS 24-Port Fast Ethernet PoE WebSmart Switch with 2 x Gigabit and 2 x Combo SFP
PRODUCT DESCRIPTION
Allied Telesis FS750/28PS 24-Port Fast Ethernet PoE WebSmart Switch - Local Warranty
Power 24 Devices over Ethernet
Every one of the 24 x 10/100TX ports supplies PoE, and ports 1-4 step up to PoE+ at up to 30 W for higher-draw devices such as PTZ cameras. The total PoE budget is 193 W.
Gigabit Uplinks with Fibre Option
Two dedicated 10/100/1000T ports plus two 1000T/SFP combo ports connect the switch to the core over copper or fibre, with support for 100FX, 1000T, 1000SX and 1000LX SFPs.
Easy WebSmart Control
Browser-based management covers port-based and 802.1Q VLANs, 802.1p QoS, link aggregation, port mirroring and 802.1X security, giving small networks managed-switch control with plug-and-play simplicity.
Efficient and Cost-Effective
A high-efficiency power supply, low-power chipset and IEEE 802.3az Energy Efficient Ethernet keep running costs down at the network edge.
FS750/28PS Datasheet — Technical Specifications
General
| Product Name | FS750/28PS Fast Ethernet WebSmart PoE Switch |
| Model | FS750/28PS |
| Order Code | AT-FS750/28PS-30 |
| Series | FS750 Series |
Ports / Interfaces
| 10/100TX (RJ-45) PoE Ports | 24 (ports 1-4 PoE+ up to 30 W) |
| 10/100/1000T (RJ-45) Ports | 2 |
| 1000T / SFP Combo Ports | 2 (SFP: 100FX, 1000T, 1000SX or 1000LX) |
Performance
| Switching Capacity | 12.8 Gbps |
| Forwarding Rate | 9.5 Mpps |
| MAC Addresses | 8K |
| VLANs | 256 (4,000 VLAN IDs) |
| Packet Buffer | 4.1 Mbit |
| Memory | 128 MB DRAM, 16 MB flash |
| Jumbo Frames | Up to 10K |
| ACL Entries | 200 (shared) |
Power / PoE
| PoE Standard | IEEE 802.3af / 802.3at |
| Max PoE Power Budget | 193 W |
| Max PoE Enabled Ports | 24 |
| Max PoE+ Enabled Ports | 4 (ports 1-4) |
| Max Power Consumption | 18 W (PoE off) / 241 W (PoE on) |
| Power Input | 100-240 V AC, 50-60 Hz |
| Cooling | Fan |
Physical
| Dimensions (W x D x H) | 440 x 210 x 44 mm |
| Weight | 5.0 kg |
| Mounting | Wall-mount or desktop; rack-mount brackets supplied |
Environmental
| Operating Temperature | 0°C to 40°C |
| Non-operating Temperature | -25°C to 70°C |
| Operating Humidity | 5% to 90% non-condensing |
| Compliance | RoHS, EU RoHS, China RoHS, WEEE, CE, CSA/cUL, FCC/EN55022 Class A |
Features & Applications
Key Features
- IEEE 802.1Q tagged and port-based VLANs (up to 256 groups)
- 802.1p QoS with four priority queues per port
- IGMP snooping (v1/v2) and static multicast groups
- Spanning Tree (802.1D/w/s) and 802.3ad link aggregation with LACP
- 802.1X port-based and MAC-based access control, RADIUS, dynamic VLAN assignment
- Port mirroring, rate limiting, broadcast storm control, destination MAC filtering
- LLDP, SNMPv1/v2c/v3, Syslog, SNTP, firmware and config backup by FTP/HTTP
- IEEE 802.3az Energy Efficient Ethernet
Typical Deployments
Small offices, retail and branch sites powering IP phones, cameras and access points where 10/100 edge speed is enough but Gigabit uplinks are needed to the core.
Selection Tip
Only ports 1-4 deliver full 30 W PoE+; the other 20 ports provide standard PoE. If every port needs Gigabit PoE+, consider the GS950/28PS V2. For non-PoE ports choose the FS750/28.
Package Contents & FS750 Series Ordering Information
In the Box
Switch unit, rack-mount brackets and screws, UK power cord and rubber feet.
Power Cord Option
The -30 suffix denotes a UK power cord. Other Allied Telesis suffixes: -10 US, -20 no cord, -40 Australian, -50 European.

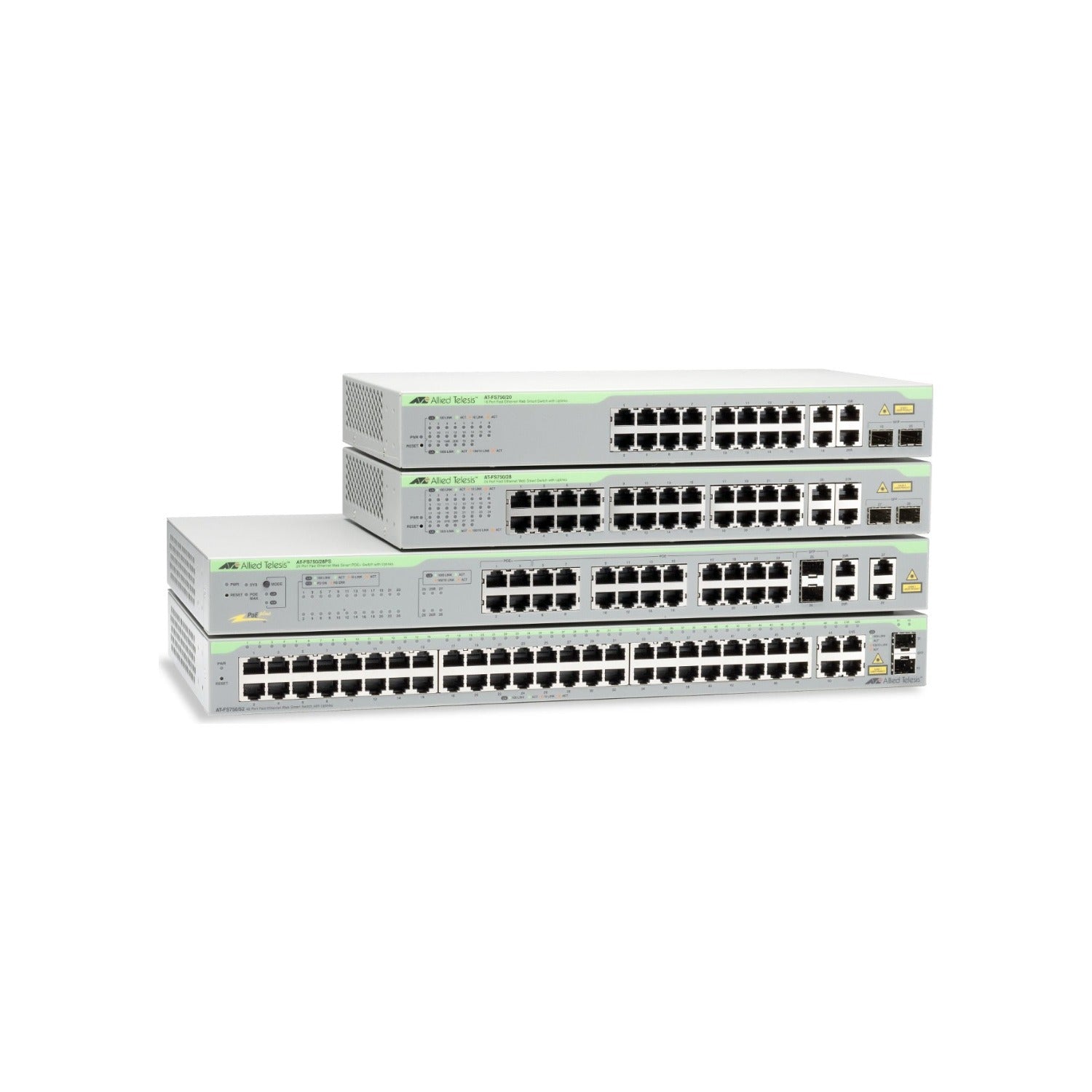

FS750 Series Models
| Model | Key difference |
| FS750/20 | 16 x 10/100TX + 2 x Gigabit + 2 x SFP/1000T combo |
| FS750/28 | 24 x 10/100TX + 2 x Gigabit + 2 x SFP/1000T combo |
| FS750/28PS (this listing) | 24 x 10/100TX PoE + 2 x Gigabit + 2 x SFP/1000T combo, 193 W |
Official Accessories
| AT-SPSX | 1000 Mbps multi-mode SFP, 550 m, 850 nm, LC |
| AT-SPSX/I | 1000 Mbps multi-mode SFP, industrial temperature |
| AT-SPLX10 | 1000 Mbps single-mode SFP, 10 km, 1310 nm, LC |
| AT-SPFX/2 | 100 Mbps multi-mode SFP, 2 km, LC |
| AT-SPFX/15 | 100 Mbps single-mode SFP, 15 km, LC |
| AT-SPBD10-13 / -14 | 1000 Mbps single-mode Bi-Di SFP pair, 10 km, LC |
Datasheet & Downloads
| Official series page | FS750 Series on alliedtelesis.com |
| Datasheet | FS750 Series Datasheet (PDF) |
Frequently Asked Questions — Allied Telesis FS750/28PS
Do all 24 ports support PoE+?
All 24 10/100TX ports support PoE; ports 1-4 support PoE+ at up to 30 W. The total PoE budget is 193 W.
How do I connect it to fibre?
Use one or both of the 1000T/SFP combo ports with a compatible SFP module (100FX, 1000T, 1000SX or 1000LX).
How is it managed?
Through a web-based interface with VLAN, QoS, link aggregation, port mirroring, 802.1X and SNMP support.
Is it fanless?
No. The FS750/28PS uses a fan; the non-PoE FS750 models are fanless.
What warranty do I get?
Supplied by SourceIT with local warranty and a GST invoice.
