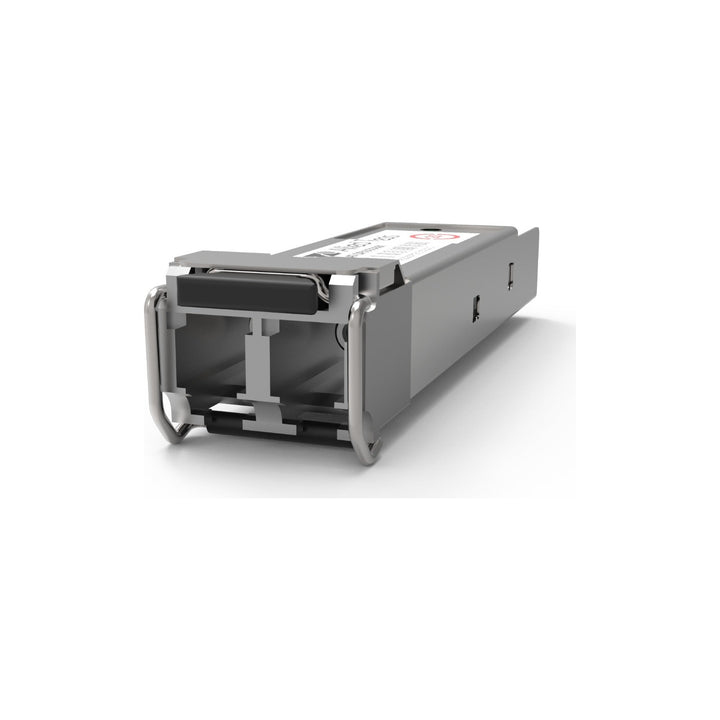

Allied Telesis AT-SPSX 1000BASE-SX Gigabit SFP Transceiver, 550m Multi-Mode LC, 850nm
PRODUCT DESCRIPTION
Allied Telesis AT-SPSX 1000BASE-SX Multi-Mode SFP - Local Warranty
Short-Reach Gigabit Fiber Links
The AT-SPSX is a Gigabit (1000BASE-SX) SFP module for multi-mode fiber, giving switches, routers and media converters an economical way to run fiber links of up to 550 m inside a building or across a small campus.
850 nm Optics with Duplex LC
It transmits at 850 nm over a duplex LC connector. Reach is 220 to 550 m depending on the grade of multi-mode cable installed, with the longest runs achieved on 50/125 µm fiber.
Hot-Swappable and MSA-Compliant
The module plugs into any SFP slot without powering down the host and includes a self-locking mechanism. Because it follows the SFP Multi-Source Agreement, it works in Allied Telesis devices with SFP ports as well as other MSA-compliant platforms.
Broad Allied Telesis Compatibility
Allied Telesis lists the SPSX as an applicable optic for a wide range of its switches, firewalls and media converters, including the x530, x530L, x330, x230, GS970EMX, GS980MX and the MMC and MCF3000 media converter families.
AT-SPSX Datasheet — Technical Specifications
General
| Product Name | Allied Telesis 1000SX (LC) multi-mode SFP, 550 m |
| Model | SPSX |
| Order Code | AT-SPSX |
| Series | SP Series Gigabit Small Form-Factor Pluggable Modules |
Optical Interface
| Standard | 1000BASE-SX |
| Data Rate | 1 Gbps (maximum raw data rate 1.25 GBd) |
| Fiber Type | Multi-mode fiber (MMF) |
| Connector | LC |
| Wavelength | 850 nm |
| Maximum Distance | 220–550 m (depending on fiber grade) |
| Digital Diagnostics Monitoring (DDM) | Not listed for this model |
Optical Power
| Transmit Power | -9.5 dBm to -3 dBm |
| Receive Sensitivity | -17 dBm |
| Power Budget | 7.5 dB |
| Overload | -3 dBm |
Environmental
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Operating Humidity | 0 to 85% non-condensing |
Features & Applications
Key Features
Hot-swappable, plug-and-play installation; self-locking mechanism; MSA-compliant form factor; full-duplex Gigabit Ethernet over multi-mode fiber.
Typical Deployments
Switch-to-switch uplinks between wiring closets, links from access switches to a building core, and fiber ports on Allied Telesis media converters where the existing cabling is multi-mode.
Selection Tip
Choose the SPSX for standard-temperature indoor use on multi-mode fiber. For a TAA-compliant, industrial-temperature version with DDM pick the SPSX/I-90 or SPSX-90; for extended temperature pick the SPSX/E. For single-mode runs up to 10 km choose the SPLX10a.
Package Contents & SP Series Ordering Information
In the Box
1 x AT-SPSX 1000SX multi-mode SFP module.
Allied Telesis SP Series Gigabit SFP Models
| Model | Key difference |
| AT-SPSX (this listing) | 1000SX, LC, MMF, 850 nm, 0–70°C |
| AT-SPSX-90 | 1000SX, LC, MMF, 850 nm, TAA |
| AT-SPSX/E | 1000SX, LC, MMF, extended temperature (-40 to 105°C), TAA |
| AT-SPEX | 1000EX, LC, MMF, 1310 nm, up to 2 km, TAA |
| AT-SPLX10a | 1000LX, LC, SMF, 1310 nm, 10 km, TAA |
| AT-SPLX40 | 1000LX, LC, SMF, 1310 nm, 40 km |
| AT-SPTX/I | 10/100/1000T copper SFP, RJ-45 (100 m), I-Temp |
Datasheet & Downloads
| Product page | SPSX on alliedtelesis.com |
| Datasheet | SP Series Datasheet (PDF) |
Frequently Asked Questions — Allied Telesis AT-SPSX
How far can the AT-SPSX reach?
Up to 550 m over multi-mode fiber. Allied Telesis specifies 220–550 m, as the achievable distance depends on the multi-mode cable grade.
Does it work with single-mode fiber?
No. It is an 850 nm multi-mode optic. For single-mode fiber use the AT-SPLX10a (10 km) or AT-SPLX40 (40 km).
Can I use it in non-Allied Telesis equipment?
The SP Series is MSA-compliant, so Allied Telesis states it can be used with other MSA-compliant platforms that support SFP ports. Allied Telesis also publishes an SFP compatibility flyer for Cisco switches.
Is the AT-SPSX TAA compliant?
The ordering table does not mark the AT-SPSX as TAA compliant. The AT-SPSX-90 is the TAA-compliant 1000SX version.
What warranty do I get?
Supplied by SourceIT with local warranty and a GST invoice.
