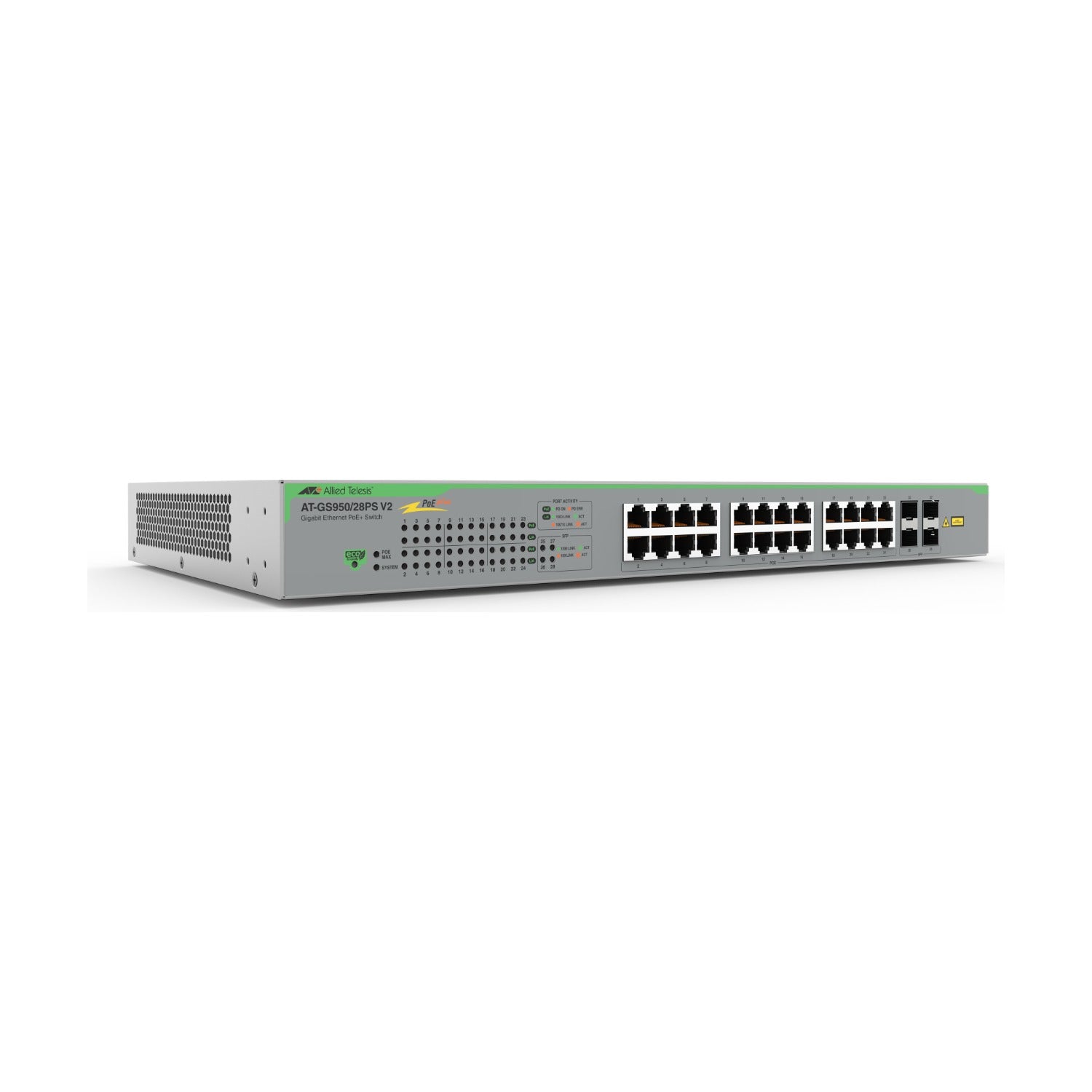

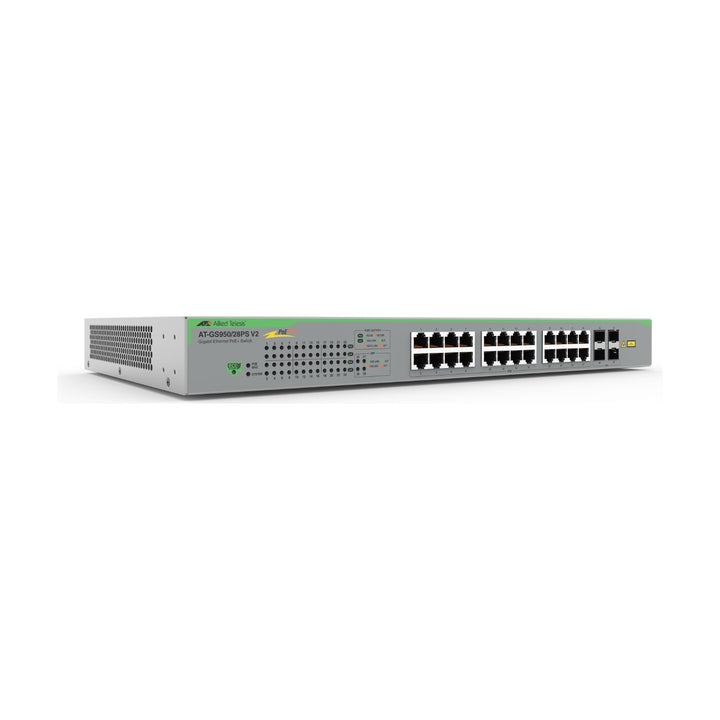

Allied Telesis GS950/28PS V2 24-Port Gigabit PoE+ WebSmart Switch with 4 x SFP
PRODUCT DESCRIPTION
Allied Telesis GS950/28PS V2 24-Port Gigabit PoE+ WebSmart Switch - Local Warranty
Gigabit Speed and PoE+ on Every Port
All 24 x 10/100/1000T ports can deliver PoE+ power (IEEE 802.3at, up to 30 W per port) from a 185 W budget, so cameras, phones and access points run from a single cable. Four 100/1000X SFP ports add fibre uplinks.
Simple Web-Based Management
WebSmart management gives you VLANs, QoS, link aggregation, port mirroring and 802.1X security through an intuitive browser interface, without the learning curve of a fully managed switch.
Wire-Speed Non-Blocking Performance
A 56 Gbps switching fabric and 41.66 Mpps forwarding rate keep all 28 ports running at full speed, with 16K MAC addresses and 10K jumbo frame support.
Low Power, Flexible Mounting
A high-efficiency power supply, low-power chipset and IEEE 802.3az Energy Efficient Ethernet help reduce running costs, and the supplied brackets allow rack or wall mounting.
GS950/28PS V2 Datasheet — Technical Specifications
General
| Product Name | GS950/28PS V2 Gigabit WebSmart PoE+ Edge Switch |
| Model | GS950/28PS V2 |
| Order Code | AT-GS950/28PS V2-30 |
| Series | GS950 V2 Series |
Ports / Interfaces
| 10/100/1000T (RJ-45) Ports | 24 (all PoE+ enabled) |
| 100/1000X SFP Ports | 4 (100FX, 1000SX or 1000LX) |
| Total Ports | 28 |
Performance
| Switching Fabric | 56 Gbps |
| Forwarding Rate | 41.66 Mpps |
| MAC Addresses | 16K |
| VLANs | 256 (4K VLAN IDs) |
| Packet Buffer | 1.5 MB |
| Memory | 256 MB DRAM, 32 MB flash |
| Jumbo Frames | Up to 10K |
| ACL Entries | 188 |
Power / PoE
| PoE Standard | IEEE 802.3af / 802.3at (PoE+) |
| PoE Power Budget | 185 W |
| PoE Sourcing Ports at 7.5 W / 15.4 W / 30 W | 24 / 12 / 6 |
| Max Power Consumption (no PoE load) | 95 W (324.15 BTU/h) |
| Max Power Consumption (full PoE+ load) | 270 W (919.383 BTU/h) |
| Noise | 41 dBA (no PoE load) / 52 dBA (full PoE+ load) |
Physical
| Dimensions (W x D x H) | 440 x 250 x 44 mm |
| Weight | 3.7 kg |
| Mounting | Wall-mount or desktop; rack-mount brackets supplied |
Environmental
| Operating Temperature | 0°C to 45°C |
| Storage Temperature | -25°C to 70°C |
| Operating Humidity | 5% to 90% non-condensing |
| Approvals | UL62368, EN62368, FCC/EN55022/CISPR 22 Class A, VCCI Class A, CE, CSA/cUL, RoHS |
Features & Applications
Key Features
- IEEE 802.1Q tagged and port-based VLANs (up to 256 groups)
- 802.1p QoS with four priority queues per port
- IGMP snooping (v1/v2) and static multicast groups
- Spanning Tree (802.1D/w/s) and 802.3ad link aggregation (manual and LACP)
- 802.1X port-based and MAC-based access control, RADIUS, dynamic VLAN assignment
- Ingress/egress rate limiting, broadcast storm control, port mirroring
- LLDP, SNMPv1/v2c/v3, SSH, Telnet, Syslog, SNTP
- Web-based configuration; CLI for firmware upgrade, configuration download and show commands
- IEEE 802.3az Energy Efficient Ethernet
Typical Deployments
Small business and branch networks, IP video surveillance, VoIP phone rollouts and wireless access point deployments that need Gigabit PoE+ with straightforward management.
Selection Tip
The GS950/28PS V2 shares its 185 W budget across 24 ports. For more power and ports choose the GS950/52PS V2 (370 W, 24 PoE-enabled of 48); for a non-PoE equivalent choose the GS950/28 V2.
Package Contents & GS950 V2 Series Ordering Information
In the Box
Switch unit, rack-mount brackets and screws (also usable for wall mounting), UK power cord and rubber feet.
Power Cord Option
The -30 suffix denotes a UK power cord. Other Allied Telesis suffixes: -10 US, -20 no cord, -40 Australian, -50 European.

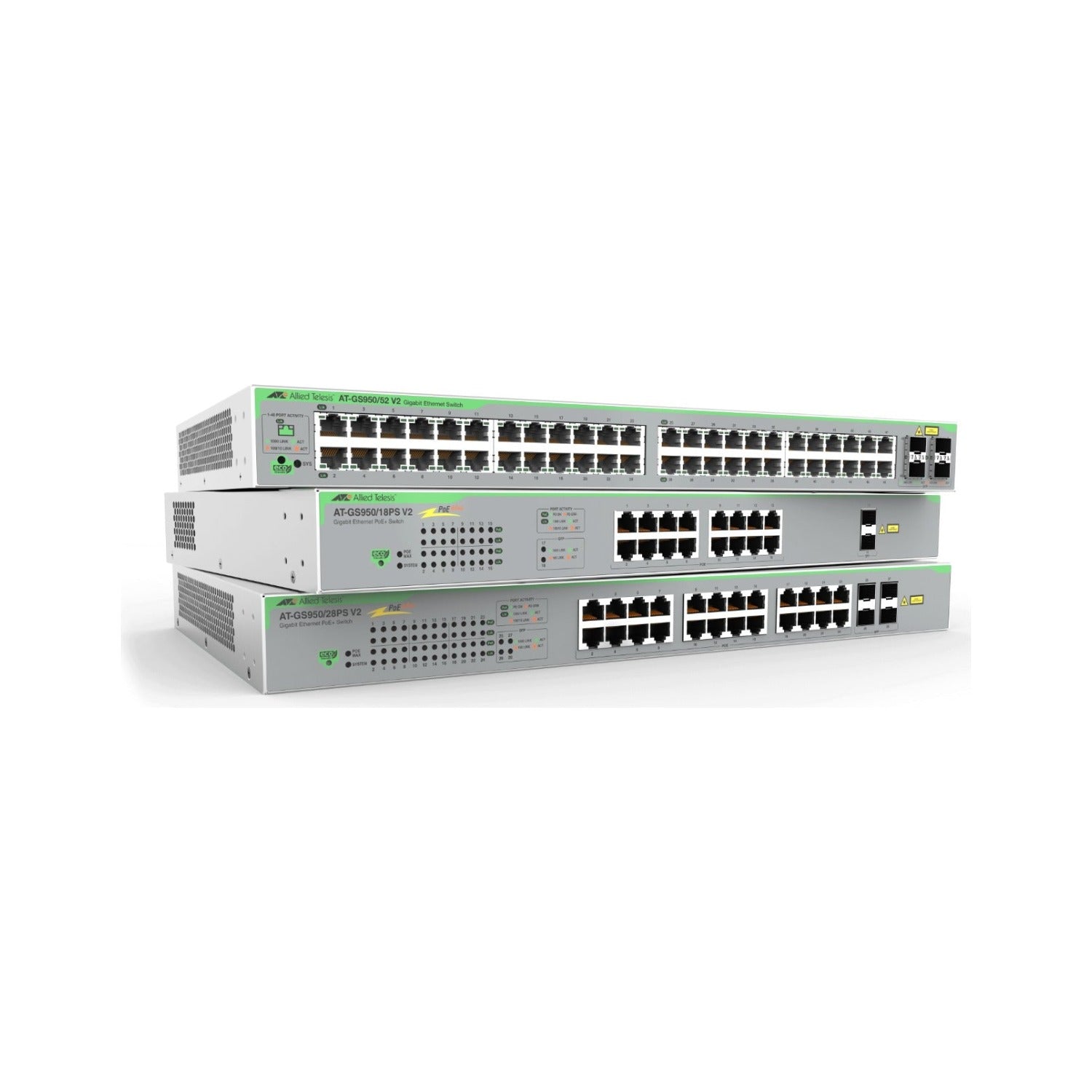

GS950 V2 Series Models
| Model | Key difference |
| GS950/10 V2 | 8 x Gigabit, 2 x SFP |
| GS950/10PS V2 | 8 x Gigabit PoE+, 2 x SFP, 75 W |
| GS950/18 V2 | 16 x Gigabit, 2 x SFP |
| GS950/18PS V2 | 16 x Gigabit PoE+, 2 x SFP, 185 W |
| GS950/28 V2 | 24 x Gigabit, 4 x SFP |
| GS950/28PS V2 (this listing) | 24 x Gigabit PoE+, 4 x SFP, 185 W |
| GS950/52 V2 | 48 x Gigabit, 4 x SFP |
| GS950/52PS V2 | 48 x Gigabit (24 PoE+), 4 x SFP, 370 W |
Official Accessories
| AT-SPSX | 1000SX multi-mode SFP, LC, 850 nm |
| AT-SPLX10a | 1000LX single-mode SFP, LC, 1310 nm, 10 km |
| AT-SPBD10/I-13 / -14 | 1000 Mbps single-mode Bi-Di SFP pair, LC, 10 km |
| AT-SPBD20-13/I / -14/I | 1G single-mode Bi-Di SFP pair, SC, 20 km |
| AT-SPBD40-13/I / -14/I | 1G single-mode Bi-Di SFP pair, LC, 40 km |
| AT-SPFX/2 | 100FX SFP, LC, 1310 nm, 2 km |
| AT-SPFX/15 | 100FX SFP, LC, 1310 nm, 15 km |
| AT-BRKT-J22 | Wall-mount brackets for GS950PS V2 Series |
Datasheet & Downloads
| Official series page | GS950 V2 Series on alliedtelesis.com |
| Datasheet | GS950 V2 Series Datasheet (PDF) |
Frequently Asked Questions — Allied Telesis GS950/28PS V2
How many PoE+ cameras or access points can it power?
The budget is 185 W: up to 24 devices at 7.5 W, 12 at 15.4 W, or 6 at the full 30 W PoE+ level.
Is it a managed switch?
It is a WebSmart switch, configured through a web interface with VLAN, QoS, link aggregation and 802.1X features. The CLI is limited to firmware upgrade, configuration download and show commands.
What SFP modules does it accept?
100FX, 1000SX and 1000LX SFP modules, including the official Allied Telesis modules listed above.
Does it have a fan?
Yes. Noise is rated at 41 dBA with no PoE load and 52 dBA at full PoE+ load; above 25°C ambient the fan runs at full speed.
What warranty do I get?
Supplied by SourceIT with local warranty and a GST invoice.
