Allied Telesis FS980M/28PS 24-Port Fast Ethernet PoE+ Stackable Layer 3 Lite Managed Switch with 4 x SFP
PRODUCT DESCRIPTION
Allied Telesis FS980M/28PS 24-Port PoE+ Stackable Layer 3 Lite Switch - Local Warranty
Fast Ethernet PoE+ at the Network Edge

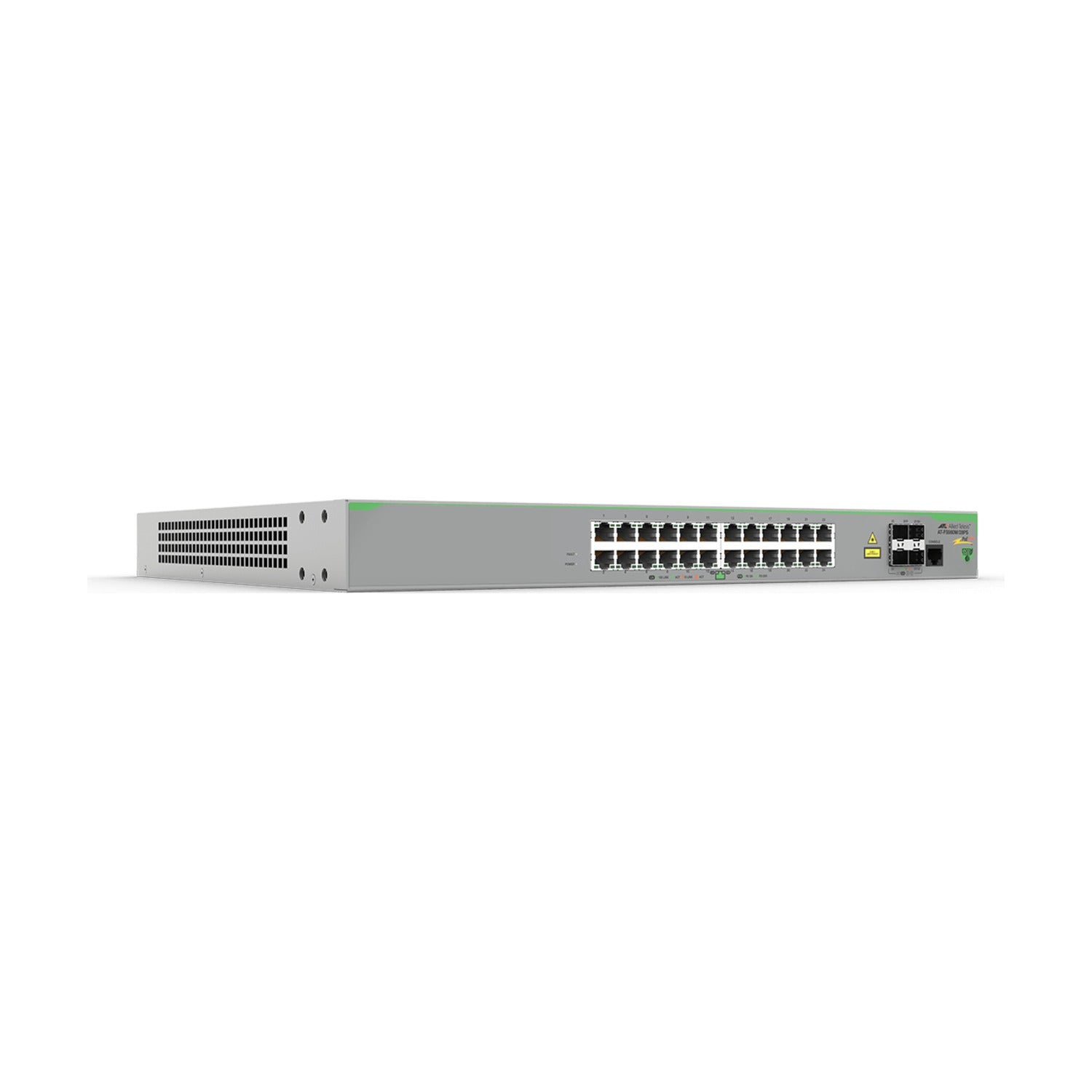

The CentreCOM FS980M/28PS gives you 24 x 10/100TX ports, every one able to power devices to the IEEE 802.3at PoE+ standard, plus 4 x 100/1000X SFP ports for fibre uplinks or stacking. A 375 W PoE budget covers all 24 ports at 15.4 W or 12 ports at the full 30 W.
Stack for Resilience and Port Density
Up to four FS980M units can be combined with VCStack into one logical switch, so traffic keeps flowing if one member fails and the stack is managed as a single device.
Automated Management with AMF
As an Autonomous Management Framework edge node, the switch can be backed up, upgraded, provisioned and recovered automatically from an AMF master, cutting the routine work of running a multi-switch network.
Layer 3 Lite Routing and Edge Security
Static IPv4 routing and RIPv1/v2 handle simple inter-VLAN routing, while 802.1X, MAC and web authentication, ACLs, DHCP snooping and guest VLANs protect the most exposed part of the network.
FS980M/28PS Datasheet — Technical Specifications
General
| Product Name | CentreCOM FS980M/28PS Fast Ethernet Stackable Layer 3 Lite Managed Switch |
| Model | FS980M/28PS |
| Order Code | AT-FS980M/28PS-30 |
| Series | CentreCOM FS980M Series |
Ports / Interfaces
| 10/100TX (RJ-45) PoE+ Ports | 24 |
| 100/1000X SFP Ports | 4 (uplink / stacking) |
| Console Port | Front-panel console management port |
Performance
| Switching Fabric | 12.8 Gbps |
| Forwarding Rate | 9.52 Mpps |
| Stacking | VCStack, up to 4 units |
| MAC Addresses | Up to 16K |
| Jumbo Frames | 10KB (Layer 2) |
| Memory | 512 MB DDR2 SDRAM, 128 MB flash |
| IPv4 Routing | Static routing and RIP (16 routes) |
Power / PoE
| PoE Standard | IEEE 802.3af / 802.3at (PoE+) |
| PoE Power Budget | 375 W |
| Max PoE Ports at 7.0 W / 15.4 W | 24 / 24 |
| Max PoE+ Ports at 30 W | 12 |
| Power Input | 100-240 VAC, 8.0 A maximum, 50/60 Hz |
| Max Power Consumption (no PoE load) | 49 W (170 BTU/h) |
| Max Power Consumption (full PoE+ load) | 520 W |
| Noise | 36 dBA (no PoE load) / 49 dBA (full PoE+ load) |
Physical
| Dimensions (W x D x H) | 440 x 345 x 43.2 mm |
| Weight | 5.1 kg unpackaged / 7.6 kg packaged |
Environmental
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 5% to 90% non-condensing |
| Max Operating Altitude | 3,048 m |
| Compliance | CE, cULus, TUV, EU RoHS, IPv6 Ready certified |
Features & Applications
Key Software Features
- AMF edge node (Autonomous Management Framework) for centralized, zero-touch management
- VCStack virtual chassis stacking (up to 4 units)
- EPSRing ring protection with recovery in as little as 50 ms
- Static IPv4 routing, RIPv1/v2 and IPv6 management (SNMPv6, SSHv6, Telnetv6)
- Tri-authentication (802.1X, MAC-based, web-based), RADIUS, TACACS+, dynamic and guest VLANs
- ACLs, DHCP snooping, IP source guard, Dynamic ARP Inspection, private VLANs
- 8 priority queues per port, policy-based QoS, LLDP-MED and voice VLAN
- Spanning Tree (STP/RSTP/MSTP), LACP link aggregation, loop protection
- Eco-friendly mode to disable ports and LEDs when idle
Typical Deployments
PoE+ access layer for IP surveillance cameras, IP phones and wireless access points, Point-of-Sale and branch networks, and edge switching in AMF-managed enterprise networks where 10/100 desktop speeds are sufficient.
Selection Tip
The FS980M/28PS has a single fixed PSU; the FS980M/28DP adds a second PSU for system and PoE redundancy. For non-PoE edge ports choose the FS980M/28, and for 48 ports the FS980M/52PS.
Package Contents & FS980M Series Ordering Information
In the Box
1 x FS980M/28PS switch with fixed AC power supply and UK power cord.
Power Cord Option
The -30 suffix denotes a UK power cord. Other Allied Telesis suffixes: -10 US, -20 no cord, -40 Australian, -50 European.

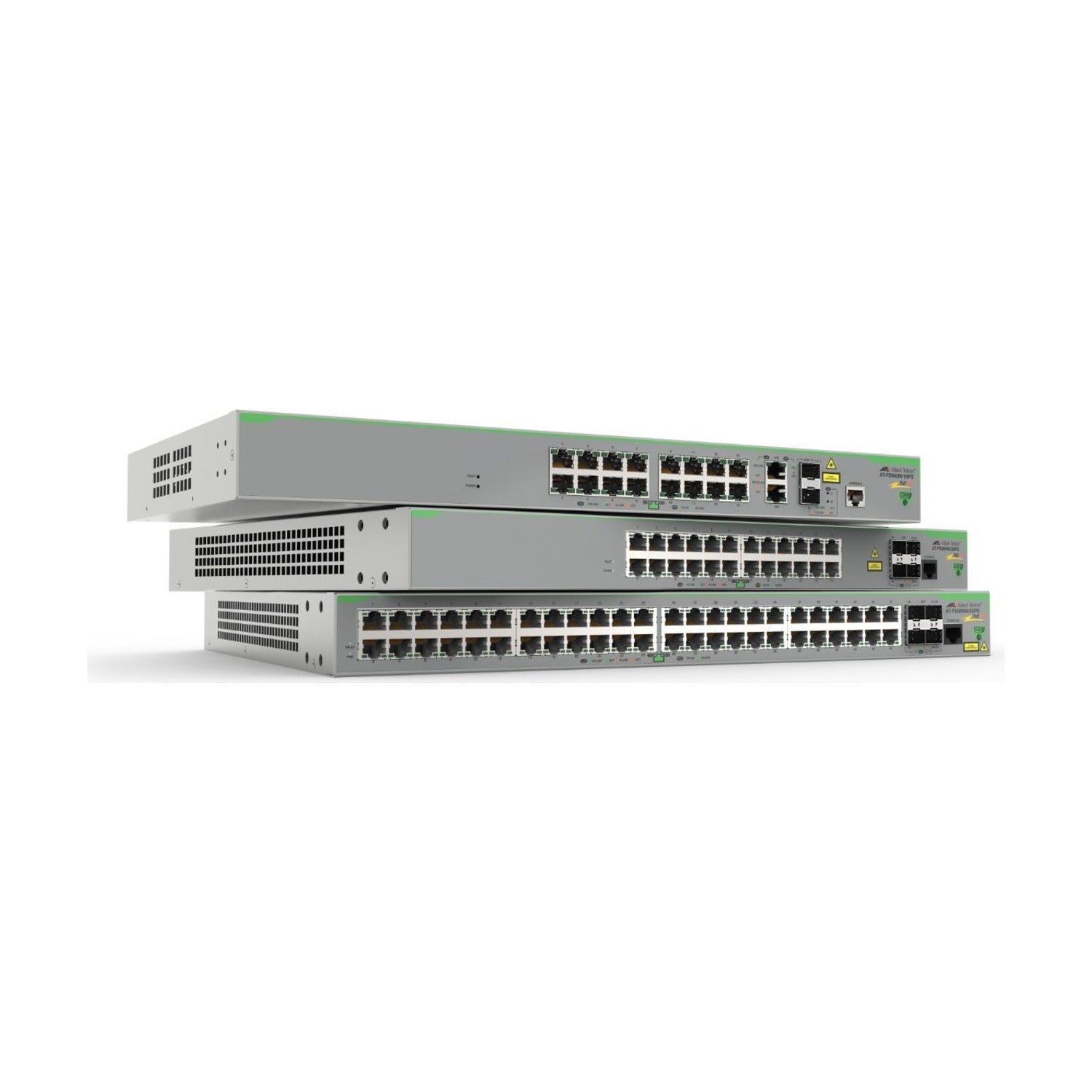

FS980M Series Models
| Model | Key difference |
| FS980M/9 | 8 x 10/100TX, 1 x Gigabit/SFP combo |
| FS980M/9PS | 8 x 10/100TX PoE+, 1 x Gigabit/SFP combo |
| FS980M/18 | 16 x 10/100TX, 2 x Gigabit/SFP combo |
| FS980M/18PS | 16 x 10/100TX PoE+, 2 x Gigabit/SFP combo |
| FS980M/28 | 24 x 10/100TX, 4 x SFP, stackable |
| FS980M/28PS (this listing) | 24 x 10/100TX PoE+, 4 x SFP, stackable, 375 W PoE |
| FS980M/28DP | 24 x 10/100TX PoE+, 4 x SFP, dual fixed PSUs |
| FS980M/52 | 48 x 10/100TX, 4 x SFP, stackable |
| FS980M/52PS | 48 x 10/100TX PoE+, 4 x SFP, stackable |
Official Accessories
| AT-SPSX | 1000SX multi-mode SFP, 850 nm, up to 550 m |
| AT-SPEX | 1000X multi-mode SFP, 1310 nm, up to 2 km |
| AT-SPLX10 | 1000LX single-mode SFP, 1310 nm, up to 10 km |
| AT-SPLX40 | 1000LX single-mode SFP, 1310 nm, up to 40 km |
| AT-SPBD10-13 / AT-SPBD10-14 | 1000LX Bi-Di SFP pair, up to 10 km |
| AT-SPTX | 1000T copper SFP, 100 m (28 and 52-port models) |
| AT-SPFX/2 | 100FX multi-mode SFP, up to 2 km |
| AT-SPFX/15 | 100FX single-mode SFP, up to 15 km |
| AT-SP10TW1 | Direct attach stacking cable, 1.0 m |
| AT-BRKT-J22 | Wall-mount kit |
| AT-FL-FS98-UDLD | Feature licence: UniDirectional Link Detection |
Datasheet & Downloads
| Official series page | FS980M Series on alliedtelesis.com |
| Datasheet | FS980M Series Datasheet (PDF) |
Frequently Asked Questions — Allied Telesis FS980M/28PS
Are the 24 copper ports Gigabit?
No. The 24 RJ-45 ports are 10/100TX Fast Ethernet. The 4 SFP ports support 100 Mbps or 1 Gbps modules and are used for uplinks or stacking.
How many PoE+ devices can it power?
The PoE budget is 375 W: up to 24 devices at 15.4 W, or up to 12 devices at the full 30 W PoE+ level.
Can I stack it with other switches?
Yes. Up to four FS980M/28, 28PS, 28DP, 52 or 52PS units can form a VCStack, managed as one switch.
Does it support routing?
Yes, Layer 3 Lite: static IPv4 routing (16 routes) and RIPv1/v2, with IPv6 support for management.
