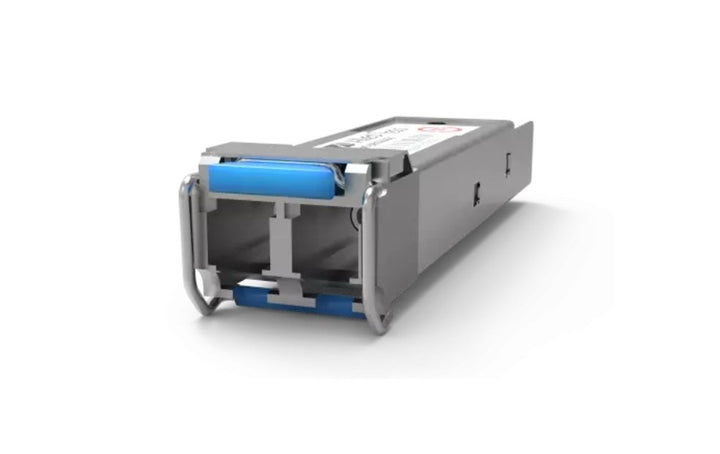

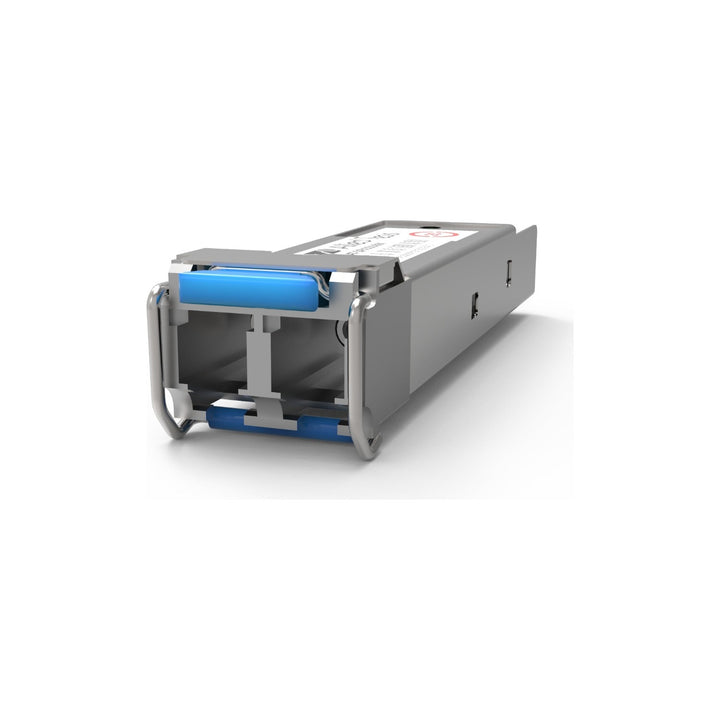

Allied Telesis AT-SPLX10a 1000BASE-LX Gigabit SFP Transceiver, 10km Single-Mode LC, 1310nm, TAA
PRODUCT DESCRIPTION
Allied Telesis AT-SPLX10a 1000BASE-LX Single-Mode SFP - Local Warranty
Gigabit Links up to 10 km
The AT-SPLX10a is a 1000BASE-LX SFP module for single-mode fiber, extending Gigabit Ethernet up to 10 km at 1310 nm for building-to-building, campus and long-distance uplinks.
Digital Diagnostics Built In
Digital diagnostics monitoring (DDM) is supported, so compatible host switches can report optical power and module health to help with link troubleshooting.
Hot-Swappable, MSA-Compliant
The module hot-plugs into any SFP slot and locks in place with a self-locking mechanism. Because it is MSA-compliant, it works in Allied Telesis switches, firewalls and media converters with SFP ports as well as other MSA-compliant platforms.
TAA Compliant
The AT-SPLX10a is the Trade Agreements Act compliant version of the 1000LX 10 km optic, suitable for projects that specify TAA-compliant equipment.
AT-SPLX10a Datasheet — Technical Specifications
General
| Product Name | Allied Telesis 1000LX (LC) single-mode SFP, 10 km |
| Model | SPLX10a |
| Order Code | AT-SPLX10a |
| Series | SP Series Gigabit Small Form-Factor Pluggable Modules |
| Compliance | TAA compliant; MSA-compliant |
Optical Interface
| Standard | 1000BASE-LX |
| Data Rate | 1 Gbps (maximum raw data rate 1.25 GBd) |
| Fiber Type | Single-mode fiber (SMF) |
| Connector | LC |
| Wavelength | 1310 nm |
| Maximum Distance | 10 km |
| Digital Diagnostics Monitoring (DDM) | Yes |
Optical Power
| Transmit Power | -9 dBm to -3 dBm |
| Receive Sensitivity | -20 dBm |
| Power Budget | 11 dB |
| Overload | -3 dBm |
Environmental
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Operating Humidity | 0 to 85% non-condensing |
Features & Applications
Key Features
Hot-swappable SFP; plug-and-play; self-locking mechanism; MSA-compliant; digital diagnostics monitoring; TAA compliant.
Allied Telesis Platforms
The official product page lists the SPLX10a as applicable to a wide range of Allied Telesis products including the x530, x550, x950, x930, x330, x230, x220, x240, x250 and GS970EMX switches, IE220/IE340/IE360 industrial switches, iGS950 and GS950 V2 WebSmart switches, SwitchBlade x908 GEN3 and x8100, and the MMC, MCF3000 and IMC3000 media converters.
Typical Deployments
Gigabit uplinks between wiring closets in different buildings, campus backbones on single-mode fiber, and long-reach fiber ports on Allied Telesis media converters such as the MMC2000/SP.
Selection Tip
Choose the SPLX10a for standard-temperature 10 km single-mode links. For -40 to 85°C environments pick the SPLX10a/I, for -40 to 105°C the SPLX10/E, for 40 km the SPLX40, and for multi-mode fiber the SPSX (550 m) or SPEX (2 km).
Package Contents & SP Series Ordering Information
In the Box
1 x AT-SPLX10a 1000LX single-mode SFP module.
Allied Telesis SP Series Gigabit SFP Models
| Model | Key difference |
| AT-SPLX10a (this listing) | 1000LX, LC, SMF, 1310 nm, 10 km, DDM, TAA |
| AT-SPLX10a/I | 1000LX, LC, SMF, 10 km, I-Temp (-40 to 85°C) |
| AT-SPLX10/E | 1000LX, LC, SMF, 10 km, extended temperature (-40 to 105°C), TAA |
| AT-SPLX40 | 1000LX, LC, SMF, 1310 nm, 40 km |
| AT-SPZX120/I | LC, SMF, 1550 nm, 120 km, I-Temp |
| AT-SPSX | 1000SX, LC, MMF, 850 nm, up to 550 m |
| AT-SPEX | 1000EX, LC, MMF, 1310 nm, 2 km, TAA |
Datasheet & Downloads
| Product page | SPLX10a on alliedtelesis.com |
| Datasheet | SP Series Datasheet (PDF) |
Frequently Asked Questions — Allied Telesis AT-SPLX10a
How far can the AT-SPLX10a transmit?
Up to 10 km over single-mode fiber at 1310 nm.
Can I use it on multi-mode fiber?
No. It is a single-mode optic. For multi-mode use the AT-SPSX (up to 550 m) or AT-SPEX (up to 2 km).
Is it suitable for outdoor or industrial cabinets?
The AT-SPLX10a is rated 0°C to 70°C. For wider temperature ranges choose the AT-SPLX10a/I (-40 to 85°C) or AT-SPLX10/E (-40 to 105°C).
Does it support DDM?
Yes. The SP Series datasheet lists digital diagnostics monitoring for the SPLX10a.
What warranty do I get?
Supplied by SourceIT with local warranty and a GST invoice.
