Yealink W74P DECT Phone System
PRODUCT DESCRIPTION

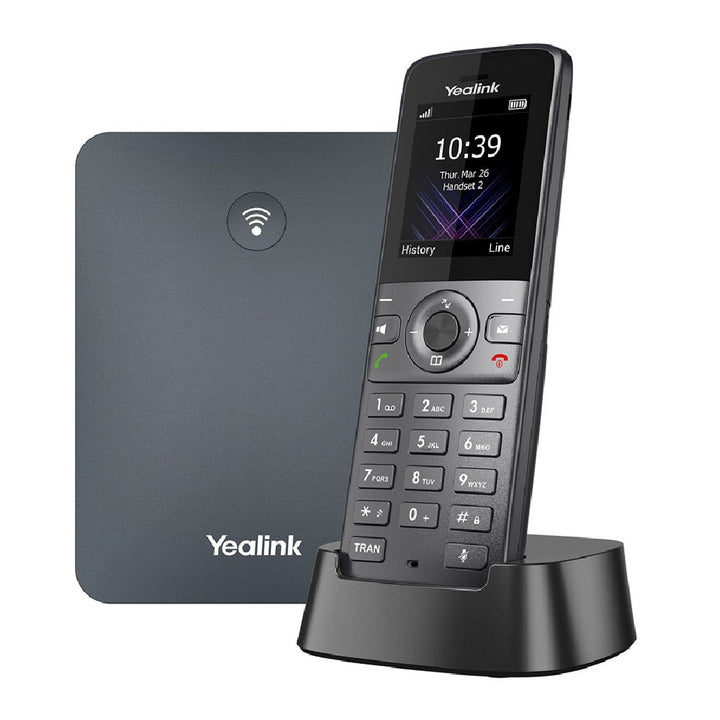

Yealink W74P DECT IP Phone System — W70B Base + W74H Colour Handset with Bluetooth (W74P) - 1 Year Local Warranty
Colour-Screen DECT with Bluetooth
The Yealink W74P combines the W70B DECT IP base station with the W74H handset — a 1.8-inch colour screen, built-in Bluetooth for wireless headsets and a 3.5 mm jack for wired ones.
High-Performance and Scalable
One W70B base supports up to 10 SIP accounts, 10 handsets and 20 simultaneous calls (2 per handset), with up to 6 RT30 repeaters to extend coverage.
Clarity and Stability
HD voice with Opus and G.722 wideband codecs plus FNR noise reduction keep calls clear across the office, warehouse or shop floor.
All-Day Battery with Quick Charge
A 1010 mAh battery delivers up to 24 hours of talk and 320 hours of standby (ideal conditions); a 10-minute charge gives 2 hours of talk.
Yealink W74P Datasheet — Technical Specifications
| Model | Yealink W74P (W70B + W74H) |
| Part Number / SKU | W74P |
| Product Type | DECT IP phone system (base station + handset) |
| Warranty | 1 Year Local Warranty (Singapore) |
| Base Station | Yealink W70B |
| SIP Accounts | Up to 10 |
| Handsets | Up to 10 |
| Simultaneous Calls | Up to 20 (2 per handset) |
| Repeaters | Up to 6 RT30 repeaters per base |
| PoE | IEEE 802.3af, Class 1 |
| Power Adapter | AC 100–240 V input, DC 5 V / 600 mA output |
| Base Dimensions | 130 x 100 x 25.1 mm |
| Handset | Yealink W74H |
| Display | 1.8" 128 x 160 TFT colour screen |
| Battery | 1010 mAh Li-ion, 3.7 V, 3.73 Wh |
| Talk / Standby Time | Up to 24 h talk; up to 320 h standby (ideal conditions) |
| Quick Charging | 10-min charge for 2 h talk time |
| Range | Indoor 50 m; outdoor 300 m |
| Headset | Bluetooth / 3.5 mm |
| Handset Dimensions | 144.5 x 48 x 21 mm |
| Colours | Handset Space Grey; base Classic Grey |
| Audio | HD voice, FNR noise reduction |
| Wideband Codecs | Opus, AMR-WB (optional), G.722 |
Compatibility & Software Support
The W74P is a standards-based SIP DECT system that works with Yeastar, 3CX, Asterisk-based IP-PBXs and SIP trunk providers used in Singapore. Coverage can be extended with up to 6 Yealink RT30 repeaters, and Bluetooth headsets pair directly to the W74H handset.
Package Contents & Yealink DECT Ordering Information
In the box: W74H handset with belt clip, W70B base station, charger cradle, rechargeable battery, base stand, Ethernet cable, decorative cover, quick start guide.
| Yealink W70B | DECT IP base station |
| Yealink W71P | DECT phone system: W70B base + W71H handset |
| Yealink W71H | DECT handset, 1.8" mono screen |
| Yealink W73P | DECT phone system |
| Yealink W73H | DECT handset |
| Yealink W74P | DECT phone system: W70B base + W74H handset (this model) |
| Yealink W76P | DECT phone system |
| Yealink W78P | DECT phone system |
| Yealink W79P | Rugged DECT phone system |
| Yealink W79P Pro | Rugged DECT phone system: W70B base + W59R Pro handset |
| Yealink RT30 | DECT repeater |
Datasheet & Downloads
Frequently Asked Questions — Yealink W74P
What is included in the W74P?
The W70B DECT base station and one W74H colour handset with belt clip, charger cradle, battery, base stand and Ethernet cable.
Does the W74H support Bluetooth headsets?
Yes, it has built-in Bluetooth for headsets as well as a 3.5 mm headset jack.
How many handsets can I register?
Up to 10 handsets per W70B base, with up to 20 simultaneous calls.
How long does the battery last?
Up to 24 hours of talk and 320 hours of standby in ideal conditions; a 10-minute quick charge gives about 2 hours of talk.
Does the Yealink W74P come with local warranty in Singapore?
Yes. Every W74P sold by SourceIT comes with 1 year local Singapore warranty and a GST invoice.
