Yealink UVC84-BYOD-210 Video Conferencing Kit
PRODUCT DESCRIPTION
Yealink UVC84-BYOD-210 Video Conferencing Kit (UVC84-BYOD-210) - 2 Years Local Warranty
Yealink UVC84-BYOD-210 4K PTZ Video Conferencing Kit for Large Rooms
The Yealink UVC84-BYOD-210 is a professional BYOD video conferencing kit built around the UVC84 4K PTZ camera with expanded Yealink room audio for large meeting rooms and boardrooms in Singapore offices. The kit pairs the camera with the MSpeaker II soundbar and two VCM34 microphone arrays (expandable to four), covering long tables where a single speakerphone cannot reach. It connects to any room PC or laptop over USB and works with Microsoft Teams, Zoom, Google Meet, Webex and every major platform.
UVC84 4K Camera with 12x Optical Zoom
The UVC84 delivers Ultra HD 4K video at 30 fps with 12x optical zoom (36x total HD zoom) and mechanical pan-tilt (pan ±100°, tilt +40°/−90°), picking out individual faces sharply even at the far end of a large room. Yealink Auto Framing keeps participants clearly in view as people join or leave — optical capability that far exceeds fixed webcams.
Room-Filling Audio with VCM34 Array Microphones
Two VCM34 microphone arrays each provide 360° voice pickup up to 6 metres with Yealink Noise Proof Technology, and the kit can be expanded to four VCM34 units for extra-long tables. The MSpeaker II soundbar reproduces the far end clearly across a 100 Hz–20 kHz frequency range.
Flexible Mounting for Singapore Boardrooms
The UVC84 supports tabletop, TV-top, wall, ceiling, TV-stand and tripod mounting (wall bracket included), so it fits both new fit-outs and retrofits of existing rooms. SourceIT provides local pre-sales advice, GST invoicing and 2 years local warranty support in Singapore.
Yealink UVC84-BYOD-210 Datasheet — Technical Specifications
General
| Part Number | UVC84-BYOD-210 |
| Kit Type | BYOD (USB) video conferencing kit for large rooms |

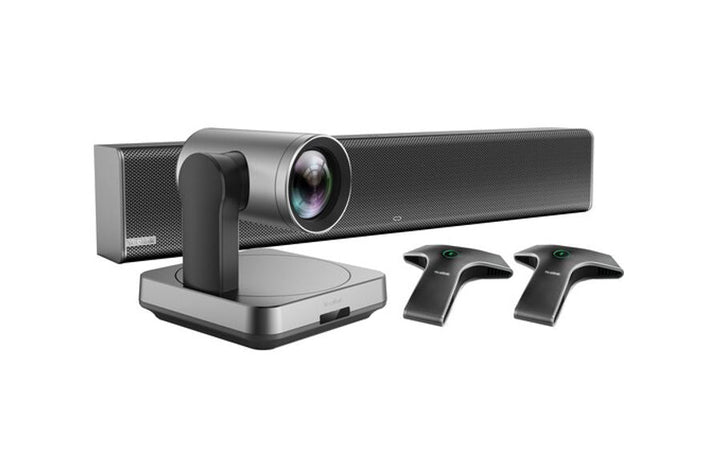

| Core Components | UVC84 4K PTZ camera, MSpeaker II soundbar, 2x VCM34 microphone arrays, VCR20 remote control |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera (UVC84)
| Max Resolution | 4K (2160p) @ 30 fps; also 1080p30 / 720p30 |
| Zoom | 12x optical zoom, 36x total HD zoom (12x optical x 3x digital) |
| Field of View | 80° diagonal / 73° horizontal / 45° vertical |
| Pan / Tilt | Pan ±100°; Tilt +40° / −90° (mechanical PTZ) |
| AI Features | Auto Framing |
Audio
| Microphones | 2x VCM34 array microphones (each: 3-microphone array, 360° pickup, up to 6 m range); expandable to 4x VCM34 |
| Speaker | Yealink MSpeaker II soundbar, 100 Hz–20 kHz |
Connectivity & Physical (Camera)
| Interfaces | USB 2.0 Type-B, Yealink microphone port (RJ45), 3.5 mm line-out |
| Mounting | Tabletop, TV-top, wall, ceiling, TV stand, tripod (wall bracket included) |
| Camera Dimensions / Weight | 155 x 155 x 182 mm; 1.15 kg |
| Power | External adapter, DC 48 V / 0.7 A |
Compatibility & Software Support
As a standard USB (UVC/UAC) plug-and-play kit, the UVC84-BYOD-210 works with virtually any conferencing software running on the connected PC or laptop, including Microsoft Teams, Zoom, Google Meet, Cisco Webex and Skype for Business. The UVC84 camera is also used in Yealink MVC (Microsoft Teams Rooms) and ZVC (Zoom Rooms) native room systems.
Firmware and camera control are managed through Yealink USB Connect on the room PC, and devices can be centrally monitored through the Yealink Device Management Platform (YDMP/YMCS) for IT administrators.
Package Contents & UVC84 BYOD Ordering Information
UVC84-BYOD-210 package includes:
- Yealink UVC84 4K PTZ camera (with wall bracket, power adapter and USB cable)
- VCR20 remote control
- Yealink MSpeaker II soundbar
- 2x Yealink VCM34 video conferencing microphone arrays
| UVC84-BYOD-210 | UVC84 + MSpeaker II + 2x VCM34 — large rooms (this product) |
| UVC84-BYOD-050 | UVC84 + MSpeech speakerphone + BYOD Box — medium rooms |
| UVC84-BYOD-H00 | UVC84 + BYOD Box base kit — add your own room audio |
| VCM34 | Additional expansion microphone array |
| MSpeaker II | Spare / additional soundbar |
Datasheet & Downloads
Frequently Asked Questions — Yealink UVC84-BYOD-210
What is the difference between the UVC84-BYOD-210, -050 and -H00 kits?
All three are built on the same UVC84 4K PTZ camera. The -050 pairs it with an MSpeech USB speakerphone and BYOD Box for medium rooms, the -H00 is the base configuration you build your own audio around, and the -210 (this kit) adds an MSpeaker II soundbar plus two VCM34 array microphones for large rooms.
How large a room can the -210 kit cover?
The two included VCM34 arrays each pick up voices 360° up to 6 metres, and the kit is expandable to four VCM34 units, so it comfortably covers large boardrooms and long conference tables.
How does the UVC84 compare with the UVC86 camera?
The UVC84 is a single-lens 4K PTZ camera with 12x optical zoom and Auto Framing. The UVC86 adds a second panoramic lens and AI Speaker/Presenter Tracking. Choose the UVC84 kit for value and reach; choose UVC86 for advanced tracking.
Does it need special software or a room system?
No. It is a BYOD (bring-your-own-device) kit — connect the USB output to any laptop or room PC and use Teams, Zoom, Google Meet or Webex directly. No dedicated codec is required.
Can I add more microphones later?
Yes. The VCM34 arrays daisy-chain, and the system supports up to four VCM34 units in this configuration. Additional units are available here.
Does the UVC84-BYOD-210 come with warranty in Singapore?
Yes. Every UVC84-BYOD-210 sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
