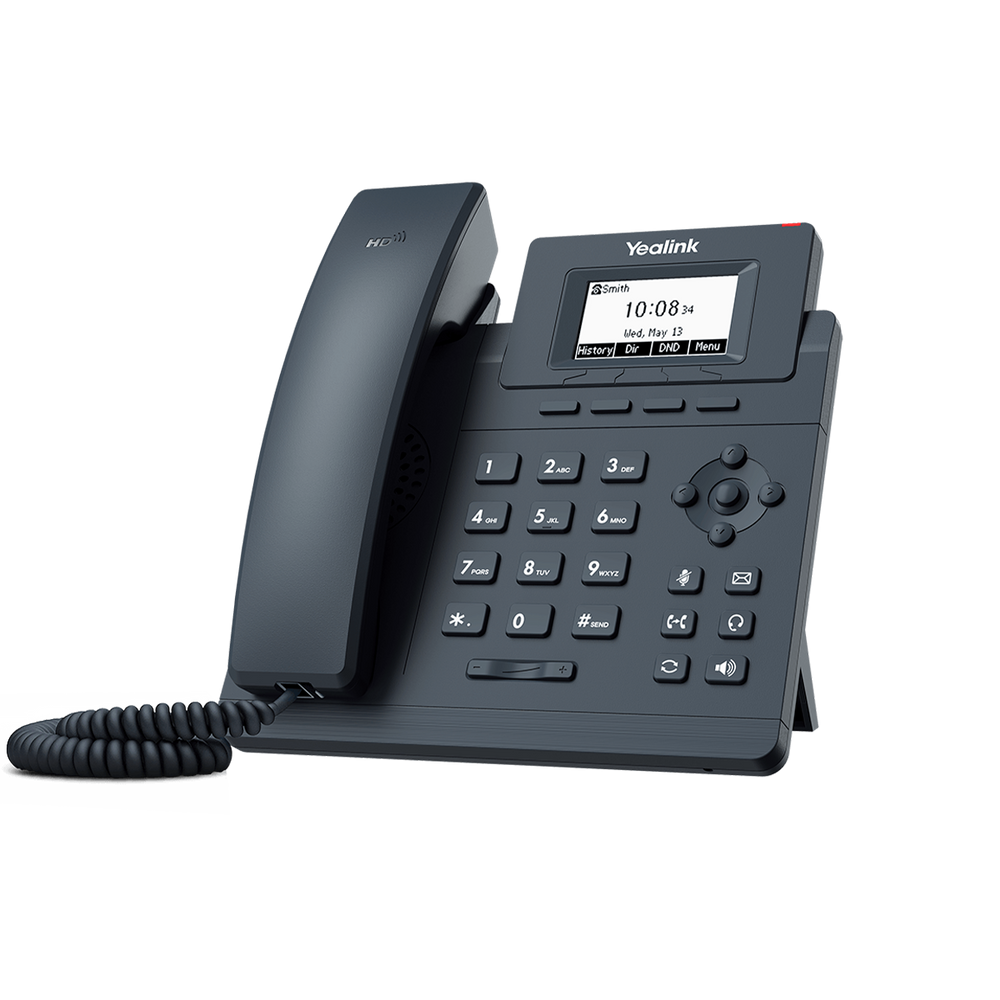

Yealink SIP-T30P Entry-Level IP Phone
PRODUCT DESCRIPTION
Yealink SIP-T30P Entry-Level IP Phone with 1 Line, HD Voice and PoE (SIP-T30P) - 1 Year Local Warranty
Yealink T30P — A Classic Entry-Level IP Phone
The Yealink SIP-T30P is a single-line classic IP phone for small business users, reception counters, lobbies and back-office desks. A 2.3" 132 x 64-pixel graphical LCD with icons and soft keys keeps dialling simple, while the more powerful T3 series chip delivers quicker response and upgraded functions.
Superior HD Audio with Smart Noise Filtering
Yealink HD voice on both the handset and the speaker, a full-duplex hands-free speakerphone with acoustic echo cancellation and Yealink Smart Noise Filtering technology keep calls clear and distraction-free, even in busy Singapore offices.
PoE, Dual Ethernet and Practical Design
Two 10/100M Ethernet ports with PoE (IEEE 802.3af, Class 1) mean a single cable to each desk, with an optional Yealink power adapter where PoE is not available. The stand offers two adjustable angles, the phone is wall mountable, and an RJ9 headset port supports EHS wireless headsets.
Secure and Easy to Deploy
Secure Boot, TLS 1.3, SRTP, AES-256 configuration encryption, 802.1X and OpenVPN protect the phone, and auto-provisioning with PnP, Zero-Touch and TR-069 lets IT roll out large fleets quickly.
Yealink SIP-T30P Datasheet — Technical Specifications
| Model | Yealink SIP-T30P |
| Part Number / SKU | SIP-T30P |
| Product Type | Entry-level IP desk phone, 1 SIP account, PoE |
| Warranty | 1 Year Local Warranty (Singapore) |
| Display | 2.3" 132 x 64-pixel graphical LCD, icons and soft keys, multilingual user interface |
| VoIP Accounts | 1 SIP account |
| Keys | 6 feature keys (transfer, message, headset, redial, mute, hands-free speakerphone); 5 navigation keys |
| Conferencing | Local 5-way conferencing |
| Phonebook | Local phonebook up to 1000 entries |
| Audio | HD voice: HD handset, HD speaker; Smart Noise Filtering; full-duplex hands-free speakerphone with AEC |
| Wideband Codecs | Opus, G.722 |
| Narrowband Codecs | PCMU, PCMA, G.723.1, G.729, G.729A, G.729B, G.729AB, G.726, iLBC |
| Ethernet | 2 x RJ45 10/100M Ethernet ports |
| PoE | Power over Ethernet (IEEE 802.3af), Class 1 |
| Headset | 1 x RJ9 (4P4C) headset port; EHS wireless headset support |
| Power Adapter | Optional Yealink AC adapter, AC 100–240 V input, DC 5 V / 600 mA output |
| Security | SRTP, TLS 1.3, HTTPS certificate manager, AES-256 configuration file encryption, digest authentication, OpenVPN, IEEE 802.1X, L2TP VPN, Secure Boot |
| Management | Browser / phone / auto-provisioning via FTP/TFTP/HTTP/HTTPS; PnP, Zero-Touch, TR-069 |
| Power Consumption | PSU: 2–3 W; PoE: 3–4 W |
| Dimensions (W x D x H x T) | 185 x 189 x 162 x 50 mm |
| Mounting | Stand with 2 adjustable angles; wall mountable |
| Operating Temperature | -10 to +45 °C |
Compatibility & Software Support
The SIP-T30P is a standards-based SIP phone that works with standard SIP IP-PBX systems, hosted PBX platforms and SIP trunk providers used in Singapore. IP-PBX features include hot-desking, voicemail and visual voicemail, call park, call pickup and centralised call recording, together with call hold, mute, DND, call forward, call waiting and call transfer. Fleets can be managed centrally through Yealink Device Management Platform (YDMP).
Package Contents & T3 Series Ordering Information
In the box: SIP-T30P IP phone, handset with handset cord, Ethernet cable (1.5 m CAT5E UTP), stand, quick start guide. Power adapter optional (PoE supported).
| Yealink SIP-T30P | 1-line entry-level phone with PoE (this model) |
| Yealink SIP-T31P | 2-line entry-level phone with PoE |
| Yealink SIP-T31G | 2-line phone with Gigabit Ethernet |
| Yealink SIP-T31W | 2-line phone with built-in Wi-Fi |
| Yealink SIP-T33G | 4-line colour-screen phone with Gigabit Ethernet |
| Yealink SIP-T34W | 4-line colour-screen phone with Wi-Fi |
Datasheet & Downloads
Frequently Asked Questions — Yealink SIP-T30P
How many lines does the SIP-T30P support?
One SIP account. For two accounts choose the SIP-T31P or SIP-T31G.
Does the SIP-T30P support PoE?
Yes — IEEE 802.3af PoE, Class 1. A Yealink power adapter is optional.
Does it have Gigabit Ethernet?
No. The SIP-T30P has two 10/100M Ethernet ports. For Gigabit choose the SIP-T31G or SIP-T33G.
Can I use a headset with the SIP-T30P?
Yes. It has an RJ9 headset port and supports EHS wireless headsets.
Can the SIP-T30P be wall mounted?
Yes. It is wall mountable, and the stand has two adjustable angles for desk use.
Does the Yealink SIP-T30P come with local warranty in Singapore?
Yes. Every SIP-T30P sold by SourceIT comes with 1 year local Singapore warranty and a GST invoice.
