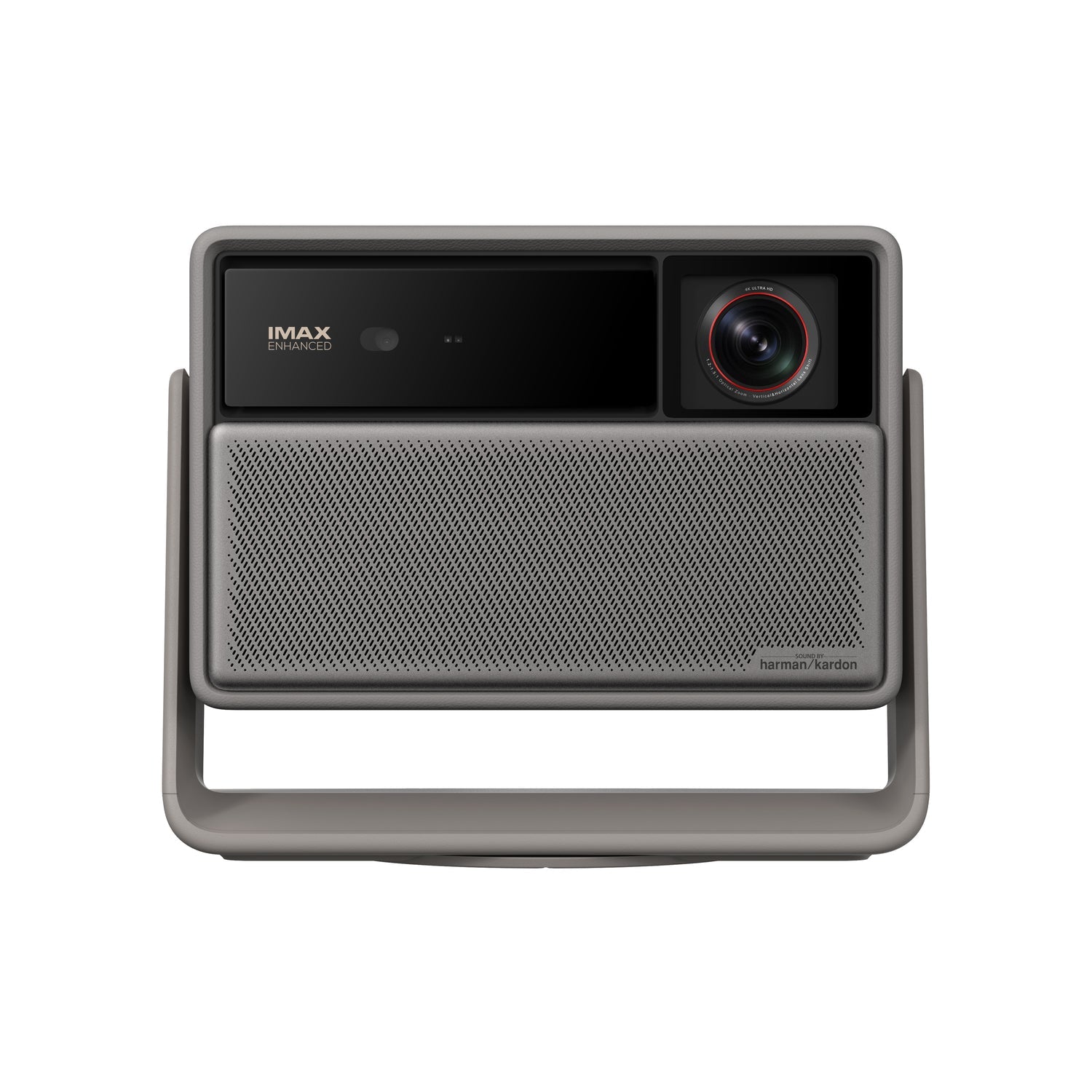

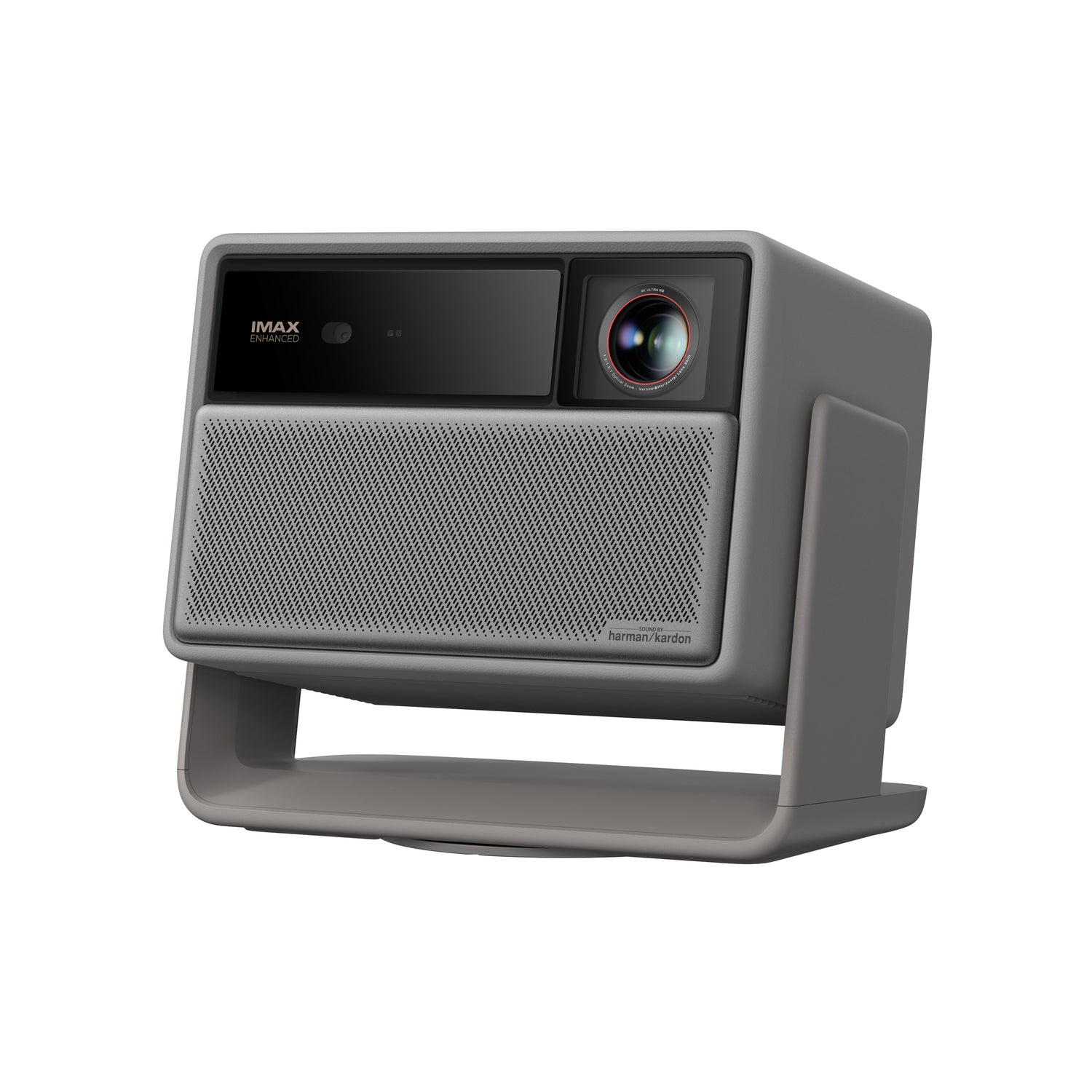

XGIMI HORIZON 20 Pro 4K RGB Triple Laser Home Projector, 4100 ISO Lumens, Google TV
PRODUCT DESCRIPTION
XGIMI HORIZON 20 Pro 4K RGB Triple Laser Home Projector, 4100 ISO Lumens, Google TV - 1 Year Local Warranty
X-Master RGB triple laser engine delivers 4100 ISO lumens and an ultra-deep 20,000:1 contrast ratio, day or night.
Key Features
- Pro-level gaming: 200" visuals, 1 ms response and 240Hz fluidity, plus VRR and ALLM.
- Lossless optics: flexible lens shift and optical zoom for crisp, distortion-free images at any size, from any angle.
- Flagship MT9679 chipset for faster app launches and smoother navigation.
- Google TV and Google Home built in, with hands-free voice control.
- Up to four years of OTA software support from the product's mass-production date.
XGIMI HORIZON 20 Pro Datasheet — Technical Specifications
General
| Product Name | XGIMI HORIZON 20 Pro 4K RGB Triple Laser Home Projector, 4100 ISO Lumens, Google TV |
| Brand | XGIMI |
| Model | XR14A |
| EAN | 6935670509277 |
| Local Warranty (Singapore) | 1 year local limited warranty |
Display
| Product Classification | Home Projector |
| Light Source | RGB Triple Laser |
| Display Technique | DLP |
| Display Chip | 0.47" DMD |
| Standard Resolution | 3840 x 2160 pixels (4K) |
| Brightness | 4100 ISO Lumens |
| Contrast Ratio | 20,000:1 (DBLE On) |
| Color Gamut | BT.2020 110% |
| Supported Formats | HDR10+, IMAX Enhanced, Dolby Vision |
| 3D Support | Yes |
| MEMC | Yes |
| Latency (Game Mode, VRR on, AK off) | 1 ms at 1080P@240Hz; 2.2 ms at 1080P@120Hz; 3 ms at 4K@60Hz |
| Lens | High Light Transmission Coated Lens |
| Eye Protection | Yes |
Setup
| Throw Ratio | 1.2-1.5:1 |
| Image Size | 40" - 300" |
| Aspect Ratio | 16:9 |
| Lens Shift | V ±120% / H ±45% |
| Optical Zoom | Yes |
| Digital Zoom | Yes |
| Projection Method | Front, Rear, Front Ceiling, Rear Ceiling |
| Auto Keystone Correction | Uninterrupted Auto Keystone |
| Focus | Auto Focus |
| Intelligent Screen Alignment | Yes |
| Intelligent Obstacle Avoidance | Yes |
System
| Operating System | Google TV |
| CPU | MT9679 |
| GPU | Mali-G52 |
| Fast Boot | Yes (STR) |
| Mirroring Display | Google Cast / DLNA |
Audio
| Speakers | 2 x 12W Harman/Kardon |
| DTS Virtual:X | Yes |
| DTS-HD | Yes |
| Dolby Audio | Yes |
| Dolby Digital (DD) | Yes |
| Dolby Digital Plus (DD+) | Yes |
Connectivity
| Wi-Fi | Wi-Fi 6 dual-band 2.4/5GHz, 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2/BLE |

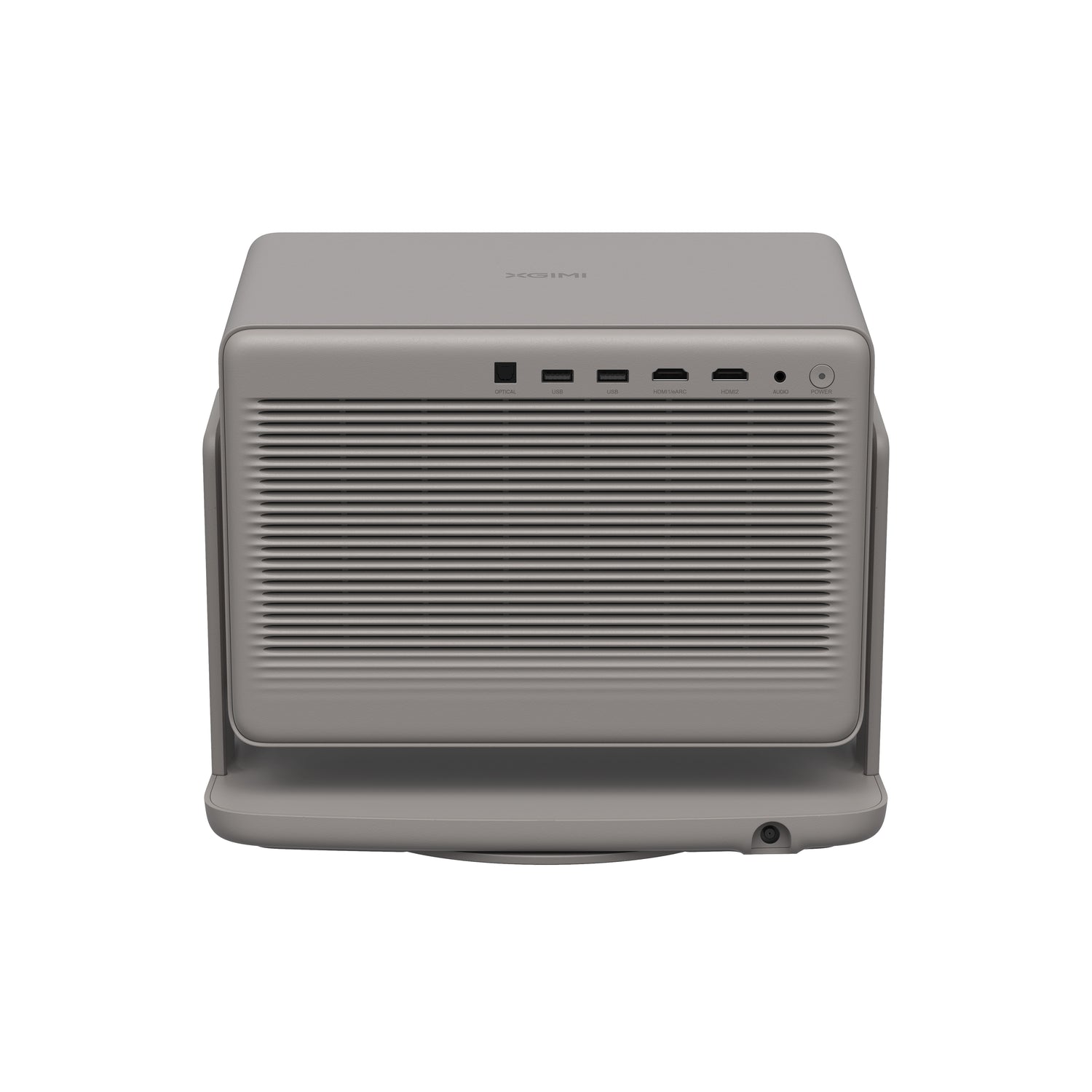

| Input Ports | DC x 1, HDMI x 2 (HDMI 1 supports eARC), USB 3.0 x 1, USB 2.0 x 1 |
| Output Ports | Optical x 1, Audio x 1 |
Power & Battery
| Power Input | AC 200-240V, 50Hz |
| Power Dissipation | ≤230W |
| Noise Level | ≤28 dB @ 1 m |
Physical
| Product Size (H x W x D) | 249 x 298 x 190 mm (9.8 x 11.7 x 7.5 in) |
| Product Weight | 4.8 kg (10.6 lbs) |
| Package Size (H x W x D) | 424 x 369 x 251 mm (16.7 x 14.5 x 9.9 in) |
| Package Weight | 6.5 kg (14.3 lbs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Compatibility & Software Support
Streaming & Casting
Runs Google TV with licensed Netflix built in, so streaming apps work without a separate stick. Phones and laptops can mirror via Google Cast / DLNA.
Connections
| Inputs | DC x 1, HDMI x 2 (HDMI 1 supports eARC), USB 3.0 x 1, USB 2.0 x 1 |
| Outputs | Optical x 1, Audio x 1 |
| Wi-Fi | Wi-Fi 6 dual-band 2.4/5GHz, 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2/BLE |
Compatible XGIMI Accessories
- XGIMI Ceiling Mount for HORIZON Series & HORIZON Ultra
- XGIMI Active Shutter 3D Glasses (sold separately)
Package Contents & XGIMI Home Cinema Projectors Ordering Information
In the Box
- Power Plug x 1
- Manual x 1
- Warranty Card x 1
- Backlight Bluetooth Remote Control x 1
- AAA Batteries x 2
XGIMI Home Cinema Projectors
| Model | Key feature |
| HORIZON 20 | 4K RGB laser, 3200 ISO lm |
| HORIZON 20 Pro (this listing) | 4K RGB laser, 4100 ISO lm |
| HORIZON 20 Max | 4K RGB laser, 5700 ISO lm |
| AURA 2 | 4K UST laser TV, 2300 ISO lm |
Datasheet & Downloads
| XGIMI product page | XGIMI HORIZON 20 Pro on global.xgimi.com |
| User manual | HORIZON 20 Series User Guide (User Manual & Product Certification PDFs) |
| Help article | How to use Lens Shift on the HORIZON 20 Series |
| Help article | How do I set up 3D mode on the HORIZON 20 series? |
| Support | XGIMI Support Center |
Frequently Asked Questions — XGIMI HORIZON 20 Pro
Can I move the picture without moving the projector?
Yes. The HORIZON 20 series has optical lens shift (vertical ±120%, horizontal ±45%) plus optical zoom on a 1.2-1.5:1 throw lens. XGIMI notes that once Lens Shift is used, Auto Keystone, Auto Focus and Eye Protection are not available.
How big a picture can it project?
The HORIZON 20 Pro projects 40" to 300" images in 16:9, and supports front, rear and ceiling projection.
Does it have streaming apps built in?
Yes. It runs Google TV with Google Home built in, and supports Google Cast and DLNA screen mirroring.
Is it suitable for gaming?
XGIMI quotes 1 ms input lag at 1080P@240Hz (2.2 ms at 1080P@120Hz, 3 ms at 4K@60Hz) in Game Mode with VRR on, plus VRR and ALLM support. HDMI 1 supports eARC for soundbars/AV receivers.
Does it support 3D?
Yes, 3D is supported with XGIMI active shutter 3D glasses (sold separately). For HDMI 3D sources, ALLM must be turned off first.
What warranty do I get?
1 year local limited warranty through XGIMI's Singapore distributor. Supplied by SourceIT with a GST invoice.
