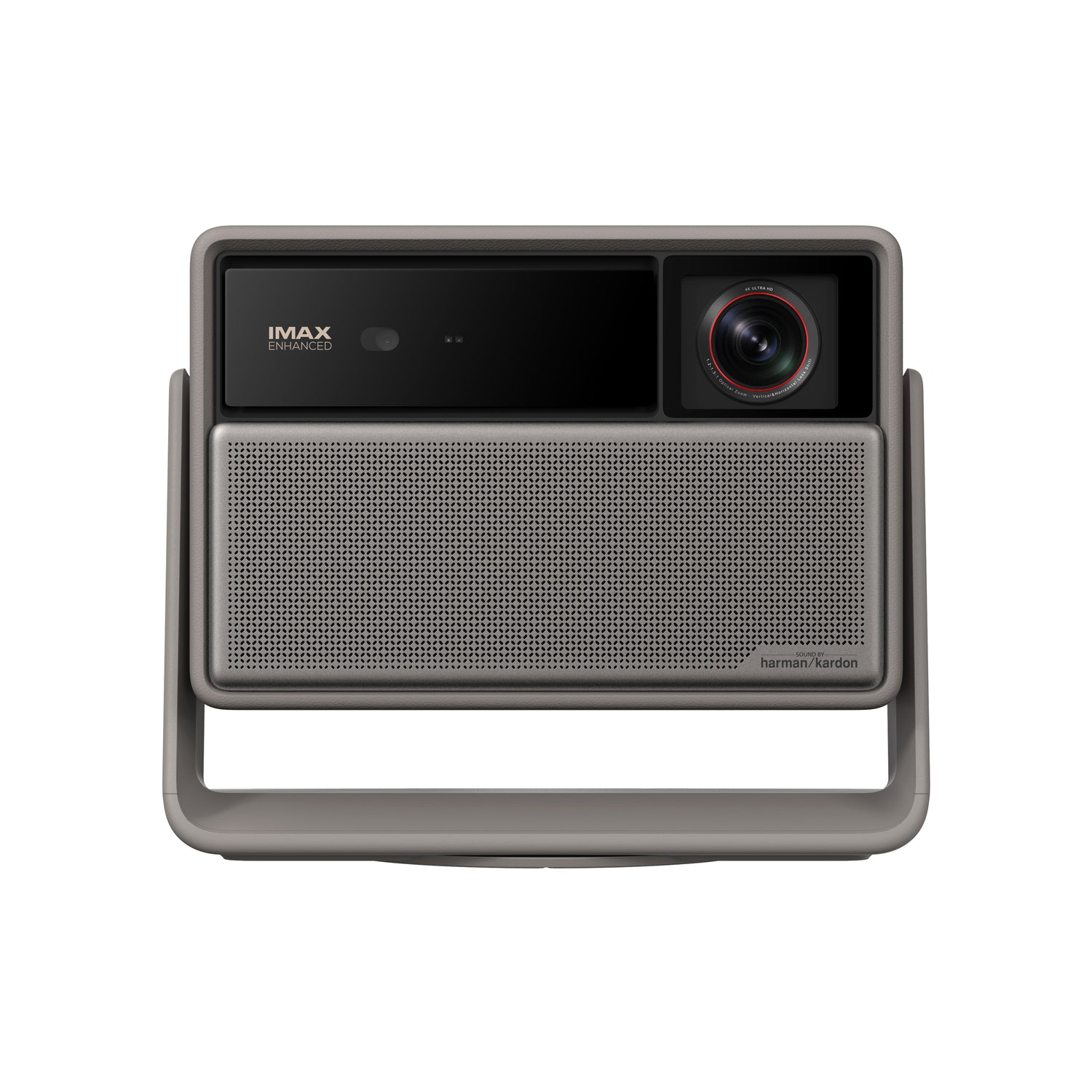

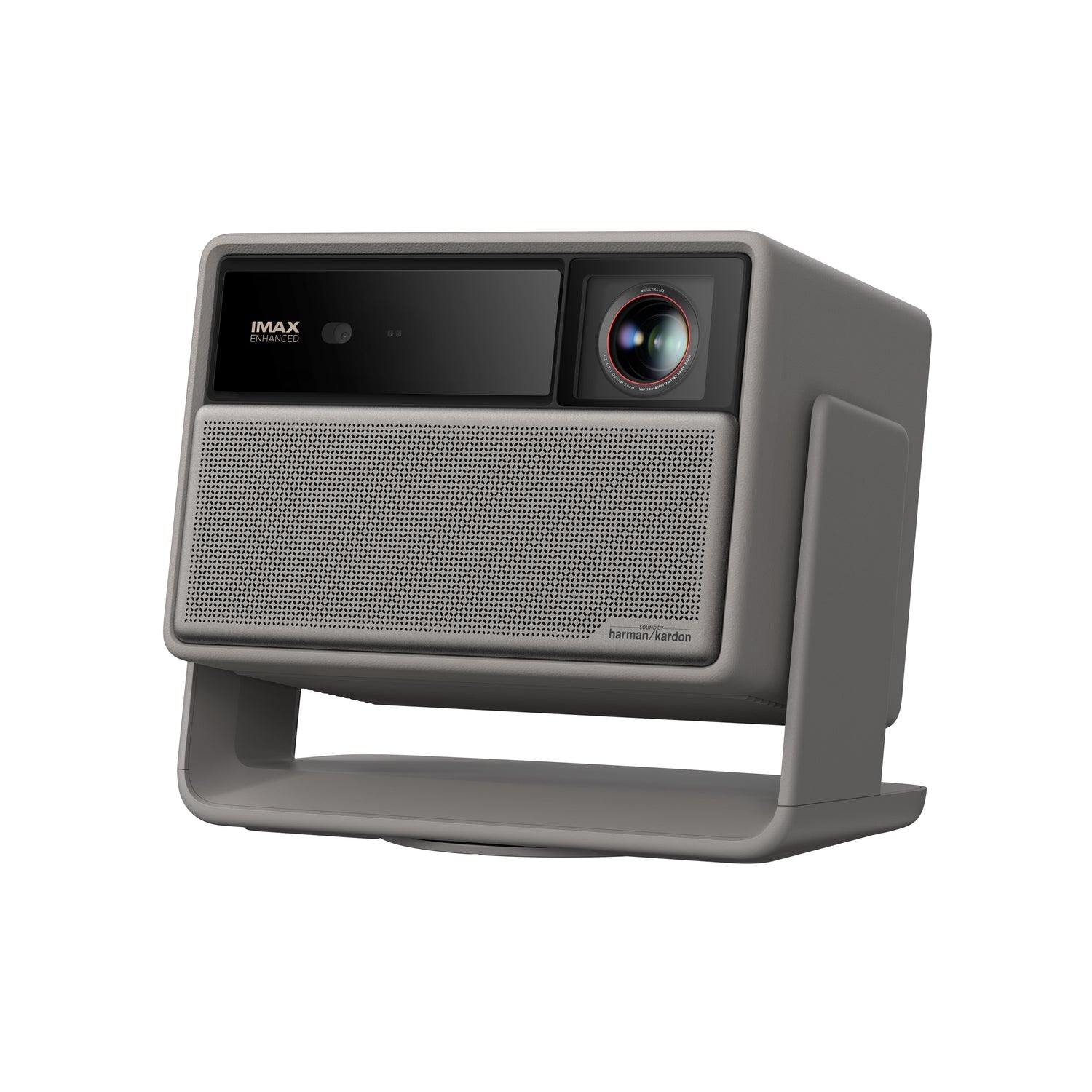

XGIMI HORIZON 20 Max 4K RGB Triple Laser Home Projector, 5700 ISO Lumens, Google TV
PRODUCT DESCRIPTION
XGIMI HORIZON 20 Max 4K RGB Triple Laser Home Projector, 5700 ISO Lumens, Google TV - 1 Year Local Warranty
Daylight ready: the X-Master RGB triple laser engine delivers 5700 ISO lumens peak brightness, 20,000:1 contrast and 110% BT.2020 colour coverage.
Key Features
- Lossless optics: flexible lens shift and optical zoom for crisp, distortion-free visuals at any size, from any angle.
- Epic gaming on a screen up to 300" with 1 ms input lag, 240Hz motion and visuals calibrated for HDR gaming.
- Google TV and Google Home built in for instant streaming and hands-free voice control.

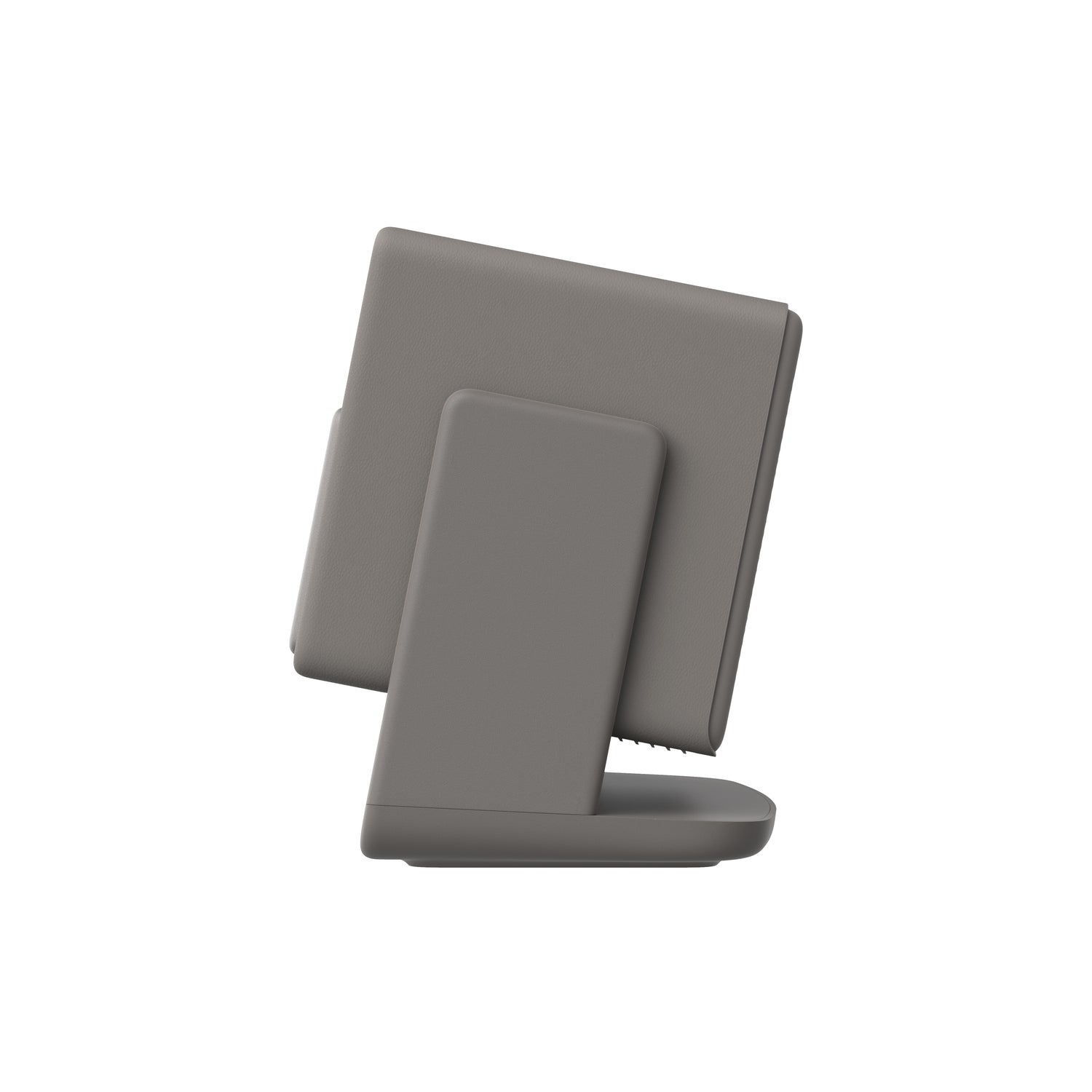

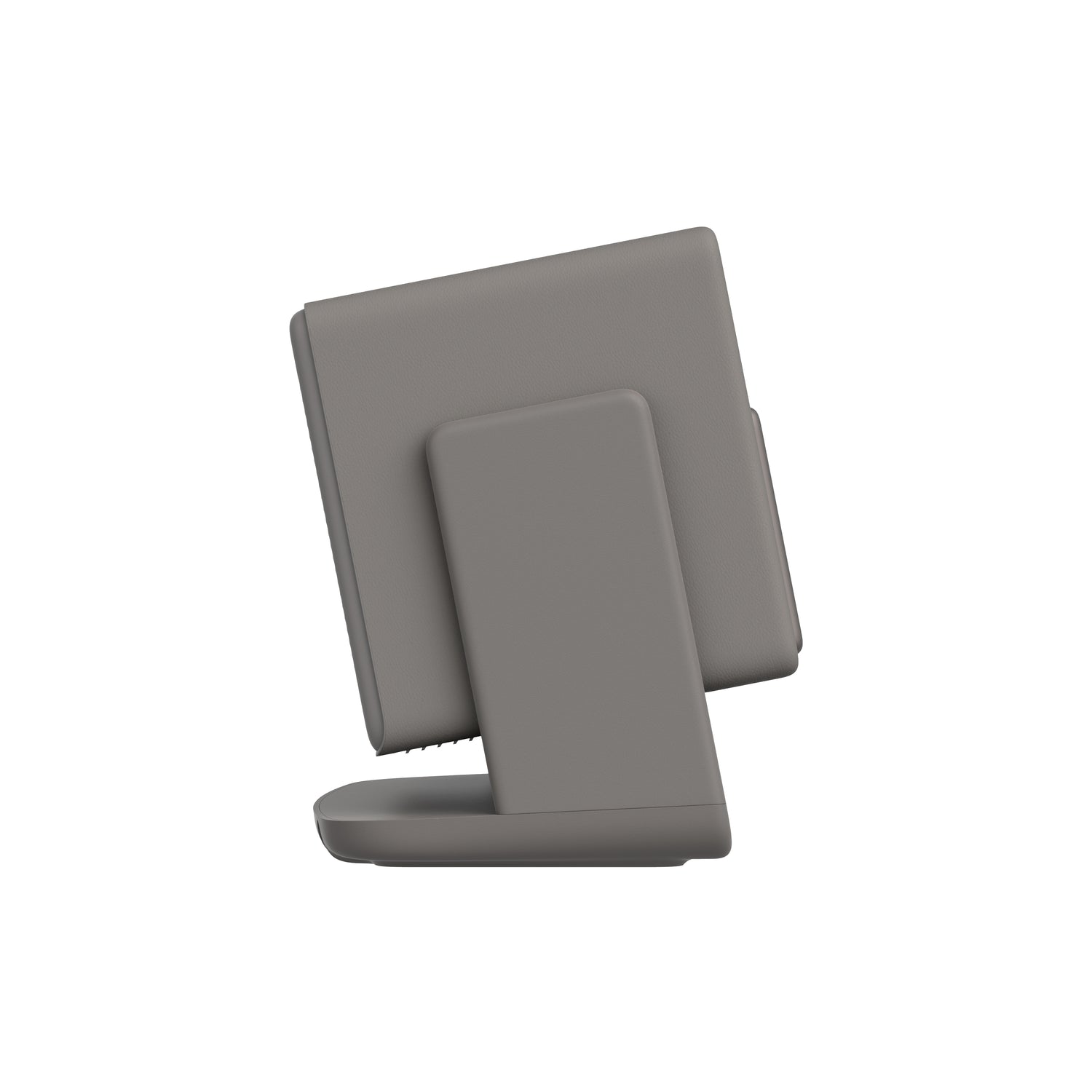

- Refined design: Elephant Grey finish with a leather-like texture.
- Up to four years of OTA software support from the product's mass-production date.
XGIMI HORIZON 20 Max Datasheet — Technical Specifications
General
| Product Name | XGIMI HORIZON 20 Max 4K RGB Triple Laser Home Projector, 5700 ISO Lumens, Google TV |
| Brand | XGIMI |
| Model | XR16A |
| EAN | 6935670509925 |
| Local Warranty (Singapore) | 1 year local limited warranty |
Display
| Product Classification | Home Projector |
| Light Source | RGB Triple Laser |
| Display Technique | DLP |
| Display Chip | 0.47" DMD |
| Standard Resolution | 3840 x 2160 pixels (4K) |
| Brightness | 5700 ISO Lumens |
| Contrast Ratio | 20,000:1 (DBLE On) |
| Color Gamut | BT.2020 110% |
| Supported Formats | HDR10+, IMAX Enhanced, Dolby Vision |
| 3D Support | Yes |
| MEMC | Yes |
| Latency (Game Mode, VRR on, AK off) | 1 ms at 1080P@240Hz; 2.2 ms at 1080P@120Hz; 3 ms at 4K@60Hz |
| Lens | High Light Transmission Coated Lens |
| Eye Protection | Yes |
Setup
| Throw Ratio | 1.2-1.5:1 |
| Image Size | 40" - 300" |
| Aspect Ratio | 16:9 |
| Lens Shift | V ±120% / H ±45% |
| Optical Zoom | Yes |
| Digital Zoom | Yes |
| Projection Method | Front, Rear, Front Ceiling, Rear Ceiling |
| Auto Keystone Correction | Uninterrupted Auto Keystone |
| Focus | Auto Focus |
| Intelligent Screen Alignment | Yes |
| Intelligent Obstacle Avoidance | Yes |
| Wall Color Adaptation | Yes |
System
| Operating System | Google TV |
| CPU | MT9679 |
| GPU | Mali-G52 |
| Fast Boot | Yes (STR) |
| Mirroring Display | Google Cast / DLNA |
Audio
| Speakers | 2 x 12W Harman/Kardon |
| DTS Virtual:X | Yes |
| DTS-HD | Yes |
| Dolby Audio | Yes |
| Dolby Digital (DD) | Yes |
| Dolby Digital Plus (DD+) | Yes |
Connectivity
| Wi-Fi | Wi-Fi 6 dual-band 2.4/5GHz, 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2/BLE |

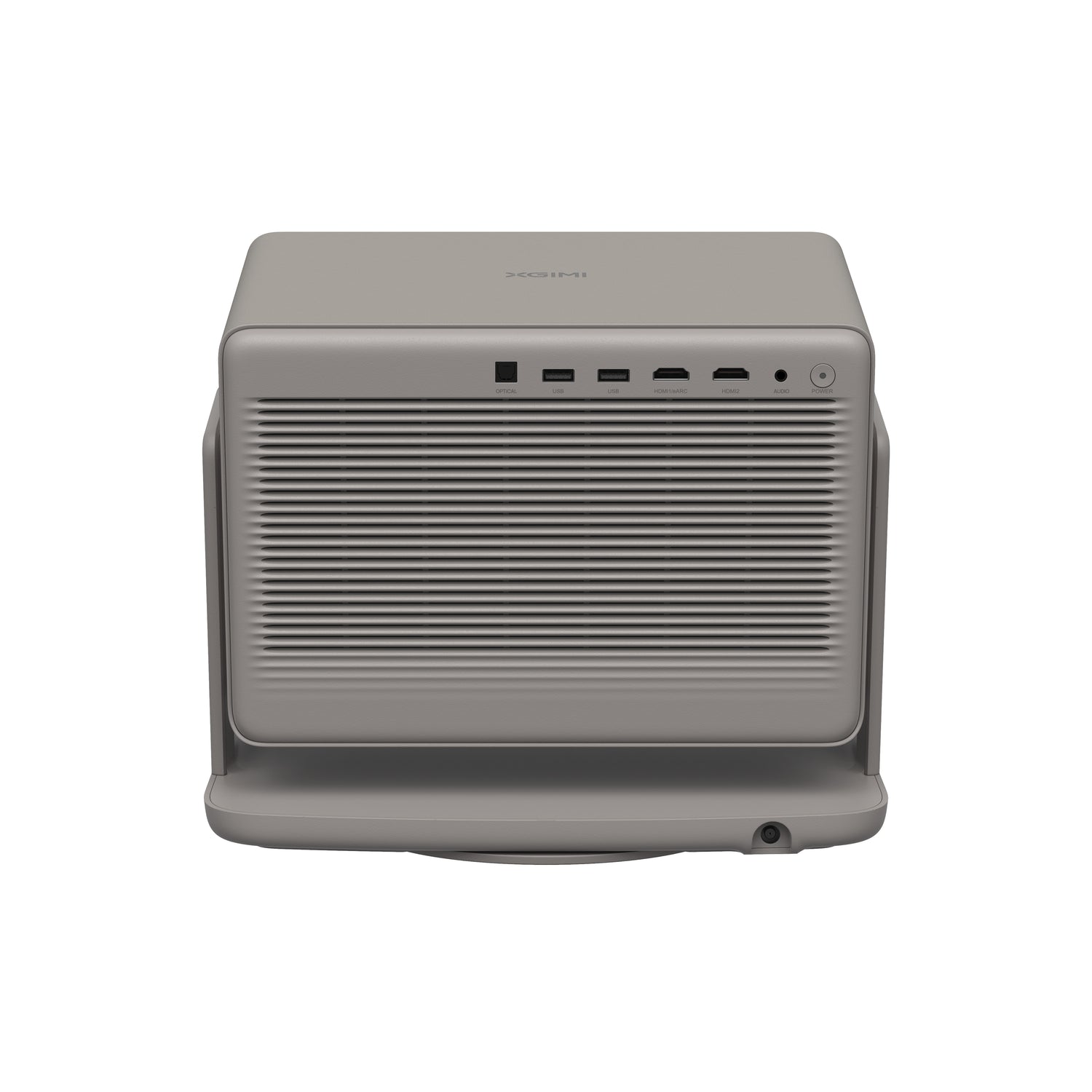

| Input Ports | DC x 1, HDMI x 2 (HDMI 1 supports eARC), USB 3.0 x 1, USB 2.0 x 1 |
| Output Ports | Optical x 1, Audio x 1 |
Power & Battery
| Power Input | AC 100-240V, 50/60Hz |
| Power Dissipation | ≤280W |
| Noise Level | ≤28 dB @ 1 m |
Physical
| Product Size (H x W x D) | 249 x 298 x 190 mm (9.8 x 11.7 x 7.5 in) |
| Product Weight | 5.4 kg (11.9 lbs) |
| Package Size (H x W x D) | 424 x 369 x 251 mm (16.7 x 14.5 x 9.9 in) |
| Package Weight | 7.4 kg (16.3 lbs) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Compatibility & Software Support
Streaming & Casting
Runs Google TV with licensed Netflix built in, so streaming apps work without a separate stick. Phones and laptops can mirror via Google Cast / DLNA.
Connections
| Inputs | DC x 1, HDMI x 2 (HDMI 1 supports eARC), USB 3.0 x 1, USB 2.0 x 1 |
| Outputs | Optical x 1, Audio x 1 |
| Wi-Fi | Wi-Fi 6 dual-band 2.4/5GHz, 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2/BLE |
Compatible XGIMI Accessories
- XGIMI Ceiling Mount for HORIZON Series & HORIZON Ultra
- XGIMI Active Shutter 3D Glasses (sold separately)
Package Contents & XGIMI Home Cinema Projectors Ordering Information
In the Box
- Power Plug x 1
- Manual x 1
- Warranty Card x 1
- Backlight Bluetooth Remote Control x 1
- AAA Batteries x 2
XGIMI Home Cinema Projectors
| Model | Key feature |
| HORIZON 20 | 4K RGB laser, 3200 ISO lm |
| HORIZON 20 Pro | 4K RGB laser, 4100 ISO lm |
| HORIZON 20 Max (this listing) | 4K RGB laser, 5700 ISO lm |
| AURA 2 | 4K UST laser TV, 2300 ISO lm |
Datasheet & Downloads
| XGIMI product page | XGIMI HORIZON 20 Max on global.xgimi.com |
| User manual | HORIZON 20 Series User Guide (User Manual & Product Certification PDFs) |
| Help article | How to use Lens Shift on the HORIZON 20 Series |
| Help article | How do I set up 3D mode on the HORIZON 20 series? |
| Support | XGIMI Support Center |
Frequently Asked Questions — XGIMI HORIZON 20 Max
Can I move the picture without moving the projector?
Yes. The HORIZON 20 series has optical lens shift (vertical ±120%, horizontal ±45%) plus optical zoom on a 1.2-1.5:1 throw lens. XGIMI notes that once Lens Shift is used, Auto Keystone, Auto Focus and Eye Protection are not available.
How big a picture can it project?
The HORIZON 20 Max projects 40" to 300" images in 16:9, and supports front, rear and ceiling projection.
Does it have streaming apps built in?
Yes. It runs Google TV with Google Home built in, and supports Google Cast and DLNA screen mirroring.
Is it suitable for gaming?
XGIMI quotes 1 ms input lag at 1080P@240Hz (2.2 ms at 1080P@120Hz, 3 ms at 4K@60Hz) in Game Mode with VRR on, plus VRR and ALLM support. HDMI 1 supports eARC for soundbars/AV receivers.
Does it support 3D?
Yes, 3D is supported with XGIMI active shutter 3D glasses (sold separately). For HDMI 3D sources, ALLM must be turned off first.
What warranty do I get?
1 year local limited warranty through XGIMI's Singapore distributor. Supplied by SourceIT with a GST invoice.
