XGIMI Ceiling Mount for HORIZON Series & HORIZON Ultra
Shipping calculated at checkout.
PRODUCT DESCRIPTION

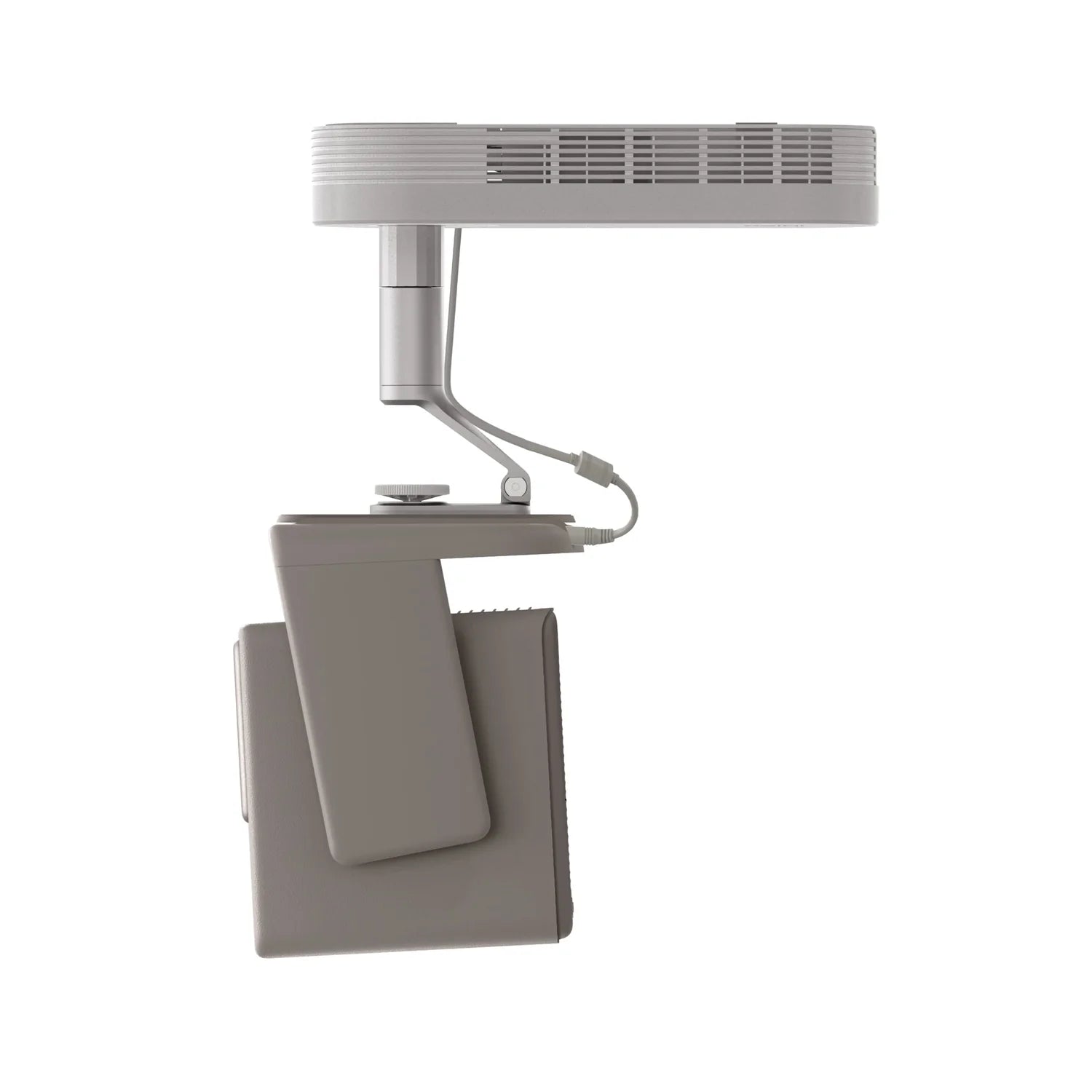

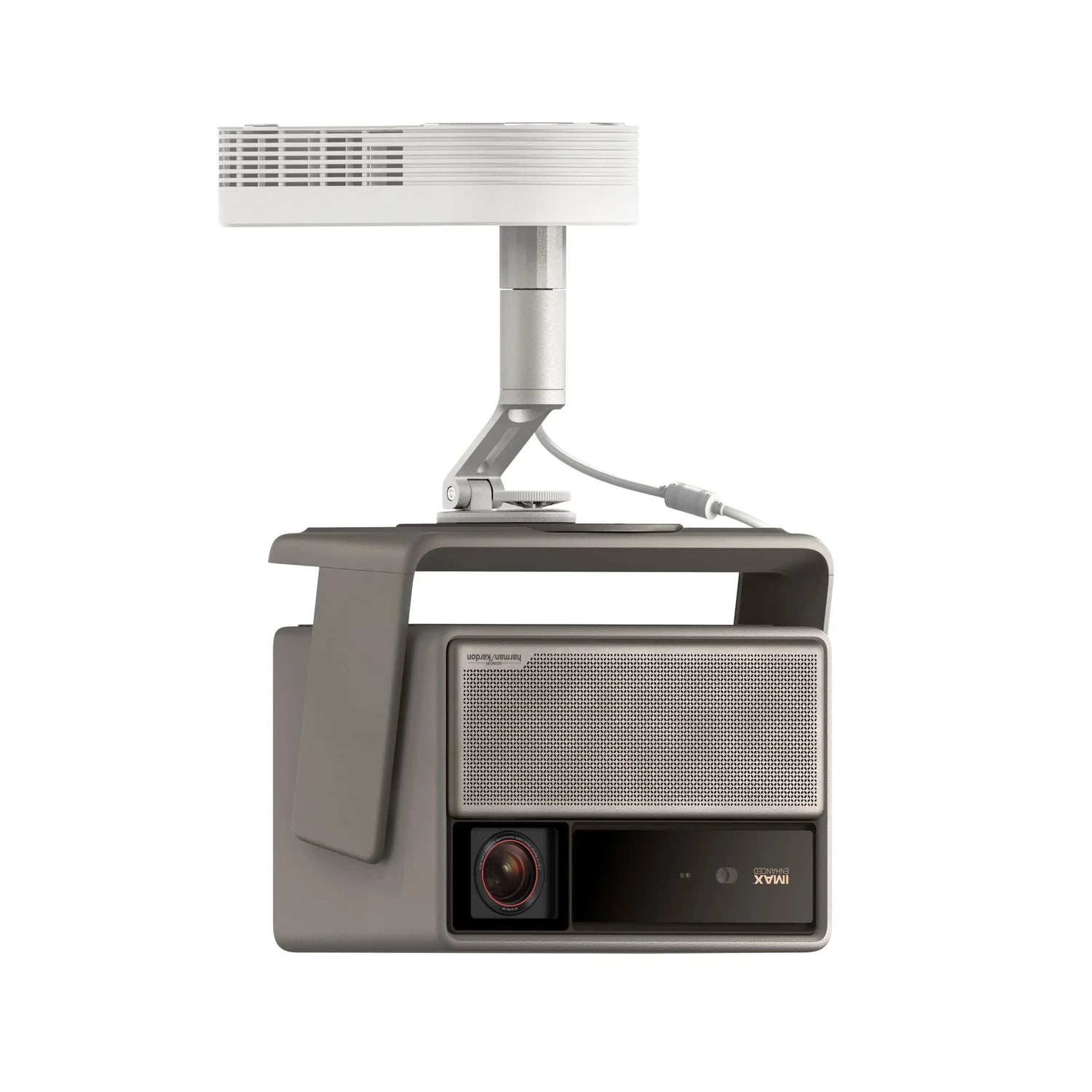

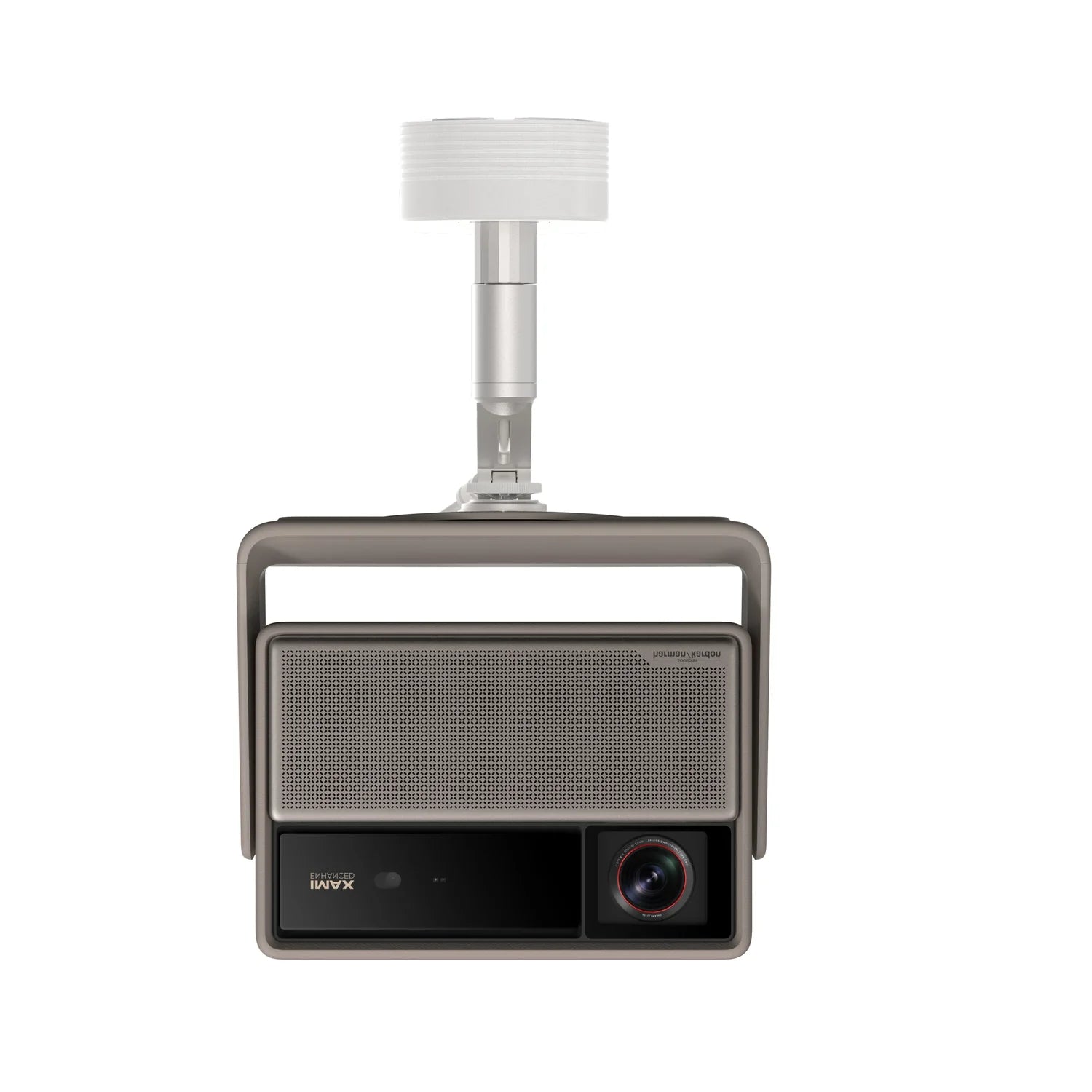

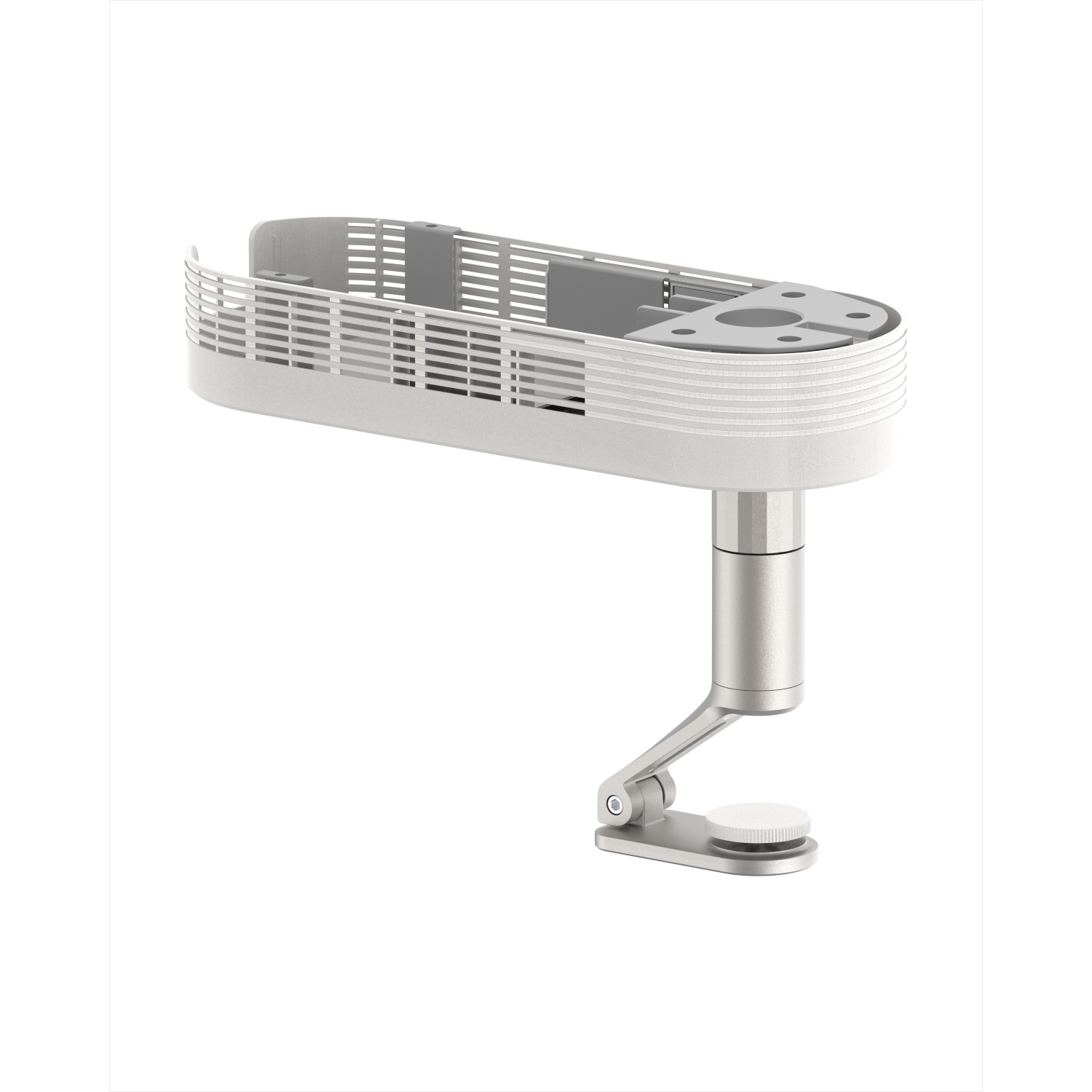

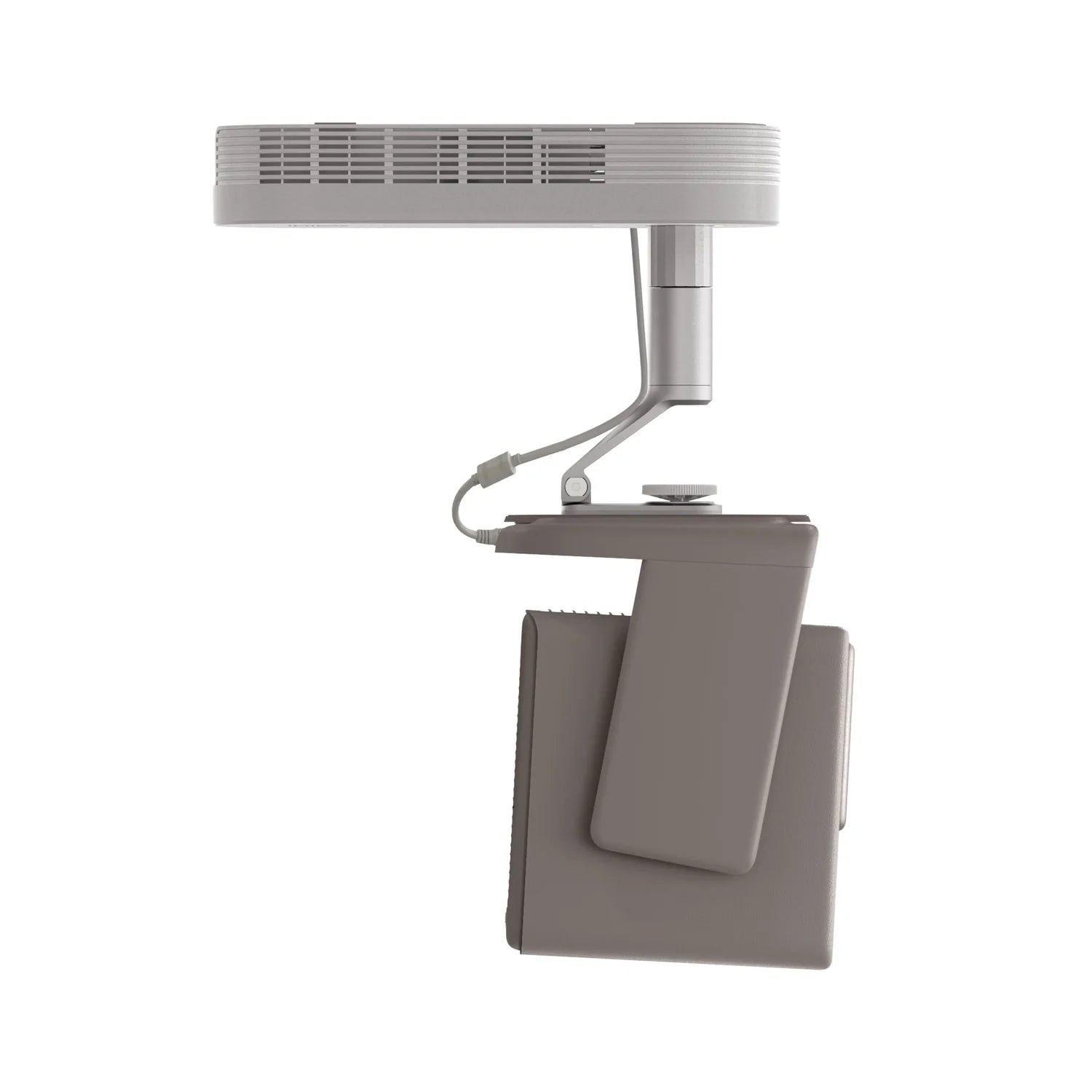

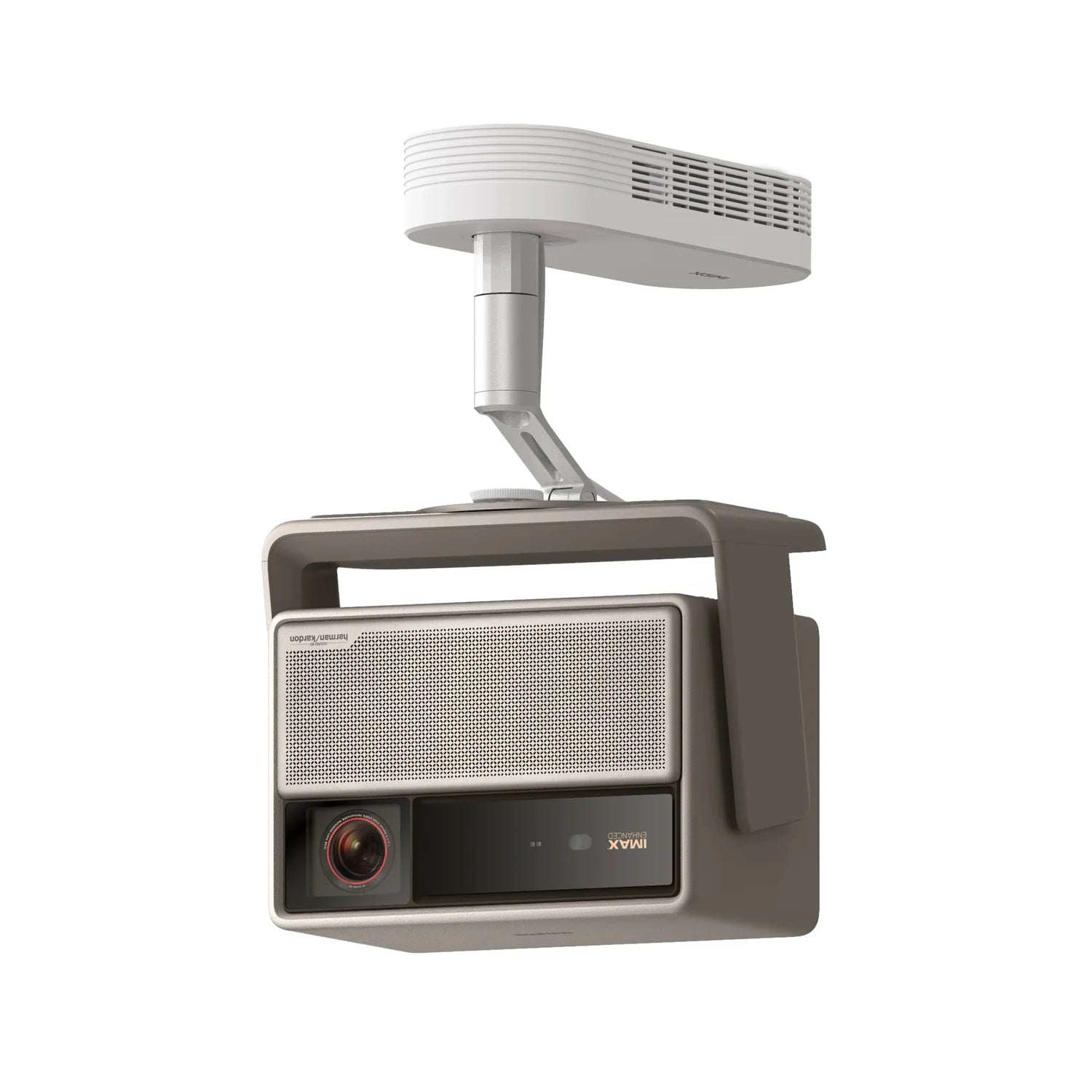

XGIMI Ceiling Mount for HORIZON Series & HORIZON Ultra
Designed for the XGIMI HORIZON Series, including HORIZON Ultra, for projectors up to 6 kg / 13 lb.
Key Features
- Aerospace-grade aluminium with a quick-release gimbal bracket for installation.
- ±12° tilt and 360° horizontal rotation for multi-directional adjustment.
- Hidden storage keeps the power adapter and cables tucked away.
XGIMI Ceiling Mount (HORIZON) Datasheet — Technical Specifications
General
| Product Name | XGIMI Ceiling Mount for HORIZON Series & HORIZON Ultra |
| Brand | XGIMI |
| EAN | 6935670503992 |
Specifications
| Compatible Devices | HORIZON Ultra, HORIZON series (≤6 kg), Elfin, Halo and MoGo series |
| Maximum Supported Weight | ≤6 kg / 13 lb |
| Tilt Range | ±12° |
| Rotation | 360° horizontal |
| Main Material | Metal + plastic |
| Product Weight | 0.98 kg |
| Package Dimensions (H x W x D) | 172 x 383 x 180 mm |
| Package Weight | 1.4 kg |
Compatibility & Fitment
Compatible Projectors
- XGIMI HORIZON Ultra
- XGIMI HORIZON / HORIZON Pro
- XGIMI HORIZON 20 / 20 Pro / 20 Max
- XGIMI Elfin series
- XGIMI Halo series
- XGIMI MoGo series
Check the model name on your projector's label before ordering; XGIMI accessories are model-specific unless they use the standard ¼-inch thread.
Package Contents & XGIMI Projector Accessories Ordering Information
In the Box
- Mount stand x1
- Mounting hardware kit x1 (expansion pipes x2, self-tapping screws x2, metal expansion screw assemblies x4, hex key x1)
- User manual x1
XGIMI Projector Accessories
| Model | Key feature |
| Multi-Angle Stand | Tabletop stand, MoGo/Halo |
| Creative Optical Filter (MoGo 3 Pro) | MoGo 3 Pro, ~0.5:1 throw |
| Carrying Case (MoGo 3 Pro) | MoGo 3 Pro case |
| X-Desktop Stand Pro | Tabletop stand, 1/4" thread |
| Floor Stand (HORIZON S) | HORIZON S Max / S Pro |
| Floor Stand Ultra | HORIZON Ultra / HORIZON |
| X-Floor Stand | Floor stand, 1/4" thread |
| X-Wall Mount | Wall mount, 1/4" thread |
| Remote (Halo & MoGo) | Halo / MoGo (Android TV) |
| Remote (HORIZON & AURA) | HORIZON / HORIZON Pro / AURA |
| Carrying Case (Halo/HORIZON) | Halo / HORIZON case |
| Power Adapter (HORIZON) | HORIZON / HORIZON Pro |
| Power Adapter (HORIZON Ultra) | HORIZON Ultra, 19V 15.79A |
| Ceiling Mount (HORIZON) (this listing) | HORIZON / Ultra / 20 series |
Datasheet & Downloads
| XGIMI product page | XGIMI Ceiling Mount on ca.xgimi.com |
| User manual | Ceiling Mount User Manual (multilingual) |
| Support | XGIMI Support Center |
Frequently Asked Questions — XGIMI Ceiling Mount (HORIZON)
Does it fit the HORIZON Ultra?
Yes. XGIMI lists HORIZON Ultra and other HORIZON series projectors up to 6 kg / 13 lb.
What surface can it be installed on?
XGIMI's manual says it must be installed on a solid concrete surface, using the supplied expansion screws.
Can I hide the adapter?
Yes for HORIZON models; XGIMI notes adapters for Elfin, Halo and MoGo cannot be concealed in the storage slots.
How much can it be adjusted?
±12° tilt and 360° horizontal rotation.
