ViewSonic VP3D1 3D Processor for DLP Link 3D Projectors
Prices in SGD, excluding 9% GST.
PRODUCT DESCRIPTION

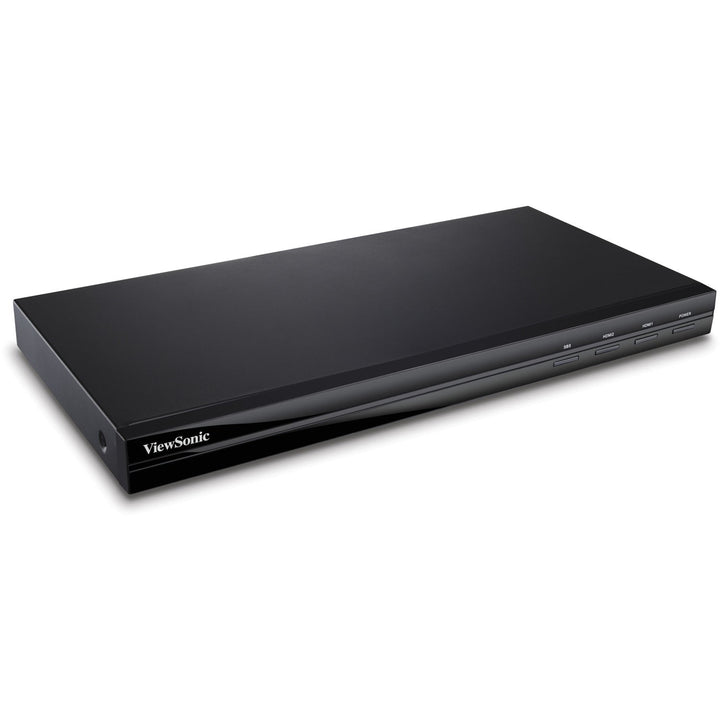

ViewSonic VP3D1 3D Processor for DLP Link 3D Projectors
Converts Popular 3D Formats
Converts frame-packing, side-by-side and top-and-bottom 3D video from Blu-ray players, game consoles and satellite into 720p 120Hz for HDMI DLP Link 3D-ready projectors.
Two HDMI 1.4a Inputs
Connect two 3D sources; in 2D mode the VP3D1 works as a standard HDMI switch.
No External Emitter
Works with DLP Link 3D projectors and DLP Link glasses — no separate IR emitter needed.
Need a quote or help matching it to your projector? Email sales@sourceit.com.sg.
ViewSonic VP3D1 Datasheet — Technical Specifications
General
| Product Name | ViewSonic VP3D1 3D Processor |
| Model | VP3D1 |
| Colour | Black |
Output
| Native 3D Output | 720p @ 120Hz |
| Maximum 2D | 1080p |
| Colour Depth | 30 bits (1.073 billion colours) |
| Aspect Ratio | 16:9 native, 4:3 compatible |
3D Input Formats
| Frame Packing | 1080p@24Hz, 720p@50Hz, 720p@60Hz |
| Side by Side | 1080i@50Hz, 1080p@60Hz |
| Top and Bottom | 1080p@24Hz, 720p@50Hz, 720p@60Hz |
2D Compatibility
| PAL/SECAM | 576i/p |
| NTSC | 480i/p |
| HD | 720p, 1080i, 1080p |
Connectivity
| Inputs | 2 x HDMI 1.4a |
| Output | 1 x HDMI 1.3 |
| Service | USB (firmware updates) |
| Power Input | DC 12V |
Power & Physical
| Consumption | 20W |
| Standby | <1W |
| Dimensions (W x D x H) | 428.6 x 208.46 x 30.7 mm |
| Weight | 1.22 kg |
| Operating Temperature | 5–35 °C |
| Operating Humidity | 20–90% non-condensing |
In the Box
VP3D1 processor, HDMI cable, power adapter with cable, user manual (CD Wizard), quick start guide. 3D glasses sold separately.
Compatible Projectors
DLP Link 3D Projectors
The VP3D1 outputs 720p 120Hz frame-sequential 3D over HDMI for DLP Link 3D-ready projectors. ViewSonic's datasheet names the PJD6531w, PJD5523w, PJD6553w, PJD6251, PRO8500 and PRO8450w.
3D Sources
Blu-ray 3D players, PlayStation 3 (firmware 3.50 or later) and 3D satellite transmissions.
Glasses
Use DLP Link 3D glasses such as the ViewSonic PGD-250 or PGD-350 (sold separately).
Datasheet & Downloads
| ViewSonic datasheet | VP3D1 Datasheet |
| Datasheet (PDF) | VP3D1 Datasheet PDF |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting VP3D1.
Frequently Asked Questions — ViewSonic VP3D1
What does the VP3D1 do?
It converts 3D video from HDMI 1.4a sources into 720p 120Hz frame-sequential 3D that DLP Link 3D projectors can display.
Does it work with my projector?
Your projector must accept 120Hz 3D over HDMI and support DLP Link. Send us the model and we will confirm.
Are 3D glasses included?
No. Add DLP Link glasses such as the ViewSonic PGD-250 or PGD-350.
Can I use it for 2D content?
Yes — in 2D mode it acts as a two-input HDMI switch, passing up to 1080p.
What warranty applies?
Email sales@sourceit.com.sg for the current accessory warranty terms. Supplied by SourceIT with a GST invoice.
