ViewSonic LS901HD 6,000 ANSI Lumens 1080p Laser Installation Projector
PRODUCT DESCRIPTION
ViewSonic LS901HD 6,000 ANSI Lumens 1080p Laser Installation Projector - 3 Years Local Warranty
6,000 ANSI Lumens Full HD
Vibrant 1920 x 1080 images for large venues, with HDMI 2.0b playback of 4K HDR/HLG content.
High Native Contrast
0.65" DMD chip with DLP technology and a 3,000,000:1 contrast ratio.
Installation Flexibility
1.7x zoom (1.2–2.04 throw ratio), vertical lens shift, H/V keystone and 360° projection; 100" at about 2.66 m.
3rd Generation Laser Phosphor
Up to 20,000 hours (Normal) / 30,000 hours (SuperEco), with centralised LAN control.
Need projectors for several meeting rooms, classrooms or venues? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic LS901HD Datasheet — Technical Specifications
General
| Product Name | ViewSonic LS901HD 6,000 ANSI Lumens 1080p Laser Installation Projector |
| Model | LS901HD |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); laser light source, no lamp to replace |
Optical
| Projection System | 0.65" 1080p |
| Native Resolution | 1920 x 1080 |
| Brightness | 6,000 ANSI lumens (6,600 centre lumens) |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | Laser phosphor |
| Light Source Life | 20,000 hours (Normal) / 30,000 hours (SuperEco) |
| Lens | F=2.3–3.0, f=17.63–27.9 mm |
| Throw Ratio | 1.2–2.04 |
| Optical Zoom | 1.7x |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 30"–300" |
| Throw Distance | 0.80–13.55 m (100" at 2.66 m) |
| Projection Offset | 154% ±10% |
| Lens Shift | V: 0% to -21% |
| Keystone | H: ±30°; V: ±30° |
| Input Lag | 16 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to 4K UHD (3840 x 2160) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p |
| Horizontal Frequency | 15–135 kHz |
| Vertical Scan Rate | 23–120 Hz |

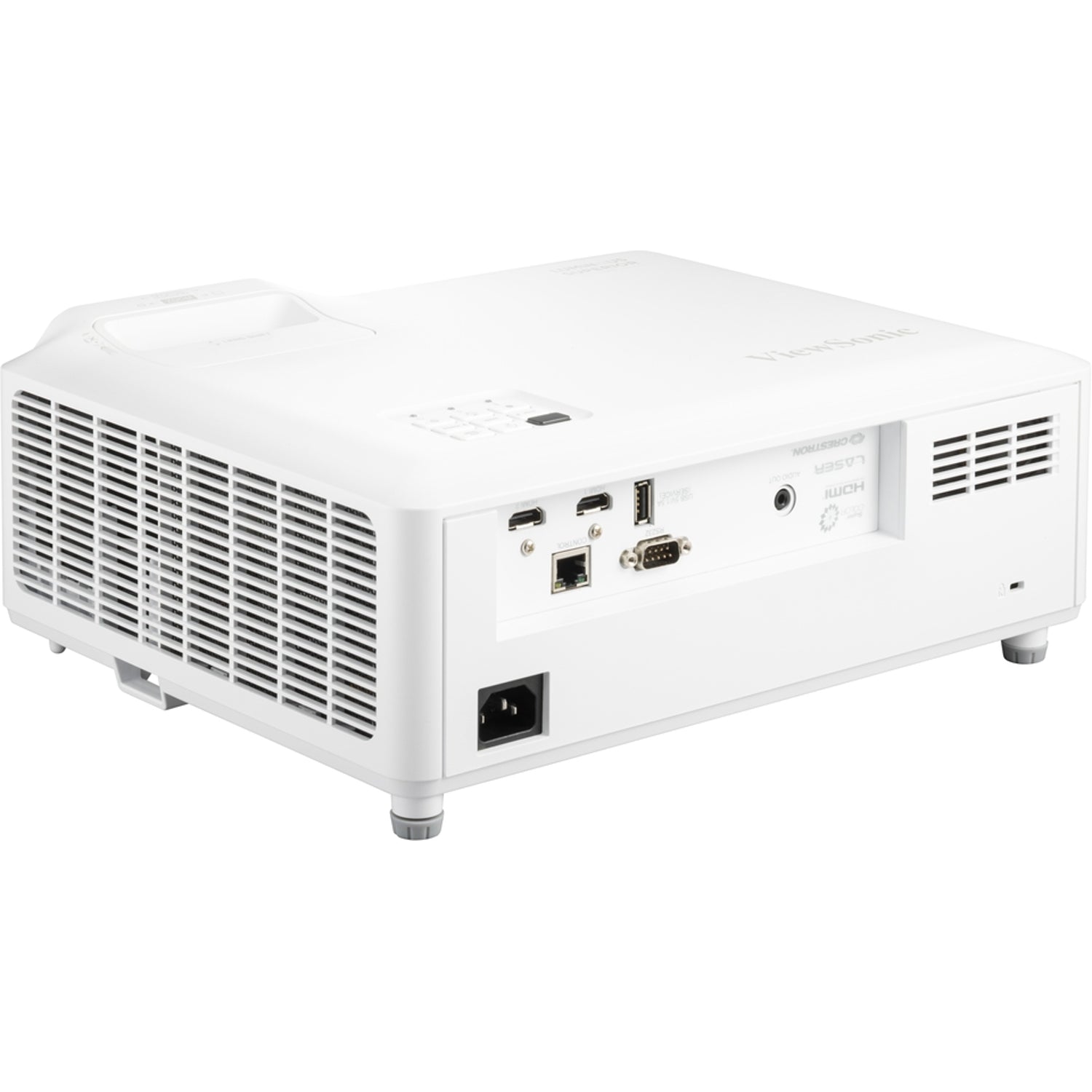

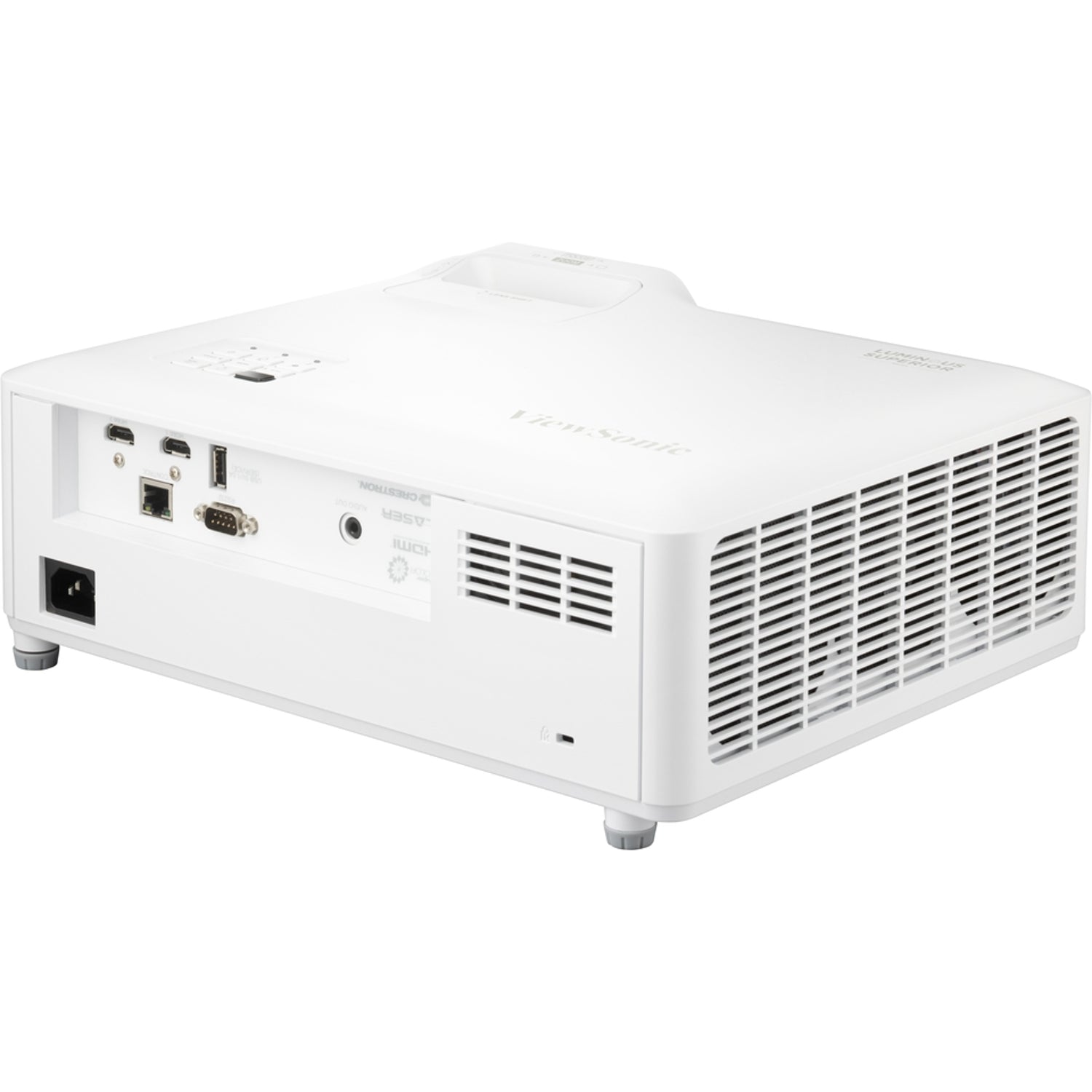

Connectivity
| HDMI | 2 x HDMI (1 x HDMI 2.0 HDCP 2.2; 1 x HDMI 1.4 HDCP 1.4) |
| Audio Out | 1 x 3.5 mm |
| USB | 1 x Type-A power (5 V / 1.5 A); 1 x Type-A service |
| Control | 1 x RS232 (DB9); 1 x RJ45 LAN |
| Speaker | 15 W x 2 |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 245 W (Normal); <0.5 W standby |
| Audible Noise | 31 dB (Normal); 25 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 337 x 280 x 132 mm |
| Net Weight | 4.77 kg |
| Gross Weight | 6.7 kg |
| Packaging | 496 x 387 x 195 mm |
| OSD Languages | 27 |
Compatibility & Software Support
Sources
Two HDMI inputs accept 4K HDR sources; the USB-A power port runs a streaming stick or a ViewShare wireless casting kit (WPD-700 / WPD-900).
Room Control
RJ45 LAN control for centralised management plus RS232 (DB9) for control systems. Firmware updates via ViewSonic's projector software update tool.
Typical Use
Meeting rooms (including Microsoft Teams Rooms with TeamJoin TRS10), lecture rooms, museums, sports bars and screen golf.
Package Contents & ViewSonic Laser & LED Projector Ordering Information
In the Box
LS901HD projector, power cord, remote control, quick start guide.
Optional Accessories
| Wall/ceiling mount | PJ-WMK-007 |
| HDBaseT dongle | HB10B |
| Wireless screen casting kit | WPD-700 / WPD-900 |
| Microsoft Teams Rooms console | TeamJoin TRS10 |
ViewSonic Laser & LED Business Projectors
| Model | Key feature |
| LS500WHE | 3,000 lm WXGA, LED |
| LSD400W | 4,000 lm WXGA, laser |
| LSD400HD | 4,000 lm 1080p, laser |
| LS711HD | 4,200 lm 1080p, short throw laser |
| LS740W | 5,000 lm WXGA, laser |
| LS740HD | 5,000 lm 1080p, laser |
| LS832WU | 5,000 lm WUXGA, ultra short throw laser |
| LS860WU | 5,000 lm WUXGA, short throw laser, HDBaseT |
| LS920WU | 6,000 lm WUXGA, laser, 1.6x zoom |
| LS921WU | 6,000 lm WUXGA, short throw laser |
| LS901HD (this listing) | 6,000 lm 1080p, laser, 1.7x zoom |
Datasheet & Downloads
| ViewSonic datasheet | LS901HD Datasheet |
| User guide | LS901HD/LS901-4K User Guide (PDF, English) |
| Quick start guide | LS901HD Quick Start Guide (PDF) |
| ViewSonic product page | LS901HD on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LS901HD.
Frequently Asked Questions — ViewSonic LS901HD
How far from the screen does it go?
The 1.2–2.04 throw ratio places a 100" image at about 2.66 m, from 30" up to 300".
Can it play 4K content?
Yes. It accepts 4K UHD (3840 x 2160) and HDR/HLG signals over HDMI and displays them at native 1080p.
Can it be installed at any angle?
Yes. It supports 360° projection, with vertical lens shift and H/V keystone to align the image.
Does it need lamp replacements?
No. The laser light source is rated up to 20,000 hours (Normal) or 30,000 hours (SuperEco).
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island). Supplied by SourceIT with a GST invoice.
