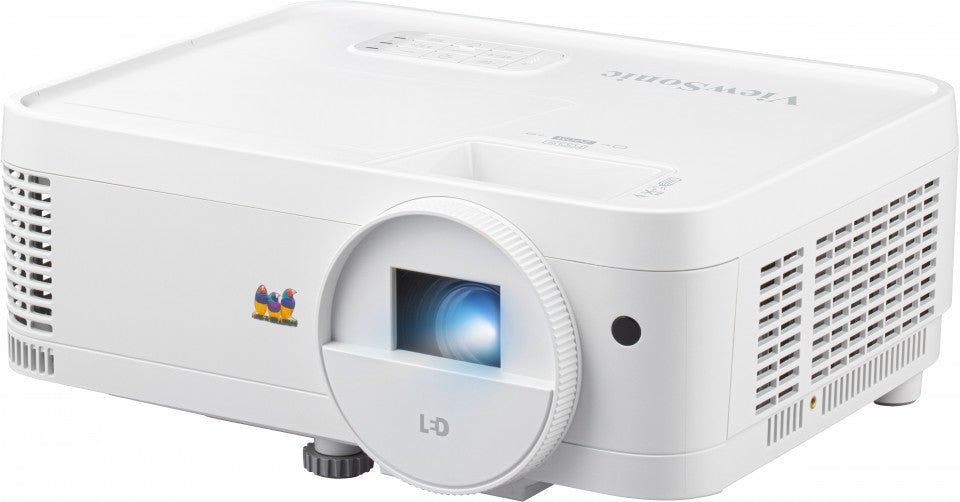

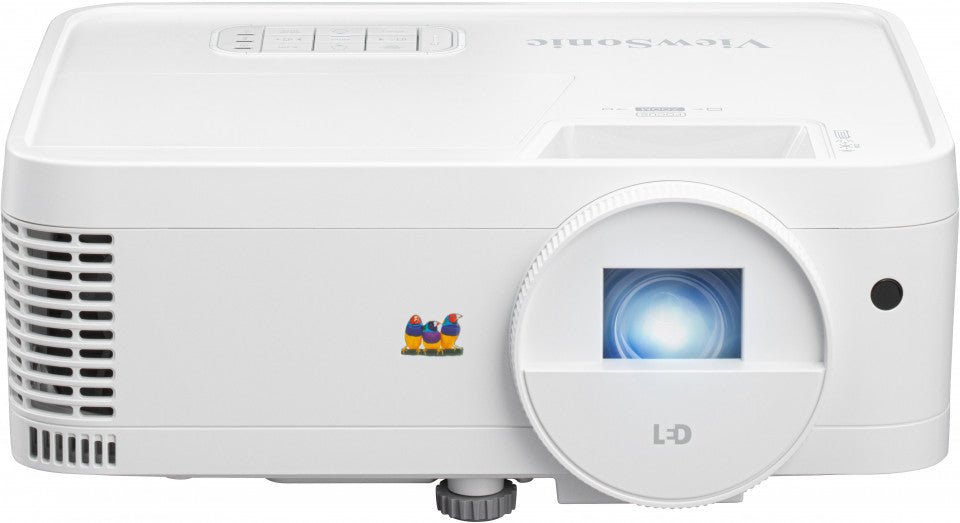

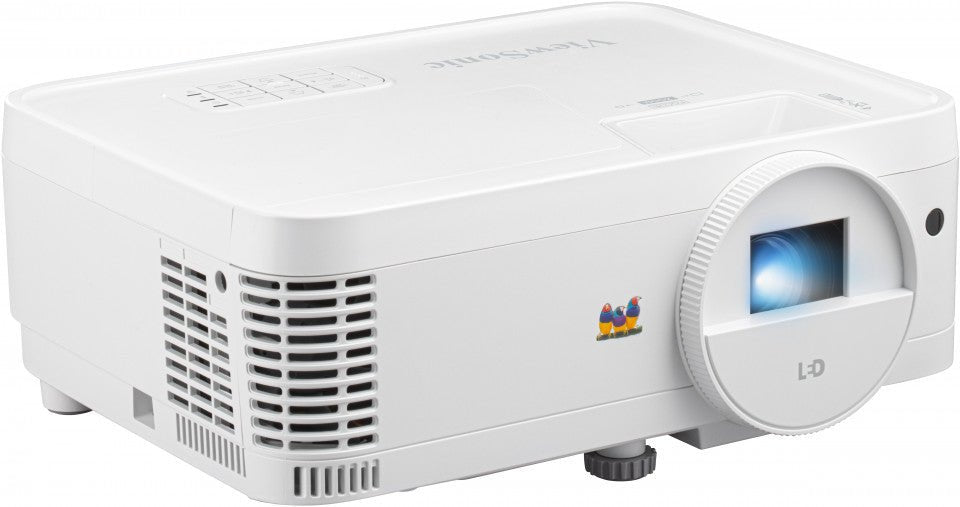

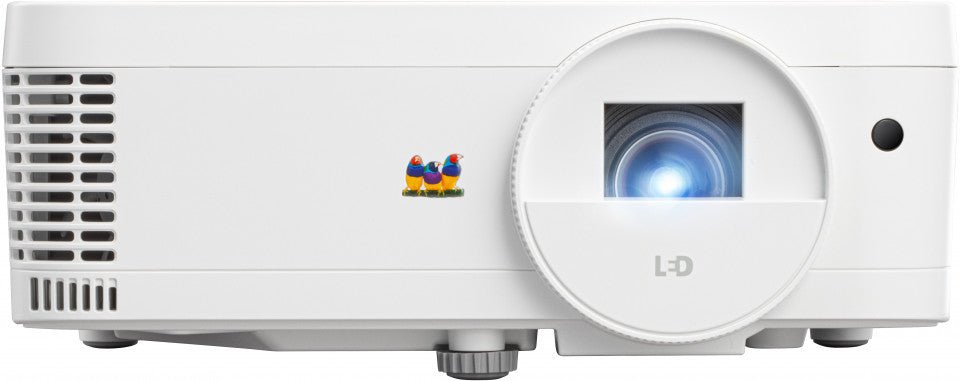

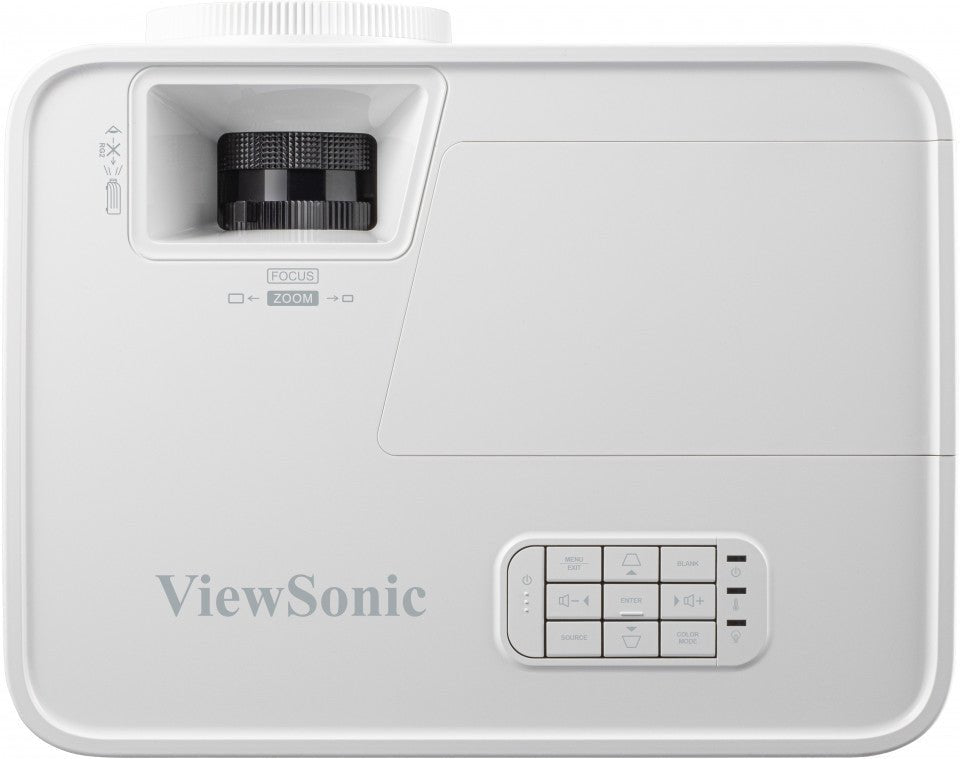

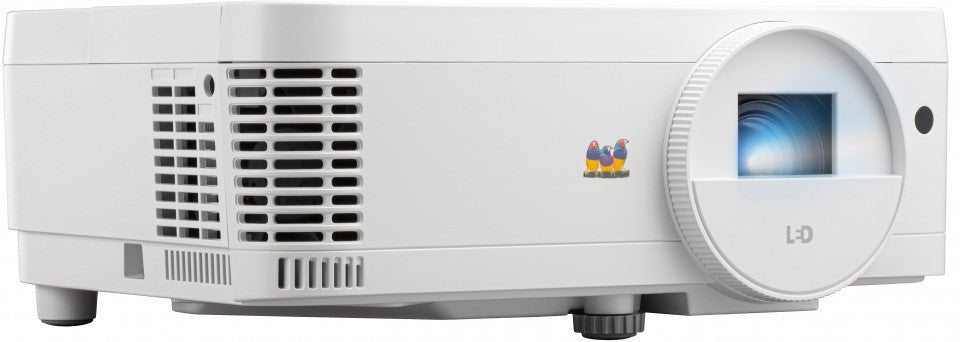

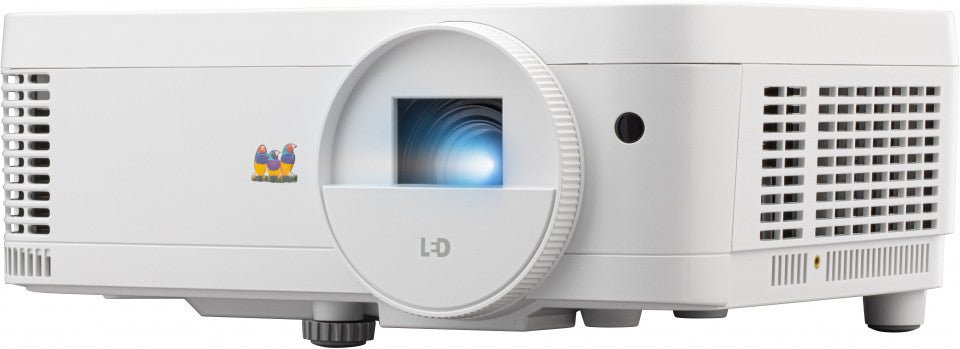

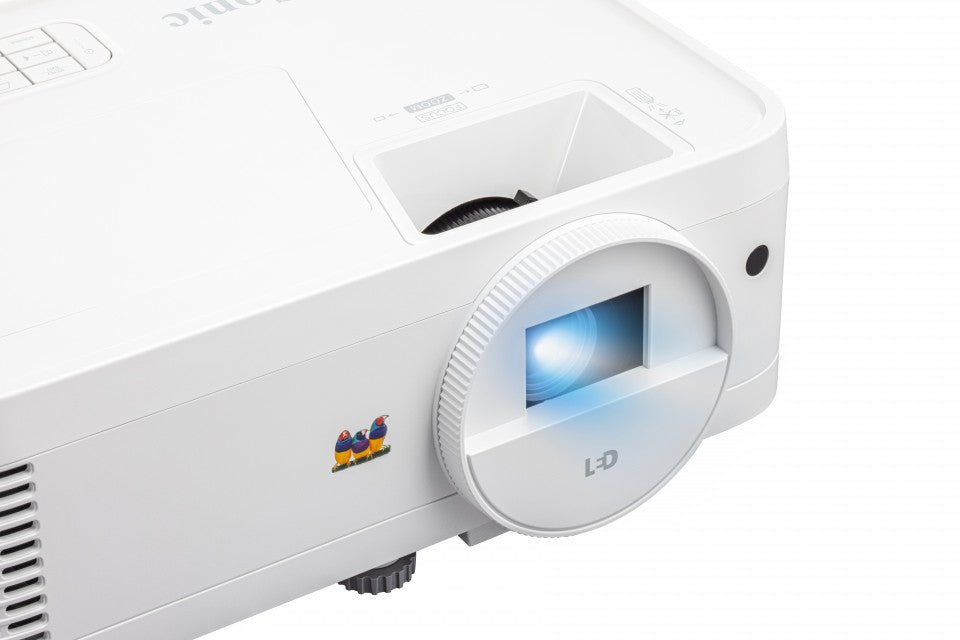

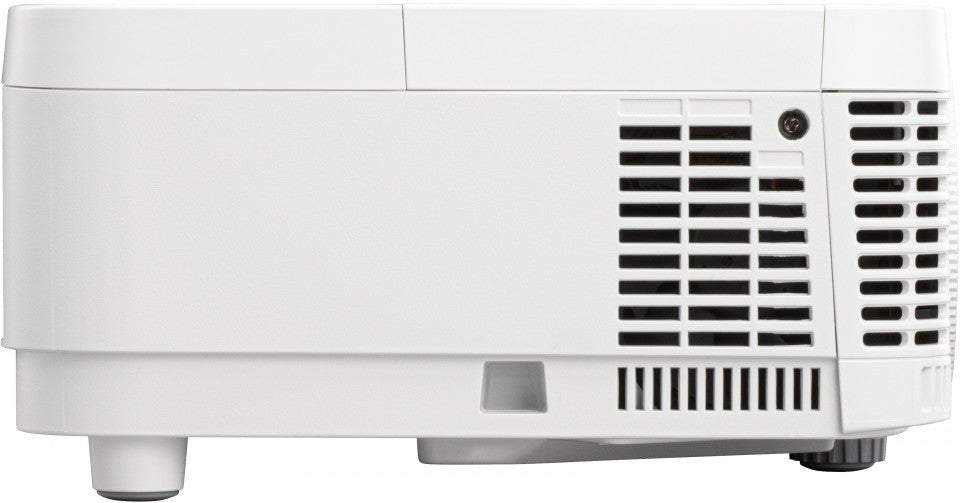

ViewSonic LS500WHE 3,000 ANSI Lumens WXGA LED Business Projector
PRODUCT DESCRIPTION
ViewSonic LS500WHE 3,000 ANSI Lumens WXGA LED Business/Education Projector - 3 Years Local Warranty
Lamp-Free LED Projection
The ViewSonic LS500WHE uses 3rd-generation LED technology rated up to 30,000 hours, so there is no mercury lamp to replace and no warm-up or cool-down wait when switching on and off.
Bright, Accurate Colour
3,000 ANSI lumens and a native 1280 x 800 (WXGA) resolution keep slides readable in lit rooms, while Cinema SuperColor+ technology covers 125% of the Rec.709 colour gamut with a 3,000,000:1 contrast ratio.
Flexible Installation

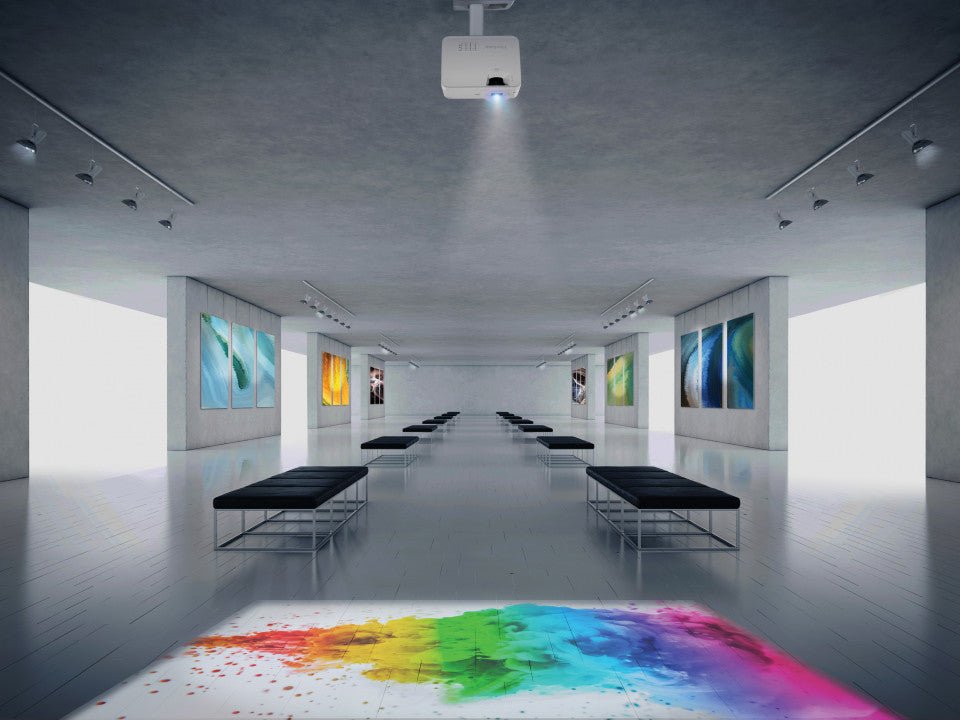

A 1.55–1.70 throw ratio with 1.1x optical zoom places a 100" image at about 3.34 m, ±40° vertical keystone squares the picture, and 360° projection lets you aim at ceilings or angled surfaces.
Low Running Cost
Rated at 156 W in Normal mode, it uses nearly half the energy of comparable lamp projectors, and the sealed IP5X optical engine keeps dust out for consistent brightness.
Need projectors for several meeting rooms, classrooms or venues? Email sales@sourceit.com.sg for volume pricing and delivery lead time.
ViewSonic LS500WHE Datasheet — Technical Specifications
General
| Product Name | ViewSonic LS500WHE 3,000 ANSI Lumens WXGA LED Business/Education Projector |
| Model | LS500WHE |
| Local Warranty (Singapore) | 3 years on-site limited warranty on parts and labour (pick-up and drop-off); LED light source, no lamp to replace |
Optical
| Projection System | 0.65" WXGA |
| Native Resolution | 1280 x 800 (WXGA) |
| Brightness | 3,000 ANSI lumens |
| Contrast Ratio | 3,000,000:1 |
| Display Colour | 1.07 billion colours |
| Light Source | RGB LED |
| Light Source Life | Up to 30,000 hours |
| Lens | F=2.56–2.68, f=22–24.1 mm |
| Throw Ratio | 1.55–1.70 |
| Optical Zoom | 1.1x |
| Digital Zoom | 0.8x–2.0x |
| Image Size | 30"–300" |
| Throw Distance | 1–10.98 m (100" at 3.34 m) |
| Projection Offset | 100% ±5% |
| Keystone | ±40° vertical |
| Input Lag | 16 ms |
Compatibility
| Resolution Support | VGA (640 x 480) to Full HD (1920 x 1080) |
| HDTV Compatibility | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency | 15–102 kHz |
| Vertical Scan Rate | 23–120 Hz |

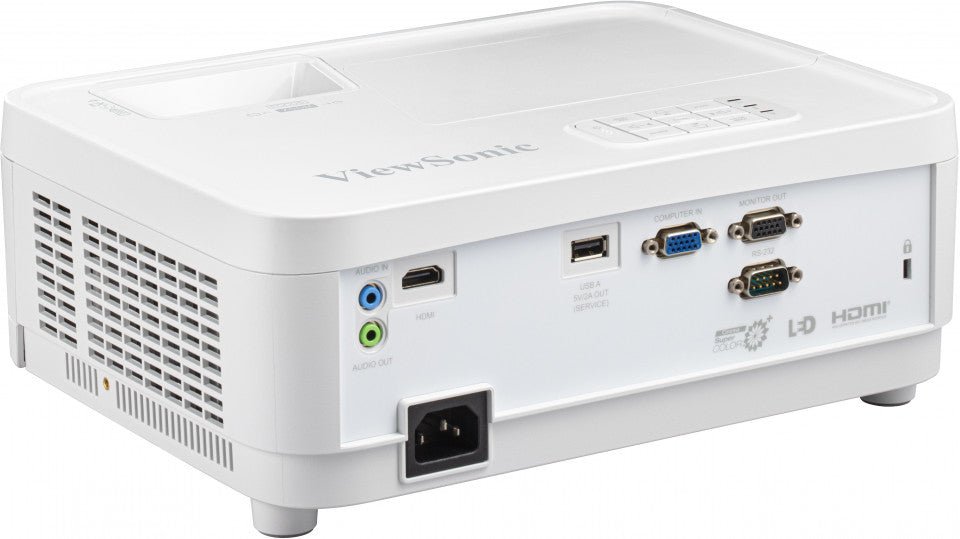

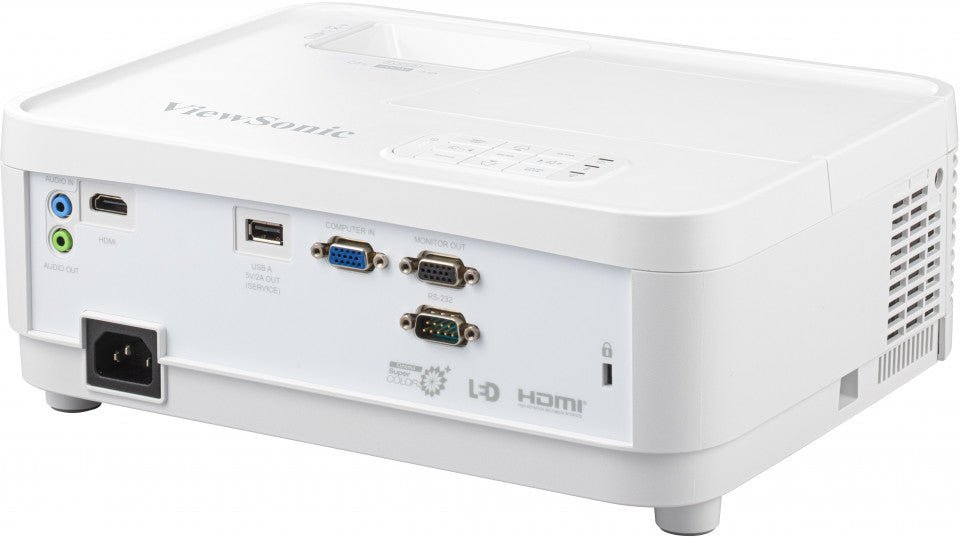

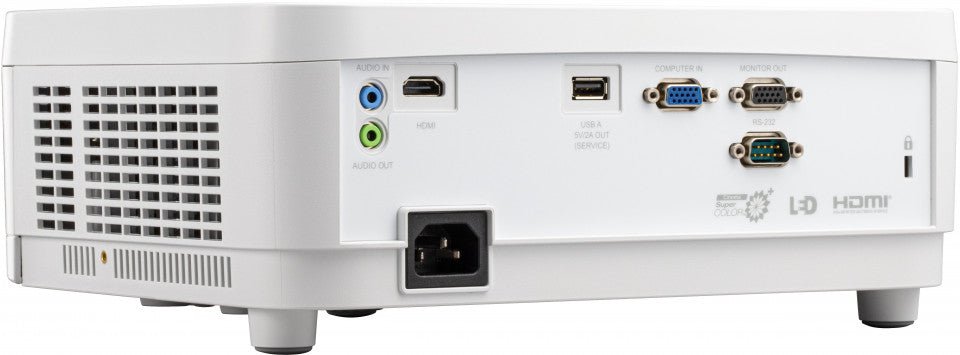

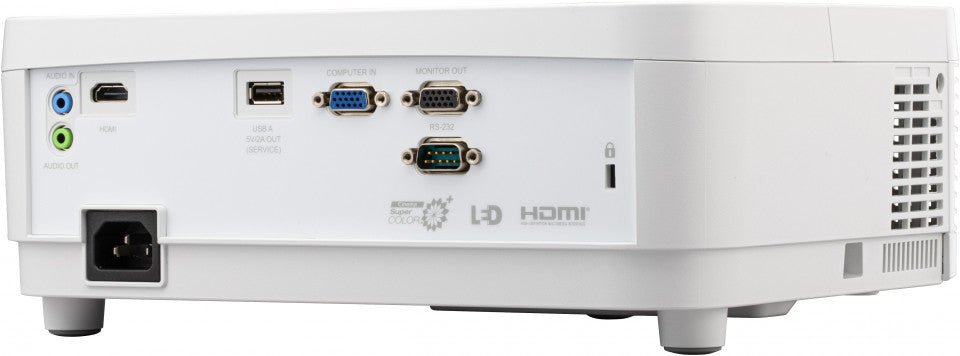

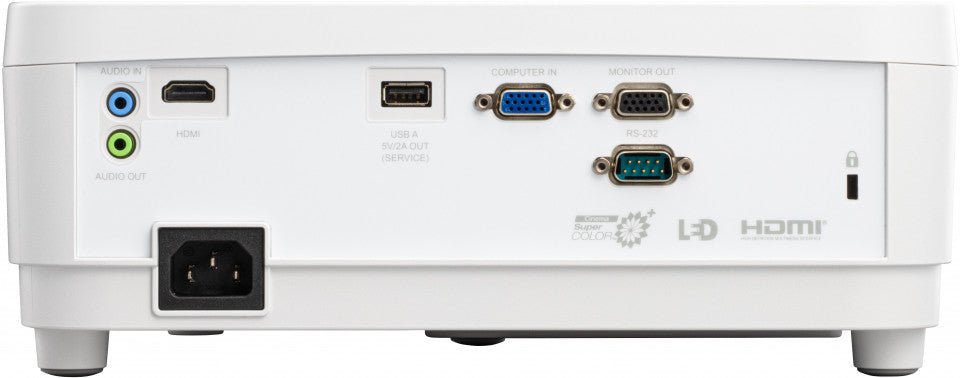

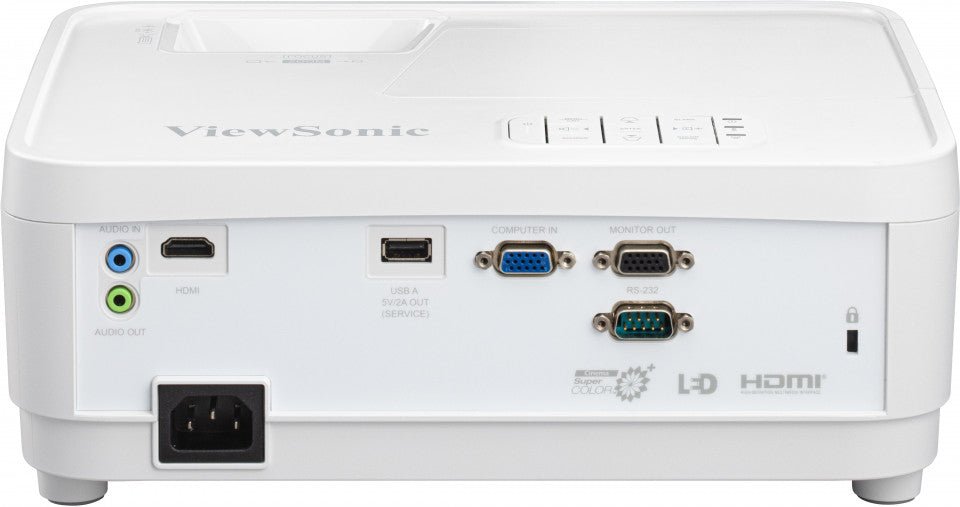

Connectivity
| HDMI | 1 x HDMI 1.4 (HDCP 1.4) |
| Audio In | 1 x 3.5 mm |
| Audio Out | 1 x 3.5 mm |
| USB Power | 1 x USB Type-A, 5 V / 2 A |
| Control | 1 x RS232 (DB9 male) |
| Speaker | 2 W |
Power & Environmental
| Power Supply | 100–240 V ±10%, 50/60 Hz |
| Power Consumption | 156 W (Normal); <0.5 W standby |
| Audible Noise | 30 dB (Normal); 26 dB (Eco) |
| Operating Temperature | 0–40 °C |
Physical
| Dimensions (W x D x H) | 293 x 221 x 115 mm (with adjustment foot) |
| Net Weight | 2.45 kg |
| OSD Languages | 24 |
Compatibility & Software Support
Sources
Connect a laptop, PC or media player over HDMI. The USB-A port supplies 5 V / 2 A to power an HDMI streaming stick or wireless presentation dongle.
Room Control
RS232 supports integration with room control systems; projector software can be updated on site over a USB cable.
Typical Use

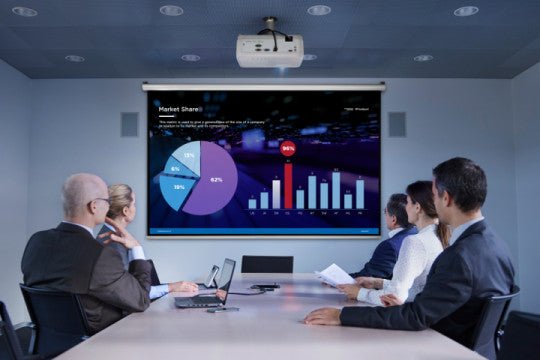

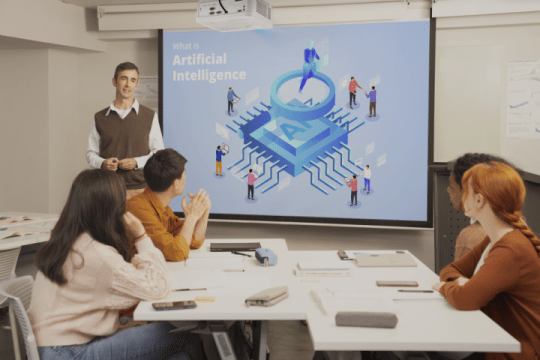

Meeting rooms and classrooms that want a lamp-free projector with low running costs.
Package Contents & ViewSonic Laser & LED Projector Ordering Information
In the Box
LS500WHE projector, power cord, remote control, quick start guide.
Optional Accessories
| Wall/ceiling mount | PJ-WMK-007 |
| Carry bag | PJ-CASE-008 |
| HDBaseT dongle | HB10B |
ViewSonic Laser & LED Business Projectors
| Model | Key feature |
| LS500WHE (this listing) | 3,000 lm WXGA, LED |
| LSD400W | 4,000 lm WXGA, laser |
| LSD400HD | 4,000 lm 1080p, laser |
| LS711HD | 4,200 lm 1080p, short throw laser |
| LS740W | 5,000 lm WXGA, laser |
| LS740HD | 5,000 lm 1080p, laser |
| LS832WU | 5,000 lm WUXGA, ultra short throw laser |
| LS860WU | 5,000 lm WUXGA, short throw laser, HDBaseT |
| LS920WU | 6,000 lm WUXGA, laser, 1.6x zoom |
| LS921WU | 6,000 lm WUXGA, short throw laser |
Datasheet & Downloads
| ViewSonic datasheet | LS500WHE Datasheet |
| ViewSonic product page | LS500WHE on viewsonic.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LS500WHE.
Frequently Asked Questions — ViewSonic LS500WHE
How big an image can I get?
From 30" up to 300". A 100" image needs about 3.34 m between the lens and the screen.
Does it need lamp replacements?
No. The LED light source is rated up to 30,000 hours, so there is no lamp to buy or replace.
Can I mount it on the ceiling or aim it upwards?
Yes. It supports ceiling mounting (PJ-WMK-007) and 360° projection at any angle.
What warranty do I get?
3 years on-site limited warranty on parts and labour (pick-up and drop-off service on Singapore's main island). Supplied by SourceIT with a GST invoice.
