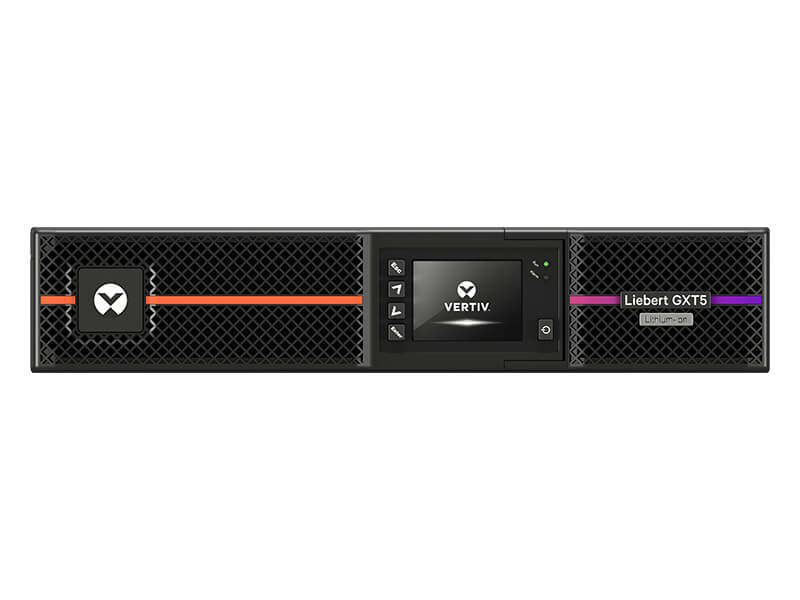

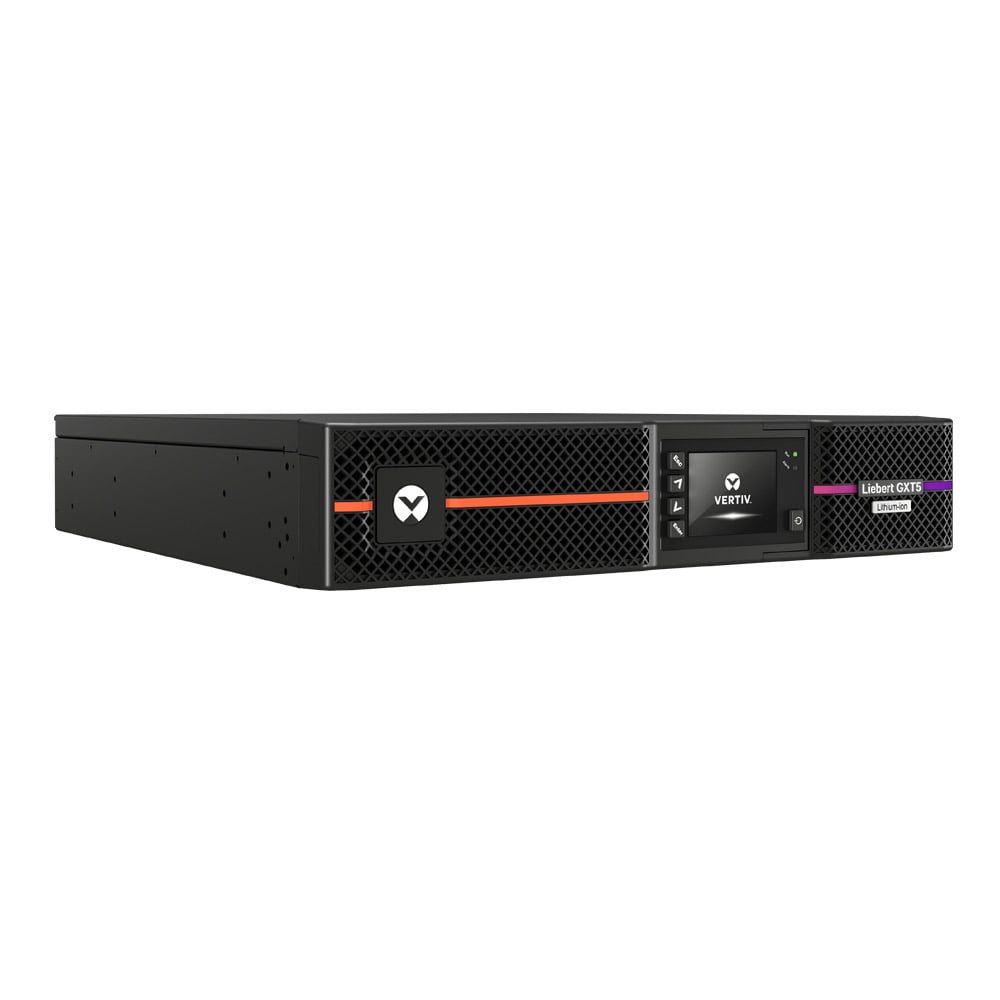

Vertiv Liebert GXT5 Lithium-Ion 1kVA/1000W 230V Online Double-Conversion 2U Rack/Tower UPS
PRODUCT DESCRIPTION
Vertiv Liebert GXT5 Lithium-Ion 1000 VA / 1000 W 230V Online UPS (GXT5LI-1000IRT2UXL, 01202662) - 5 Years Local Warranty
Lithium-Ion Online UPS with a 5-Year Warranty
The Vertiv™ Liebert® GXT5 Lithium-Ion GXT5LI-1000IRT2UXL is a 1000 VA / 1000 W online double-conversion UPS in a 2U rack/tower chassis, built around lithium iron phosphate (LiFePO4) batteries. Vertiv backs the UPS and its battery with a 5-year warranty.
Vertiv quotes a battery life of 8–10 years — against the 3–5 years typical of VRLA — and up to 10 times more discharge cycles, so in most sites you will not replace batteries during the UPS’s service life. Batteries recharge to 90% in under 2 hours.
More Runtime in the Same 2U
Internal runtime is long for the size: Vertiv publishes 12 min at full load and 26.5 min at half load. Add one VEBCLI-48VRT1U 1U lithium external battery cabinet (Vertiv part 02313173) for 32 min at full load and 68.1 min at half load.
Lithium-ion also tolerates heat better than lead-acid, which suits Singapore network closets and edge cabinets without dedicated cooling. The unit weighs 16 kg, lighter than the equivalent VRLA GXT5.
Online Double Conversion, High Efficiency
In online mode the inverter regenerates the output continuously, so there is no transfer time to battery; the watt rating equals the VA rating. Vertiv rates efficiency at up to 94% online and up to 98% in Active ECO mode.
Remote Management
USB, serial (RS232) and dry contacts are standard, with an IntelliSlot bay for the optional RDU101 web/SNMP card.
Supplied in Singapore by SourceIT
SourceIT supplies the GXT5LI-1000IRT2UXL with a GST invoice and local support. Warranty is 5 years on the UPS and battery under Vertiv’s South-East Asia standard warranty. Email sales@sourceit.com.sg with your load in watts and the runtime you need, and we will compare it with the VRLA GXT5 for you.
Vertiv Liebert GXT5LI-1000IRT2UXL Datasheet — Technical Specifications
General
| Model | GXT5LI-1000IRT2UXL |
| Vertiv Part Number | 01202662 |
| Series | Vertiv Liebert GXT5 Lithium-Ion 1–3 kVA, 230 V |
| Topology | Online double conversion |
| Form Factor | 2U rack/tower convertible, rail kit bundled (distributor configuration) |
| Manufacturer Warranty | 5 years on UPS and battery (Vertiv SEAP standard warranty) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, with GST invoice |
Input
| Nominal Voltage | 230 VAC default; 200/208/220/230/240 VAC user-configurable |
| Voltage Range | 176–288 VAC nominal; 115–288 VAC maximum |
| Frequency Range | 40–70 Hz |
| Input Connector | IEC 60320 C14 with over-current protection |
Output
| Rating | 1000 VA / 1000 W |
| Output Receptacles | 8 x IEC C13 |
| Efficiency | Up to 94% online mode; up to 98% Active ECO mode |
Battery & Runtime (Vertiv published)
| Battery Type | Lithium-ion (LiFePO4); hot-swappable, user-replaceable |
| Battery Life | 8–10 years |
| Internal Battery, 100% Load | 12 min |
| Internal Battery, 50% Load | 26.5 min |
| With 1 External Battery Cabinet, 100% Load | 32 min |
| With 1 External Battery Cabinet, 50% Load | 68.1 min |
| Recharge Time | <2 hours to 90% |
| External Battery Cabinet | VEBCLI-48VRT1U, 1U lithium (Vertiv part 02313173) |
Communications
| Ports | USB, serial (RS232), dry contacts |
| Network Card | IntelliSlot bay for optional RDU101 web/SNMP card |
Physical & Environmental
| Unit Dimensions (W x D x H) | 430 x 446 x 85 mm |
| Unit Weight | 16 kg |
| Shipping Dimensions | 570 x 597 x 242 mm |
| Shipping Weight | 21 kg |
| Operating Temperature | 0–40 °C (10% derating at 50 °C) |
| Storage Temperature | -20 to 60 °C |
| Relative Humidity | 0–95%, non-condensing |
| Operating Altitude | 0–3,000 m (15% derating at 4,000 m) |
| Audible Noise | <48 dB |
Compliance
| Safety | IEC 62040-1:2008+A1:2013 |
| Battery | IEC 62619, UL 1642, UL 1973 |
| Environmental | RoHS2 / REACH / WEEE |
Compatibility & Software Support
What It Is Suited To
Servers, storage, network switches, firewalls and edge compute where you want long battery life, low maintenance and good tolerance of warm rooms. Keep your continuous load under 1000 W with headroom.

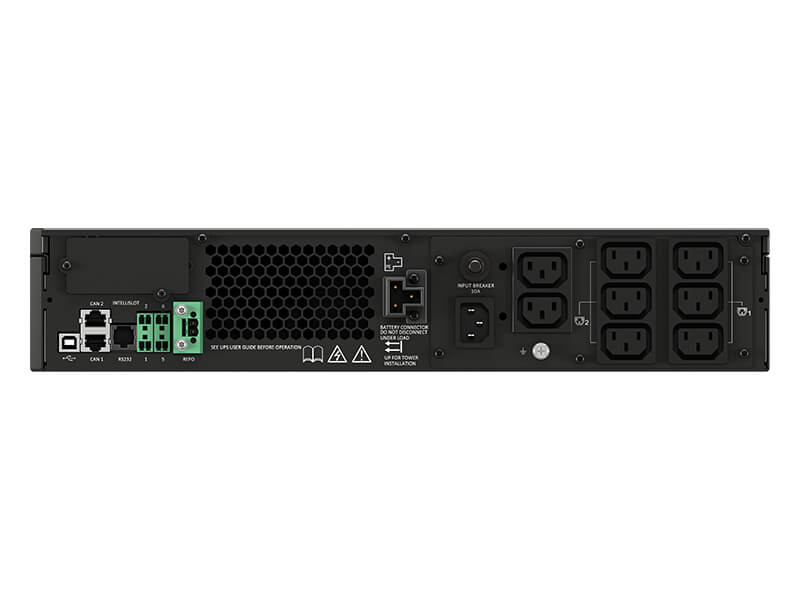

Input and Outlets
Power comes in through an IEC 60320 C14 inlet and out on 8 x IEC C13. Equipment with BS 1363 (Type G) plugs needs IEC leads; ask us to quote them.
Monitoring and Shutdown
USB and RS232 support local shutdown software. For web/SNMP monitoring add the RDU101 Web/SNMP card (02312384), which SourceIT supplies.
Lithium-Ion vs VRLA GXT5
The VRLA equivalent is the GXT5-1000IRT2UXL (01202008): lower purchase price and a 3-year warranty, versus 5 years, longer internal runtime and 8–10-year battery life on this lithium model.
Package Contents & GXT5 Lithium-Ion Ordering Information
In the Box
GXT5 Lithium-Ion UPS with internal LiFePO4 battery, rack rail kit (the distributor price book lists this model as “Rail Kit Bundled”) and user documentation. Confirm cables with us before ordering if they matter to your installation.
Vertiv Liebert GXT5 Lithium-Ion 230 V, 1–3 kVA — Ordering Information
| Model | Rating | Outlets | Vertiv part |
| GXT5LI-1000IRT2UXL (this listing) | 1000 VA / 1000 W | 8 x IEC C13 | 01202662 |
| GXT5LI-1500IRT2UXL | 1500 VA / 1500 W | 8 x IEC C13 | 01202663 |
| GXT5LI-2000IRT2UXL | 2000 VA / 2000 W | 6 x IEC C13 + 1 x IEC C19 | 01202664 |
| GXT5LI-3000IRT2UXL | 3000 VA / 2700 W | 6 x IEC C13 + 1 x IEC C19 | 01202665 |
Compare: GXT5 with VRLA Batteries
| VRLA equivalent | Rating | Warranty | Vertiv part |
| GXT5-1000IRT2UXL | 1000 VA / 1000 W | 3 years | 01202008 |
| GXT5-1500IRT2UXL | 1500 VA / 1500 W | 3 years | 01202009 |
| GXT5-2000IRT2UXL | 2000 VA / 2000 W | 3 years | 01202010 |
| GXT5-3000IRT2UXL | 3000 VA / 3000 W | 3 years | 01202005 |
Matching Accessories
| Lithium external battery cabinet | VEBCLI-48VRT1U (02313173), quoted on request |
| Network card | RDU101 Web/SNMP card (02312384) |
Datasheet & Downloads
| Vertiv brochure (Asia) | Liebert GXT5 Lithium-Ion UPS Brochure — Asia (PDF) |
| Vertiv brochure (Asia-Pacific) | Liebert GXT5 Lithium-Ion 1–3 kVA Brochure — Asia-Pacific (PDF) |
| Vertiv warranty | Vertiv 5-Year Limited Standard Warranty — GXT5 Li 1–3 kVA, SEAP (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GXT5LI-1000IRT2UXL.
Frequently Asked Questions — Vertiv Liebert GXT5LI-1000IRT2UXL
Why pay more for lithium-ion?
Vertiv quotes 8–10-year battery life and up to 10 times more discharge cycles than VRLA, faster recharge (<2 h to 90%), better heat tolerance and a 5-year warranty that includes the battery. Over the UPS’s life that usually removes one or two battery replacements.
How long will it run on battery?
Vertiv publishes 12 min at full load and 26.5 min at half load internally, and 32 min / 68.1 min with one VEBCLI-48VRT1U cabinet.
Is it a true online UPS?
Yes. Online double conversion, with no transfer time to battery.
Can I mount it in a rack?
Yes. It is a 2U rack/tower unit and the rail kit is bundled in the Singapore distributor configuration.
Does it support SNMP?
Yes, with the optional RDU101 card in the IntelliSlot bay. USB, RS232 and dry contacts are standard.
What warranty do I get?
5 years on the UPS and battery under Vertiv’s South-East Asia standard warranty, supplied by SourceIT with a GST invoice.
