Vertiv Liebert GXT5 3kVA/3000W 230V Online Double-Conversion 2U Rack/Tower UPS with LCD
PRODUCT DESCRIPTION
Vertiv Liebert GXT5 3000 VA / 3000 W 230V Online UPS (GXT5-3000IRT2UXL, 01202005) - 3 Years Local Warranty
True Online Double-Conversion Protection at Unity Power Factor

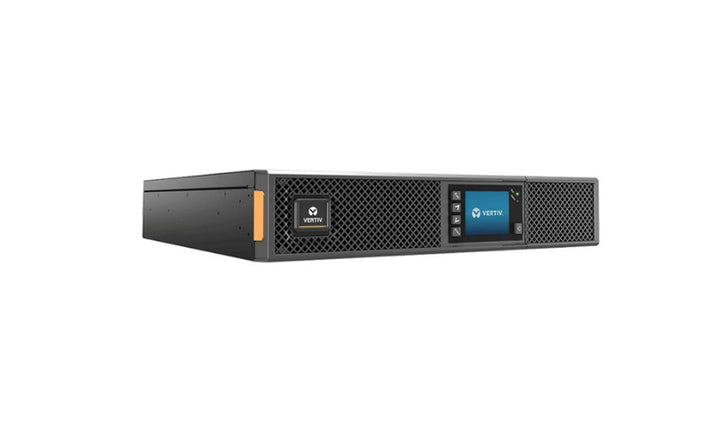

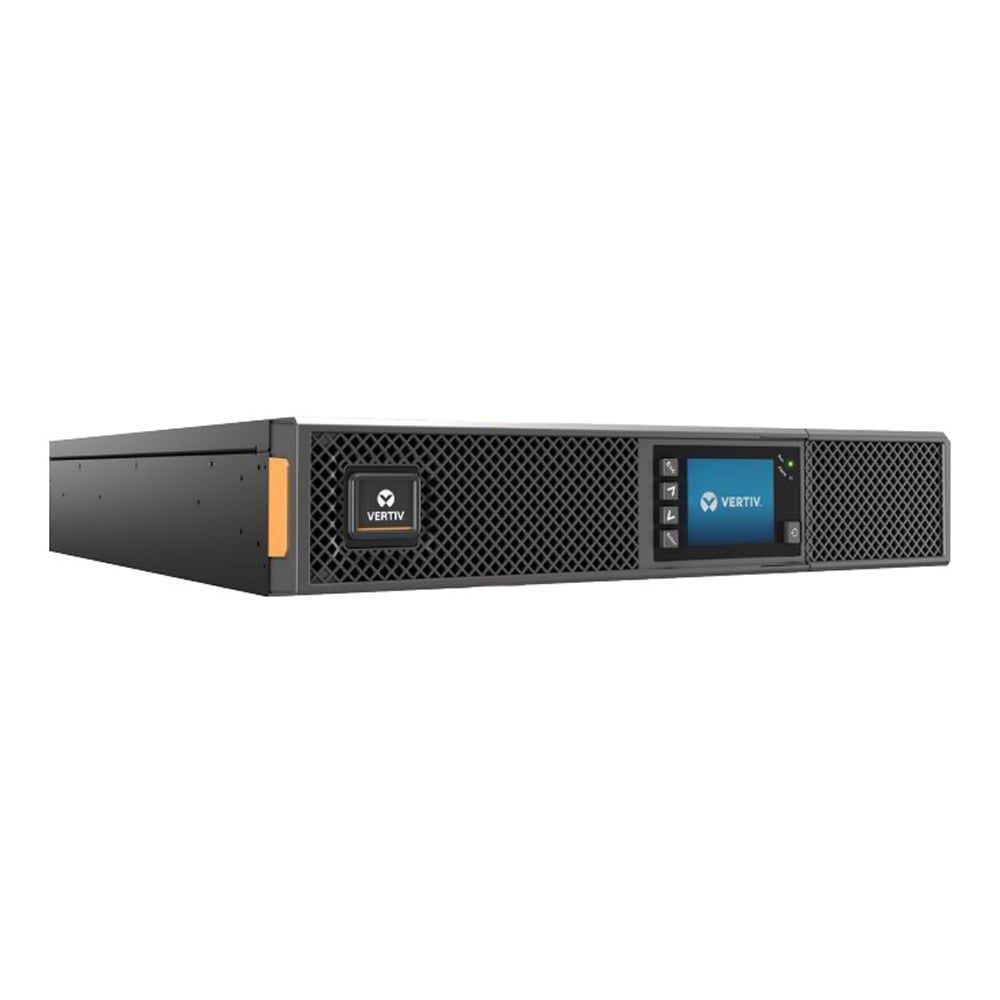

The Vertiv™ Liebert® GXT5 GXT5-3000IRT2UXL is a 3000 VA / 3000 W online double-conversion UPS in a 2U rack/tower chassis. Because the output power factor is 1.0, the watt rating equals the VA rating — you can load it to the full 3000 W, which is more usable power than a traditional 0.8 or 0.9 PF UPS of the same VA size.
In online mode the inverter rebuilds a clean pure sine wave all the time, so connected servers, storage and network switches never see raw mains disturbances, and there is no transfer break when the utility fails. Vertiv rates online-mode efficiency at up to 94%, rising to up to 98% in ECO mode.
Built for Edge IT, Server Rooms and Network Closets

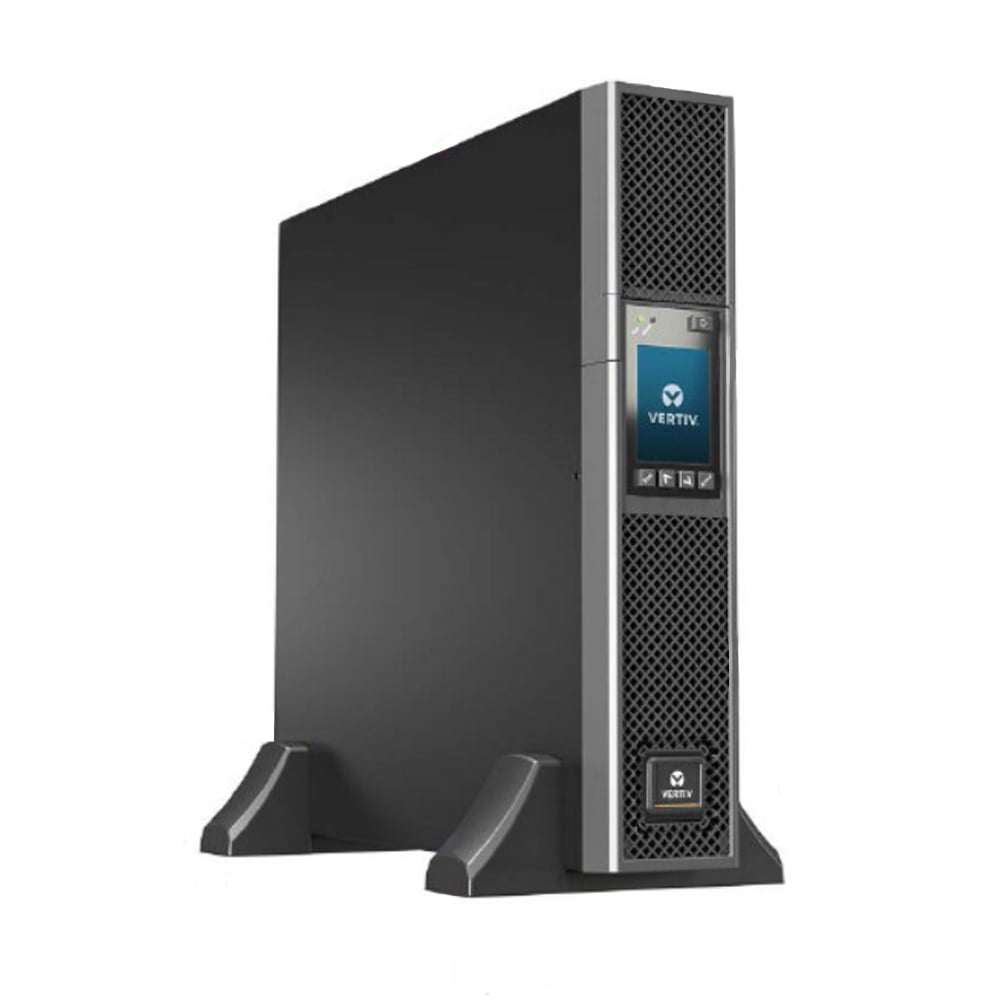

Vertiv positions the GXT5 750 VA–3 kVA range for network computers, large network peripherals, storage devices, servers and small computer rooms. The same unit mounts in a 19-inch rack or stands as a tower, and the full-colour graphic LCD uses gravity sensing to flip its display to match the orientation you install it in.
Programmable Outlets and Automatic Battery Detection
Output is on 6 x IEC C13 + 1 x IEC C19. Individually programmable outlet groups let you power-cycle a hung device remotely, schedule shutdown of non-critical loads, or shed load to stretch runtime for the equipment that matters.

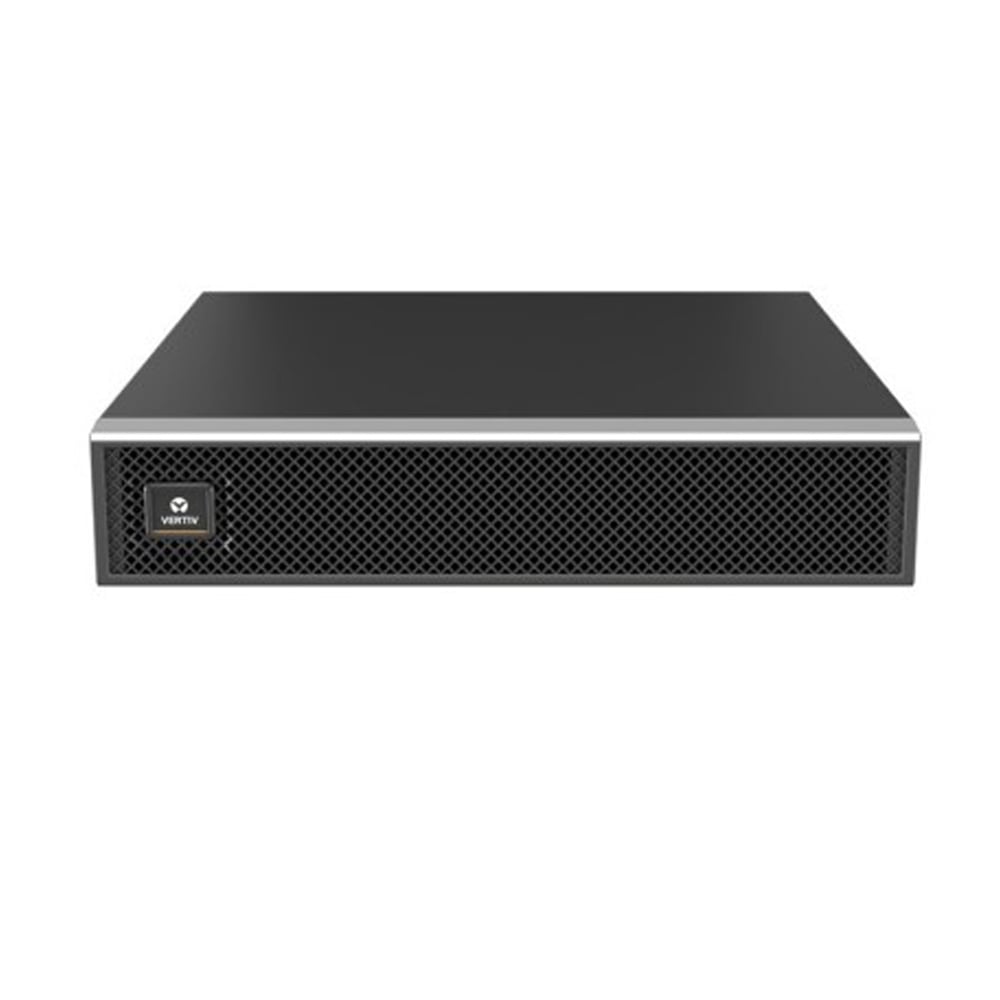

Runtime is extendable with the GXT5-EBC72VRT2U external battery cabinet; the UPS auto-detects connected cabinets and recalculates runtime. Vertiv publishes 3.3 min at full load and 10.8 min at half load on the internal battery, rising to 19.1 min and 47.5 min with one external cabinet.
Remote Management and Hot-Swap Batteries
USB and RS232 ports are standard, with an IntelliSlot bay for an optional RDU101/RDU120 network card that adds web and SNMP monitoring. Vertiv Power Insight software is free, and the UPS reports battery health and predicts its replacement date. Dry contacts and an automatic internal bypass are built in.
Supplied in Singapore by SourceIT
SourceIT supplies the GXT5 GXT5-3000IRT2UXL with a GST invoice and local support. Vertiv’s standard warranty for the GXT5 750 VA–10 kVA range in South-East Asia is 3 years, and the Singapore distributor price book lists it as 3 Years Next Business Day response. Need help sizing? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Vertiv Liebert GXT5-3000IRT2UXL Datasheet — Technical Specifications
General
| Model | GXT5-3000IRT2UXL |
| Vertiv Part Number | 01202005 |
| Series | Vertiv Liebert GXT5 (750 VA – 3 kVA, 230 V) |
| Topology | Online double conversion |
| Form Factor | 2U rack/tower convertible, rail kit bundled |
| Manufacturer Warranty | 3 years (Vertiv SEAP standard warranty; distributor: 3 Years Next Business Day) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, with GST invoice |
Power
| Rating | 3000 VA / 3000 W (output power factor 1.0) |
| Input Voltage Range | 115–280 VAC |
| Frequency Range | 40–70 Hz, auto-sensing |
| Input Connector | IEC 60320 C20 |
| Output Receptacles | 6 x IEC C13 + 1 x IEC C19 |
| Output Voltage | 200/208/220/230/240 VAC ±3%, user selectable |
| Waveform | Pure sine wave |
| Efficiency | Up to 94% online mode; up to 98% ECO mode |
| Overload (AC mode) | >200% for 250 ms; 150–200% for 2 s; 125–150% for 50 s; 105–125% for 60 s |
Battery & Runtime (Vertiv published)
| Battery Type | Valve-regulated, non-spillable, lead acid; hot-swappable |
| Internal Battery, 100% Load | 3.3 min |
| Internal Battery, 50% Load | 10.8 min |
| With 1 External Battery Cabinet, 100% Load | 19.1 min |
| With 1 External Battery Cabinet, 50% Load | 47.5 min |
| External Battery Cabinet | GXT5-EBC72VRT2U (Vertiv part 02312373) |
| Replacement Battery Kit | GXT5-72VBATKIT |
Communications
| Ports | USB, RS232, dry contacts |
| Network Card | IntelliSlot bay for optional RDU101 / RDU120 web/SNMP card |
| Software | Vertiv Power Insight (free) |
Physical & Environmental
| Unit Dimensions (W x D x H) | 430 x 540 x 85 mm |
| Unit Weight | 28.5 kg |
| Shipping Dimensions (W x D x H) | 717 x 570 x 262 mm |
| Shipping Weight | 33.4 kg |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20 to 60 °C (-15 to 40 °C with batteries) |
| Relative Humidity | 0–95%, non-condensing |
| Operating Altitude | Up to 3,000 m without derating |
| Audible Noise | <48 dBA front/side and rear (at 1 m) |
Compliance
| Agency | CE, CB Report, EAC, RCM, UKCA, Morocco |
| Safety | EN 62040-1 |
| Emissions | IEC 62040-2 Cat. C2 |
| Surge Immunity | EN 61000-4-5, ANSI C62.41 Category B |
| Transportation | ISTA 1A |
| Environmental | RoHS2 / REACH / WEEE |
Compatibility & Software Support
What It Is Suited To
Servers, storage, network switches and routers, VoIP and CCTV recorders in a rack or on a shelf. Add up the continuous watts of your equipment and keep it under 3000 W with headroom for growth; because PF is 1.0, the watt rating is the full 3000 W.
Input and Outlets
The UPS takes power through an IEC 60320 C20 inlet and delivers it on 6 x IEC C13 + 1 x IEC C19. Equipment with BS 1363 (Type G) plugs needs IEC C14 leads or an IEC-input power strip; ask us if you need one quoted.
Monitoring and Shutdown
USB and RS232 work with Vertiv Power Insight for automatic, unattended shutdown. For network monitoring over web/SNMP add the RDU101 card (Vertiv part 02312384), which SourceIT also supplies. Environmental sensors connect through the network card.
Maintenance Bypass
Vertiv pairs this model with the Liebert MicroPOD MP2-220L wrap-around maintenance bypass, so the UPS can be serviced or replaced without switching off the load.
Package Contents & GXT5 Ordering Information
In the Box
GXT5 UPS with internal batteries and rack rail kit (the distributor price book lists this model as “Rail Kit Bundled”), plus user documentation. Confirm cables with us before ordering if they matter to your installation.
Vertiv Liebert GXT5 230 V, 750 VA – 3 kVA — Ordering Information
| GXT5-750IRT2UXL | 750 VA / 750 W | 8 x IEC C13 | 01202007 |
| GXT5-1000IRT2UXL | 1000 VA / 1000 W | 8 x IEC C13 | 01202008 |
| GXT5-1500IRT2UXL | 1500 VA / 1500 W | 8 x IEC C13 | 01202009 |
| GXT5-2000IRT2UXL | 2000 VA / 2000 W | 8 x IEC C13 | 01202010 |
| GXT5-3000IRT2UXL (this listing) | 3000 VA / 3000 W | 6 x IEC C13 + 1 x IEC C19 | 01202005 |
Matching Accessories
| External battery cabinet | GXT5-EBC72VRT2U (02312373) |
| Replacement battery kit | GXT5-72VBATKIT |
| Network card | RDU101 Web/SNMP card (02312384) |
| Maintenance bypass | Liebert MicroPOD MP2-220L |
Datasheet & Downloads
| Vertiv brochure (Asia-Pacific) | Liebert GXT5 750 VA – 20 kVA Brochure — Asia-Pacific (PDF) |
| Vertiv brochure (230 V, 750–3000 VA) | Liebert GXT5 750–3000 VA 230 V Brochure (PDF) |
| Vertiv user manual | Liebert GXT5 User Manual — Asia-Pacific (PDF) |
| Vertiv warranty | Vertiv 3-Year Limited Standard Warranty — GXT5 750 VA–10 kVA, SEAP (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GXT5-3000IRT2UXL.
Frequently Asked Questions — Vertiv Liebert GXT5-3000IRT2UXL
Is this a true online UPS?
Yes. The GXT5 is online double conversion: the load runs from the inverter at all times, so there is no transfer time to battery and the output is a regulated pure sine wave.
How long will it run on battery?
Vertiv publishes 3.3 min at full load and 10.8 min at half load on the internal battery. Adding one GXT5-EBC72VRT2U cabinet extends that to 19.1 min and 47.5 min. Real runtime depends on load, battery age and temperature — send us your load and we will estimate it.
Can I mount it in a rack?
Yes. It is a 2U rack/tower convertible unit and the rail kit is bundled in the Singapore distributor configuration. The LCD re-orients itself automatically.
Does it support SNMP?
Yes, with the optional RDU101 (or RDU120) network card fitted into the IntelliSlot bay. USB and RS232 are standard.
Can I replace the batteries myself?
The batteries are hot-swappable. The matching replacement kit is GXT5-72VBATKIT.
What warranty do I get?
3 years from Vertiv under its South-East Asia standard warranty, with Next Business Day response via the Singapore distributor, supplied by SourceIT with a GST invoice. Extended warranty and on-site service options are available — ask us.
