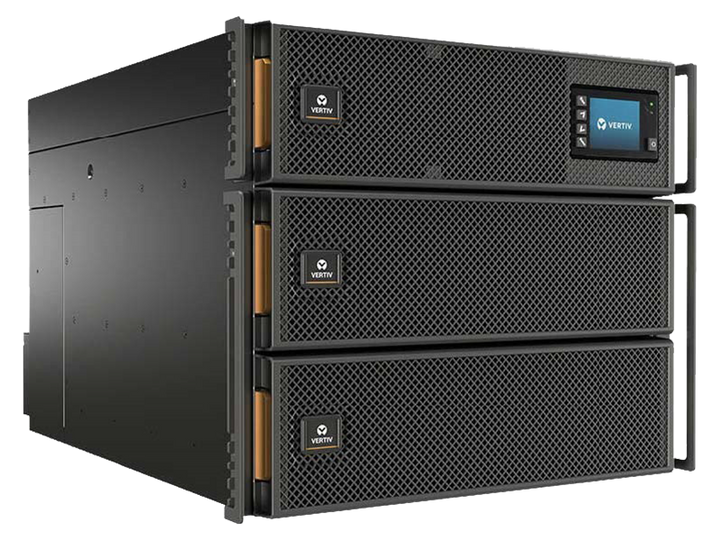

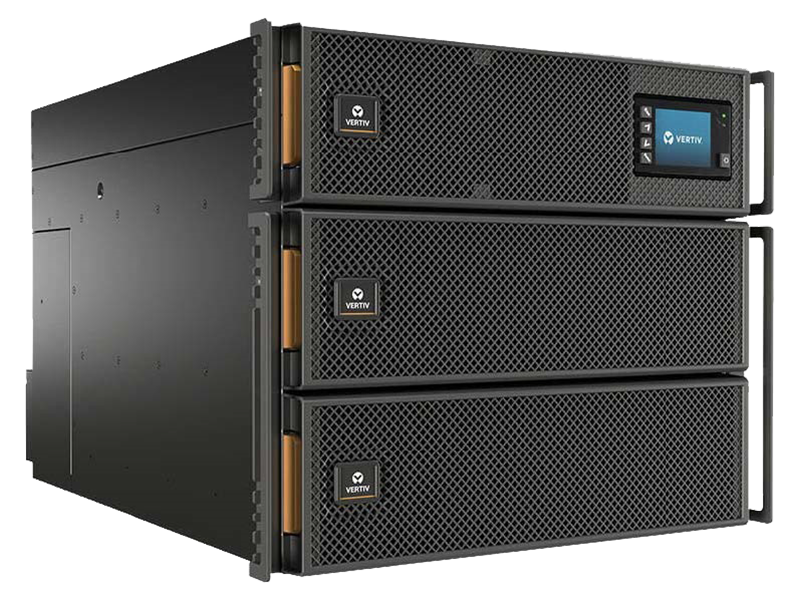

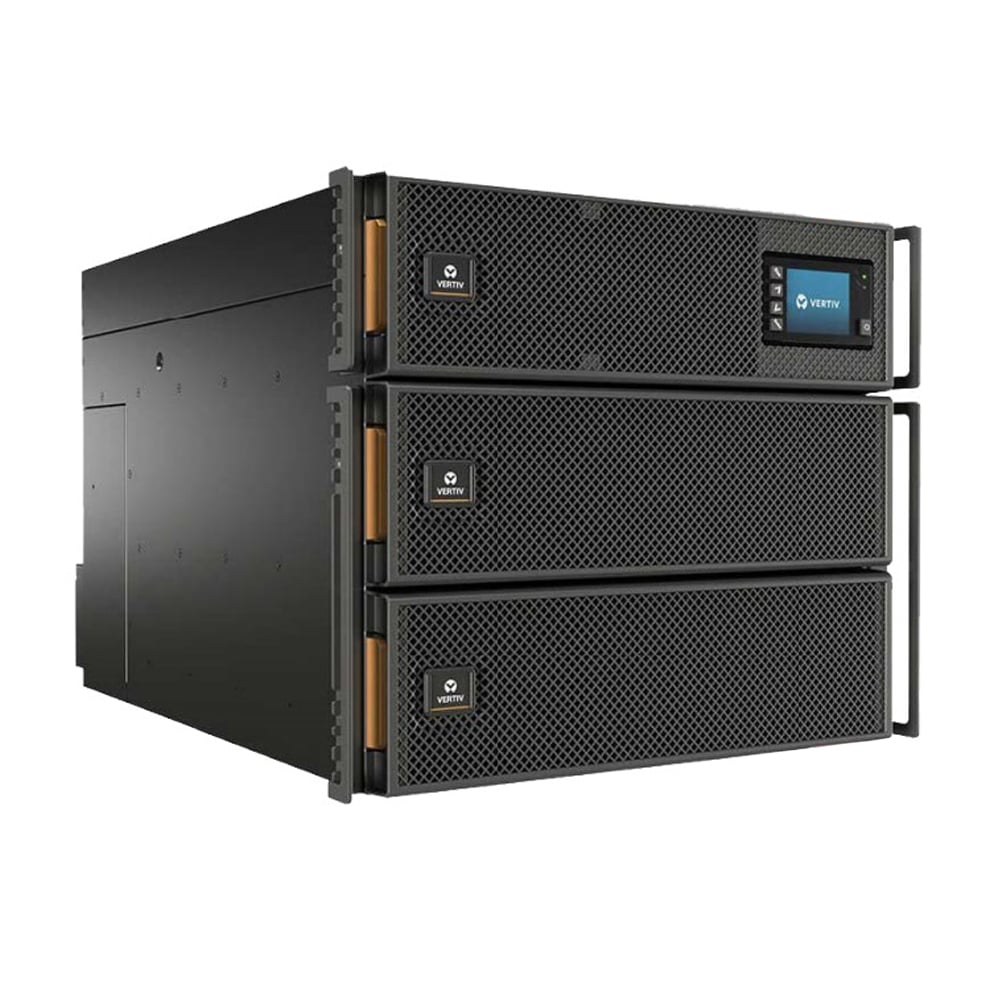

Vertiv Liebert GXT5 20kVA/20000W 230V Online Double-Conversion 9U Rack/Tower UPS with Web Card & Rail Kit
PRODUCT DESCRIPTION
Vertiv Liebert GXT5 20,000 VA / 20,000 W 230V Online UPS (GXT5-20KIRT9UXLN, 01201987) - 3 Years Local Warranty
20 kVA Online Double-Conversion Power at Unity Power Factor
The Vertiv™ Liebert® GXT5-20KIRT9UXLN is a 20,000 VA / 20,000 W online double-conversion UPS in a 9U rack/tower chassis. Vertiv rates the watt output equal to the VA rating (output power factor up to 1.0), so the full 20,000 W is usable for connected IT load — more real power than a traditional 0.8 or 0.9 PF UPS of the same VA size.
The inverter supplies a regenerated sine wave to the load at all times, so servers, storage and network equipment never see raw mains disturbances and there is no transfer break when utility power fails. Vertiv rates efficiency at up to 95% in online mode and up to 98% in Active ECO mode.
The Largest Rack-Mount Capacity in the GXT5 Range
At 20 kVA in 9U of rack space, the GXT5 16/20 kVA models are what Vertiv describes as the largest rack-mount capacity available in the line. They accept either 1-phase or 3-phase utility input on a terminal block and deliver 230 V single-phase output, which suits small computer rooms, edge data centres and larger comms rooms where a floor-standing UPS is not wanted.
Vertiv ships the unit with a tower stand and a 4-post rack fixed rail kit, and the gravity-sensing colour graphic display re-orients itself to match the way the UPS is installed.
Scalable Runtime and Hot-Swap Batteries
Vertiv publishes 2.5 min at full load and 7 min at half load on the internal VRLA batteries, rising to 7 min and 19.5 min with one GXT5-EBC384VRT6U external battery cabinet. Up to 10 cabinets can be added for longer runtime.
Battery modules are hot-swappable and user-replaceable, and the UPS reports battery health and predicts the replacement date so batteries are changed before they fail.
Remote Management and Parallel Redundancy
This configuration includes a factory-installed Vertiv IntelliSlot network card for web and SNMP monitoring and environmental sensor support, and works with free Vertiv Power Insight software for monitoring and orderly shutdown. An automatic internal bypass is built in, and external maintenance bypass options are available. The 20 kVA model supports parallel or redundant operation, with configurations of up to 2+1 redundancy for maximum availability.
Supplied in Singapore by SourceIT
SourceIT supplies the GXT5-20KIRT9UXLN with a GST invoice and local support. Vertiv’s standard warranty for this model is 3 years including battery, and the Singapore distributor price book lists it as 3 Years Next Business Day response with the web card and rail kit bundled. Need help with sizing, runtime or installation by a licensed electrician? Email sales@sourceit.com.sg with your load in watts and the runtime you need.
Vertiv Liebert GXT5-20KIRT9UXLN Datasheet — Technical Specifications
General
| Model | GXT5-20KIRT9UXLN |
| Vertiv Part Number | 01201987 |
| Series | Vertiv Liebert GXT5 (5 – 20 kVA, 230 V) |
| Topology | Online double conversion |
| Form Factor | 9U rack/tower convertible; tower stand and 4-post rack fixed rail kit included |
| Manufacturer Warranty | 3 years including battery (Vertiv SEAP standard warranty; distributor: 3 Years Next Business Day) |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, with GST invoice |
Input
| Input Voltage | 1-phase or 3-phase utility input, 230 V nominal output (confirm your supply arrangement with us) |
| Input Frequency | 50 or 60 Hz (factory default 50 Hz) |
| Input Connection | Input terminal block; 1-phase or 3-phase utility input |
Output
| Rating | 20,000 VA / 20,000 W |
| Output Voltage | 230 VAC, 50 Hz |
| Output Connection | Output terminal block (hardwired) |
| Waveform (On Battery) | Sine wave |
| Efficiency | Up to 95% online mode; up to 98% Active ECO mode |
| Overload (Inverter) | >150% for minimum 200 ms |
| Parallel / Redundancy | Up to 2+1 redundancy |
Battery & Runtime (Vertiv published)
| Battery Type | Valve-regulated, non-spillable, lead acid; hot-swappable, user-replaceable modules |
| Internal Battery, 100% Load | 2.5 min |
| Internal Battery, 50% Load | 7 min |
| With 1 External Battery Cabinet, 100% Load | 7 min |
| With 1 External Battery Cabinet, 50% Load | 19.5 min |
| External Battery Cabinet | GXT5-EBC384VRT6U (Vertiv part 02312377), up to 10 cabinets |
Communications
| Network Card | Factory-installed Vertiv IntelliSlot web/SNMP card (Vertiv brochure lists RDU120; Singapore distributor configuration lists RDU101 bundled) |
| Monitoring | Web, SNMP, environmental sensor support |
| Software | Vertiv Power Insight (free download) |
Physical & Environmental
| Unit Dimensions (W x D x H) | 430 x 630 x 394 mm |
| Unit Weight | 135.2 kg |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -15 to +40 °C |
| Relative Humidity | 0–95%, non-condensing |
| Operating Altitude | Up to 3,000 m at 25 °C |
| Audible Noise | <58 dBA at 1 m, front |
Compliance (as printed by Vertiv)
| Safety | UL1778, c-UL listed |
| Emissions | FCC Part 15 (Class A) |
| Surge Immunity | IEC/EN 61000-4-5 Level 4, Criteria A; ANSI C62.41 Category B |
| Transportation | ISTA Procedure 1E |
Compatibility & Software Support
What It Is Suited To
Server racks, storage arrays, network cores, VoIP and CCTV systems and small computer rooms. Add up the continuous watts of your equipment and keep it below 20,000 W with headroom for growth.
Electrical Installation
Both input and output are on terminal blocks, and the UPS accepts 1-phase or 3-phase utility input. Installation must be carried out by a licensed electrician on a suitably rated dedicated circuit; distribute power to the rack from the output terminals via a rack PDU. Weight is 135.2 kg, so plan rack mounting with two people or a lift.
Monitoring and Shutdown
The factory-installed IntelliSlot network card provides web and SNMP monitoring and supports Vertiv environmental sensors. Vertiv Power Insight provides monitoring and automatic, unattended shutdown. A spare RDU101 card (Vertiv part 02312384) is available here.
Runtime Extension
Add the GXT5-EBC384VRT6U external battery cabinet (Vertiv part 02312377; 6U, 430 x 630 x 261 mm, 32 x 12 V 9 Ah batteries, 112 kg). The UPS supports up to 10 cabinets.
Package Contents & GXT5 Ordering Information
In the Box
GXT5 UPS with internal batteries, factory-installed network card, tower stand and 4-post rack fixed rail kit, plus user documentation. The Singapore distributor configuration is listed as web card and rail kit bundled.
Vertiv Liebert GXT5 230 V, 5 – 20 kVA — Ordering Information
| Model | Part No. | Rating | Height | Battery Cabinet |
| GXT5-5000IRT5UXLN | 01201973 | 5,000 VA / 5,000 W | 5U | GXT5-EBC192VRT3U |
| GXT5-6000IRT5UXLN | 01201976 | 6,000 VA / 6,000 W | 5U | GXT5-EBC192VRT3U |
| GXT5-8000IRT5UXLN | 01201979 | 8,000 VA / 8,000 W | 5U | GXT5-EBC192VRT3U |
| GXT5-10KIRT5UXLN | 01201982 | 10,000 VA / 10,000 W | 5U | GXT5-EBC192VRT3U |
| GXT5-16KIRT9UXLN | 01201985 | 16,000 VA / 16,000 W | 9U | GXT5-EBC384VRT6U |
| GXT5-20KIRT9UXLN (this listing) | 01201987 | 20,000 VA / 20,000 W | 9U | GXT5-EBC384VRT6U |
Matching Accessories
| External battery cabinet | GXT5-EBC384VRT6U (02312377) |
| Network card (spare/replacement) | RDU101 Web/SNMP card (02312384) |
Datasheet & Downloads
| Vertiv brochure (Asia-Pacific) | Liebert GXT5 5–20 kVA 230 V Brochure — APAC, SL-70564 (PDF) |
| Vertiv brochure (EMEA) | Liebert GXT5 5–20 kVA Brochure — EMEA (PDF) |
| Vertiv user manual | Liebert GXT5 750 VA – 20 kVA User Manual — Asia-Pacific (PDF) |
| Vertiv warranty | Vertiv 3-Year Limited Warranty — GXT5 16–20 kVA, ITA2 10–40 kVA, SEAP (PDF) |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting GXT5-20KIRT9UXLN.
Frequently Asked Questions — Vertiv Liebert GXT5-20KIRT9UXLN
Is this a true online UPS?
Yes. The GXT5 is online double conversion: the load runs from the inverter at all times, so there is no transfer time to battery and the output is a regulated sine wave.
How long will it run on battery?
Vertiv publishes 2.5 min at full load and 7 min at half load on the internal batteries. One GXT5-EBC384VRT6U cabinet extends that to 7 min and 19.5 min, and up to 10 cabinets can be connected. Real runtime depends on load, battery age and temperature — send us your load and we will estimate it.
Can I plug it into a wall socket?
No. Input and output are terminal blocks and it takes 1-phase or 3-phase utility input, so a licensed electrician must install it on a dedicated circuit.
Is a network card included?
Yes. This configuration ships with a factory-installed IntelliSlot web/SNMP card (Vertiv’s brochure names the RDU120; the Singapore distributor lists the RDU101 webcard bundled). Please ask us if you need a specific card model.
Can it run in parallel?
Yes. Vertiv supports parallel or redundant operation on the 10, 16 and 20 kVA models, with configurations up to 2+1.
What warranty do I get?
3 years from Vertiv including battery under its South-East Asia warranty, with Next Business Day response via the Singapore distributor, supplied by SourceIT with a GST invoice. Extended warranty and on-site service options are available — ask us.
