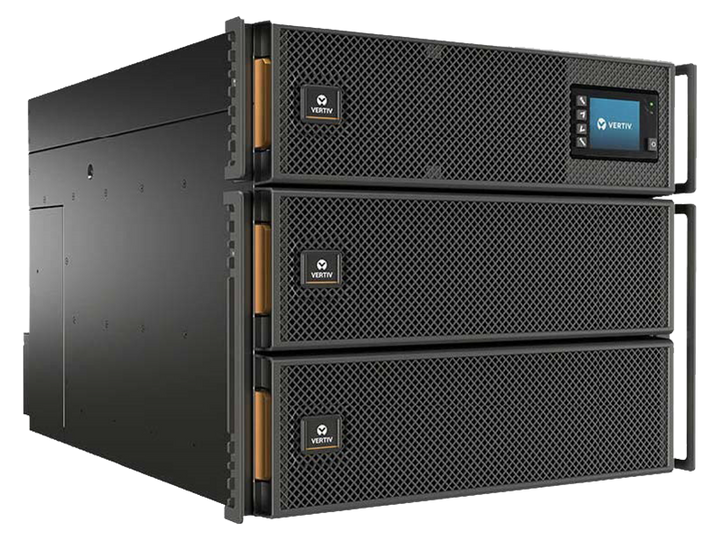

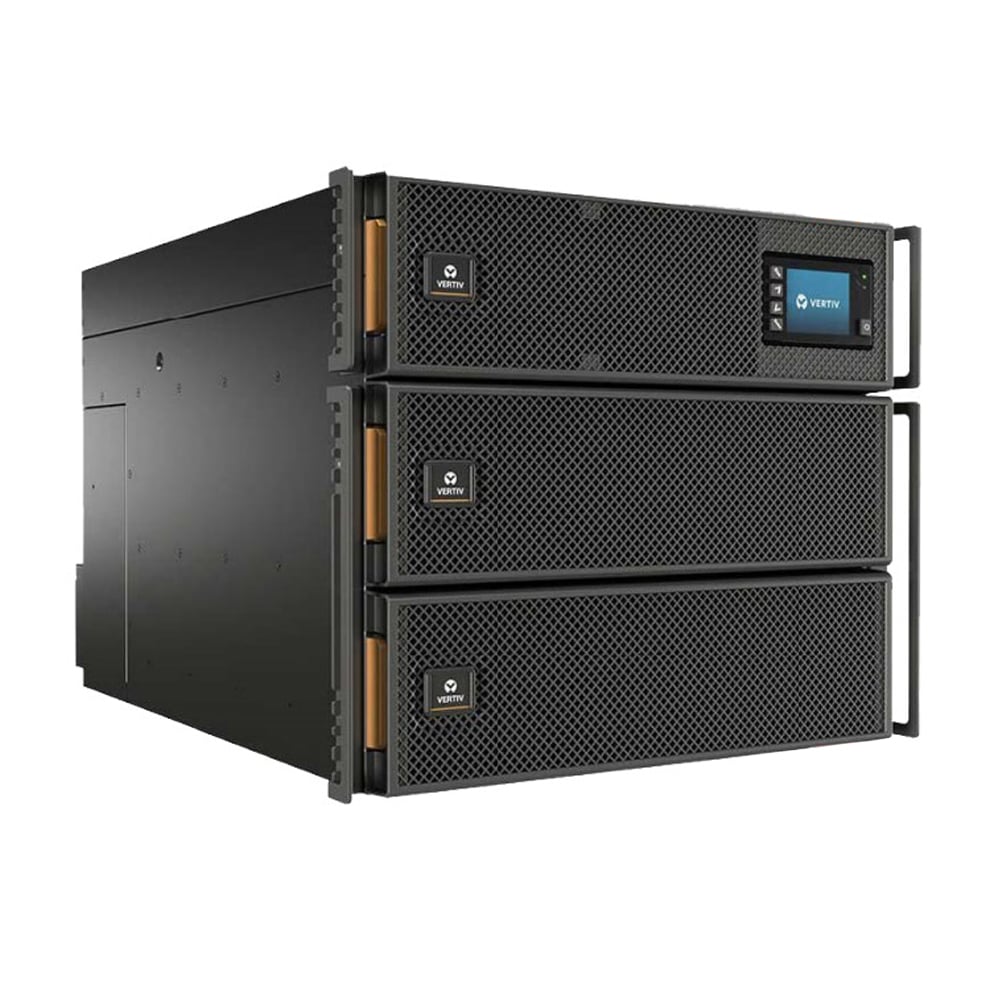

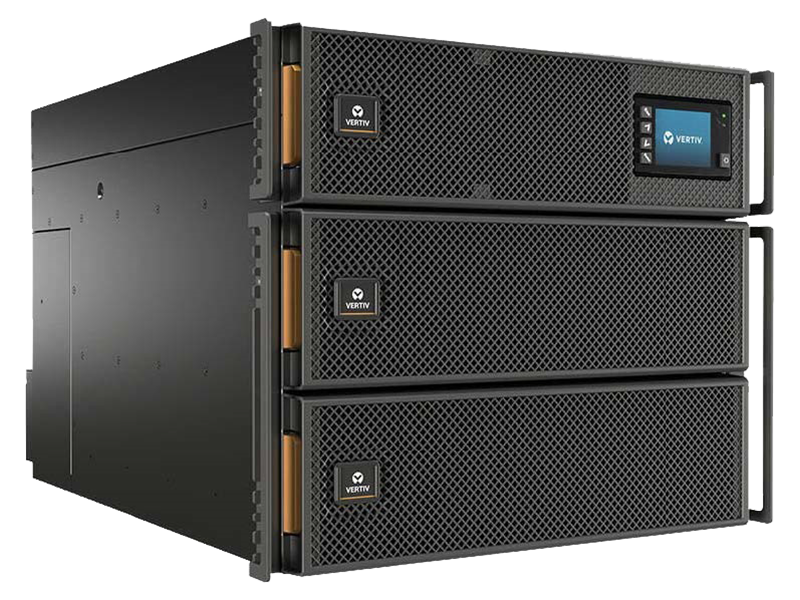

Vertiv Liebert GXT5 16KVA 230V Rack/Tower (01201985)
Vertiv Liebert GXT5 16KVA On-Line 230V, 9U, Extended Run Rack/Tower, RDU101 Webcard Rail Kit Included (01201985)- 3 Years Local Warranty
The Vertiv Liebert GXT5 16KVA On-Line UPS (model 01201985) is a high-performance uninterruptible power supply (UPS) designed for mission-critical applications. With on-line double-conversion technology, this UPS provides premium protection against power disturbances such as voltage spikes, sags, and outages. Offering a 16KVA capacity, the GXT5 ensures reliable and continuous power supply to sensitive equipment such as servers, network devices, and telecommunications systems, making it an ideal solution for data centers, enterprise networks, and medical facilities.
On-Line Double-Conversion Technology for Maximum Protection
The Vertiv Liebert GXT5 16KVA UPS is equipped with on-line double-conversion technology, which guarantees clean and stable power by continuously converting incoming AC power to DC and then back to AC. This process eliminates all power irregularities, protecting equipment from power disturbances that could lead to system malfunctions or downtime. The double-conversion mode ensures that the load is continuously powered by clean sinewave output, making it a suitable choice for high-sensitive IT equipment.
Extended Battery Runtime for Critical Loads
A standout feature of the Vertiv Liebert GXT5 16KVA UPS is its extended battery runtime, which provides continuous power during prolonged outages. The UPS supports additional external battery cabinets to increase runtime, allowing it to be used in environments where extended backup power is necessary, such as in hospitals, data centers, or other mission-critical applications. By offering extended runtime options, it ensures consistent power availability, giving users peace of mind in case of prolonged power failures.
Rack/Tower Convertible Design with 9U Form Factor

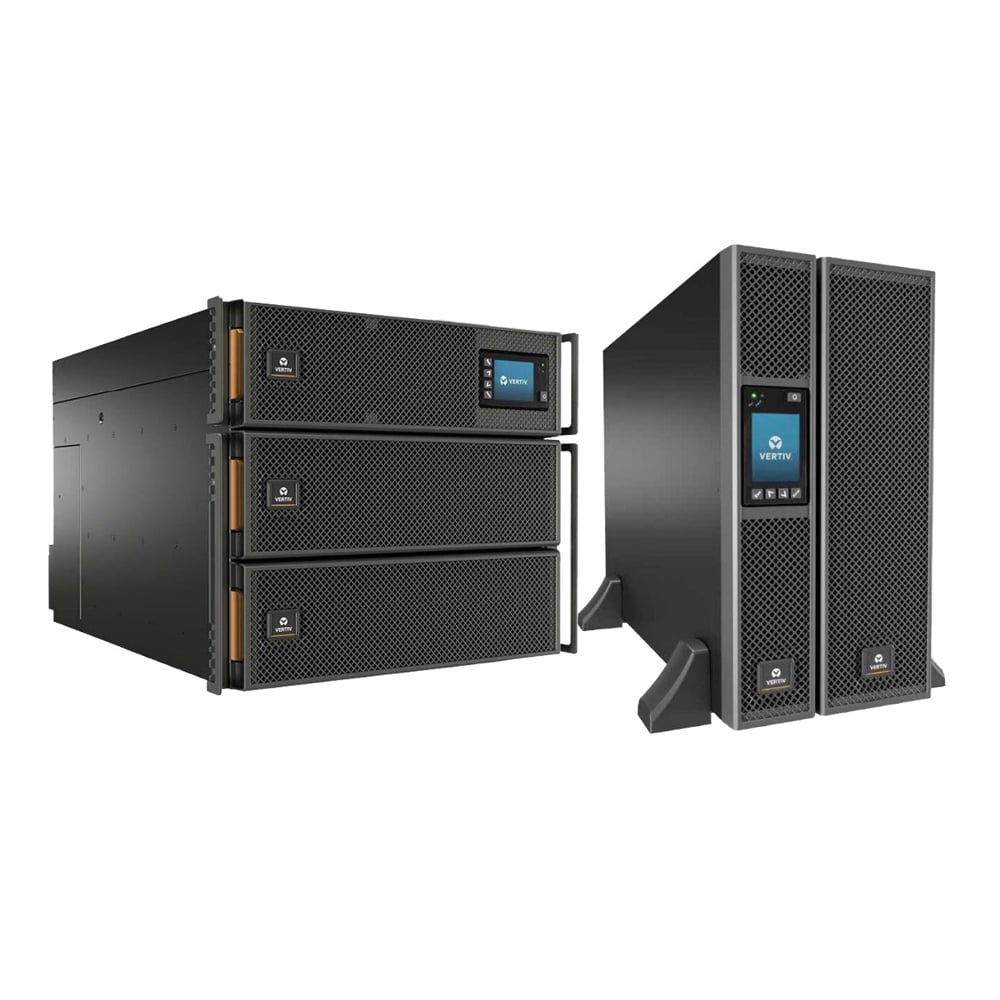

The Vertiv Liebert GXT5 16KVA UPS features a 9U rackmountable design, providing the flexibility to be installed either in a rackmount configuration or as a tower unit. This flexibility allows the UPS to fit into various IT environments, from server rooms to telecom cabinets. The included rail kit makes installation seamless, enabling quick and secure setup. Whether you need to place the UPS in a rack system or position it on the floor as a tower, the GXT5 16KVA adapts to your space needs.
Remote Monitoring and Management with RDU101 Webcard
The Vertiv Liebert GXT5 16KVA UPS comes with the RDU101 Webcard, which allows for real-time remote monitoring and management of the UPS. This webcard enables IT managers and technicians to access vital UPS data, including battery status, load levels, run time estimates, and event logs via a web interface. With SNMP compatibility, the RDU101 Webcard enhances the ease of monitoring and ensures that critical alarms and notifications can be sent in real-time, allowing for proactive maintenance and preventing system downtime.
High-Efficiency Power Protection
The Vertiv Liebert GXT5 16KVA UPS is designed to operate at high efficiency, minimizing energy consumption and reducing operational costs. The Automatic Voltage Regulation (AVR) feature stabilizes input voltage, ensuring optimal power quality without using battery power, thereby extending battery life. Additionally, the UPS includes multiple safety features such as overload protection, short circuit protection, and advanced battery management. These features work together to safeguard both the UPS and connected devices, ensuring safe and reliable operation.
Technical Specifications
- Model: Vertiv Liebert GXT5 16KVA On-Line 230V, 9U, Extended Run Rack/Tower, Rail Kit Included (01201985)
- Power Capacity: 16KVA / 14.4KW
- Input Voltage: 230V
- Output Voltage: 230V
- Form Factor: 9U Rack/Tower Convertible
- Battery Type: Sealed Lead-Acid (SLA)
- Runtime: Extended run (depends on load and battery configuration)
- Input Connector: Hardwire
- Output Connector: 8 x IEC C13, 4 x IEC C19
- Display: LCD
- Webcard: RDU101 Webcard for remote monitoring and control
- Dimensions (L x W x H): 432mm x 533mm x 398mm (9U rackmount)
- Weight: 48 kg
- Rail Kit Included: Yes
- Surge Protection: Yes
- Automatic Voltage Regulation (AVR): Yes
- GTIN/UPC: 01201985
