TP-Link Deco X95 AX7800 Tri-Band Mesh WiFi 6 System (2-Pack)
PRODUCT DESCRIPTION
TP-Link AX7800 Tri-Band Mesh WiFi 6 System, 2-Pack (Deco X95) - 3 Years Local Warranty

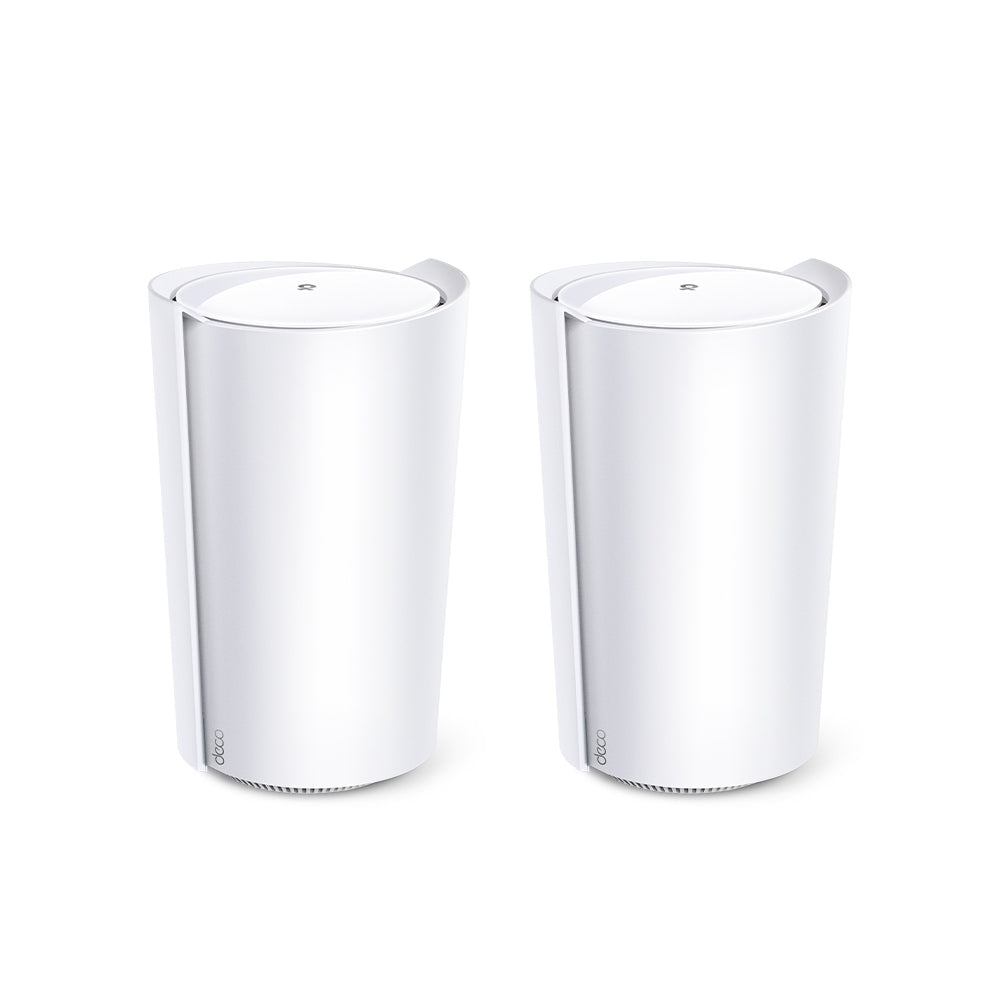

Two Deco X95 units on one Wi-Fi 6 network, with a second 5 GHz radio available to carry the link between them. Each node publishes 4804 Mbps on 5 GHz (1), 2402 Mbps on 5 GHz (2) and 574 Mbps on 2.4 GHz, with Smart Antennas and a 2.5 Gbps port. TP-Link rates the pair for 4-6+ bedroom houses, up to 6,100 sq ft and up to 200 connected devices.†
A Dedicated Radio for the Link Between Nodes

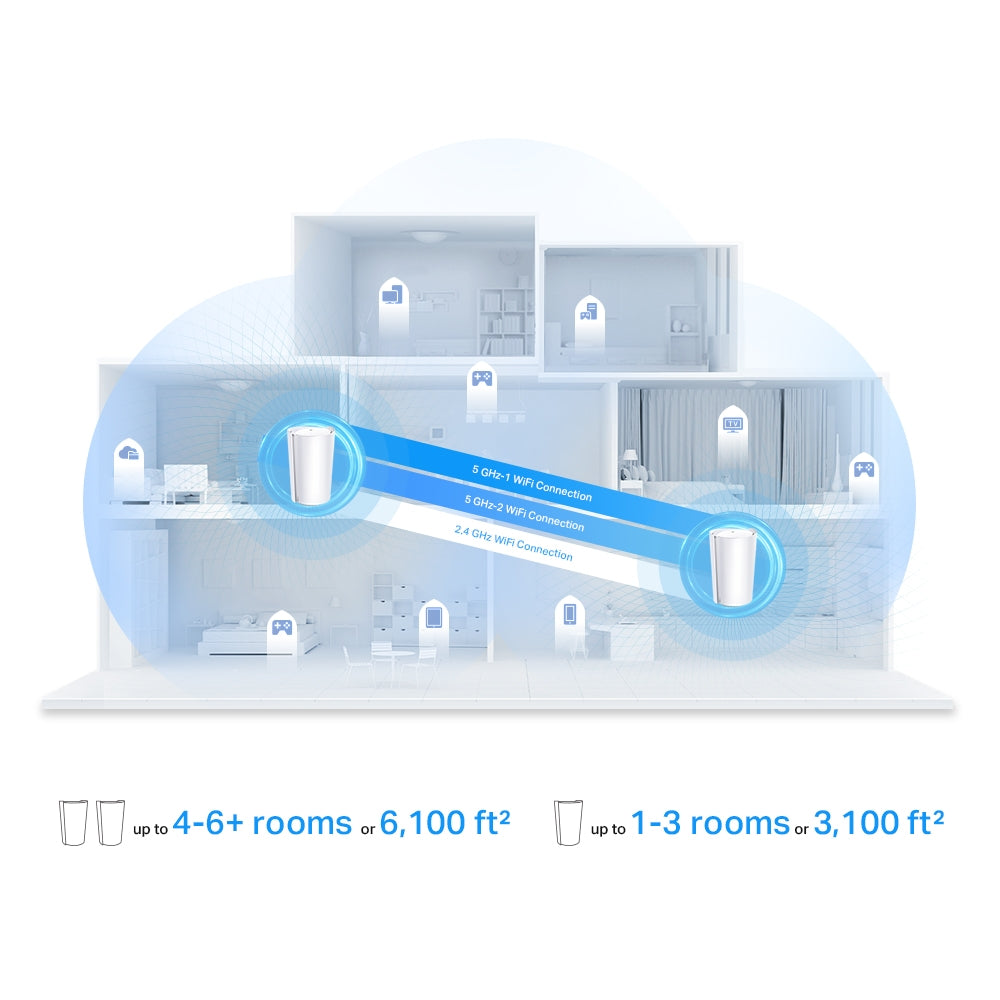

This is what tri-band buys on a two-node system. The 2402 Mbps 5 GHz radio can carry backhaul while the 4804 Mbps radio and the 2.4 GHz band stay available to your devices - so the second node extends coverage without halving throughput the way a dual-band mesh does on a wireless hop. Further Deco units can be added later; tell us which models you already run and we will confirm the mix.

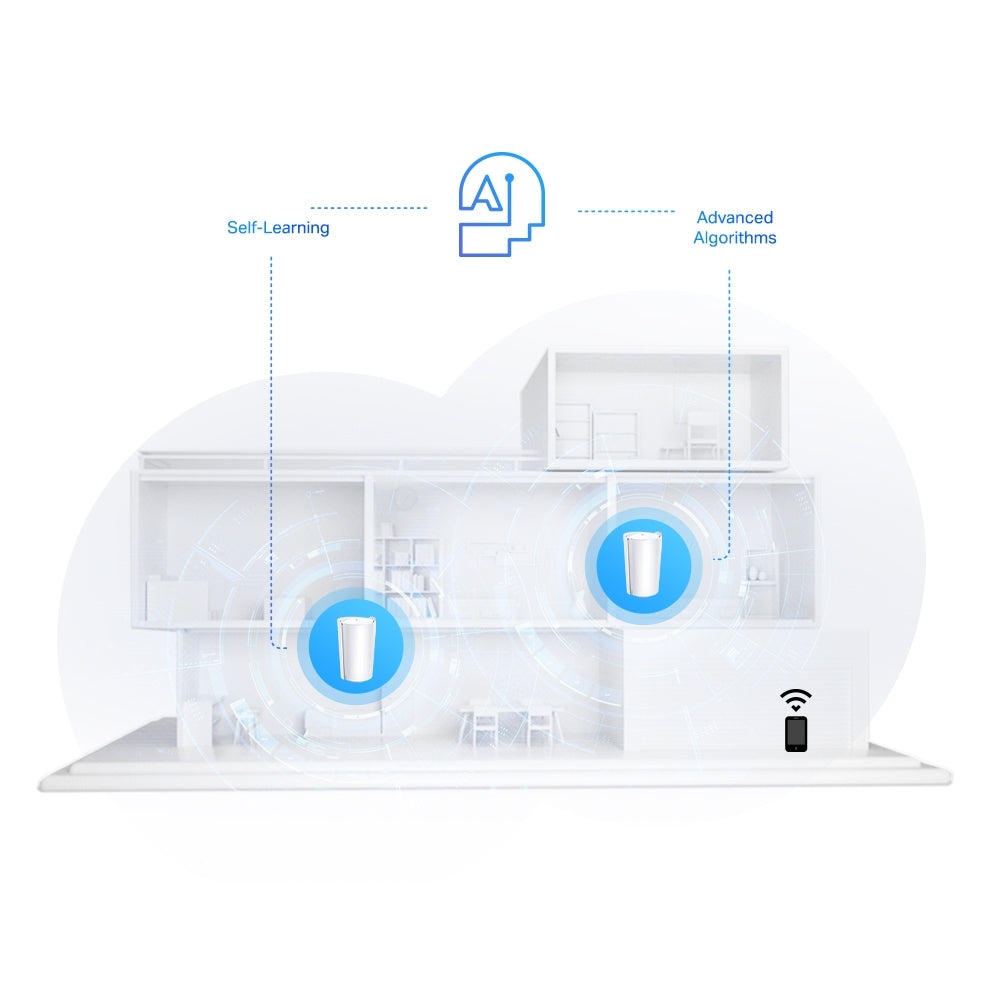

Smart Antennas and AI-Driven Mesh
TP-Link publishes four high-gain internal antennas and two Smart Antennas per unit, with Beamforming and AI-Driven Mesh that learns the network environment. Both units run IEEE 802.11ax/ac/n/a on the two 5 GHz radios and 802.11ax/n/b/g on 2.4 GHz, and TP-Link rates WiFi capacity Very High on Tri-Band, 4x4 MU-MIMO, OFDMA and 8 Streams. HE160 is published on the top 5 GHz radio, subject to client support and regional channel rules.
Three Ports on Every Unit

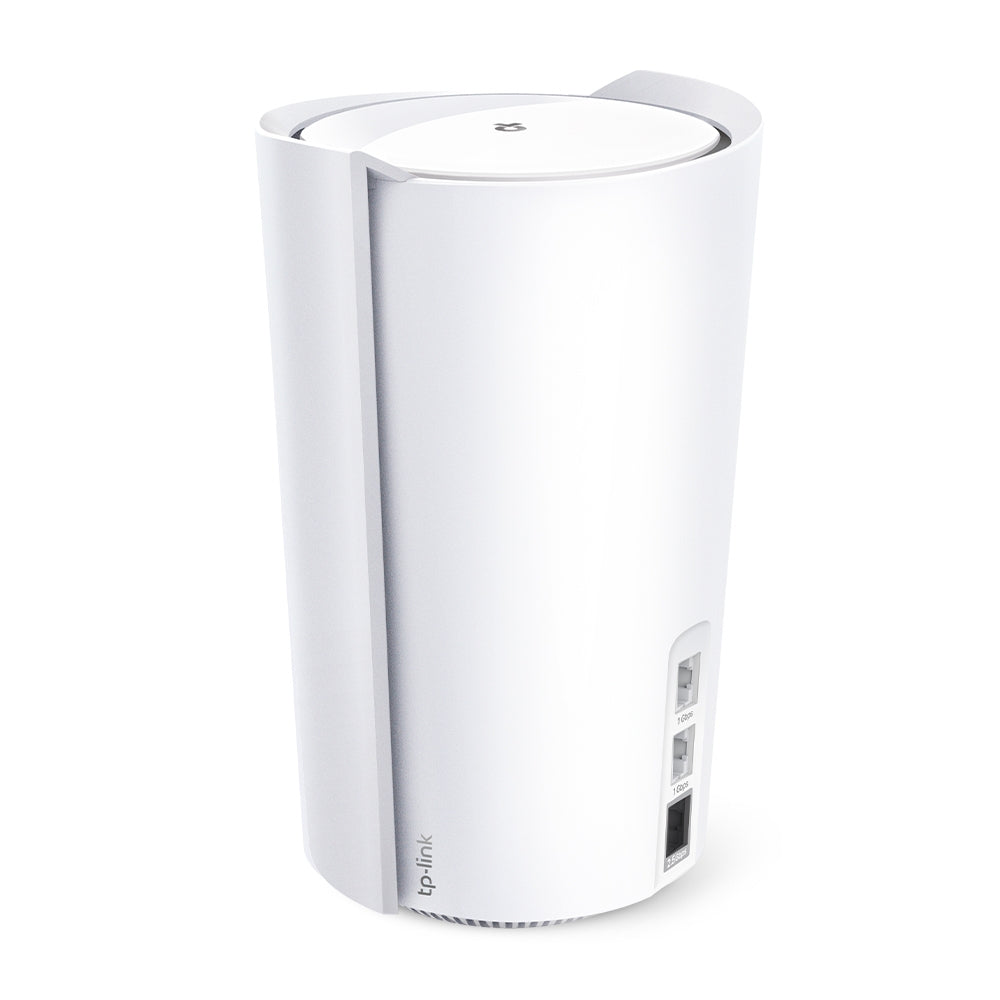

TP-Link publishes the port count per Deco unit: one 2.5 Gbps port plus two Gigabit ports on each node, all WAN/LAN auto-sensing. On the node carrying the incoming service one port becomes the WAN; the rest can feed wired devices in that room, or carry a wired backhaul hop where a cable run exists between the two rooms.
Published Software and Security
HomeShield covers network security, parental controls and QoS by device, with SPI firewall, access control and WPA3-Personal encryption. Router Mode and Access Point Mode are both published, so the pair can sit behind an ISP gateway that cannot be replaced. Both nodes are managed as one network from the Deco app, and an Amazon Alexa or Google Assistant-enabled device can control the Deco X95 by voice.
Ideal For
Singapore houses and 4-6 bedroom homes on a 1 Gbps or 2.5 Gbps plan, where a wireless hop must not cost half the speed. The 2-pack ships two power adapters and one RJ45 Ethernet cable; ask us if you need a second cable supplied with the order and we will add it. Supplied by SourceIT with local Singapore warranty and GST invoice.
Deco X95 Datasheet - Technical Specifications
General
| Model | Deco X95 (2-Pack) |
| Official Product Name | Deco X95 - AX7800 Tri-Band Mesh WiFi 6 System |
| Brand | TP-Link Deco |
| Warranty | 3 Years Local Warranty (Singapore) |
Wireless
| Standards and Protocols | IEEE 802.11ax/ac/n/a 5 GHz (1); IEEE 802.11ax/ac/n/a 5 GHz (2); IEEE 802.11ax/n/b/g 2.4 GHz |

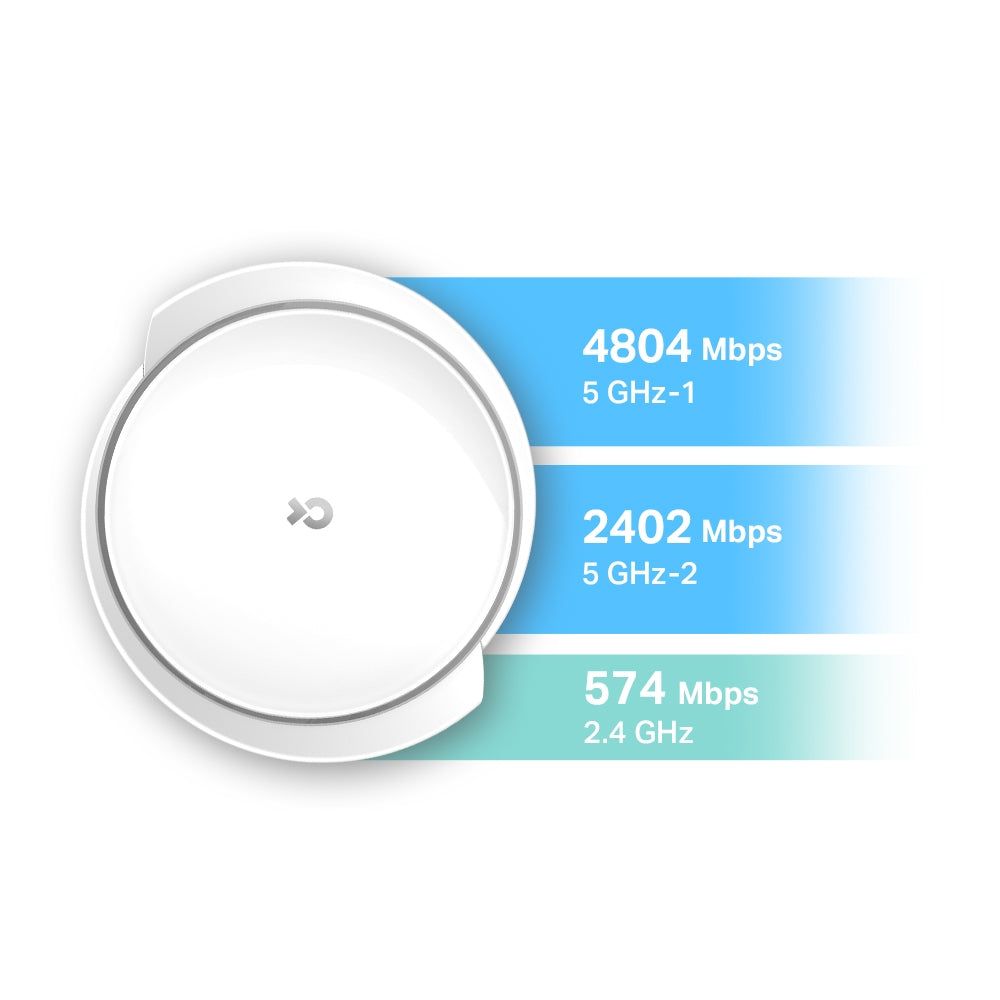

| WiFi Speeds | AX7800. 5 GHz (1): 4804 Mbps (802.11ax, HE160); 5 GHz (2): 2402 Mbps (802.11ax, HE160); 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 4-6+ Bedroom Houses (2-pack); 1-3 Bedroom Houses (1-pack). TP-Link Mesh Technology - Optional Ethernet backhaul work together to link Deco units to provide seamless coverage; AI-Driven Mesh - Intelligently learns the network environment to provide ideal WiFi unique to your home; 4x High-Gain Antennas (Internal) - Multiple antennas form a signal-boosting array to cover more directions and large areas; 2x Smart Antennas (Internal) - Smart antennas auto-detect other Deco units to establish a stronger backhaul between one another to boost WiFi coverage; Beamforming - Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity | Very High. Tri-Band - Distribute devices to different bands for optimal performance; 4x4 MU-MIMO - Simultaneously communicates with multiple MU-MIMO clients; OFDMA - Simultaneously communicates with multiple WiFi 6 clients; 8 Streams - More than enough bandwidth for connected devices |
| Working Modes | Router Mode; Access Point Mode |
Security
| Network Security | SPI Firewall; Access Control; HomeShield Security - Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner |
| Guest Network | 1x 5 GHz Guest Network; 1x 2.4 GHz Guest Network |
| WiFi Encryption | WPA-Personal; WPA2-Personal; WPA3-Personal |
Hardware

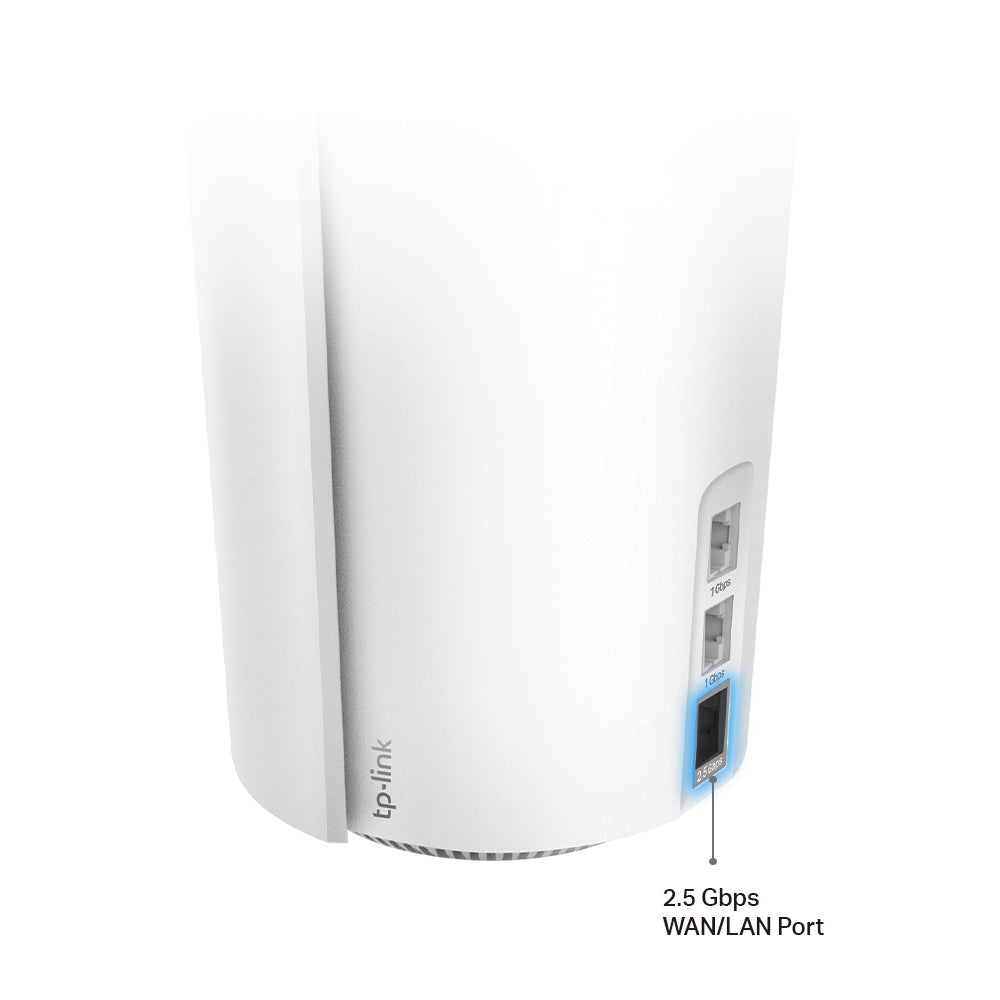

| Ethernet Ports | 1x 2.5 Gbps port + 2x Gigabit ports. *Per Deco Unit. Supports WAN/LAN auto-sensing |
| Buttons | Reset Button |
| Processor | Not published by TP-Link for this model |
| Power Supply | Not published by TP-Link for this model |
Software
| Protocols | IPv4; IPv6 |
| Service Kits | HomeShield |
| Parental Controls | HomeShield Parental Controls - Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports |
| WAN Types | Dynamic IP; Static IP; PPPoE; PPTP; L2TP |
| Quality of Service | HomeShield QoS - QoS by Device |
| Cloud Service | OTA Firmware Upgrade; TP-Link ID; DDNS |
| NAT Forwarding | Port Forwarding; UPnP |
| IPTV | IGMP Proxy; IGMP Snooping; Bridge; Tag VLAN |
| DHCP | Address Reservation; DHCP Client List; Server |
| DDNS | TP-Link |
| Management Features | Deco App |
Network Services Enabled by Default
| Web Server | HTTP/HTTPS; Port: 80/443; Protocol: TCP |
| DNS | Port: 53; Protocol: TCP & UDP |
| DHCP Server | Port: 67; Protocol: UDP |
| App Management | Ports: 22, 20001, 30001 TCP; Port: 20002 UDP |
Test Data
| WiFi Transmission Power | CE: <20 dBm (2.4 GHz), <30 dBm (5 GHz); FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz) |
Physical
| Dimensions | 5.1 x 4.8 x 8.3 in (130 x 123 x 210.5 mm) |
| Certifications | CE, FCC, RoHS |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F); Storage Temperature: -40°C~60°C (-40°F~140°F); Operating Humidity: 10%~90% RH; Storage Humidity: 5%~90% RH |
TP-Link Footnotes
△ Use of WiFi 6 and other features including OFDMA, MU-MIMO, 1024-QAM, HE160 and BSS Color require clients to also support the corresponding features. The 160 MHz bandwidth may be unavailable in the 5 GHz band in some regions/countries due to regulatory restrictions.
† Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡ Clients need to support 802.11k/v/r and may require additional set up. Performance may vary depending on the client device.
* HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.
Compatibility & Software Support
| Mesh Expansion | Further Deco units can be added to the same network |
| Backhaul | Wireless over the second 5 GHz radio, or wired over any of the WAN/LAN auto-sensing ports |
| Operating Modes | Router Mode and Access Point Mode, so the system can sit behind an existing gateway |
| Voice Assistants | Use an Amazon Alexa or Google Assistant-enabled device to control Deco X95 with just your voice |
| Multi-Gigabit | The 2.5 Gbps port accepts a multi-gigabit service directly, or feeds a wired device when not used as WAN |
| Management | Deco app |
Package Contents & Ordering Information
Package Contents
| In the Box | 2 Deco X95 units, 1 RJ45 Ethernet cable, 2 power adapters, Quick Installation Guide |
Ordering Information
| Model | Deco X95 (2-Pack) |
| SourceIT SKU | Deco X95(2-pack) |
| Warranty | 3 Years Local Warranty (Singapore) |
| Also Available | 1-pack |
Datasheet & Downloads
Frequently Asked Questions - Deco X95 (2-Pack)
Will two units cover my home?
TP-Link rates the 2-pack for 4-6+ bedroom houses and up to 6,100 sq ft. Send us your floor area, storeys and wall construction and we will confirm before you order.
Is the X95 a Wi-Fi 6E model?
No. Tri-band on the X95 means two separate 5 GHz radios plus 2.4 GHz. There is no 6 GHz band; the Deco XE75 range is the Wi-Fi 6E line.
Why does the second 5 GHz radio matter?
It can carry the wireless link between the two nodes, leaving the faster 5 GHz radio and the 2.4 GHz band free for your devices. A dual-band mesh has to share one band for both jobs.
Can I wire the link between the units instead?
Yes. All ports are WAN/LAN auto-sensing, so a cable run between the two rooms can carry the backhaul and free the radio entirely. The box includes one RJ45 Ethernet cable; ask us for a second if you need it.
Does HomeShield cost extra?
HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.
What warranty does SourceIT provide?
Three years local Singapore warranty, per TP-Link's published replacement warranty policy, with a GST invoice on every unit.
