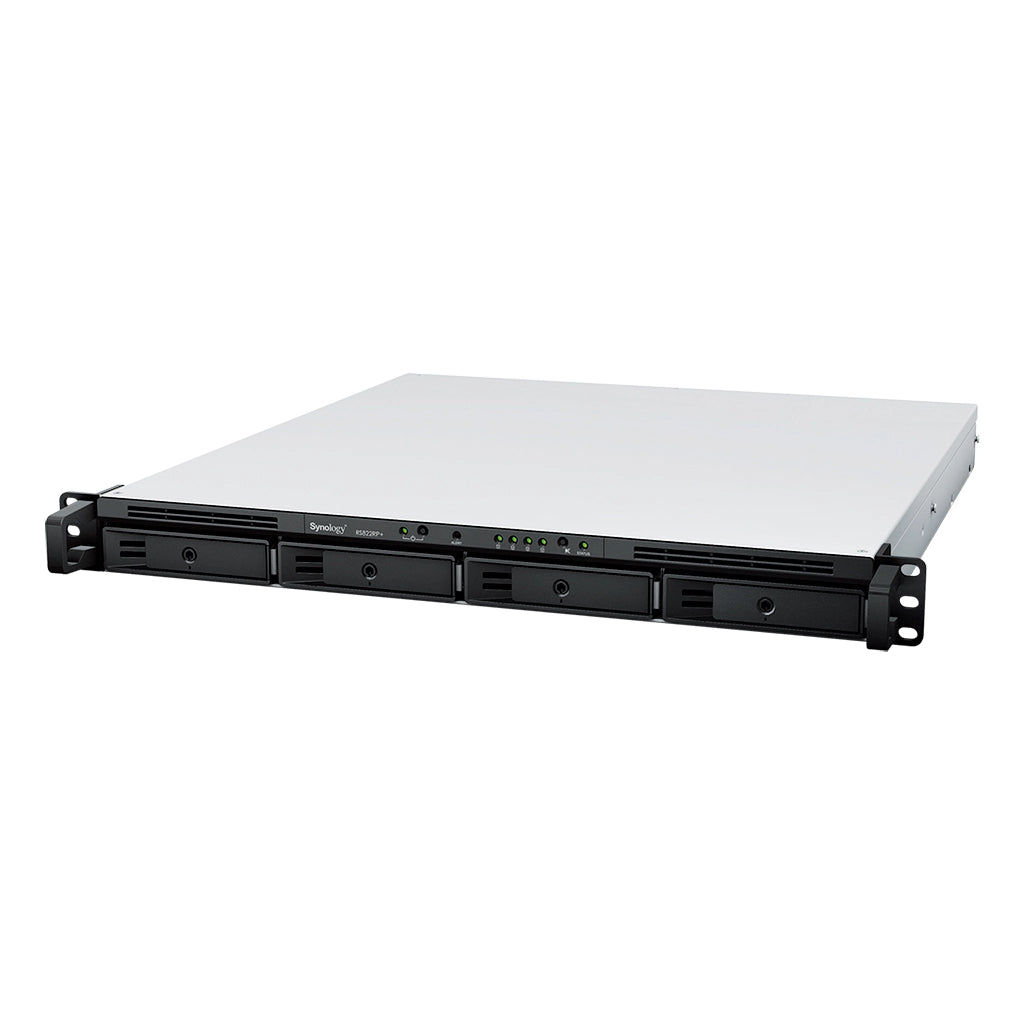

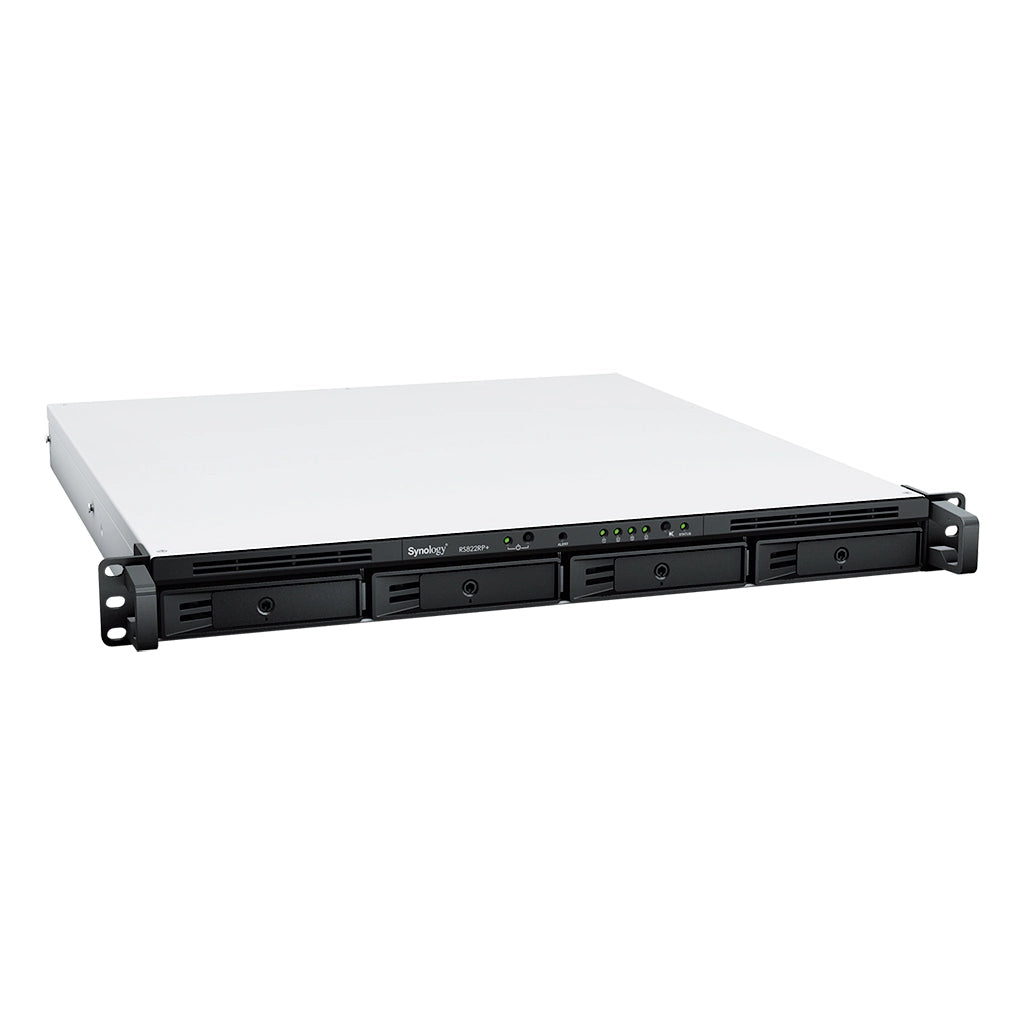

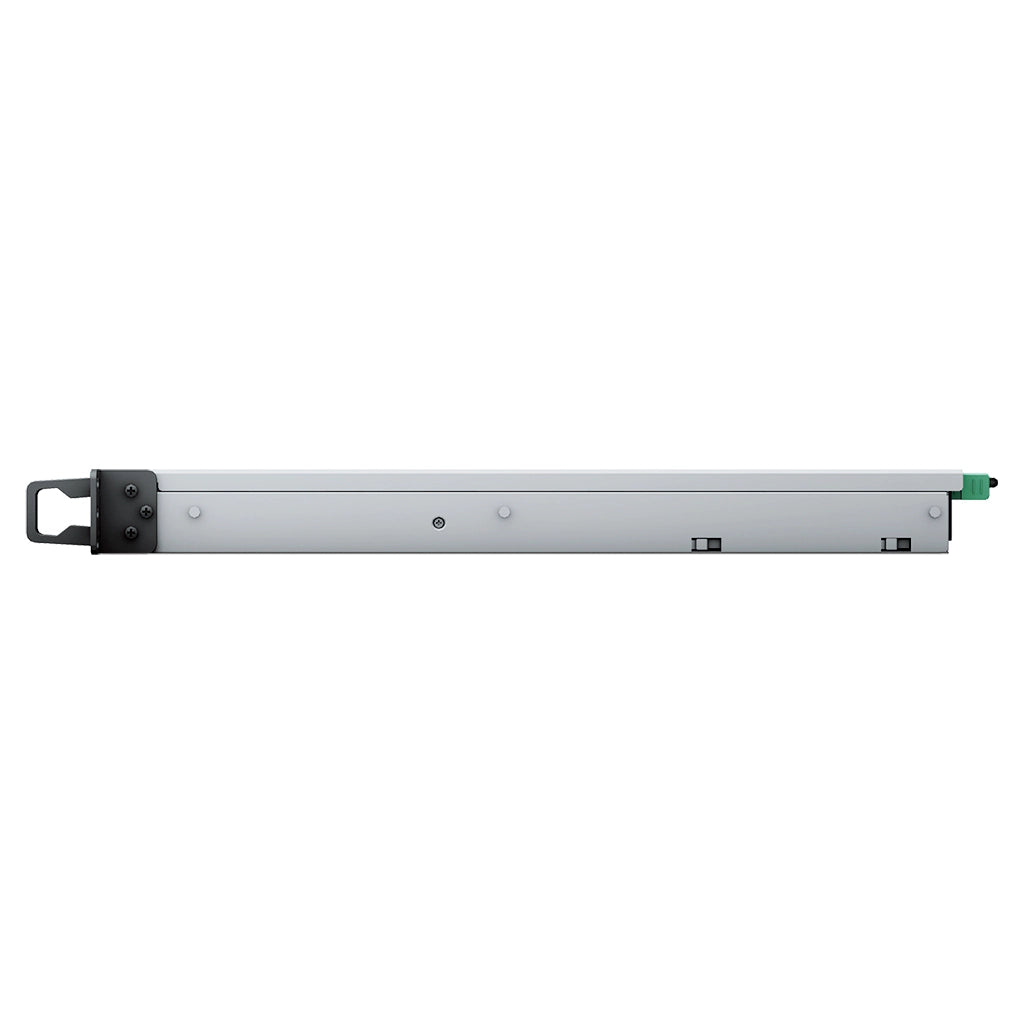

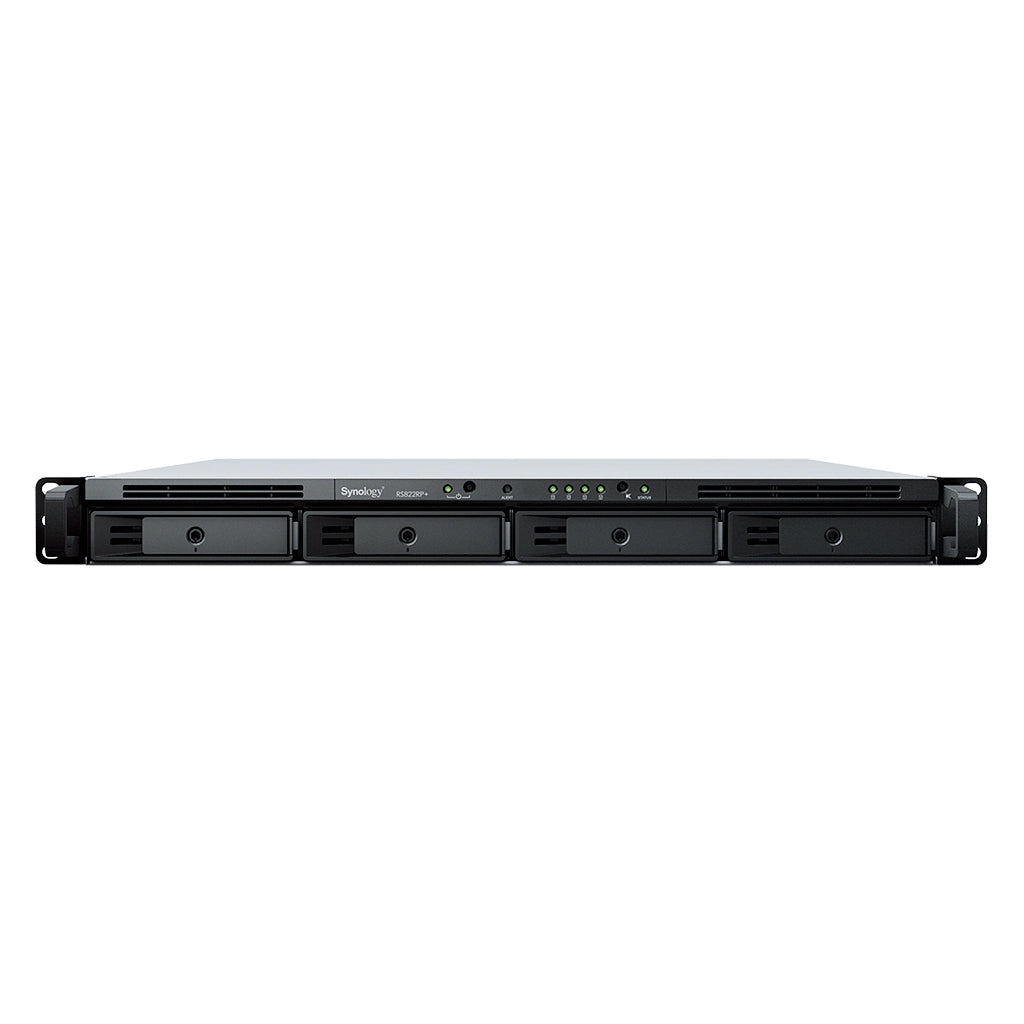

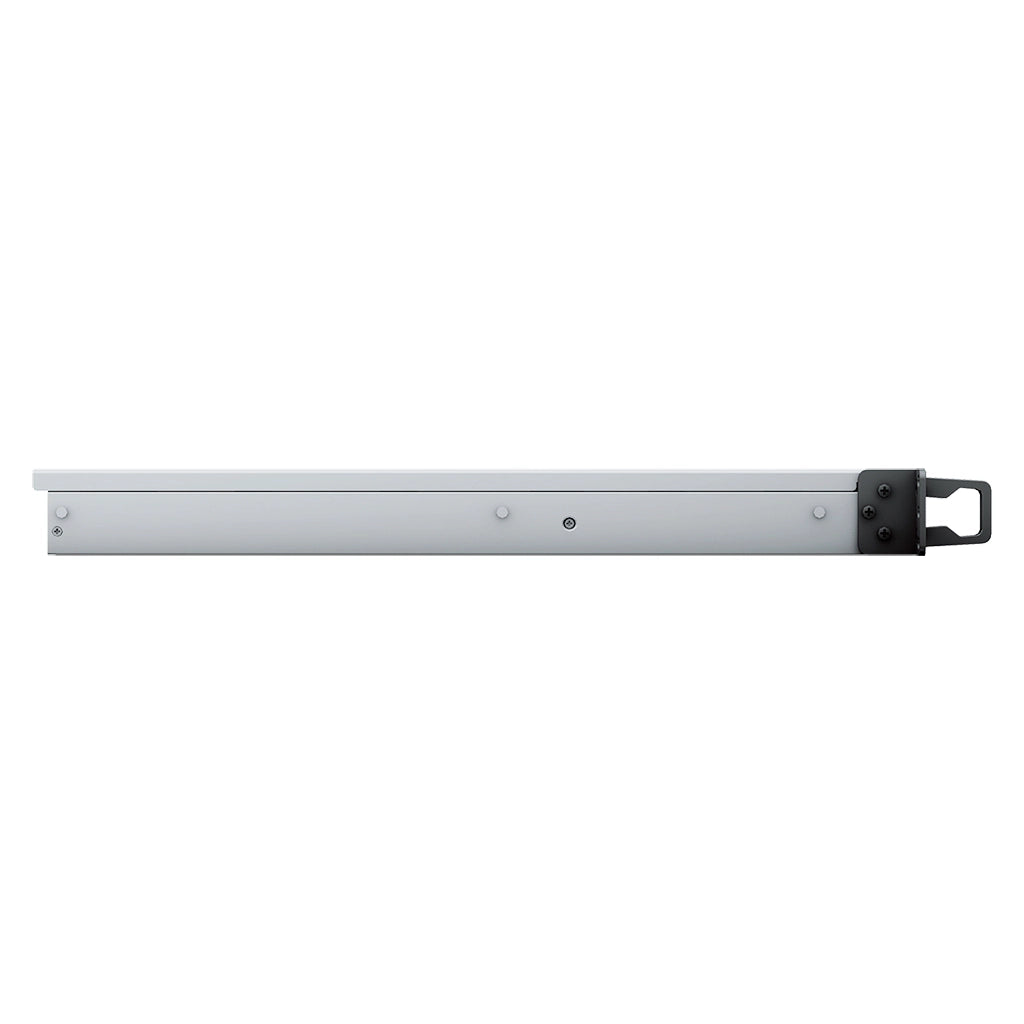

Synology RackStation RS822RP+ 4-Bay 1U Rackmount NAS with Redundant PSU
PRODUCT DESCRIPTION
Synology RackStation RS822RP+ 4-Bay 1U Rackmount NAS RS822RP+ - 3 Years Warranty
1U Storage with Redundant Power
The RS822RP+ is a 1U 4-bay RackStation with redundant power supplies, built for always-on storage in the server rack.
Expandable and Upgradeable
Add an RX418 expansion unit for 8 drives, and use the PCIe Gen3 slot for 10/25GbE network cards or M.2 adapter cards.
AMD Ryzen with ECC
An AMD Ryzen V1500B 4-core / 8-thread processor and DDR4 ECC memory (2 GB, up to 32 GB) drive backup and file services.
Synology RS822RP+ Datasheet — Technical Specifications
General
| Product Name | Synology RackStation RS822RP+ |
| Model | RS822RP+ |
| Form Factor | 1U rackmount |
| UPC / EAN | 846504004751 / 4711174724758 |
| Warranty | 3 years (Synology), extendable to 5 years with EW202 |
Processor & Memory
| CPU | AMD Ryzen V1500B, 4-core / 8-thread, 2.2 GHz |
| Memory | 2 GB DDR4 ECC SODIMM |
| Memory Slots / Max | 2 slots, up to 32 GB (16 GB x 2) |
Storage
| Drive Bays | 4 x 3.5" SATA HDD or 2.5" SATA SSD |
| Expansion | Up to 8 drives with 1 x RX418 (eSATA) |
| M.2 | Via optional M2D20 / M2D18 / E10M20-T1 adapter card |
| Hot-Swap | Yes |
| Max Single Volume | 108 TB |

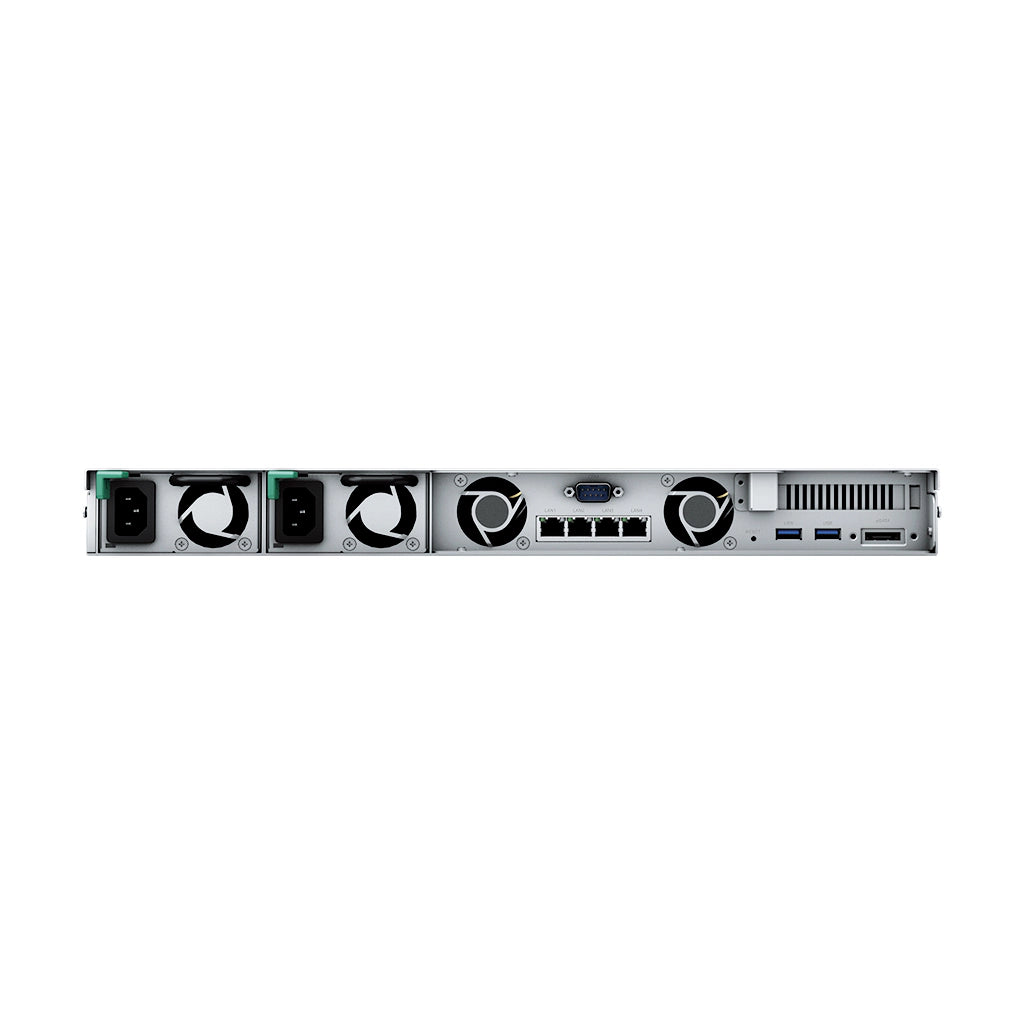

Ports
| LAN | 4 x 1GbE RJ-45 |
| USB | 2 x USB 3.2 Gen 1 |
| Expansion Port | 1 x eSATA (for RX418) |
| PCIe | 1 x Gen3 x8 slot (x4 link) |
Power & Physical
| Power Supply | Redundant, 150 W, 100–240 V AC |
| Power Consumption | 47.69 W (access), 16.7 W (HDD hibernation) |
| Fans | 2 x 40 mm |
| Noise Level | 38.8 dB(A) |
| Operating Temperature | 0–35 °C |
| Dimensions (H x W x D) | 44 x 480 x 518.6 mm |
| Weight | 8.0 kg |
Compatibility & Applications
Typical Use
Rack-mounted file server, backup target for Active Backup for Business, virtualisation storage and branch-office deployments.
Rack Mounting
Fits a 4-post 19" rack. Rail kit is sold separately: Synology RKS-02 sliding rail kit or RKM114.
Network Upgrade
Synology lists the E10G18-T1 and E10G30-T2 10GbE cards as compatible with the RS822RP+.
Package Contents & Synology Ordering Information
In the Box
1 x RS822RP+ main unit, 2 x AC power cords, accessory kit, quick installation guide. Drives and rail kit not included.
Synology NAS Models at SourceIT
| Model | Key feature |
| DS223j | 2-bay, Realtek RTD1619B, 1 GB, 1 x 1GbE — entry personal cloud |
| DS223 | 2-bay, Realtek RTD1619B, 2 GB, 1 x 1GbE, 3 x USB, hot-swap bays |
| DS225+ | 2-bay Plus, Intel Celeron J4125, 2 GB, 1GbE + 2.5GbE |
| DS725+ | 2-bay Plus (7 with DX525), AMD Ryzen R1600, 4 GB ECC, 1GbE + 2.5GbE, 2 x M.2 |
| DS425+ | 4-bay Plus, Intel Celeron J4125, 2 GB, 1GbE + 2.5GbE, 2 x M.2 |
| DS925+ | 4-bay Plus (9 with DX525), AMD Ryzen V1500B, 4 GB ECC, 2 x 2.5GbE, 2 x M.2 |
| DS1525+ | 5-bay Plus (15 with 2 x DX525), AMD Ryzen V1500B, 8 GB ECC, 2 x 2.5GbE, 10GbE upgrade slot |
| DS1825+ | 8-bay Plus (18 with 2 x DX525), AMD Ryzen V1500B, 8 GB ECC, 2 x 2.5GbE, PCIe slot |
| RS822RP+ (this listing) | 1U 4-bay rackmount (8 with RX418), AMD Ryzen V1500B, 2 GB ECC, 4 x 1GbE, redundant PSU |
Official Synology Videos
Introducing Synology Active Backup for Business (official Synology channel)
Introducing DiskStation Manager 7.3 (official Synology channel)
Datasheet & Downloads
| Datasheet | RS822RP+ Datasheet (PDF) |
| Product specification | RS822RP+ Product Spec (PDF) |
| Downloads (DSM, utilities) | RS822RP+ Download Center |
Frequently Asked Questions — Synology RS822RP+
Are rails included?
No. Order the Synology RKS-02 sliding rail kit separately.
Is the power supply redundant?
Yes, it has redundant 150 W power supplies.
Can I add 10GbE?
Yes, through the PCIe slot, e.g. Synology E10G18-T1 or E10G30-T2.
What warranty do I get?
3 years Synology warranty, extendable with EW202.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
