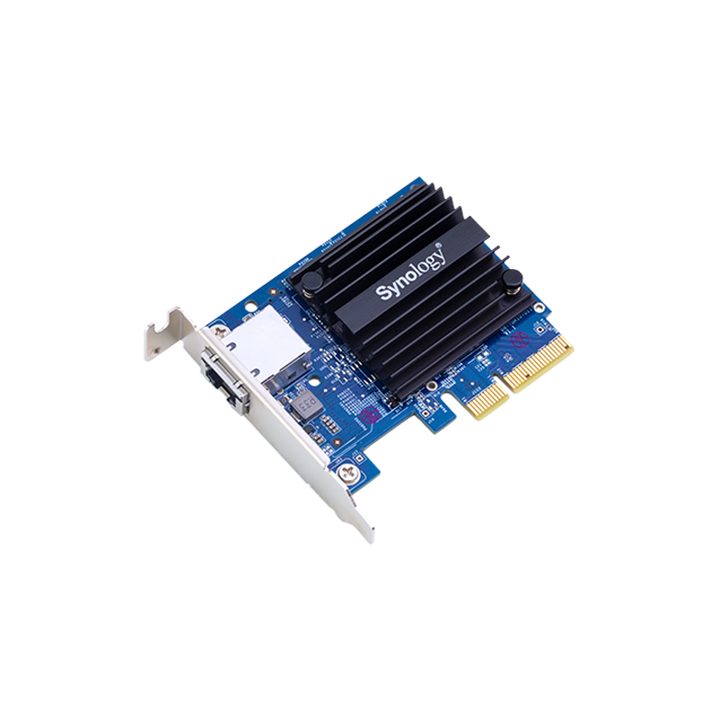

Synology E10G18-T1 Single-Port 10GbE RJ-45 PCIe Network Card
PRODUCT DESCRIPTION
Synology E10G18-T1 Single-Port 10GbE RJ-45 PCIe Network Card E10G18-T1 - 5 Years Warranty
10GbE for Your Synology
The E10G18-T1 adds one 10GbE RJ-45 port to a compatible Synology NAS through its PCIe slot, for faster backups and file transfers.
Multi-Gig Ready
The port also negotiates 5 / 2.5 / 1 Gbps and 100 Mbps, so it works with existing copper cabling and multi-gig switches.
Fits Desktop or Rack
Ships with low-profile and full-height brackets for DiskStation and RackStation models.
Synology E10G18-T1 Datasheet — Technical Specifications
General
| Product Name | Synology 10GbE single-port adapter |
| Model | E10G18-T1 |
| UPC / EAN | 846504003105 / 4711174723102 |
| Warranty | 5 years (Synology) |
Network
| Ports | 1 x RJ-45 |
| Data Rates | 10 Gbps / 5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps |
Interface & Physical
| Host Bus | PCIe 3.0 x4 |
| Bracket | Low-profile and full-height |
| Dimensions | 68.1 x 86.0 x 13.6 mm |
| Operating Environment | 0–40 °C, 5–95% RH |
| DSM Requirement | DSM 6.2-23739-2 or later |
Compatibility & Applications
Compatible Models (selection)
DS1825+, RS822RP+, RS822+, RS2825RP+, RS2423RP+ / RS2423+, DS1823xs+, DS3622xs+, DS2422+, DS1821+, DS1621+ / DS1621xs+, RS1221RP+ / RS1221+, plus FS, SA and UC series — check Synology's compatibility list for your model.
Not Compatible
The DS1525+ uses the E10G22-T1-Mini instead; the DS925+, DS725+, DS425+ and DS225+ have no PCIe slot.
Package Contents & Synology Ordering Information
In the Box
1 x E10G18-T1 adapter, low-profile and full-height brackets, quick installation guide.
Synology 10GbE Adapters at SourceIT
| Model | Key feature |
| E10G18-T1 (this listing) | 1 x 10GbE RJ-45, PCIe 3.0 x4 |
| E10G30-T2 | 2 x 10GbE RJ-45, PCIe 3.0 x8 |
Datasheet & Downloads
| Datasheet | E10G18-T1 Datasheet (PDF) |
| Product specification | E10G18-T1 Product Spec (PDF) |
Frequently Asked Questions — Synology E10G18-T1
Does it work with 2.5GbE switches?
Yes. The port negotiates 10 / 5 / 2.5 / 1 Gbps and 100 Mbps.
Will it fit my DS1525+?
No. The DS1525+ uses the Synology E10G22-T1-Mini.
What warranty do I get?
5 years Synology warranty.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
