Synology DiskStation DS925neo+ 4-Bay NAS (Expandable to 9 Bays)
PRODUCT DESCRIPTION
Synology DiskStation DS925neo+ 4-Bay NAS DS925neo+ - 3 Years Warranty
Plus-Series Platform, Lower Entry Price
The DS925neo+ is a 4-bay DiskStation from the neo+ series that grows to 9 drives with a DX525 expansion unit.
AMD Ryzen V1500B
A 4-core / 8-thread AMD Ryzen V1500B with 4 GB DDR4 memory (up to 32 GB) handles backup, virtualisation and multi-user file services.
Dual 2.5GbE and NVMe
Two 2.5GbE ports and two M.2 NVMe slots for SSD cache.
Synology DS925neo+ Datasheet — Technical Specifications
General
| Product Name | Synology DiskStation DS925neo+ |
| Model | DS925neo+ |
| Form Factor | 4-bay desktop |
| UPC / EAN | 846504007080 / 4711174727087 |
| Warranty | 3 years (Synology), extendable to 5 years with EW201 |
Processor & Memory
| CPU | AMD Ryzen V1500B, 4-core / 8-thread, 2.2 GHz |
| Hardware Encryption | Yes |
| Memory | 4 GB DDR4 non-ECC SODIMM |
| Memory Slots / Max | 2 slots, up to 32 GB (16 GB x 2) |
Storage
| Drive Bays | 4 x 3.5" SATA HDD or 2.5" SATA SSD |
| M.2 Slots | 2 x M.2 2280 NVMe |
| Expansion | Up to 9 drives with 1 x DX525 |
| Hot-Swap | Yes (SATA bays) |

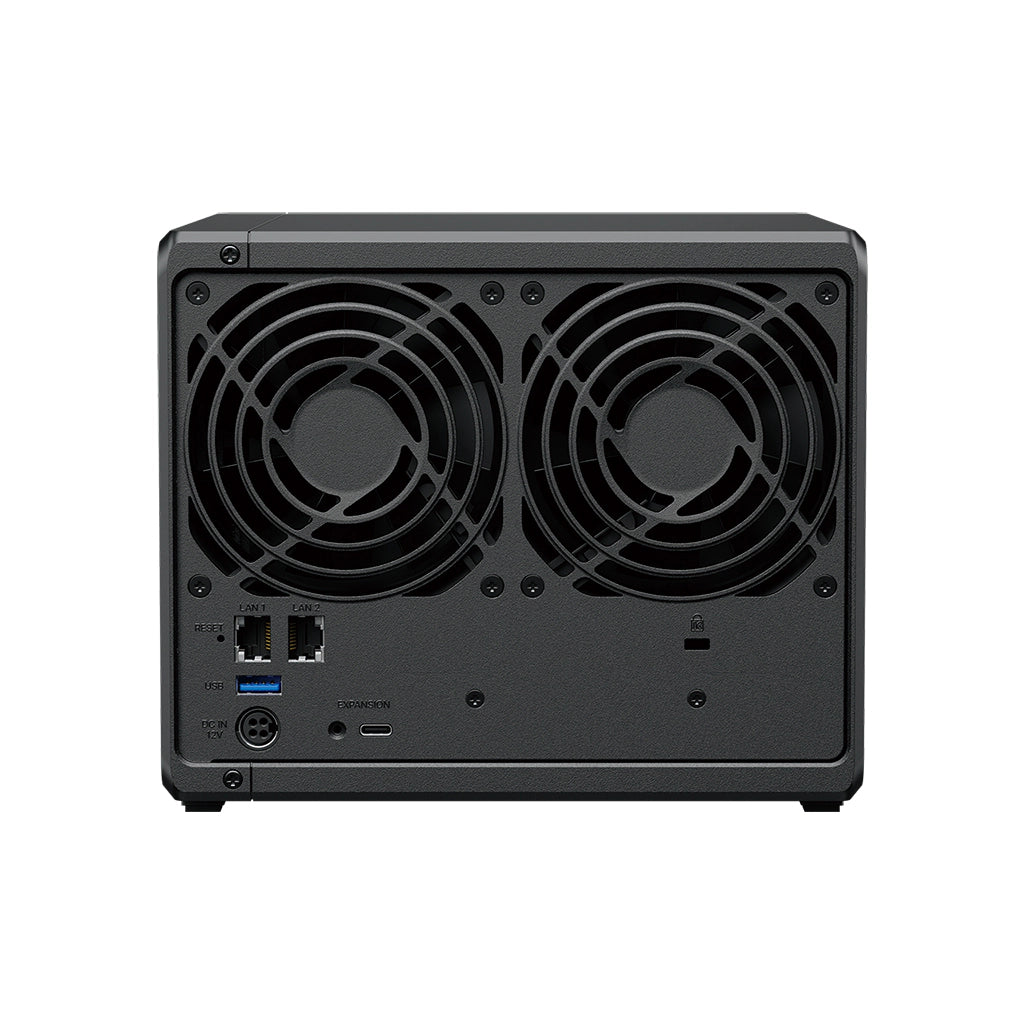

Ports
| LAN | 2 x 2.5GbE RJ-45 |
| USB | 2 x USB 3.2 Gen 1 |
| Expansion Port | 1 x USB Type-C (for DX525) |
| PCIe Slot | None |
Power & Physical
| Power Consumption | 37.91 W (access), 12.33 W (HDD hibernation) |
| Fans | 2 x 92 mm |
| Noise Level | 20.5 dB(A) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Operating Humidity | 8–80% RH |
| Dimensions (H x W x D) | 166 x 199 x 223 mm |
| Weight | 2.26 kg |
Compatibility & Applications
Typical Use
SME file server, Active Backup for Business, virtual machines and containers, Synology Drive collaboration and surveillance recording.
neo+ vs Plus
The neo+ model ships with 4 GB DDR4 non-ECC memory to lower the entry price; it runs the same DSM platform as the Plus series and accepts Synology ECC memory upgrades up to 32 GB. Synology does not support mixing non-ECC and ECC modules. The DS925+ ships with 4 GB ECC memory.
Selection Tip
Need 5 or 8 bays at the start? Choose the DS1525neo+ or DS1825neo+. The DS925neo+ has no PCIe slot for 10GbE.
Package Contents & Synology Ordering Information
In the Box
1 x DS925neo+ main unit, 1 x accessory pack, 1 x AC power adapter, 1 x AC power cord, 2 x RJ-45 LAN cables. Drives not included.
Synology NAS Models at SourceIT
| Model | Key feature |
| DS223j | 2-bay, Realtek RTD1619B, 1 GB, 1 x 1GbE — entry personal cloud |
| DS223 | 2-bay, Realtek RTD1619B, 2 GB, 1 x 1GbE, 3 x USB, hot-swap bays |
| DS225+ | 2-bay Plus, Intel Celeron J4125, 2 GB, 1GbE + 2.5GbE |
| DS725neo+ | 2-bay neo+ (7 with DX525), AMD Ryzen R1600, 4 GB non-ECC, 1GbE + 2.5GbE, 2 x M.2 |
| DS725+ | 2-bay Plus (7 with DX525), AMD Ryzen R1600, 4 GB ECC, 1GbE + 2.5GbE, 2 x M.2 |
| DS425+ | 4-bay Plus, Intel Celeron J4125, 2 GB, 1GbE + 2.5GbE, 2 x M.2 |
| DS925neo+ (this listing) | 4-bay neo+ (9 with DX525), AMD Ryzen V1500B, 4 GB non-ECC, 2 x 2.5GbE, 2 x M.2 |
| DS925+ | 4-bay Plus (9 with DX525), AMD Ryzen V1500B, 4 GB ECC, 2 x 2.5GbE, 2 x M.2 |
| DS1525neo+ | 5-bay neo+ (15 with 2 x DX525), AMD Ryzen V1500B, 4 GB non-ECC, 2 x 2.5GbE, 10GbE upgrade slot |
| DS1525+ | 5-bay Plus (15 with 2 x DX525), AMD Ryzen V1500B, 8 GB ECC, 2 x 2.5GbE, 10GbE upgrade slot |
| DS1825neo+ | 8-bay neo+ (18 with 2 x DX525), AMD Ryzen V1500B, 4 GB non-ECC, 2 x 2.5GbE, PCIe slot |
| DS1825+ | 8-bay Plus (18 with 2 x DX525), AMD Ryzen V1500B, 8 GB ECC, 2 x 2.5GbE, PCIe slot |
| RS822RP+ | 1U 4-bay rackmount (8 with RX418), AMD Ryzen V1500B, 2 GB ECC, 4 x 1GbE, redundant PSU |
| DX525 | 5-bay expansion unit for 25-series Plus and neo+ DiskStations (USB Type-C) |
Official Synology Videos
Introducing DiskStation Manager 7.3 (official Synology channel)
Introducing Synology Drive (official Synology channel)
Introducing Synology Active Backup for Business (official Synology channel)
Datasheet & Downloads
| Datasheet | DS925neo+ Datasheet (PDF) |
| Specifications | DS925neo+ specifications on synology.com |
| Drive compatibility | Synology compatibility list |
| Downloads (DSM, utilities) | DS925neo+ Download Center |
Frequently Asked Questions — Synology DS925neo+
Are hard drives included?
No. The DS925neo+ is diskless.
How is it different from the DS925+?
Same hardware, but the neo+ ships with 4 GB non-ECC memory instead of 4 GB ECC.
How far can it expand?
To 9 drives by adding one DX525 expansion unit.
Can I upgrade to 10GbE?
No, the DS925neo+ has no PCIe slot. Its two 2.5GbE ports support link aggregation.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
