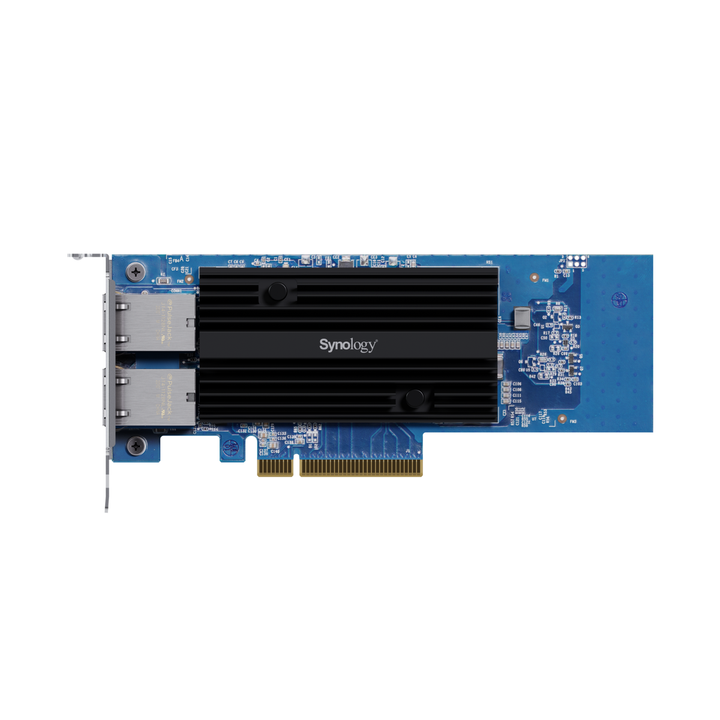

Synology E10G30-T2 Dual-Port 10GbE RJ-45 PCIe Network Card
PRODUCT DESCRIPTION
Synology E10G30-T2 Dual-Port 10GbE RJ-45 PCIe Network Card E10G30-T2 - 5 Years Warranty
Two 10GbE Ports
The E10G30-T2 adds two 10GbE RJ-45 ports to a compatible Synology NAS for higher throughput, link aggregation or separate network segments.
Offloads that Save CPU
Hardware offloads including TSO, RSS, GSO, LRO and SR-IOV, plus jumbo frames, keep the NAS processor free for storage work.
Desktop or Rack
Includes low-profile and full-height brackets.
Synology E10G30-T2 Datasheet — Technical Specifications
General
| Product Name | Synology dual-port 10GbE adapter |
| Model | E10G30-T2 |
| UPC / EAN | 846504004812 / 4711174724819 |
| Warranty | 5 years (Synology) |
Network
| Ports | 2 x RJ-45 |
| Data Rates | 10 Gbps / 1 Gbps |
| Offloads | TSO, RSS, GSO, LRO, TSS, SR-IOV |
| Jumbo Frames | 1.5–9 KB |
Interface & Physical
| Host Bus | PCIe 3.0 x8 |
| Bracket | Low-profile and full-height |
| Dimensions | 68.9 x 167.7 x 14.7 mm |
| Operating Environment | 0–40 °C, 5–95% RH |
| DSM Requirement | DSM 7.1.1-42962 Update 5 or later |
Compatibility & Applications
Compatible Models (selection)
DS1825+, RS822RP+ / RS822+, RS2825RP+, RS2423RP+ / RS2423+, RS1226RP+ / RS1226+, RS826RP+ / RS826+, DS1823xs+, DS3622xs+, DS2422+, DS1821+, plus FS, SA, UC, HD and DP series — check Synology's compatibility list for your model.
Not Compatible
The DS1525+ uses the E10G22-T1-Mini instead; compact Plus models without a PCIe slot cannot take this card.
Package Contents & Synology Ordering Information
In the Box
1 x E10G30-T2 adapter, low-profile and full-height brackets, quick installation guide.
Synology 10GbE Adapters at SourceIT
| Model | Key feature |
| E10G18-T1 | 1 x 10GbE RJ-45, PCIe 3.0 x4 |
| E10G30-T2 (this listing) | 2 x 10GbE RJ-45, PCIe 3.0 x8 |
Datasheet & Downloads
| Specifications | E10G30-T2 on synology.com |
| Datasheet | E10G30-T2 Datasheet (PDF) |
Frequently Asked Questions — Synology E10G30-T2
Does it support 2.5GbE or 5GbE?
No. Synology specifies 10 Gbps and 1 Gbps link speeds.
Which NAS models can use it?
Models with a compatible PCIe slot such as the DS1825+ and RS822RP+; check Synology's list.
What warranty do I get?
5 years Synology warranty.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
