Synology DiskStation DS725neo+ 2-Bay NAS (Expandable to 7 Bays)
PRODUCT DESCRIPTION
Synology DiskStation DS725neo+ 2-Bay NAS DS725neo+ - 3 Years Warranty
Plus-Series Platform, Lower Entry Price
The DS725neo+ is a compact 2-bay DiskStation from the neo+ series that grows to 7 drives with a DX525 expansion unit.
AMD Ryzen R1600
A dual-core / 4-thread AMD Ryzen R1600 (up to 3.1 GHz) with 4 GB DDR4 memory, upgradeable to 32 GB, runs backup, file sharing and Synology Drive.
2.5GbE and NVMe Cache
One 2.5GbE and one 1GbE port plus two M.2 NVMe slots for SSD cache.
Synology DS725neo+ Datasheet — Technical Specifications
General
| Product Name | Synology DiskStation DS725neo+ |
| Model | DS725neo+ |
| Form Factor | 2-bay desktop |
| UPC / EAN | 846504007073 / 4711174727070 |
| Warranty | 3 years (Synology), extendable to 5 years with EW201 |
Processor & Memory
| CPU | AMD Ryzen R1600, 2-core / 4-thread, 2.6 GHz (turbo 3.1 GHz) |
| Hardware Encryption | Yes |
| Memory | 4 GB DDR4 non-ECC SODIMM |
| Memory Slots / Max | 2 slots, up to 32 GB (16 GB x 2) |
Storage
| Drive Bays | 2 x 3.5" SATA HDD or 2.5" SATA SSD |
| M.2 Slots | 2 x M.2 2280 NVMe |
| Expansion | Up to 7 drives with 1 x DX525 |
| Hot-Swap | Yes (SATA bays) |

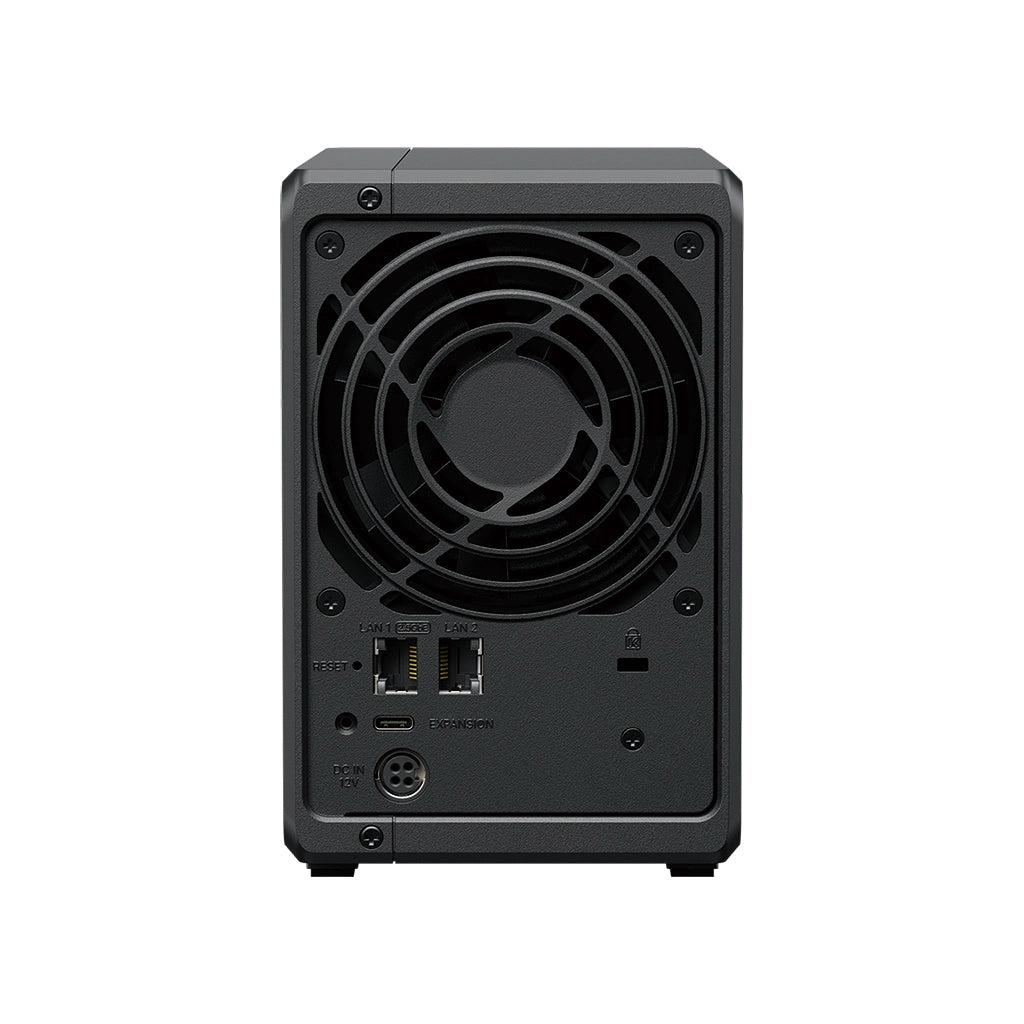

Ports
| LAN | 1 x 2.5GbE RJ-45, 1 x 1GbE RJ-45 |
| USB | 1 x USB 3.2 Gen 1 |
| Expansion Port | 1 x USB Type-C (for DX525) |
| PCIe Slot | None |
Power & Physical
| Power Adapter | 65 W, 100–240 V AC |
| Power Consumption | 20.41 W (access), 7.87 W (HDD hibernation) |
| Fans | 1 x 92 mm |
| Noise Level | 17.9 dB(A) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Operating Humidity | 8–80% RH |
| Dimensions (H x W x D) | 166 x 106 x 223 mm |
| Weight | 1.51 kg |
Compatibility & Applications
Typical Use
Home office and small business file server, PC and Microsoft 365 backup with Active Backup, Synology Drive sync and Synology Photos.
neo+ vs Plus
The neo+ model ships with 4 GB DDR4 non-ECC memory to lower the entry price; it runs the same DSM platform as the Plus series and accepts Synology ECC memory upgrades up to 32 GB. Synology does not support mixing non-ECC and ECC modules. The DS725+ ships with 4 GB ECC memory.
Drives
Synology only guarantees full functionality for compatible drives on this model; use Synology Plus / Enterprise HDDs and check the compatibility list.
Package Contents & Synology Ordering Information
In the Box
1 x DS725neo+ main unit, 1 x accessory pack, 1 x AC power adapter, 1 x AC power cord, 2 x RJ-45 LAN cables. Drives not included.
Synology NAS Models at SourceIT
| Model | Key feature |
| DS223j | 2-bay, Realtek RTD1619B, 1 GB, 1 x 1GbE — entry personal cloud |
| DS223 | 2-bay, Realtek RTD1619B, 2 GB, 1 x 1GbE, 3 x USB, hot-swap bays |
| DS225+ | 2-bay Plus, Intel Celeron J4125, 2 GB, 1GbE + 2.5GbE |
| DS725neo+ (this listing) | 2-bay neo+ (7 with DX525), AMD Ryzen R1600, 4 GB non-ECC, 1GbE + 2.5GbE, 2 x M.2 |
| DS725+ | 2-bay Plus (7 with DX525), AMD Ryzen R1600, 4 GB ECC, 1GbE + 2.5GbE, 2 x M.2 |
| DS425+ | 4-bay Plus, Intel Celeron J4125, 2 GB, 1GbE + 2.5GbE, 2 x M.2 |
| DS925neo+ | 4-bay neo+ (9 with DX525), AMD Ryzen V1500B, 4 GB non-ECC, 2 x 2.5GbE, 2 x M.2 |
| DS925+ | 4-bay Plus (9 with DX525), AMD Ryzen V1500B, 4 GB ECC, 2 x 2.5GbE, 2 x M.2 |
| DS1525neo+ | 5-bay neo+ (15 with 2 x DX525), AMD Ryzen V1500B, 4 GB non-ECC, 2 x 2.5GbE, 10GbE upgrade slot |
| DS1525+ | 5-bay Plus (15 with 2 x DX525), AMD Ryzen V1500B, 8 GB ECC, 2 x 2.5GbE, 10GbE upgrade slot |
| DS1825neo+ | 8-bay neo+ (18 with 2 x DX525), AMD Ryzen V1500B, 4 GB non-ECC, 2 x 2.5GbE, PCIe slot |
| DS1825+ | 8-bay Plus (18 with 2 x DX525), AMD Ryzen V1500B, 8 GB ECC, 2 x 2.5GbE, PCIe slot |
| RS822RP+ | 1U 4-bay rackmount (8 with RX418), AMD Ryzen V1500B, 2 GB ECC, 4 x 1GbE, redundant PSU |
| DX525 | 5-bay expansion unit for 25-series Plus and neo+ DiskStations (USB Type-C) |
Official Synology Videos
Introducing DiskStation Manager 7.3 (official Synology channel)
Introducing Synology Drive (official Synology channel)
Introducing Synology Active Backup for Business (official Synology channel)
Datasheet & Downloads
| Datasheet | DS725neo+ Datasheet (PDF) |
| Specifications | DS725neo+ specifications on synology.com |
| Drive compatibility | Synology compatibility list |
| Downloads (DSM, utilities) | DS725neo+ Download Center |
Frequently Asked Questions — Synology DS725neo+
Are hard drives included?
No. The DS725neo+ is diskless.
How is it different from the DS725+?
Same hardware, but the neo+ ships with 4 GB non-ECC memory instead of 4 GB ECC.
How far can it expand?
To 7 drives by adding one DX525 expansion unit.
What warranty do I get?
3 years Synology warranty, extendable with EW201.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
