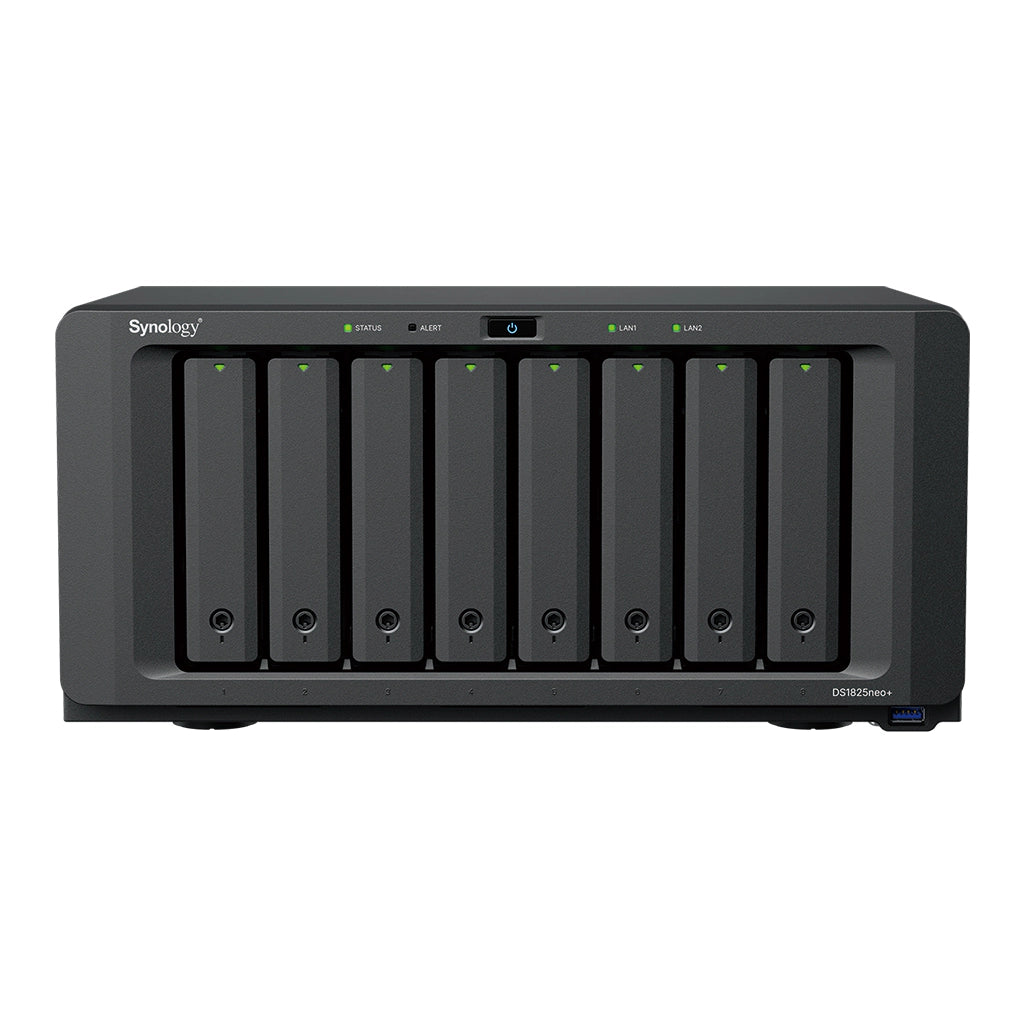

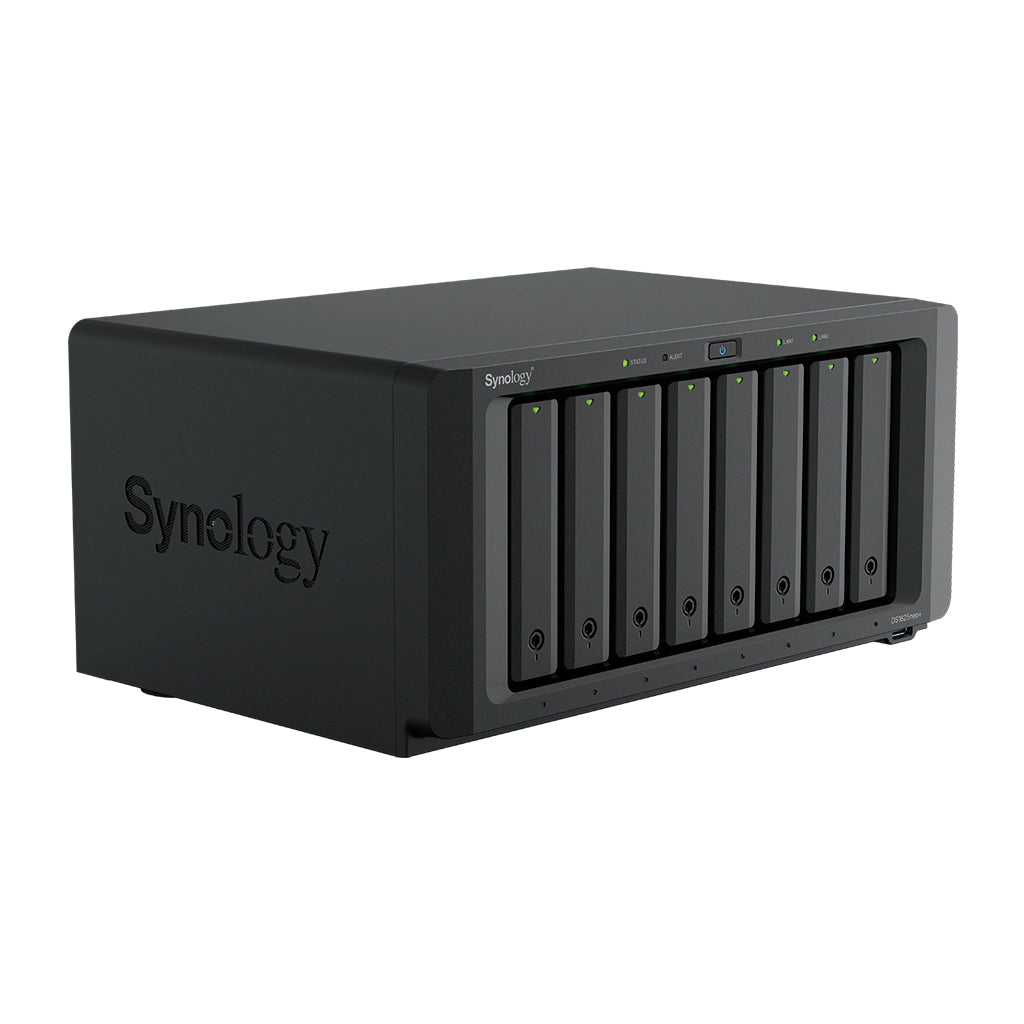

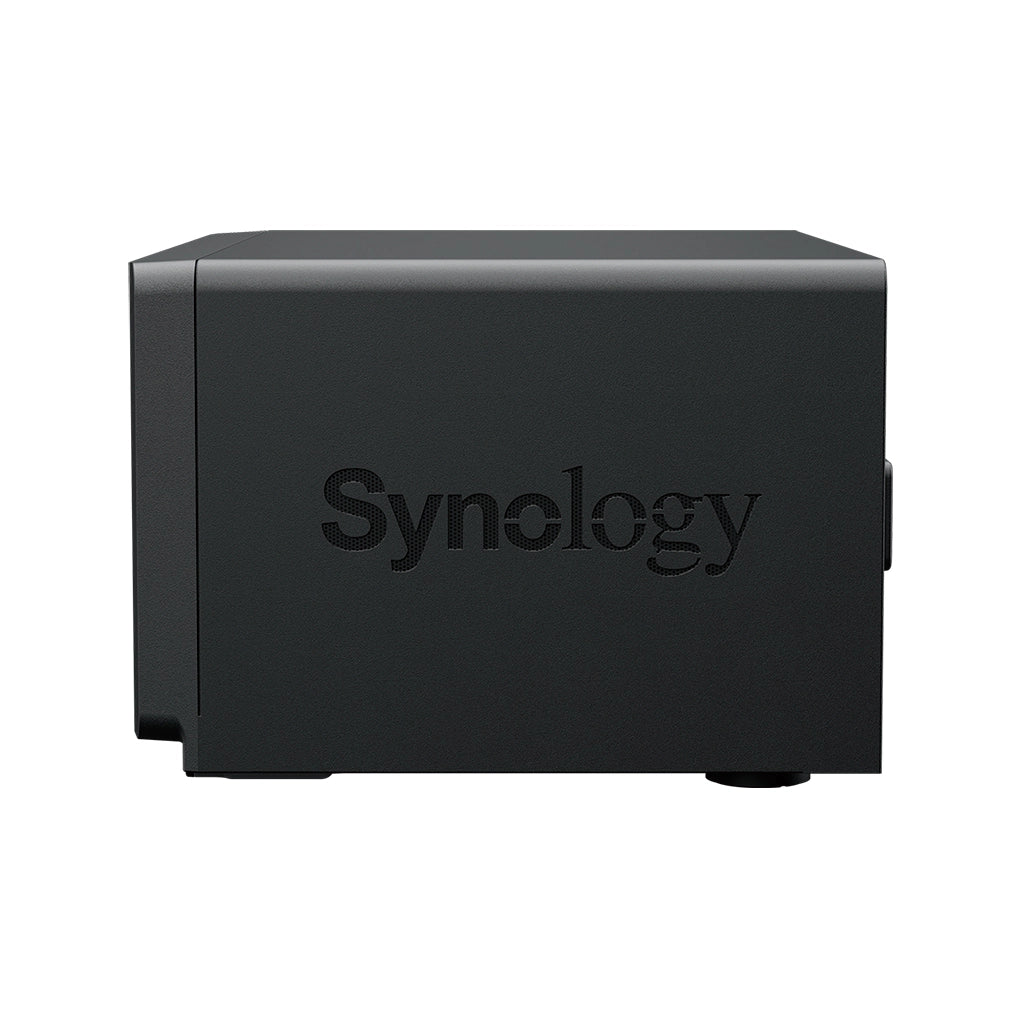

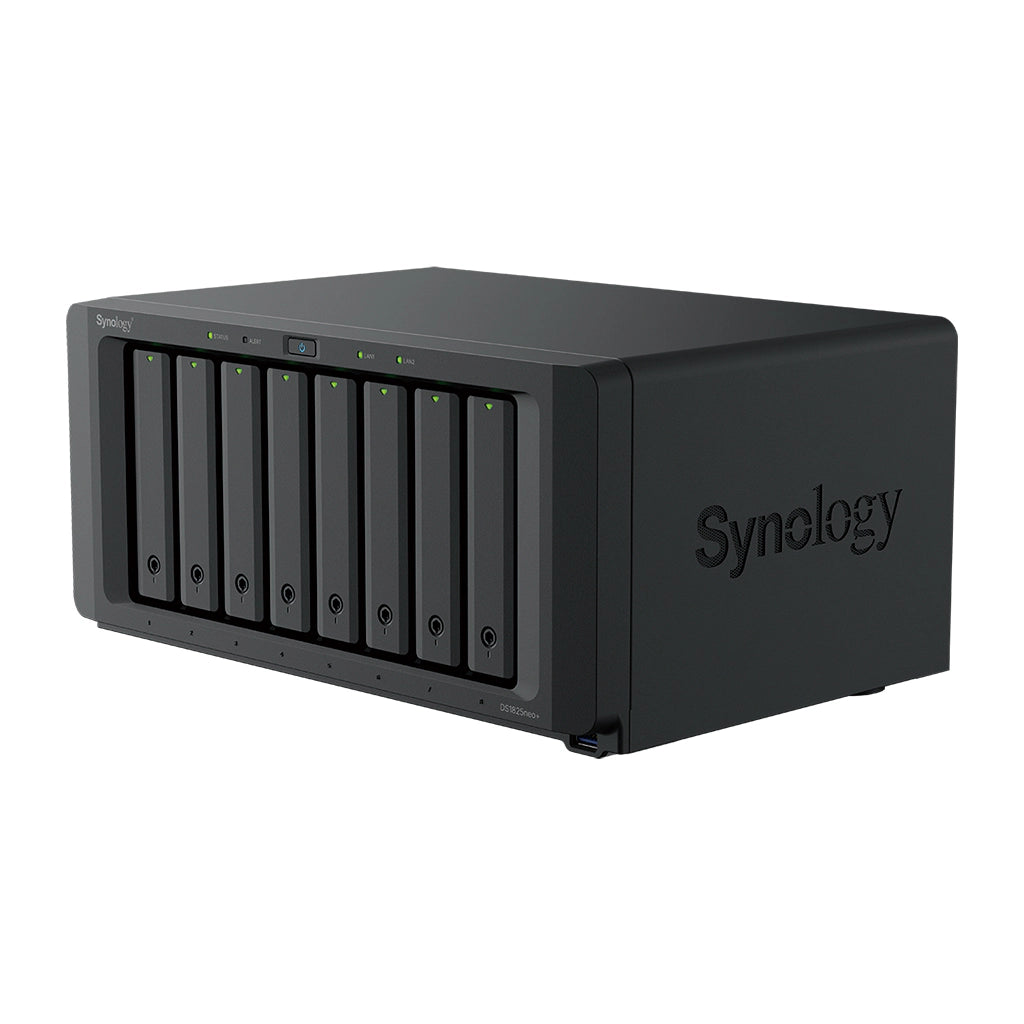

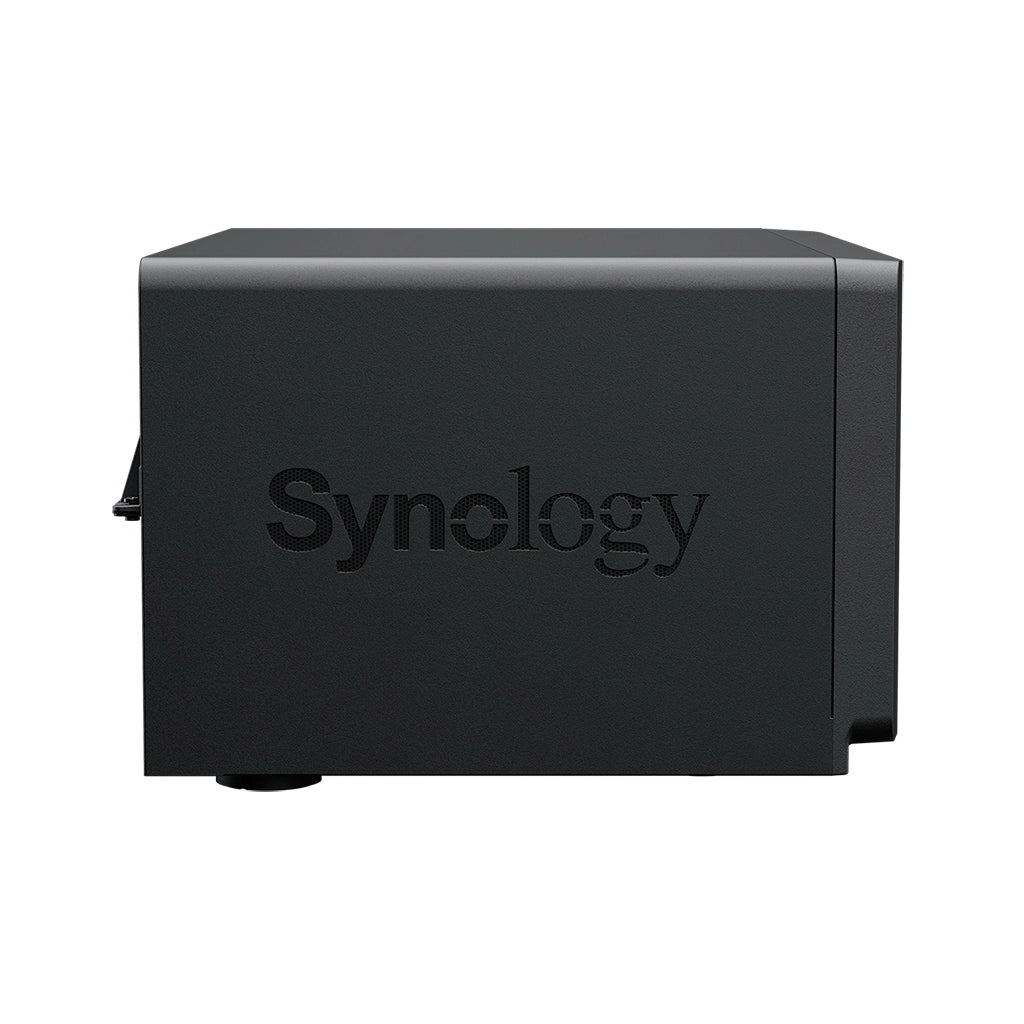

Synology DiskStation DS1825neo+ 8-Bay NAS (Expandable to 18 Bays)
PRODUCT DESCRIPTION
Synology DiskStation DS1825neo+ 8-Bay NAS DS1825neo+ - 3 Years Warranty
Plus-Series Platform, Lower Entry Price
The DS1825neo+ is an 8-bay DiskStation from the neo+ series that grows to 18 drives with two DX525 expansion units.
AMD Ryzen V1500B
A 4-core / 8-thread AMD Ryzen V1500B with 4 GB DDR4 memory (up to 32 GB) for departmental file servers, backup targets and virtualisation.
PCIe for 10/25GbE
Two 2.5GbE ports as standard and a PCIe Gen3 slot for an optional 10GbE or 25GbE network card.
Synology DS1825neo+ Datasheet — Technical Specifications
General
| Product Name | Synology DiskStation DS1825neo+ |
| Model | DS1825neo+ |
| Form Factor | 8-bay desktop |
| UPC / EAN | 846504007219 / 4711174727216 |
| Warranty | 3 years (Synology), extendable to 5 years with EW201 |
Processor & Memory
| CPU | AMD Ryzen V1500B, 4-core / 8-thread, 2.2 GHz |
| Memory | 4 GB DDR4 non-ECC SODIMM |
| Memory Slots / Max | 2 slots, up to 32 GB (16 GB x 2) |
Storage
| Drive Bays | 8 x 3.5" SATA HDD or 2.5" SATA SSD |
| M.2 Slots | 2 x M.2 2280 NVMe |
| Expansion | Up to 18 drives with 2 x DX525 |

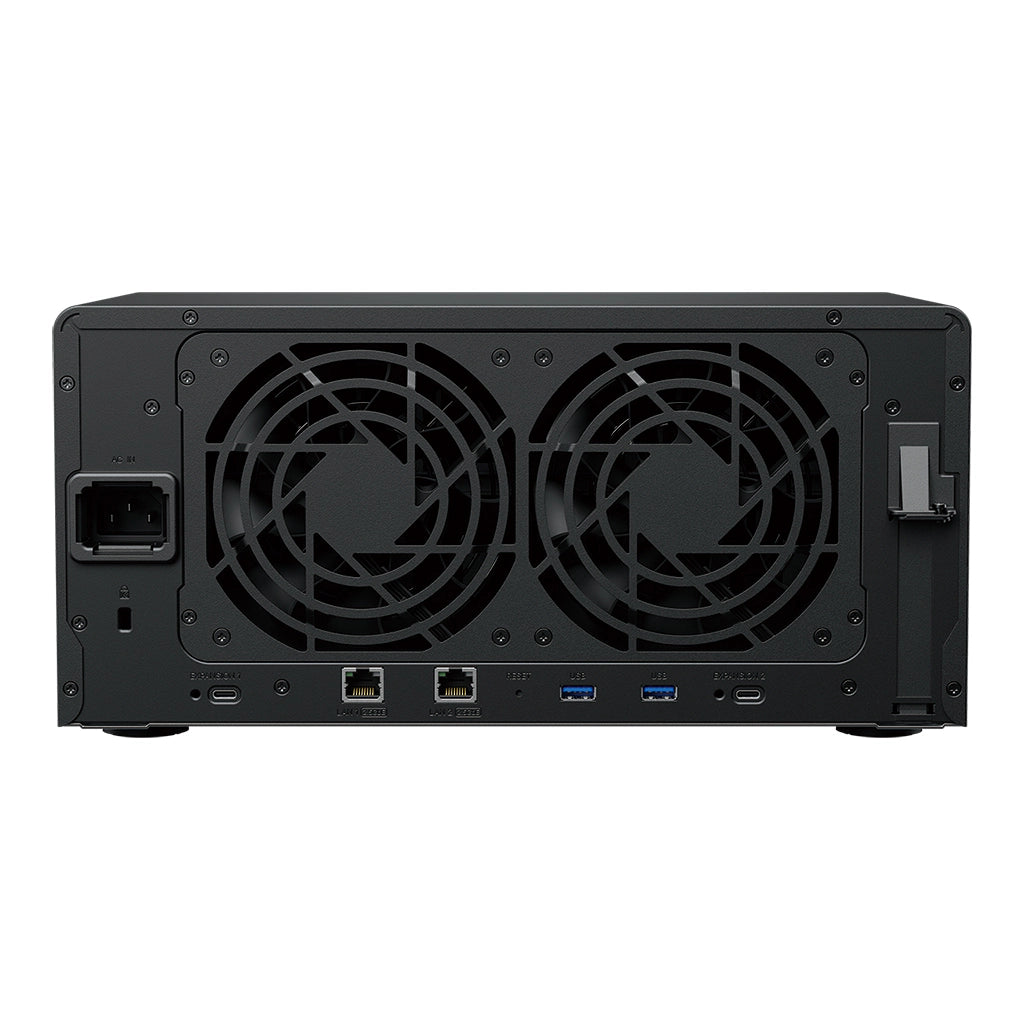

Ports
| LAN | 2 x 2.5GbE RJ-45 |
| PCIe Slot | 1 x Gen3 x8 slot (x4 link) for optional 10GbE / 25GbE card |
| USB | 3 x USB 3.2 Gen 1 |
| Expansion Ports | 2 x USB Type-C (for DX525) |
Power & Physical
| Power Supply | 250 W internal, 100–240 V AC |
| Power Consumption | 60.1 W (access), 18.34 W (HDD hibernation) |
| Fans | 2 x 120 mm |
| Noise Level | 23.8 dB(A) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Operating Humidity | 8–80% RH |
| Dimensions (H x W x D) | 166 x 343 x 243 mm |
| Weight | 6 kg |
Compatibility & Applications
Typical Use
Departmental file server, large backup repository, media libraries, virtual machines and surveillance recording.
neo+ vs Plus
The neo+ model ships with 4 GB DDR4 non-ECC memory to lower the entry price; it runs the same DSM platform as the Plus series and accepts Synology ECC memory upgrades up to 32 GB. Synology does not support mixing non-ECC and ECC modules. The DS1825+ ships with 8 GB ECC memory.
Network Cards
Fit a Synology 10GbE card such as the E10G30-T2 (RJ-45) or E10G30-F2 (SFP+) in the PCIe slot; check Synology's compatibility list for your card.
Package Contents & Synology Ordering Information
In the Box
1 x DS1825neo+ main unit, 1 x accessory pack, 1 x AC power cord, 2 x RJ-45 LAN cables (internal power supply). Drives not included.
Synology NAS Models at SourceIT
| Model | Key feature |
| DS223j | 2-bay, Realtek RTD1619B, 1 GB, 1 x 1GbE — entry personal cloud |
| DS223 | 2-bay, Realtek RTD1619B, 2 GB, 1 x 1GbE, 3 x USB, hot-swap bays |
| DS225+ | 2-bay Plus, Intel Celeron J4125, 2 GB, 1GbE + 2.5GbE |
| DS725neo+ | 2-bay neo+ (7 with DX525), AMD Ryzen R1600, 4 GB non-ECC, 1GbE + 2.5GbE, 2 x M.2 |
| DS725+ | 2-bay Plus (7 with DX525), AMD Ryzen R1600, 4 GB ECC, 1GbE + 2.5GbE, 2 x M.2 |
| DS425+ | 4-bay Plus, Intel Celeron J4125, 2 GB, 1GbE + 2.5GbE, 2 x M.2 |
| DS925neo+ | 4-bay neo+ (9 with DX525), AMD Ryzen V1500B, 4 GB non-ECC, 2 x 2.5GbE, 2 x M.2 |
| DS925+ | 4-bay Plus (9 with DX525), AMD Ryzen V1500B, 4 GB ECC, 2 x 2.5GbE, 2 x M.2 |
| DS1525neo+ | 5-bay neo+ (15 with 2 x DX525), AMD Ryzen V1500B, 4 GB non-ECC, 2 x 2.5GbE, 10GbE upgrade slot |
| DS1525+ | 5-bay Plus (15 with 2 x DX525), AMD Ryzen V1500B, 8 GB ECC, 2 x 2.5GbE, 10GbE upgrade slot |
| DS1825neo+ (this listing) | 8-bay neo+ (18 with 2 x DX525), AMD Ryzen V1500B, 4 GB non-ECC, 2 x 2.5GbE, PCIe slot |
| DS1825+ | 8-bay Plus (18 with 2 x DX525), AMD Ryzen V1500B, 8 GB ECC, 2 x 2.5GbE, PCIe slot |
| RS822RP+ | 1U 4-bay rackmount (8 with RX418), AMD Ryzen V1500B, 2 GB ECC, 4 x 1GbE, redundant PSU |
| DX525 | 5-bay expansion unit for 25-series Plus and neo+ DiskStations (USB Type-C) |
Official Synology Videos
Introducing DiskStation Manager 7.3 (official Synology channel)
Introducing Synology Drive (official Synology channel)
Introducing Synology Active Backup for Business (official Synology channel)
Datasheet & Downloads
| Datasheet | DS1825neo+ Datasheet (PDF) |
| Specifications | DS1825neo+ specifications on synology.com |
| Drive compatibility | Synology compatibility list |
| Downloads (DSM, utilities) | DS1825neo+ Download Center |
Frequently Asked Questions — Synology DS1825neo+
Are hard drives included?
No. The DS1825neo+ is diskless.
How is it different from the DS1825+?
Same hardware, but the neo+ ships with 4 GB non-ECC memory instead of 8 GB ECC.
Can I add 10GbE?
Yes, through the PCIe Gen3 slot with a compatible 10GbE or 25GbE card.
How far can it expand?
To 18 drives by adding two DX525 expansion units.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
