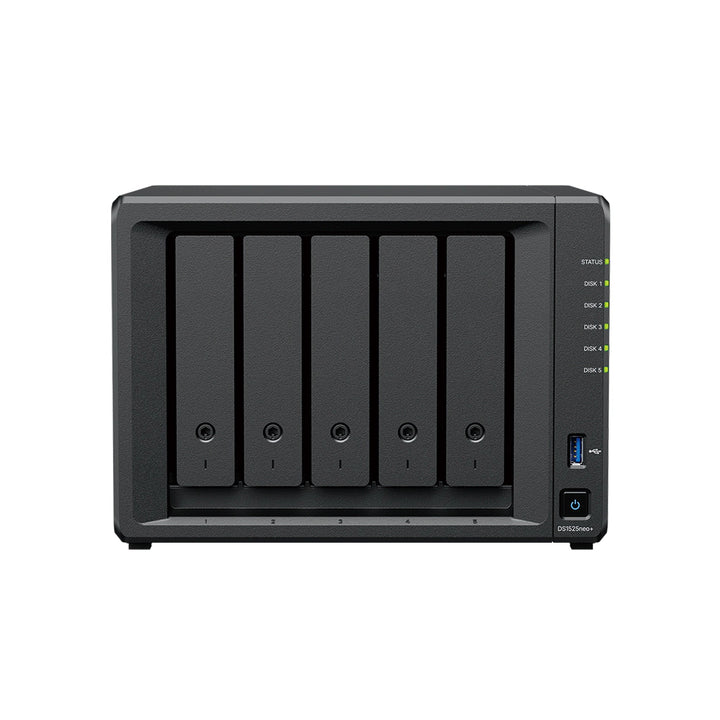

Synology DiskStation DS1525neo+ 5-Bay NAS (Expandable to 15 Bays)
PRODUCT DESCRIPTION
Synology DiskStation DS1525neo+ 5-Bay NAS DS1525neo+ - 3 Years Warranty
Plus-Series Platform, Lower Entry Price
The DS1525neo+ is a 5-bay DiskStation from the neo+ series that grows to 15 drives with two DX525 expansion units.
AMD Ryzen V1500B
A 4-core / 8-thread AMD Ryzen V1500B with 4 GB DDR4 memory (up to 32 GB) for multi-user file services, backup and virtualisation.
10GbE-Ready
Two 2.5GbE ports as standard, plus a network upgrade slot for the Synology E10G22-T1-Mini 10GbE module.
Synology DS1525neo+ Datasheet — Technical Specifications
General
| Product Name | Synology DiskStation DS1525neo+ |
| Model | DS1525neo+ |
| Form Factor | 5-bay desktop |
| UPC / EAN | 846504007202 / 4711174727209 |
| Warranty | 3 years (Synology), extendable to 5 years with EW201 |
Processor & Memory
| CPU | AMD Ryzen V1500B, 4-core / 8-thread, 2.2 GHz |
| Hardware Encryption | Yes |
| Memory | 4 GB DDR4 non-ECC SODIMM |
| Memory Slots / Max | 2 slots, up to 32 GB (16 GB x 2) |
Storage
| Drive Bays | 5 x 3.5" SATA HDD or 2.5" SATA SSD |
| M.2 Slots | 2 x M.2 2280 NVMe |
| Expansion | Up to 15 drives with 2 x DX525 |
| Hot-Swap | Yes (SATA bays) |
Ports
| LAN | 2 x 2.5GbE RJ-45 |
| Network Upgrade Slot | 1 x PCIe Gen3 x2 (optional 10GbE RJ-45 via E10G22-T1-Mini) |
| USB | 2 x USB 3.2 Gen 1 |
| Expansion Ports | 2 x USB Type-C (for DX525) |
Power & Physical
| Power Adapter | 120 W, 100–240 V AC |
| Power Consumption | 44.56 W (access), 13.63 W (HDD hibernation) |
| Fans | 2 x 92 mm |
| Noise Level | 22.6 dB(A) |
| Operating Temperature | 0–40 °C |
| Storage Temperature | -20–60 °C |
| Operating Humidity | 8–80% RH |
| Dimensions (H x W x D) | 166 x 230 x 223 mm |
| Weight | 2.67 kg |
Compatibility & Applications
Typical Use
Growing SMB file server, Active Backup for Business, Synology Drive, virtual machines and multi-camera surveillance.
neo+ vs Plus
The neo+ model ships with 4 GB DDR4 non-ECC memory to lower the entry price; it runs the same DSM platform as the Plus series and accepts Synology ECC memory upgrades up to 32 GB. Synology does not support mixing non-ECC and ECC modules. The DS1525+ ships with 8 GB ECC memory.
Selection Tip
Add the E10G22-T1-Mini for 10GbE. For 8 bays and a full PCIe slot, choose the DS1825neo+.
Package Contents & Synology Ordering Information
In the Box
1 x DS1525neo+ main unit, 1 x accessory pack, 1 x AC power adapter, 1 x AC power cord, 2 x RJ-45 LAN cables. Drives not included.
Synology NAS Models at SourceIT
| Model | Key feature |
| DS223j | 2-bay, Realtek RTD1619B, 1 GB, 1 x 1GbE — entry personal cloud |
| DS223 | 2-bay, Realtek RTD1619B, 2 GB, 1 x 1GbE, 3 x USB, hot-swap bays |
| DS225+ | 2-bay Plus, Intel Celeron J4125, 2 GB, 1GbE + 2.5GbE |
| DS725neo+ | 2-bay neo+ (7 with DX525), AMD Ryzen R1600, 4 GB non-ECC, 1GbE + 2.5GbE, 2 x M.2 |
| DS725+ | 2-bay Plus (7 with DX525), AMD Ryzen R1600, 4 GB ECC, 1GbE + 2.5GbE, 2 x M.2 |
| DS425+ | 4-bay Plus, Intel Celeron J4125, 2 GB, 1GbE + 2.5GbE, 2 x M.2 |
| DS925neo+ | 4-bay neo+ (9 with DX525), AMD Ryzen V1500B, 4 GB non-ECC, 2 x 2.5GbE, 2 x M.2 |
| DS925+ | 4-bay Plus (9 with DX525), AMD Ryzen V1500B, 4 GB ECC, 2 x 2.5GbE, 2 x M.2 |
| DS1525neo+ (this listing) | 5-bay neo+ (15 with 2 x DX525), AMD Ryzen V1500B, 4 GB non-ECC, 2 x 2.5GbE, 10GbE upgrade slot |
| DS1525+ | 5-bay Plus (15 with 2 x DX525), AMD Ryzen V1500B, 8 GB ECC, 2 x 2.5GbE, 10GbE upgrade slot |
| DS1825neo+ | 8-bay neo+ (18 with 2 x DX525), AMD Ryzen V1500B, 4 GB non-ECC, 2 x 2.5GbE, PCIe slot |
| DS1825+ | 8-bay Plus (18 with 2 x DX525), AMD Ryzen V1500B, 8 GB ECC, 2 x 2.5GbE, PCIe slot |
| RS822RP+ | 1U 4-bay rackmount (8 with RX418), AMD Ryzen V1500B, 2 GB ECC, 4 x 1GbE, redundant PSU |
| DX525 | 5-bay expansion unit for 25-series Plus and neo+ DiskStations (USB Type-C) |
Official Synology Videos
Introducing DiskStation Manager 7.3 (official Synology channel)
Introducing Synology Drive (official Synology channel)
Introducing Synology Active Backup for Business (official Synology channel)
Datasheet & Downloads
| Datasheet | DS1525neo+ Datasheet (PDF) |
| Specifications | DS1525neo+ specifications on synology.com |
| Drive compatibility | Synology compatibility list |
| Downloads (DSM, utilities) | DS1525neo+ Download Center |
Frequently Asked Questions — Synology DS1525neo+
Are hard drives included?
No. The DS1525neo+ is diskless.
How is it different from the DS1525+?
Same hardware, but the neo+ ships with 4 GB non-ECC memory instead of 8 GB ECC.
Can I upgrade to 10GbE?
Yes, with the Synology E10G22-T1-Mini module in the network upgrade slot.
How far can it expand?
To 15 drives by adding two DX525 expansion units.
Do I get a GST invoice?
Yes. Supplied by SourceIT in Singapore with a GST invoice.
