RUCKUS ICX 7850-32Q 32-Port 40/100G QSFP28 Stackable Core Switch
PRODUCT DESCRIPTION
RUCKUS ICX 7850-32Q 32-Port 40/100G QSFP28 Stackable Core Switch (ICX7850-32Q) - Limited Lifetime Local Warranty
100G Campus Core and Aggregation

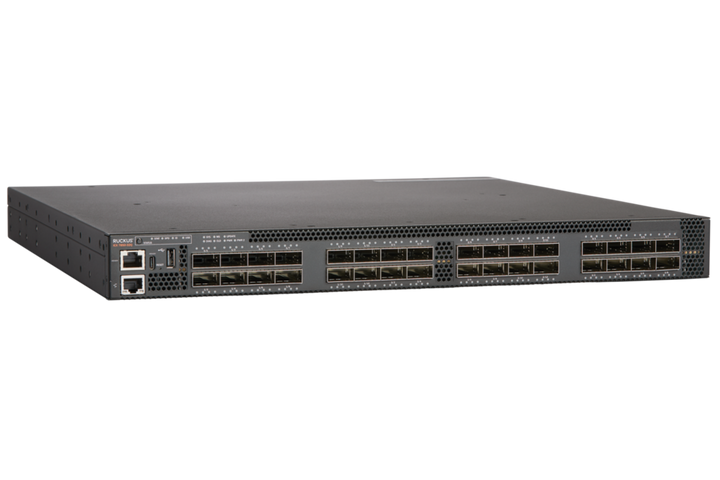

The RUCKUS ICX 7850-32Q is a stackable RUCKUS ICX 7850 switch with 32 x 40/100 GbE QSFP28 ports, each of which can run natively at 40 or 100 GbE or break out to 4 x 10 GbE or 4 x 25 GbE. Up to 8 of the rightmost QSFP28 ports can be used as stacking ports.
This is the bare switch: RUCKUS ships it with power supplies and fans sold separately — order 2 x RPS19 power supplies and the ICX-FAN12 fans (or choose the -E2 bundle). Transceivers and cables are sold separately.
6.4 Tbps Switching and Stacking up to 12 Units
RUCKUS rates the ICX 7850-32Q at 6.4 Tbps switching capacity and 4 Bpps forwarding, with 0.8 µs average latency and a 32 MB packet buffer. Up to 12 switches can be stacked, with 9.6 Tbps aggregated stacking bandwidth and up to 10 km between stacked switches, and the stack is managed as a single switch.
Layer 3 Routing, Upgradable by Licence
Base software includes IPv4/IPv6 static routes, RIP v1/v2 and ECMP. The ICX7850-PREM-LIC advanced Layer 3 licence adds OSPF v2/v3, BGP4/BGP4+, VRRP v3, PIM, PBR, VRF-lite, MSDP and BGP EVPN VXLAN.
Cloud or On-Premises Management
The RUCKUS data sheet lists RUCKUS One (cloud) and RUCKUS SmartZone (on premises) management for the ICX 7850, alongside the CLI.
Supplied in Singapore with Local Warranty
RUCKUS covers ICX 7850 switches with the RUCKUS Assurance Limited Lifetime Warranty and 90 days of free technical support (a RUCKUS support contract is needed after that). SourceIT supplies it locally in Singapore with a GST invoice. Email sales@sourceit.com.sg with your port, uplink and stacking plan for a quote.
RUCKUS ICX 7850-32Q ICX7850-32Q Datasheet — Technical Specifications
General
| Product Name | RUCKUS ICX 7850-32Q Switch |
| Part Number | ICX7850-32Q |
| RUCKUS Description | RUCKUS ICX 7850 with 32× 40/100GbE QSFP28 ports, power supplies and fans sold separately |
| Form Factor | Stackable rack-mount switch, 43.7 mm (1.72 in) high |
| Manufacturer Warranty | RUCKUS Assurance Limited Lifetime Warranty; 90 days technical support included |
| Local Warranty (Singapore) | Included with every unit supplied by SourceIT, together with a GST invoice |
Ports
| Fixed Ports | 32 x 40/100 GbE QSFP28 (each can break out to 4 x 10 GbE or 4 x 25 GbE) |
| Stacking Ports | Up to 8 of the rightmost QSFP28 ports |
| QSFP28 Breakout | Native 40 GbE or 100 GbE, or 4 x 10 GbE / 4 x 25 GbE breakout (breakout with stacking from FastIron 10.0.20b_cd1) |
| PoE | No |
Performance
| Switching Capacity | 6.4 Tbps |
| Forwarding Rate | 4 Bpps |
| Average Latency | 0.8 µs |
| Packet Buffer | 32 MB |
| MAC Addresses | Up to 288k |
| VLANs | 4,095 |
| IPv4 Routes (hardware) | Up to 300k |
| IPv6 Routes (hardware) | Up to 35k |
Stacking
| Stack Size | Up to 12 switches |
| Stacking Ports | Up to 8 x QSFP28 |
| Aggregated Stacking Bandwidth | 9.6 Tbps |
| Maximum Stacking Distance | 10 km |
Layer 3
| Base | IPv4/IPv6 static routes, RIP v1/v2, ECMP |
| With ICX7850-PREM-LIC | OSPF v2/v3, BGP4/BGP4+, VRRP v3, PIM, PBR, VRF-lite, MSDP, BGP EVPN VXLAN |
Power & Cooling
| Power Supplies | Not included — sold separately (2 supplies per switch) |
| Supply Options | RPS19-E / RPS19-I 650 W AC; RPS19DC-E / RPS19DC-I 650 W DC (2 x 650 W rated maximum) |
| Fans | 6 x ICX-FAN12 (sold separately) |
| Airflow | Front-to-back (-E parts) or back-to-front (-I parts) |
| Power Consumption | 336.5 W typical; 479.6 W maximum (25°C) |
| Heat Dissipation | 1149 BTU/hr typical; 1637 BTU/hr maximum |
| Acoustic Level | 50.6 dBA (25°C) |
| MTBF (25°C) | 490,449 hours |
Physical & Environmental
| Dimensions | 43.7 mm (H) x 440 mm (W) x 444.5 mm (D) |
| Weight | 9.1 kg (20 lb) (switch) |
| Operating Temperature | 0°C to 45°C at sea level |
| Operating Humidity | 10% to 90% at 50°C, non-condensing |
Figures are taken from the RUCKUS ICX 7850 Switch data sheet. For anything not listed, refer to the RUCKUS documents linked under Datasheet & Downloads.
Compatibility & Software Support
Management
RUCKUS One (cloud) or RUCKUS SmartZone (on premises), plus the CLI.
Ports & Optics
All 32 QSFP28 ports run at 40 or 100 GbE, or break out to 4 x 10 GbE / 4 x 25 GbE, so the 32Q can aggregate a mix of 10/25/40/100G access switches and servers. Transceivers and DAC/AOC cables are ordered separately; ask us for a compatibility list for your optics.
Power Supplies & Fans
RPS19-E / RPS19-I (650 W AC) and RPS19DC-E / RPS19DC-I (650 W DC) power supplies, and ICX-FAN12-E / ICX-FAN12-I fans; -E is front-to-back, -I is back-to-front airflow. Use matching -E or -I parts throughout one switch.
Licences
ICX7850-PREM-LIC adds advanced Layer 3 (OSPF, BGP, VRRP, PIM, PBR, VRF). MACsec (ICX-MACSEC-LIC) applies to the ICX 7850-48FS only.
Package Contents & RUCKUS ICX 7850 Ordering Information
In the Box
One RUCKUS ICX 7850-32Q switch. Power supplies and fans are NOT included (sold separately). Transceivers and cables are not included. Confirm rack-mount kit requirements with us before ordering.
RUCKUS ICX 7850 Switches — Ordering Information
| RUCKUS ICX 7850-32Q (this listing) | 32 x 40/100G QSFP28; PSU/fans sold separately | ICX7850-32Q |
| RUCKUS ICX 7850-32Q-E2 | 32 x 40/100G QSFP28; bundle with 2 AC PSU, 6 fans, front-to-back | ICX7850-32Q-E2 |
| RUCKUS ICX 7850-48C | 48 x 1/10G RJ-45 10GBASE-T + 8 x 40/100G QSFP28; PSU/fans sold separately | ICX7850-48C |
| RUCKUS ICX 7850-48C-E2 | 48 x 1/10G RJ-45 + 8 x 40/100G; bundle with 2 AC PSU, 5 fans, front-to-back | ICX7850-48C-E2 |
| RUCKUS ICX 7850-48F | 48 x 1/10/25G SFP28 + 8 x 40/100G QSFP28; PSU/fans sold separately | ICX7850-48F |
| RUCKUS ICX 7850-48F-E2 | 48 x 1/10/25G SFP28 + 8 x 40/100G; bundle with 2 AC PSU, 5 fans | ICX7850-48F-E2 |
| RUCKUS ICX 7850-48FS | 48 x 1/10G SFP+ + 8 x 40/100G QSFP28, MACsec; PSU/fans sold separately | ICX7850-48FS |
| RUCKUS ICX 7850-48FS-E2 | 48 x 1/10G SFP+ + 8 x 40/100G, MACsec; bundle with 2 AC PSU, 5 fans | ICX7850-48FS-E2 |
| RUCKUS ICX 7850-48FS-E2-RMT3 | As 48FS-E2, plus 3 years 24x7 remote support | ICX7850-48FS-E2-RMT3 |
Licences & Accessories
ICX7850-PREM-LIC advanced Layer 3 licence; ICX-MACSEC-LIC (48FS only); RPS19-E/-I AC and RPS19DC-E/-I DC power supplies; ICX-FAN12-E/-I fans.
Datasheet & Downloads
| RUCKUS data sheet | RUCKUS ICX 7850 Switch Data Sheet |
| RUCKUS product page | RUCKUS ICX 7850-32Q |
| RUCKUS support | RUCKUS ICX 7850 Campus Switches — Support |
| Technical specifications | RUCKUS ICX 7850 Switch Technical Specifications |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting ICX7850-32Q.
Frequently Asked Questions — RUCKUS ICX 7850-32Q ICX7850-32Q
Are power supplies and fans included?
No. The bare switch ships without power supplies and fans; order 2 x RPS19 power supplies and 6 x ICX-FAN12 fans, or choose the -E2 bundle.
Does it support PoE?
No. The ICX 7850 is an aggregation/core switch without PoE; power access points from an access switch such as the ICX 8200 or ICX 7550.
How many switches can I stack?
Up to 12 ICX 7850 switches per stack, with 9.6 Tbps aggregated stacking bandwidth and up to 10 km between stacked switches.
Does it do Layer 3 routing?
Static routes, RIP and ECMP are included. OSPF, BGP, VRRP v3, PIM, PBR, VRF-lite and BGP EVPN VXLAN need the ICX7850-PREM-LIC licence.
What warranty and support come with it?
The RUCKUS Assurance Limited Lifetime Warranty and 90 days of technical support, supplied by SourceIT with local support and a GST invoice.
