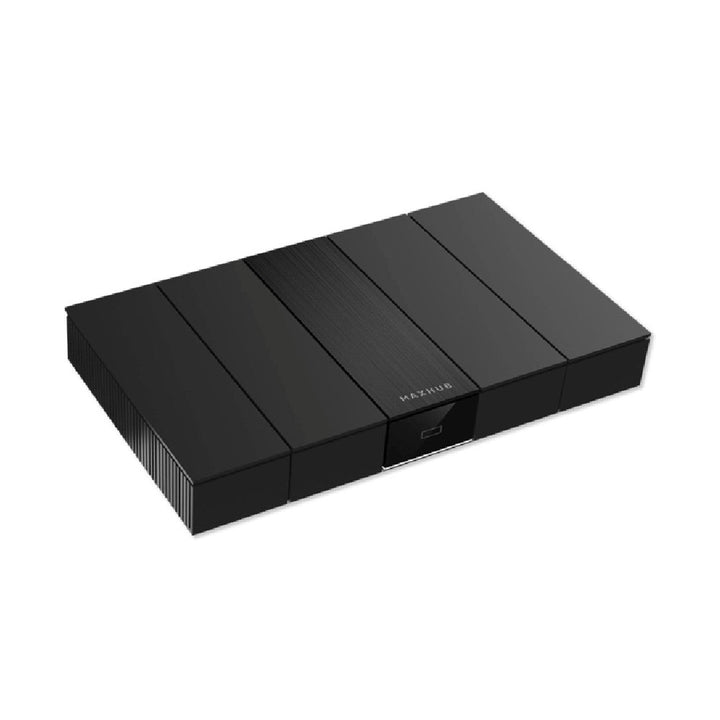

MAXHUB WB05 Wireless Screen Sharing Box
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
MAXHUB WB05 Wireless Screen Sharing Box, 4K60 HDMI, Up to 9 Screens (WB05) - 1 Year Local Warranty
Share Up to Nine Screens at Once
The MAXHUB WB05 is a wireless presentation box that lets meeting participants share up to nine screens simultaneously to the room display.
4K60 Output on Two HDMI Ports
Two HDMI outputs drive displays at up to 4K@60Hz, with H.264/H.265/VP9 decoding for smooth video playback.
Dual-Band Wi-Fi 6 and AirPlay
Built-in 2T2R dual-band Wi-Fi (2.4 GHz / 5 GHz, 802.11ax) supports AirPlay for Apple devices, while RJ45 connects the box to the corporate network.
Flexible Power
Power the WB05 from its 12 V DC input or over PoE (802.3af), typically drawing 23.3 W.
Need help choosing? Email sales@sourceit.com.sg with your room count, display setup and quantity and we will recommend the right configuration.
MAXHUB WB05 Datasheet — Technical Specifications
General
| Product Name | MAXHUB Wireless Screen Sharing Box |
| Part Number | WB05 |
| Operating System | Android 9.0 |
| Local Warranty (Singapore) | 1 year, supplied by SourceIT with a GST invoice |
Ports
| HDMI Out | 2 |
| USB Type-C | 1 |
| USB 3.0 | 1 |
| Audio Out | 1 |
| RJ45 | 1 |
| DC Power | 1 (DC 2.0) |
Wireless & Sharing
| Wi-Fi | 802.11b/g/n/ac/a/ax, 2.4 GHz and 5 GHz, 2T2R |
| Third-party Protocols | AirPlay |
| Simultaneous Screens | Up to 9 |
Video
| HDMI Output | 4K@60Hz, 1080p@60Hz |
| Encoding | H.264 / MVC / VP8 |
| Decoding | H.264 / H.265 / VP9 |
Power & Physical
| Power | DC 12 V 3 A / PoE (802.3af) |
| Power Consumption | 23.3 W |
| Dimensions (L x H x D) | 255 x 147 x 38 mm |
| Net Weight | 0.8 kg |
| Operating Temperature | 0–40 °C |
Compatibility & Software Support
Casting
AirPlay is supported for third-party sharing; up to nine screens can be shown simultaneously.
Displays & Network
Connects to any display with an HDMI input (two outputs, up to 4K@60Hz) and to the network by RJ45 or Wi-Fi.
Package Contents & MAXHUB Accessories Ordering Information
In the Box
MAXHUB's WB05 datasheet does not list the box contents — email us to confirm the accessories for your order.
MAXHUB Accessories Models
| Model | Description |
| ST23G | Mobile stand, 55"–98" displays, 100 kg |
| ST33M | Mobile trolley, 55"–86" displays, 100 kg |
| EST09 | Electronic mobile stand |
| EST11 | Electronic mobile stand |
| WT13M | Wireless screen sharing dongle (USB-C / USB-A) |
| WB05 (this listing) | Wireless screen sharing box, up to 9 screens |
| TCP10M | Touch control panel |
| DST01 | Table mount for commercial display + videobar |
Datasheet & Downloads
| MAXHUB WB05 datasheet | WB05 Datasheet (PDF) |
| MAXHUB product page | Wireless Box on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting WB05.
Frequently Asked Questions — MAXHUB WB05
How many people can share at once?
Up to nine screens simultaneously.
What output resolution does it support?
4K@60Hz or 1080p@60Hz on two HDMI outputs.
Can Apple devices cast to it?
Yes — AirPlay is supported.
Can it run on PoE?
Yes, 802.3af PoE, or 12 V DC.
What operating system does it run?
Android 9.0.
What warranty do I get?
1 year local warranty in Singapore, supplied by SourceIT with a GST invoice.
