MAXHUB SL22MC Smart Lectern with 21.5" Touch Display & i5 PC
PRODUCT DESCRIPTION
MAXHUB Smart Lectern SL22MC 21.5" Touch All-in-One Lectern with Intel Core i5 PC (SL22MC) - 3 Years Local Warranty

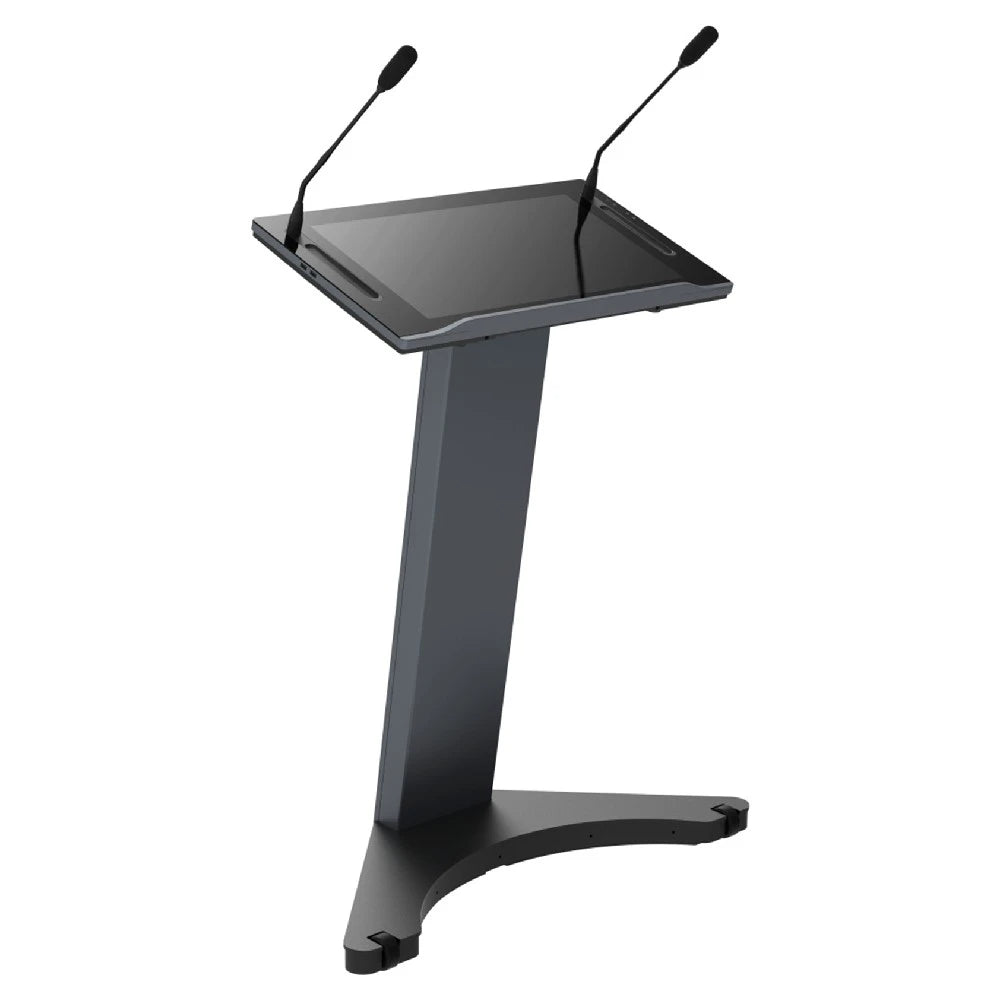

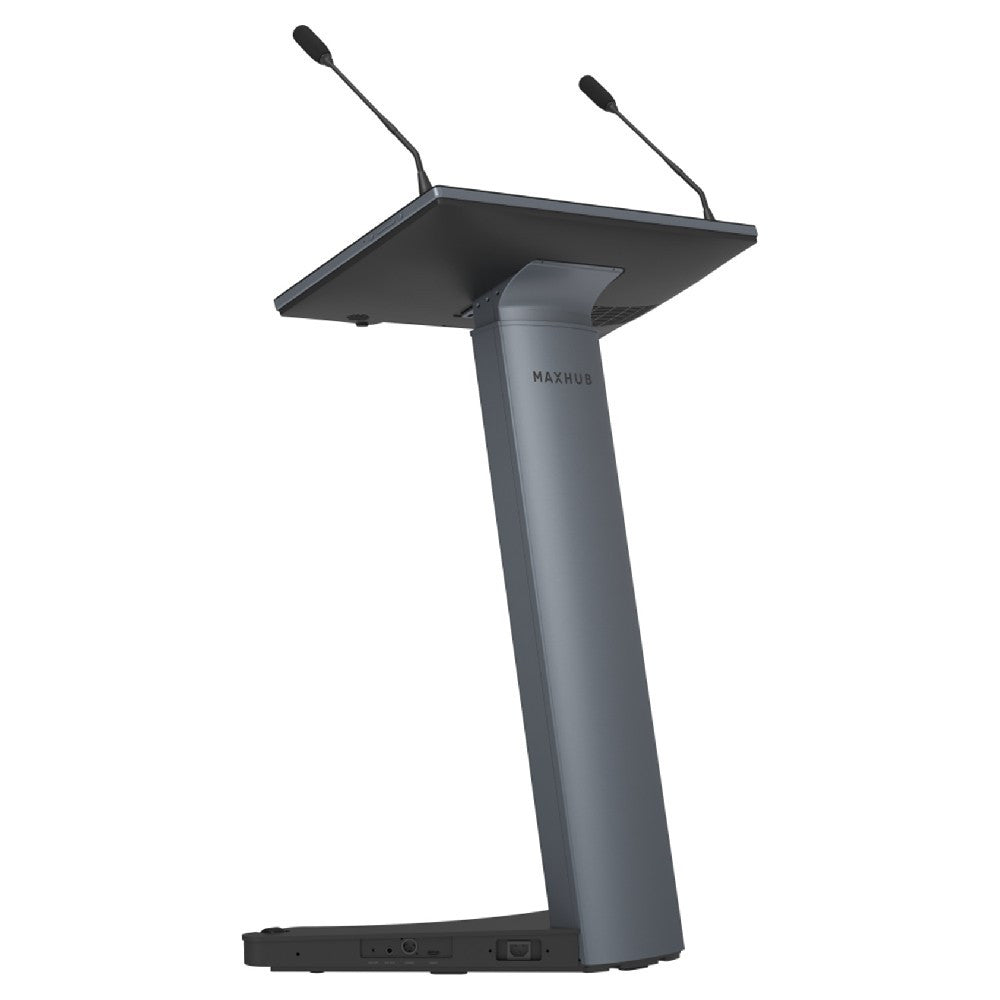

All-in-One Smart Lectern for Lecture Halls
The MAXHUB SL22MC combines a 21.5" Full HD (1920 x 1080) capacitive touch display, a built-in Windows PC and two gooseneck microphones in one motorised lectern, giving presenters everything they need to teach or present from a single podium.
Built-in Intel Core i5 PC
An integrated OPS72C PC module with an Intel Core i5-1240P processor, 16GB memory and 256GB storage runs Windows 10 IoT Enterprise, so presentations, lesson software and web content run directly on the lectern.
10-Point Capacitive Touch with Smart Pen
The 450 cd/m² 21.5" screen supports 10 touch points and ships with a smart pen for annotation and handwriting, while HDMI OUT sends the presenter's screen to a projector or large interactive display.
Motorised Height Adjustment
The work surface rises and lowers electrically between 1.0 m and 1.2 m at 0.9 cm/s, so presenters of different heights can work comfortably. Professional audio outputs (6.5 mm, 3.5 mm and XLR) connect to the room's sound system.
Need help choosing? Email sales@sourceit.com.sg with your room size, display setup and quantity and we will recommend the right configuration.
MAXHUB SL22MC Datasheet — Technical Specifications
General
| Product Name | MAXHUB Smart Lectern |
| Part Number | SL22MC |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Display & Touch
| Screen Size | 21.5" |
| Resolution | 1920 x 1080 |
| Brightness | 450 cd/m² |
| Touch Technology | Capacitive |
| Touch Points | 10 |
Built-in PC
| PC Module | OPS72C |
| Processor | Intel Core i5-1240P (1.7GHz) |
| Memory / Storage | 16GB / 256GB |
| Operating System | Windows 10 IoT Enterprise |
Audio
| Microphones | 2 (gooseneck) |
| Microphone Pick-up Distance | 0–0.30 m |
| Audio Out | 1 x 6.5 mm, 2 x 3.5 mm, 1 x XLR (Cannon) |
| Mic In | 2 |
Ports
| HDMI Out | 1 |
| RJ45 | 1 (10/100/1000 Mbps) |
| USB 2.0 | 3 |
Height Adjustment
| Range | 1.0 m (39") to 1.2 m (47") |
| Speed | 0.9 cm/s up / down |
Power & Physical
| Power Requirements | 100–240 V~, 50/60 Hz, 2.0 A / 19 VDC 6.3 A |
| Power Consumption | 120 W max |
| Dimensions (L x H x D) | 786.3 x 420 x 1010.4 mm |
| Net Weight | 29.9 kg (65.9 lbs) |
Compatibility & Software Support
Operating System & Software
Runs Windows 10 IoT Enterprise on the built-in OPS72C PC, so standard Windows presentation, teaching and conferencing applications can be installed.
Room Integration
HDMI OUT connects the lectern to a projector or an interactive display such as the MAXHUB B8620 Smart Blackboard; audio outputs (6.5 mm, 3.5 mm, XLR) feed amplifiers and room speakers; RJ45 Gigabit Ethernet connects to the campus network.
Package Contents & MAXHUB Education Ordering Information
In the Box
Power cord, HDMI cable, smart pen and two gooseneck microphones, per MAXHUB's SL22MC datasheet.
MAXHUB Education Models
| Model | Description |
| SL22MC (this listing) | Smart Lectern, 21.5" touch display, Intel Core i5 PC |
| B8620 | Smart Blackboard, 86" 4K interactive display, Android 13 |
| MAXHUB Portable Capture System | Wireless 4K capture host, camera and microphone kit |
Datasheet & Downloads
| MAXHUB SL22MC datasheet | SL22MC Smart Lectern Datasheet (PDF) |
| MAXHUB product page | Smart Lectern on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting SL22MC.
Frequently Asked Questions — MAXHUB SL22MC
Is a PC built in?
Yes. The SL22MC includes an OPS72C PC module with an Intel Core i5-1240P, 16GB memory, 256GB storage and Windows 10 IoT Enterprise.
How big is the touch screen?
21.5" Full HD (1920 x 1080), capacitive, with 10 touch points and 450 cd/m² brightness.
Is the height adjustable?
Yes, electrically, from 1.0 m to 1.2 m.
Are microphones included?
Yes — two gooseneck microphones are included in the box.
Can it connect to the room's projector or display?
Yes, via the HDMI OUT port.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
