MAXHUB Raptor V3 LX220V07 220" All-in-One DvLED Display
PRODUCT DESCRIPTION
MAXHUB Raptor Series V3 LX220V07 220" Full HD All-in-One DvLED Display with Android 13 (LX220V07) - Local Warranty

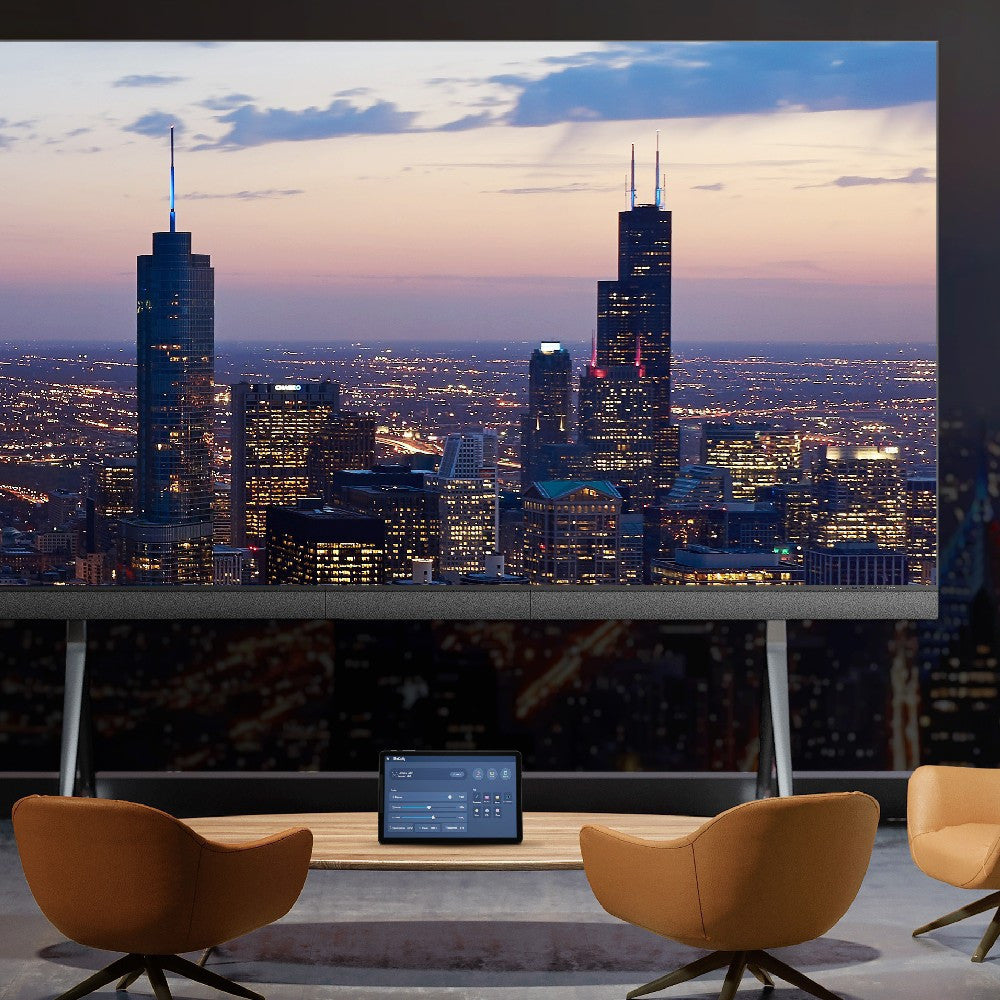

220-inch All-in-One DvLED for Large Meeting Spaces
The MAXHUB Raptor Series V3 LX220V07 is a 220" all-in-one direct-view LED display for boardrooms, auditoriums, lecture halls and large meeting spaces. It delivers 1920 x 1080 (Full HD) resolution at a 2.5 mm pixel pitch with SMD LEDs, 100–600 nits adjustable brightness, a 6,500:1 contrast ratio and a 3,840 Hz refresh rate, in a screen just 28 mm thick.
Android 13 Built In, No External Controller
An octa-core processor (4 x Cortex-A76 + 4 x Cortex-A55, 2.4 GHz) with 8GB RAM and 64GB storage runs Android 13 on the display itself. MAXHUB also offers an optional built-in PC for Windows, with dual-system isolation between Android and Windows.
4.2-Channel Sound and Wireless Sharing
MAXHUB's 4.2-channel audio system (4 full-range units + 2 low-frequency units, 120 W maximum, up to 95 dB) uses DSP and Sky-Wave Sound to fill the room. Presenters can share wirelessly via MAXHUB Share, Miracast, Chromecast and AirPlay, and MAXHUB lists compatibility with Microsoft Teams, Zoom, Webex and Google Meet.
Room-Ready Control
A radar touch control panel, a mobile control app, remote device management and third-party integration with Q-SYS and Extron are listed by MAXHUB for the Raptor V3 series, together with Wake on Sync for Microsoft Teams Rooms. Built-in light sensors adjust brightness to the space automatically.
Need help choosing? Email sales@sourceit.com.sg with your room size, viewing distance and quantity and we will recommend the right configuration.
MAXHUB LX220V07 Datasheet — Technical Specifications
General
| Product Name | MAXHUB Raptor Series V3 All-in-One DvLED Display |
| Part Number | LX220V07 |
| Series | MAXHUB Raptor Series V3 |
| Local Warranty (Singapore) | Local warranty in Singapore, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 220" |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 (Full HD) |
| Pixel Pitch | 2.5 mm |
| LED Type | SMD |
| Brightness | 100–600 nits (adjustable) |
| Contrast Ratio | 6,500:1 |
| Refresh Rate | 3,840 Hz |
| Grey Scale | 13–16 bit |
| Colour Temperature | 2,300–9,300 K (adjustable) |
| Viewing Angle | 160° (H) / 140° (V) |
| Display Area | 4880 x 2744 mm |
| LED Lifespan | ≥ 100,000 hours |
System
| Operating System | Android 13.0 |
| CPU | 4 x Cortex-A76 + 4 x Cortex-A55, 2.4 GHz |
| RAM | 8GB |
| Storage | 64GB |
Ports
| HDMI In | 4 (2 external, 2 internal) |
| HDMI Out | 1 (external) |
| USB | 2 x USB 3.0 (external) |
| USB Type-C | 1 (external) |
| Audio | 2 x 3.5 mm out, 1 x 3.5 mm in |
| Network | 2 x LAN (internal) |
Audio & Wireless
| Speakers | 4 full-range units + 2 low-frequency units (4.2 channel), 120 W max |
| Max Sound Pressure Level | 95 dB |
| Wireless Sharing | MAXHUB Share, Miracast, Chromecast, AirPlay |
| Wi-Fi | Wi-Fi 6, 2.4/5 GHz dual-band, AP and STA modes |
| Bluetooth | 5.3 |
| Sensors | Built-in light sensor (automatic brightness) |
Power & Physical
| Operating Voltage | 100–240 V AC, 50/60 Hz |
| Power Consumption | 1.101 kW average, 3.67 kW max, ≤ 0.5 W standby |
| Overall Dimensions (W x H) | 4910 x 2869 mm |
| Screen Thickness | 28 mm |
| Net Weight | 296 kg (wall-mounting bar and stand not included) |

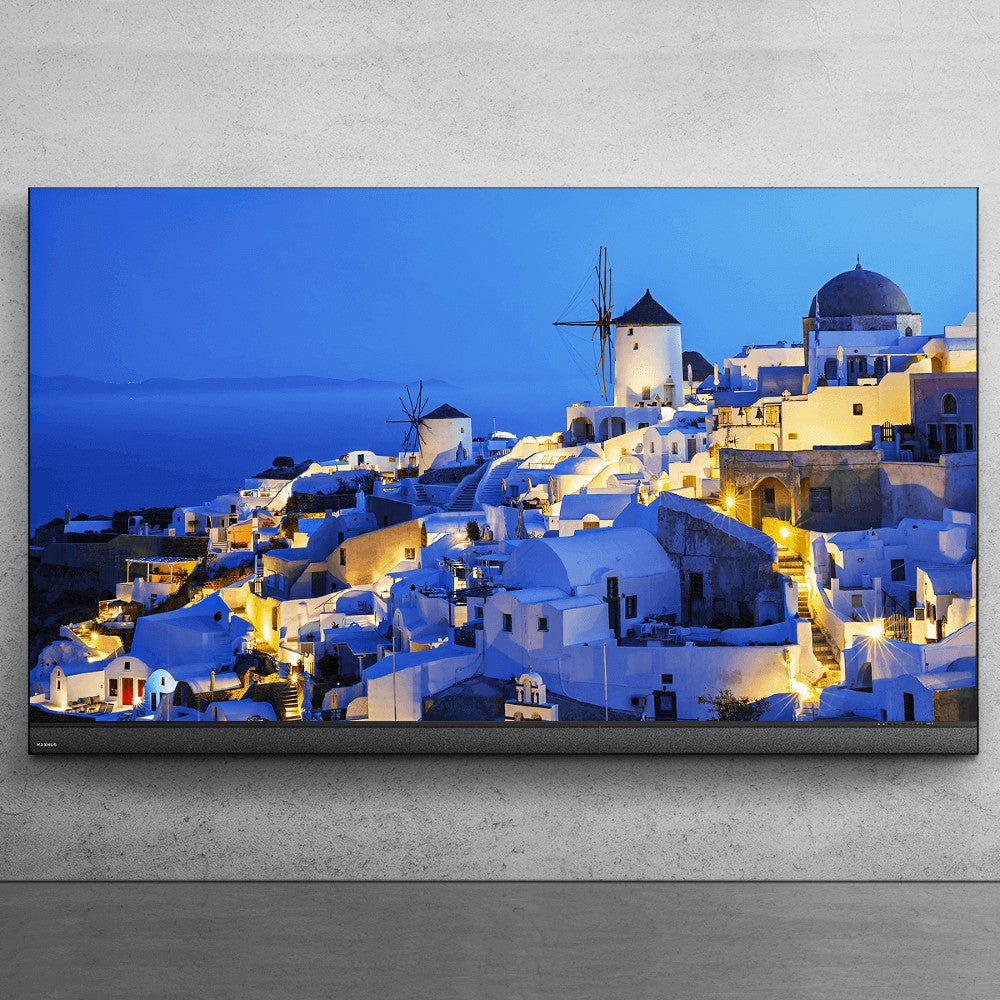

| Installation | Mobile stand, stand or wall-mounting |
| Operating Environment | -10–40 °C, 10–80% RH (non-condensing) |
Certifications
| Environmental | Meets China and EU RoHS directive requirements |
Compatibility & Software Support
Operating System & Content
Android 13 is built in. MAXHUB offers an optional built-in PC for Windows, with dual-system isolation and USB access control. External sources connect over HDMI and USB-C.
Conferencing & Sharing
MAXHUB lists compatibility with Microsoft Teams, Zoom, Webex and Google Meet, and with the MAXHUB Microsoft Teams Rooms ecosystem (Wake on Sync and MTR PC wake-on). Wireless sharing via MAXHUB Share, Miracast, Chromecast and AirPlay.
Management & Control
Radar touch control panel, mobile control app, remote device management platform, custom HDMI wake-up, and third-party integration with Q-SYS and Extron.
Package Contents & MAXHUB Raptor Series V3 Ordering Information
In the Box
Per MAXHUB's LX220V07 datasheet: remote control, front maintenance tool, tool kit and wall-mounting bar.
MAXHUB Raptor Series V3 Models
| Model | Size | Pixel pitch / resolution |
| LX120V07 | 120" | 1.3 mm, 1920 x 1080 |
| LX138V07 | 138" | 1.5 mm, 1920 x 1080 |
| LX150V07 | 150" | 1.7 mm, 1920 x 1080 |
| LX165V07 | 165" | 1.9 mm, 1920 x 1080 |
| LX180V07 | 180" | 2.0 mm, 1920 x 1080 |
| LX220V07 (this listing) | 220" | 2.5 mm, 1920 x 1080 |
| LX220V18 | 220" | 1.2 mm, 3840 x 2160 |
Also in the MAXHUB Raptor V3 range: COB models LX135V07C and LX162V18C, interactive touch LED models LX108V07R and LX135V07R, and ST90 / ST92 LED stands — ask us for details.
Datasheet & Downloads
| MAXHUB LX220V07 datasheet | Raptor Series V3 LX220V07 Datasheet V1.1 (PDF) |
| Series datasheet | Raptor Series V3 Datasheet V1.4 (PDF) |
| MAXHUB product page | Raptor Series V3 on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting LX220V07.
Frequently Asked Questions — MAXHUB LX220V07
What resolution and pixel pitch is it?
1920 x 1080 (Full HD) at a 2.5 mm pixel pitch on a 220" 16:9 screen.
Do I need a separate LED controller or PC?
No separate controller is needed — it is an all-in-one display with Android 13 built in. MAXHUB offers an optional built-in PC if you need Windows.
Can it be used for video conferencing?
MAXHUB lists compatibility with Microsoft Teams, Zoom, Webex and Google Meet, and with the MAXHUB Microsoft Teams Rooms ecosystem. MAXHUB's datasheet does not list a built-in camera or microphones — tell us your room and we will recommend a MAXHUB video bar.
How is it installed?
MAXHUB lists: mobile stand, stand or wall-mounting. We can quote site survey, delivery and installation.
What warranty do I get?
Local warranty in Singapore, supplied by SourceIT with a GST invoice. Email us for the warranty terms that apply to your configuration.
