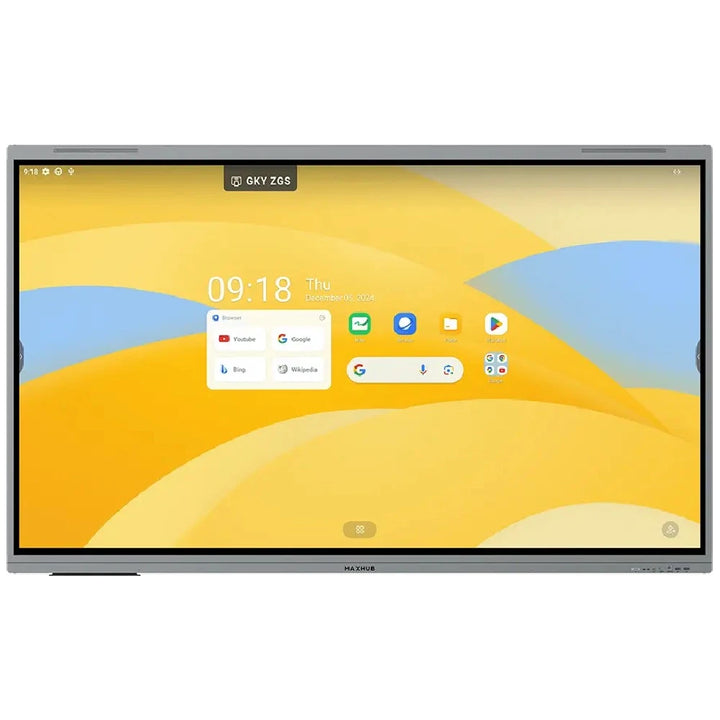

MAXHUB E3 Series E6530 65" 4K Interactive Flat Panel
PRODUCT DESCRIPTION
MAXHUB E3 Series E6530 65" 4K Google EDLA Interactive Flat Panel with SkyWave 2.2 Sound (E6530) - 3 Years Local Warranty
65-inch 4K Interactive Display for Classrooms and Meeting Rooms
The MAXHUB E3 Series E6530 is a 65" 4K (3840 x 2160) VA interactive flat panel running MAXHUB EDU OS V4 on Google EDLA-certified Android 14. An octa-core processor with a 6 TOPS NPU, 8GB RAM and 128GB storage (expandable up to 1TB via TF card) delivers a complete 4K experience with Google Play, Google Drive, Google Meet and YouTube built in.
Colour-Accurate, Eye-Friendly Picture
The DLED panel covers 98% sRGB with ΔE ≤ 1 colour accuracy and 400 nits typical brightness, behind zero-parallax 3 mm 9H tempered glass. TÜV low blue light and flicker-free certification make it comfortable for long lessons, and the backlight is rated for 60,000 hours or more.
40-Point Touch and SkyWave 2.2 Sound
MAXHUB's Think&Ink infrared touch system supports 40 simultaneous touch points with ±1.5 mm accuracy for natural writing and group work. The SkyWave 2.2-channel system with four speakers (2 x 8 W + 2 x 18 W output, 2 x 12 W + 2 x 25 W maximum) projects clear sound across the room.
Flexible Connectivity and Fleet Management
Three HDMI inputs, DP, VGA and two USB-C ports (front up to 65 W PD) with touch-back and network sharing, plus Wi-Fi 6 and Bluetooth 5.2, connect any laptop. MAXHUB Connect handles wireless sharing, MAXHUB Class Pro provides the whiteboard and MAXHUB Pivot manages devices remotely. An OPS slot lets you add a Windows PC module.
Need help choosing? Email sales@sourceit.com.sg with your room size, platform and quantity and we will recommend the right configuration.
MAXHUB E6530 Datasheet — Technical Specifications
General
| Product Name | MAXHUB Interactive Flat Panel E3 Series E6530 |
| Part Number | E6530 |
| Series | MAXHUB E3 Series |
| Local Warranty (Singapore) | 3 years, supplied by SourceIT with a GST invoice |
Display
| Screen Size | 65" |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Panel Type | VA |
| Backlight | DLED |
| Brightness | 400 nits (typical), 450 nits (max.) |
| Contrast Ratio | 5,000:1 (typical), 50,000:1 (dynamic) |
| Refresh Rate | 60 Hz |
| Response Time | 6.5 ms |
| Colour Gamut | 98% sRGB |
| Colour Accuracy | ΔE ≤ 1 |
| Viewing Angle | 178° (H/V) |
| Display Area | 1428.48 x 803.52 mm |
| Glass | Zero parallax, 3 mm 9H tempered |
| Backlight Life | ≥ 60,000 hours |
Touch
| Technology | MAXHUB Think&Ink System (touch return), infrared recognition |
| Touch Points | 40 |
| Accuracy | ±1.5 mm |
| Response Time | ≤ 5 ms |
| Writing Height | ≤ 2 mm |
| Object Recognition | 3 mm |
Audio
| Sound System | SkyWave Sound System, 2.2 channel |
| Speaker Power | 2 x 8 W + 2 x 18 W (output); 2 x 12 W + 2 x 25 W (maximum) |
| Sound Pressure Level | 88 dB (1 W, 1 m) |
Built-in System
| Operating System | Android 14.0 (Google EDLA certified), MAXHUB EDU OS V4 |
| CPU | A72 x 4 + A53 x 8 octa-core, 2.2 GHz (8 nm) |
| GPU | Mali-G52 MC3 |
| NPU | 6 TOPS |
| RAM / Storage | 8GB / 128GB |
| Wi-Fi | Wi-Fi 6, 802.11 a/b/g/n/ac/ax, 2.4 GHz / 5 GHz |
| Bluetooth | 5.2 |
Ports
| HDMI In | 3 (up to 4K@60Hz, HDCP 1.4 / 2.2 / 2.3, CEC) |
| DP In | 1 (4K@60Hz) |
| VGA In | 1 (up to 1080p@60Hz) |
| USB Type-C | 2 (video, audio, touch, charging, LAN sharing; front up to 65 W PD, rear up to 15 W PD) |
| USB | USB 3.0 and USB 2.0 (front and rear) |
| Touch USB | 2 |
| HDMI Out | 1 (up to 4K@60Hz) |
| Audio | 1 x 3.5 mm in, 1 x 3.5 mm out, 1 x SPDIF |
| Network / Control | RJ45 in, RJ45 out (10/100/1000 Mbps), RS232 |
| Expansion | OPS slot, Wi-Fi module slot, TF card (up to 1TB) |
Power & Physical
| Power Supply | AC 100–240 V~, 50/60 Hz, 3.5 A |
| Power Consumption | 130 W typical, ≤ 0.5 W standby |
| Dimensions | 1490 x 917 x 100 mm |
| Shipping Dimensions | 1628 x 1032 x 185 mm |
| Wall-Mount Thickness | 129 mm (WIB9060H) |
| Net / Gross Weight | 37.40 kg / 46.55 kg |
| VESA | No (MAXHUB wall-mount bracket included) |
| Wall-Hanging Screw | M4 x 8 mm |
| Operating Temperature | 0–40 °C |
| Dust Resistance | IP5X |
Certifications
| Platform | Google EDLA |
| Eye Care | TÜV Flicker Free, TÜV Low Blue Light |
| Energy | Energy Star |
Compatibility & Software Support
Built-in Software
MAXHUB EDU OS V4 with MAXHUB Class Pro whiteboard, Browser, Cloud Drive, Note and Palette, plus Google Play, Google Drive, Google Meet, Google Maps and YouTube via Google EDLA certification.
Screen Sharing & BYOD
MAXHUB Connect wireless screen sharing; HDMI, DP, VGA and USB-C wired connection, with USB-C touch-back, charging and LAN sharing.
Management & Expansion
MAXHUB Pivot device management; RS232 control. Optional MAXHUB accessories on the datasheet include the OPS62A / OPS72A Windows PC modules, UC W31 USB camera, UC S07 video bar, WL10C sensor box and ST33M / ST23G / EST09 mobile stands. The E3 panel has no built-in camera or microphones.
Package Contents & E3 Series Ordering Information
In the Box
Per MAXHUB's E3 Series datasheet: 3 m power cord, 3 m HDMI cable, remote control, 2 x styluses, 2 x display brackets, WIB9060H wall-mount bracket and SI07B Wi-Fi module. Mobile stands are sold separately — see the ST33M mobile trolley and EST09 motorised stand.
E3 Series Models
| Model | Size | Windows i5 bundle | Windows i7 bundle |
| E6530 (this listing) | 65" | E6530 + Windows i5 | E6530 + Windows i7 |
| E7530 | 75" | E7530 + Windows i5 | E7530 + Windows i7 |
| E8630 | 86" | E8630 + Windows i5 | E8630 + Windows i7 |
Datasheet & Downloads
| MAXHUB E3 Series datasheet | E3 Series Datasheet V1.2 (PDF) |
| MAXHUB product page | E3 Series on maxhub.com |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting E6530.
Frequently Asked Questions — MAXHUB E6530
Is a Windows PC included?
No. The E6530 runs Google EDLA-certified Android 14 on its own. It has an OPS slot for an optional MAXHUB Windows PC module — see the Windows bundle listings in the table above.
Does it have a built-in camera or microphones?
No. MAXHUB lists the UC W31 USB camera and UC S07 video bar as optional add-ons for video calls.
Can I use Google apps?
Yes. The E3 Series is Google EDLA certified, with Google Play, Google Drive, Google Meet and YouTube.
How do I connect a laptop?
Via 3 x HDMI, DP, VGA or USB-C (front USB-C up to 65 W charging), or wirelessly with MAXHUB Connect.
Does it include a wall mount?
Yes. The WIB9060H wall-mount bracket is in the box; the panel does not use a VESA pattern. Mobile stands are sold separately, and we can quote delivery and installation.
What warranty do I get?
3 years local warranty in Singapore, supplied by SourceIT with a GST invoice.
