Logitech TV Mount for Video Bars
PRODUCT DESCRIPTION
Logitech TV Mount for Video Bars (952-000041) - 2 Years Local Warranty
Logitech TV Mount for Video Bars — Float Your Rally Bar Above or Below the Display
The Logitech TV Mount for Video Bars (952-000041) attaches a Rally video bar directly to the display rather than the wall, giving a clean, finished installation on wall-mounted and cart-mounted screens up to 98 inches (247.92 cm) diagonal with VESA mounting points. It works with Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Camera, so one mount type can be standardised across a whole floor of meeting rooms.

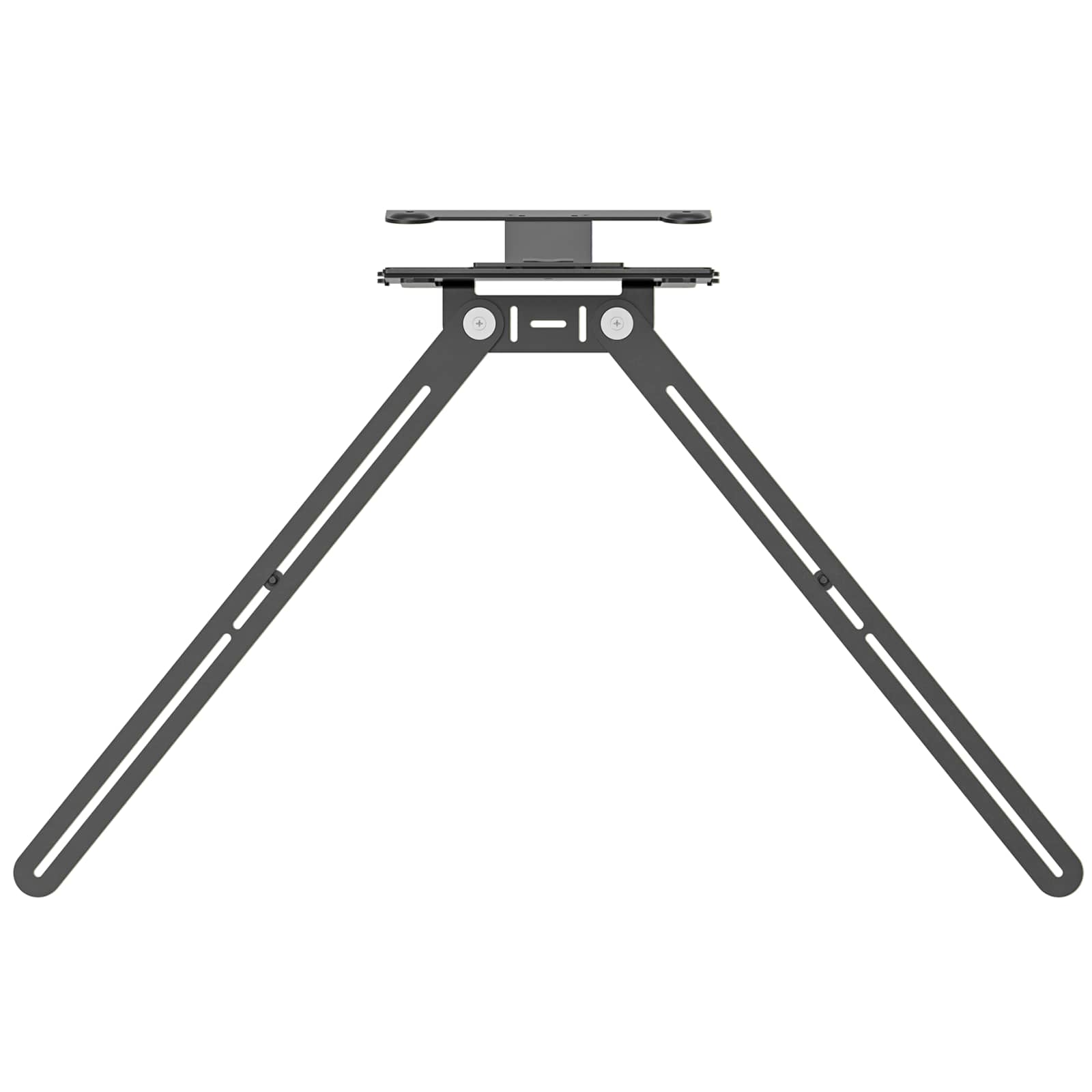

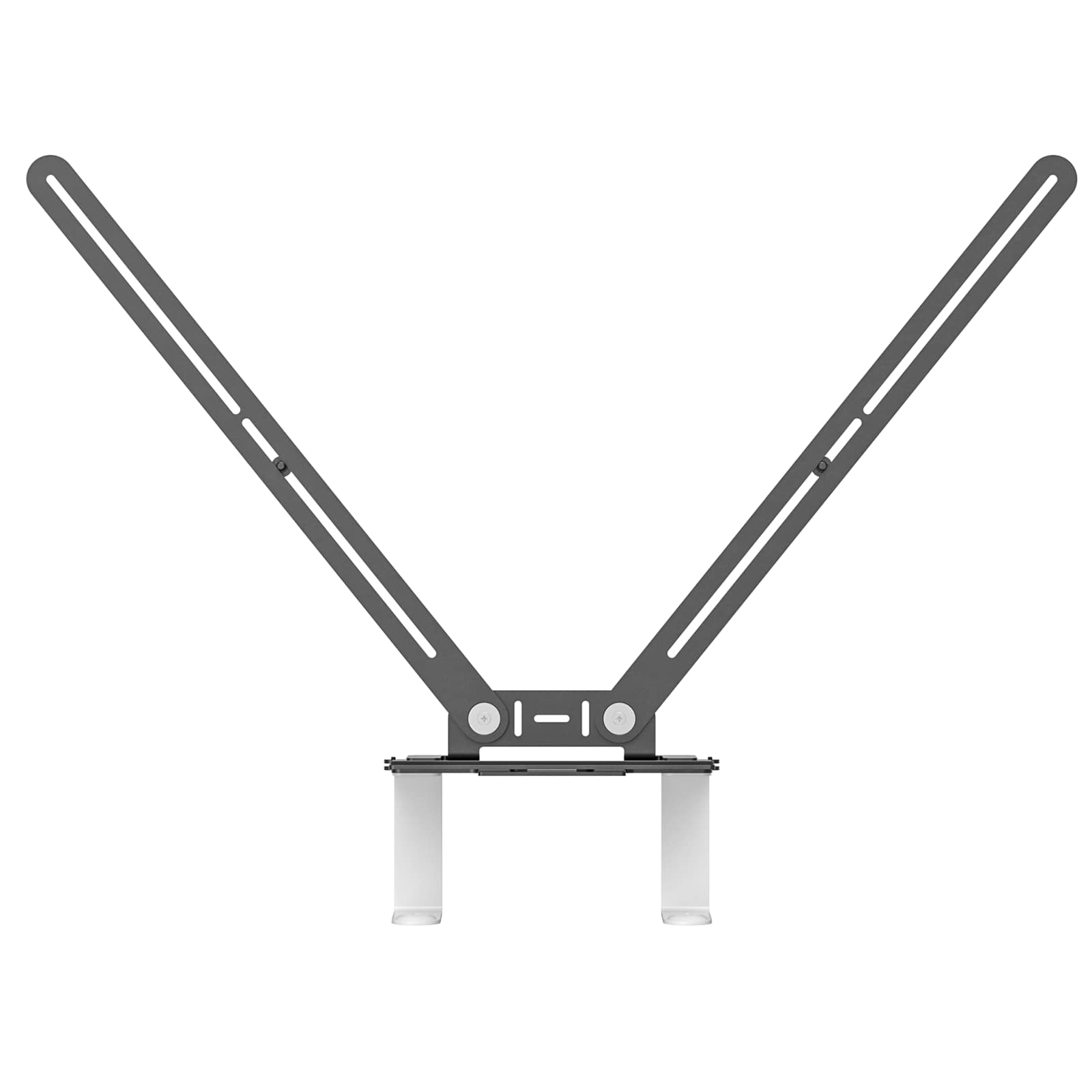

Swing-Arm Design That Fits Most Displays
A versatile swing-arm design with a maximum arm length of 900 mm reaches across the VESA pattern of most commercial displays. Mounting depth adjusts by up to 50 mm to suit a wide range of display thicknesses, with flexible and flush mounting depths and thoughtful cable routing that keeps the installation tidy.
10° Tilt-Down Adapter and Built-In Level Adjustment
For above-display installations, the 10° tilt-down adapter angles the camera down towards the table for a better room-wide view. Built-in angle adjustment lets installers level the video bar precisely against the display edge.
Logitech TV Mount for Video Bars Datasheet — Technical Specifications
General
| Part Number | 952-000041 |
| Product series | Logitech Rally accessories — video bar mounting |
| Compatibility | Rally Bar, Rally Bar Mini, Rally Bar Huddle, Rally Camera |
| Warranty | 2 Years Local Warranty (Singapore) |
Mounting
| Display size | Wall- and cart-mounted displays up to 98 in (247.92 cm) diagonal |
| Display requirement | VESA-compatible mounting points |
| Swing-arm length (max.) | 900 mm |
| Depth adjustment | Up to 50 mm, to suit different display thicknesses |
| Tilt | 10° tilt-down adapter for above-display installation |
| Levelling | Built-in angle adjustment |
Compatibility & Installation Notes

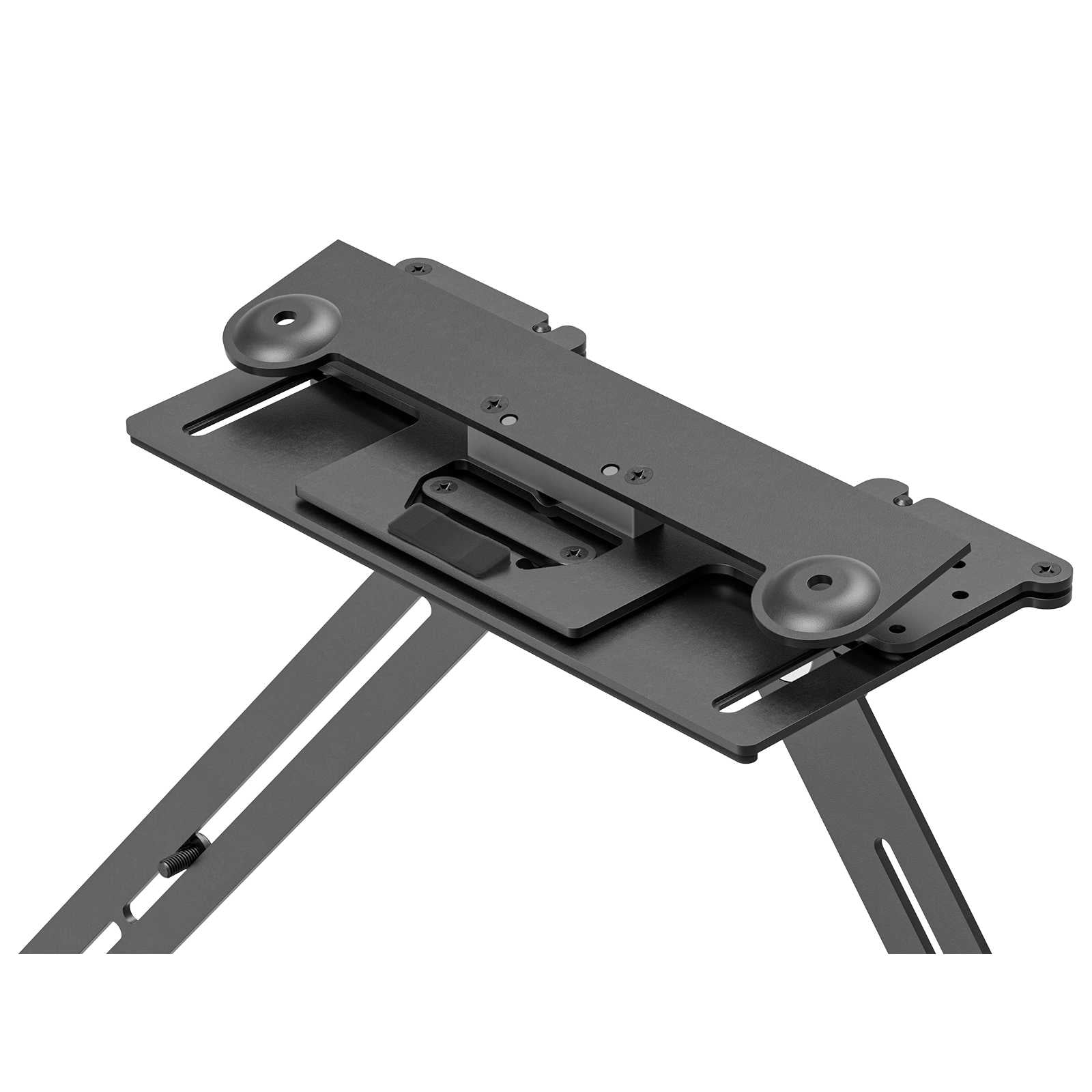

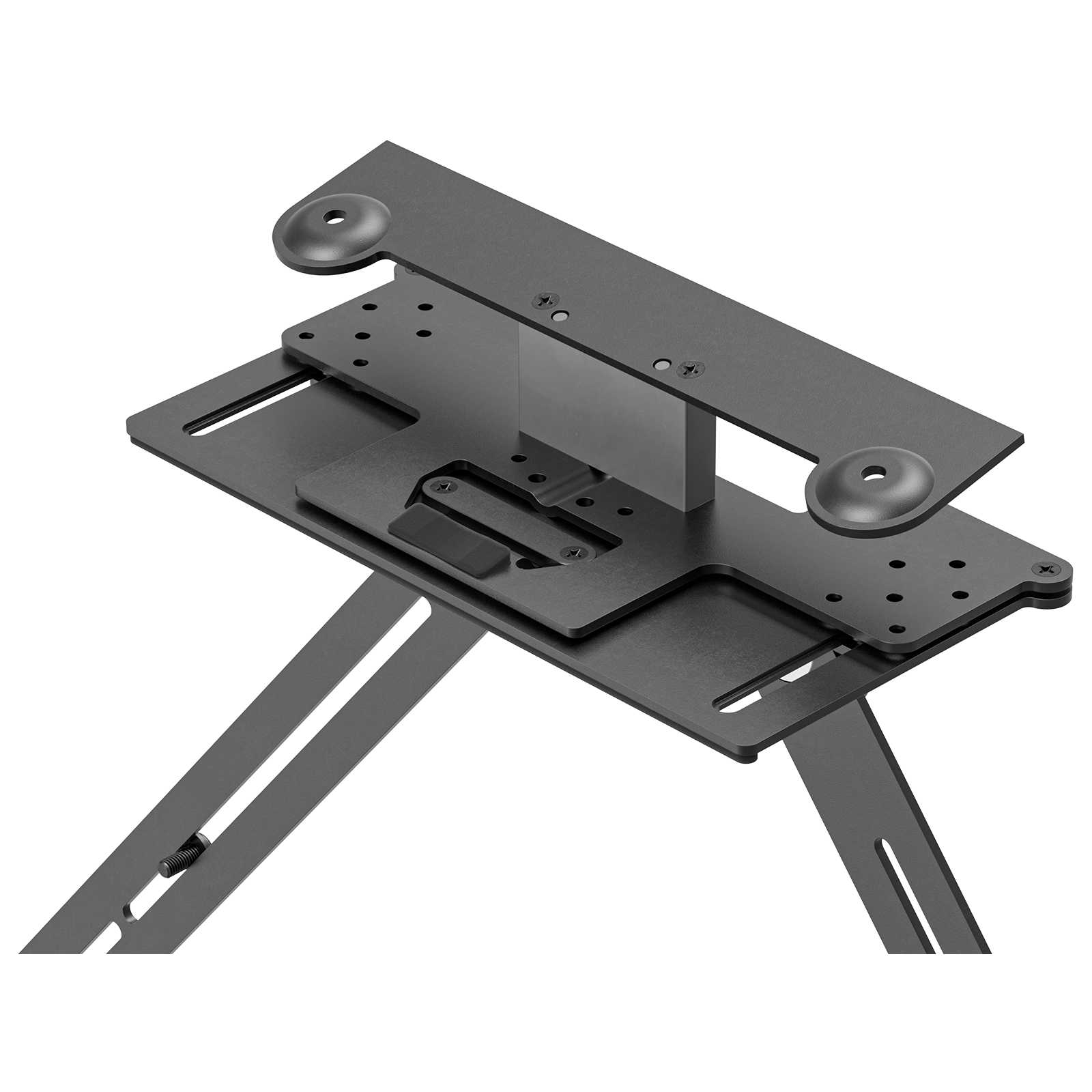

The TV Mount for Video Bars ships with two mounting plates: one for Rally Bar, and one for Rally Bar Mini and Rally Bar Huddle. It also supports the Rally Camera. The display must have VESA mounting points; the mount fixes to the display, so no additional wall drilling is required.
If the video bar is to be fixed to the wall below or above a display instead, choose the Logitech Wall Mount for Video Bars (952-000044). For Rally Bar Huddle on displays up to 65 inches, Logitech also offers the TV Mount Adapter Kit for Rally Bar Huddle (952-000248), which works with the Multi Mount supplied with Rally Bar Huddle.
Package Contents & Rally Mounting Ordering Information
In the box: VESA-compatible TV Mount, mounting plate for Rally Bar, mounting plate for Rally Bar Mini and Rally Bar Huddle, fasteners and mounting hardware.
Logitech Rally mounting accessories at SourceIT:
| Model | Part Number |
| Logitech TV Mount for Video Bars (this listing) | 952-000041 |
| Logitech Wall Mount for Video Bars | 952-000044 |
| Logitech TV Mount Adapter Kit for Rally Bar Huddle | 952-000248 |
| Logitech Rally Mounting Kit | 939-001644 |
| Logitech Rally Bar Graphite | 960-001312 |
| Logitech Rally Bar Mini Graphite | 960-001340 |
| Logitech Rally Bar Huddle Graphite | 960-001577 |
Datasheet & Downloads
Frequently Asked Questions — Logitech TV Mount for Video Bars
Which Logitech devices does the TV Mount support?
Rally Bar, Rally Bar Mini, Rally Bar Huddle and Rally Camera. Mounting plates for Rally Bar and for Rally Bar Mini / Rally Bar Huddle are both included in the box.
What is the largest display it can be used with?
Wall- or cart-mounted displays up to 98 inches (247.92 cm) diagonal, provided the display has VESA mounting points.
Can the video bar go below the display instead of above it?
Yes. The swing-arm design lets the video bar float above or below the TV or monitor. When mounting above, use the included 10° tilt-down adapter for a better view of the table.
Will it fit a thick commercial display?
Mounting depth adjusts by up to 50 mm to accommodate a wide range of display thicknesses.
Does it come with a local warranty?
Yes. Every Logitech TV Mount for Video Bars sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
