Logitech Rally Camera Streamline Kit USB PTZ Camera Solution
Email sales@sourceit.com.sg or use Request for Quotation below and our team will confirm the latest price, availability and lead time.
PRODUCT DESCRIPTION
Logitech Rally Camera Streamline Kit (991-000553) - 2 Years Local Warranty
Logitech Rally Camera Streamline Kit — USB PTZ Video Solution for HyFlex Classrooms and Large Spaces
The Logitech Rally Camera Streamline Kit (991-000553) packages a Rally Camera with everything needed to place it far from the lectern or AV rack: the Rally Camera Extension Kit, a wall mount, a 1.5 in NPT adapter for inverted pipe mounting and three wireless Preset Buttons. It is built for HyFlex teaching, lecture capture and presentations in large rooms, where the presenter should be able to switch camera views without walking back to a computer.
One Category Cable, Up to 100 Metres

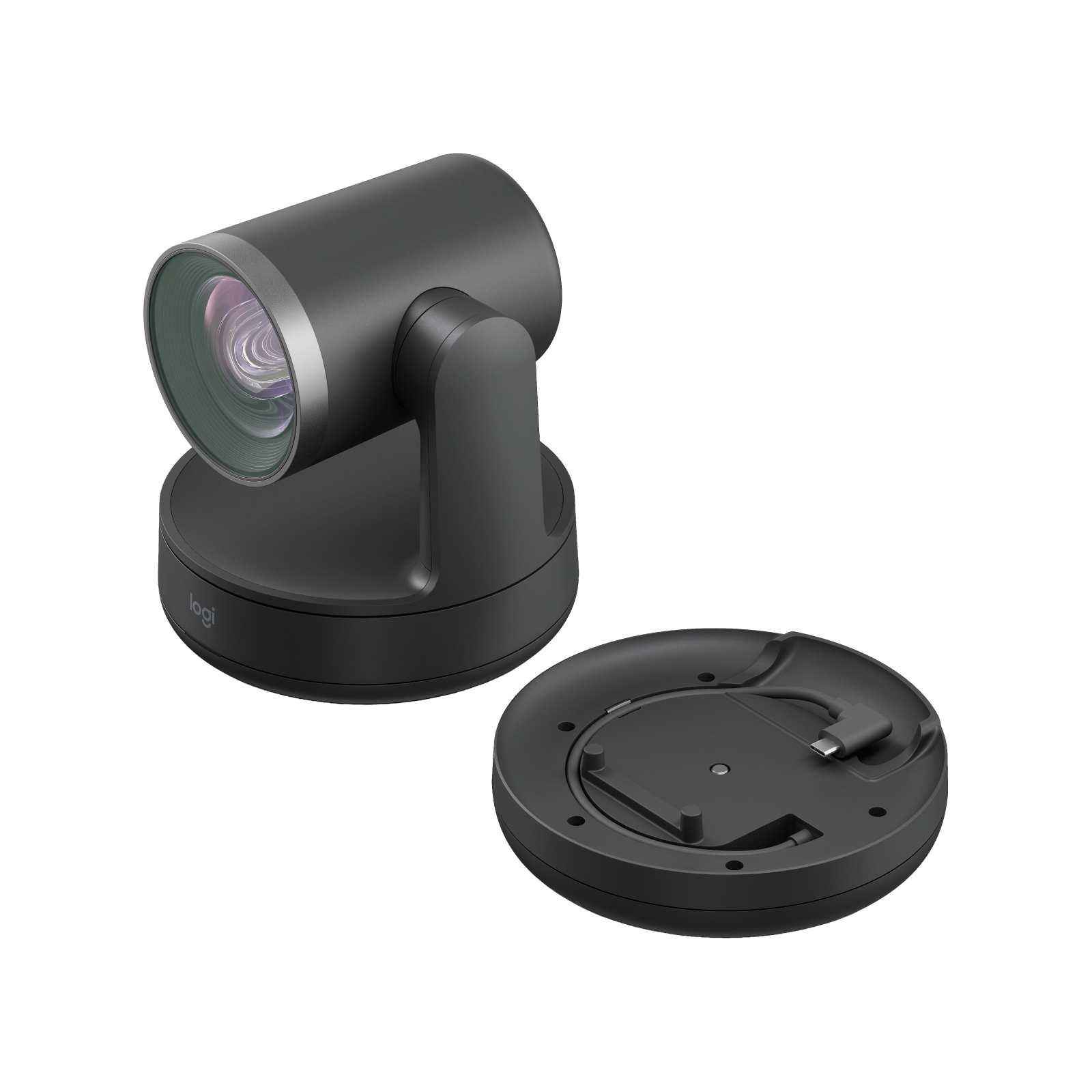

The included Extension Kit splits the connection into a camera side base and a control side box joined by a single Cat5e-or-better category cable of up to 100 m. The camera is powered and connected over that one run, so it can sit at the back of a lecture theatre or high on a wall while the USB connection stays at the AV equipment.
Wireless Preset Buttons for Hands-Free Camera Views

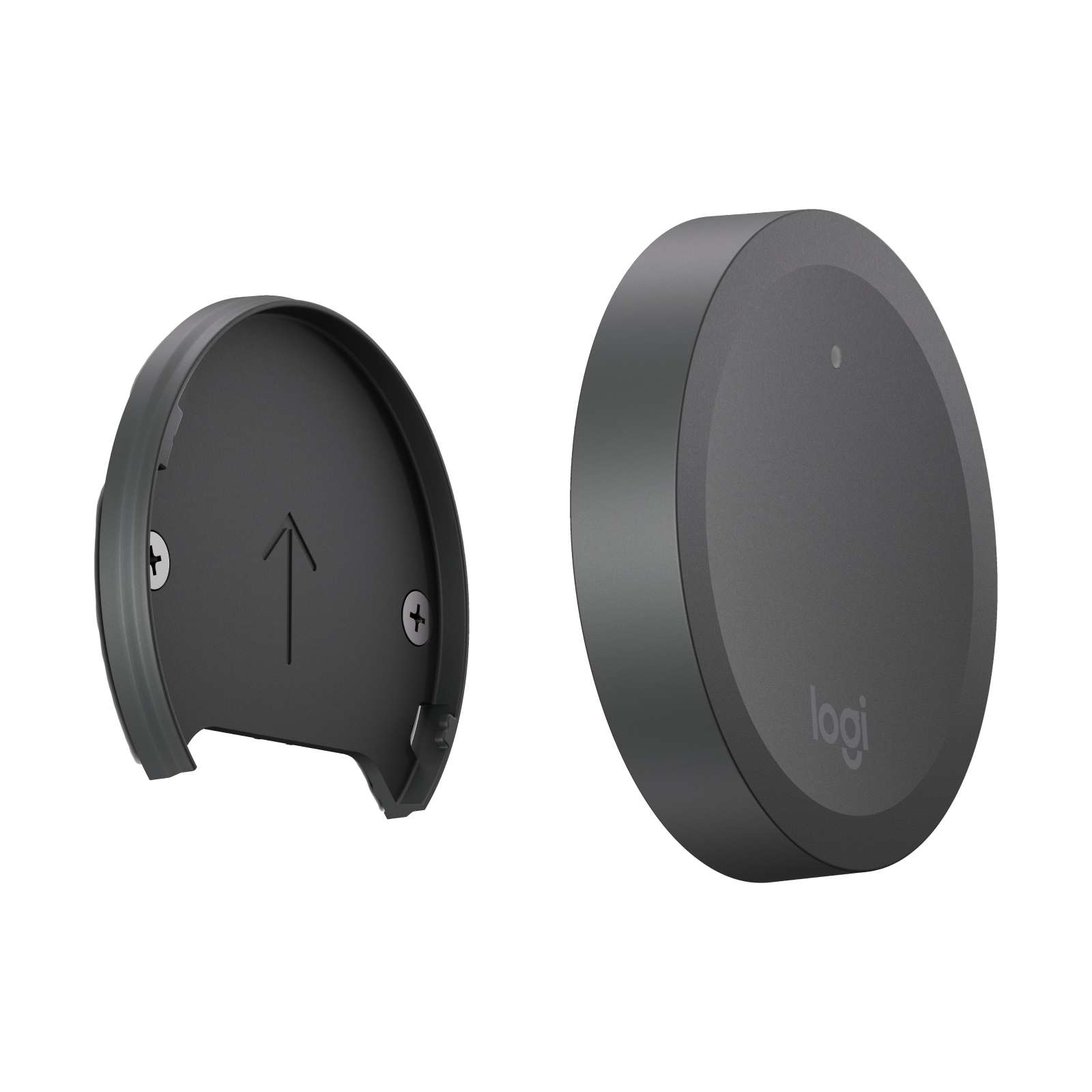

Three Bluetooth Low Energy Preset Buttons come in the box, each with its own mount. Place them where the presenter naturally stands — at the whiteboard, the lectern or a demonstration bench — and one press moves the camera to a saved pan, tilt and zoom position. Rally Camera supports up to five Preset Buttons in addition to the three presets on the included remote control.
Motorised PTZ with 15X HD Lossless Zoom
Rally Camera pans ±90° and tilts +50° / -90° with 15X HD lossless zoom and a 90° diagonal field of view, delivering 1080p, 900p, 720p and SD at 30 fps over the extended USB link. Because the kit is USB-based, it works with the popular video collaboration and lecture capture platforms on Windows and macOS.
Logitech Rally Camera Streamline Kit Datasheet — Technical Specifications
General
| Part Number | 991-000553 |
| Product series | Logitech Rally Camera Streamline Kit (Rally Camera with Extension Kit, mounts and Preset Buttons) |
| Compatibility | Windows 10 and higher; macOS (two most recent versions); USB 2.0 compatible devices |
| Warranty | 2 Years Local Warranty (Singapore) |
Camera
| Resolution | 1080p, 900p, 720p and SD at 30 fps |
| Pan / tilt | Motorised, ±90° pan and +50° / -90° tilt |
| Zoom | 15X HD lossless zoom |
| Field of view | 90° diagonal |
| Dimensions (H x W x D) | 182.5 x 152 x 152 mm |
| Weight | 1.52 kg |
Extension & Connectivity
| Category cable | Cat5e or better, up to 7.4 mm diameter, up to 100 m |

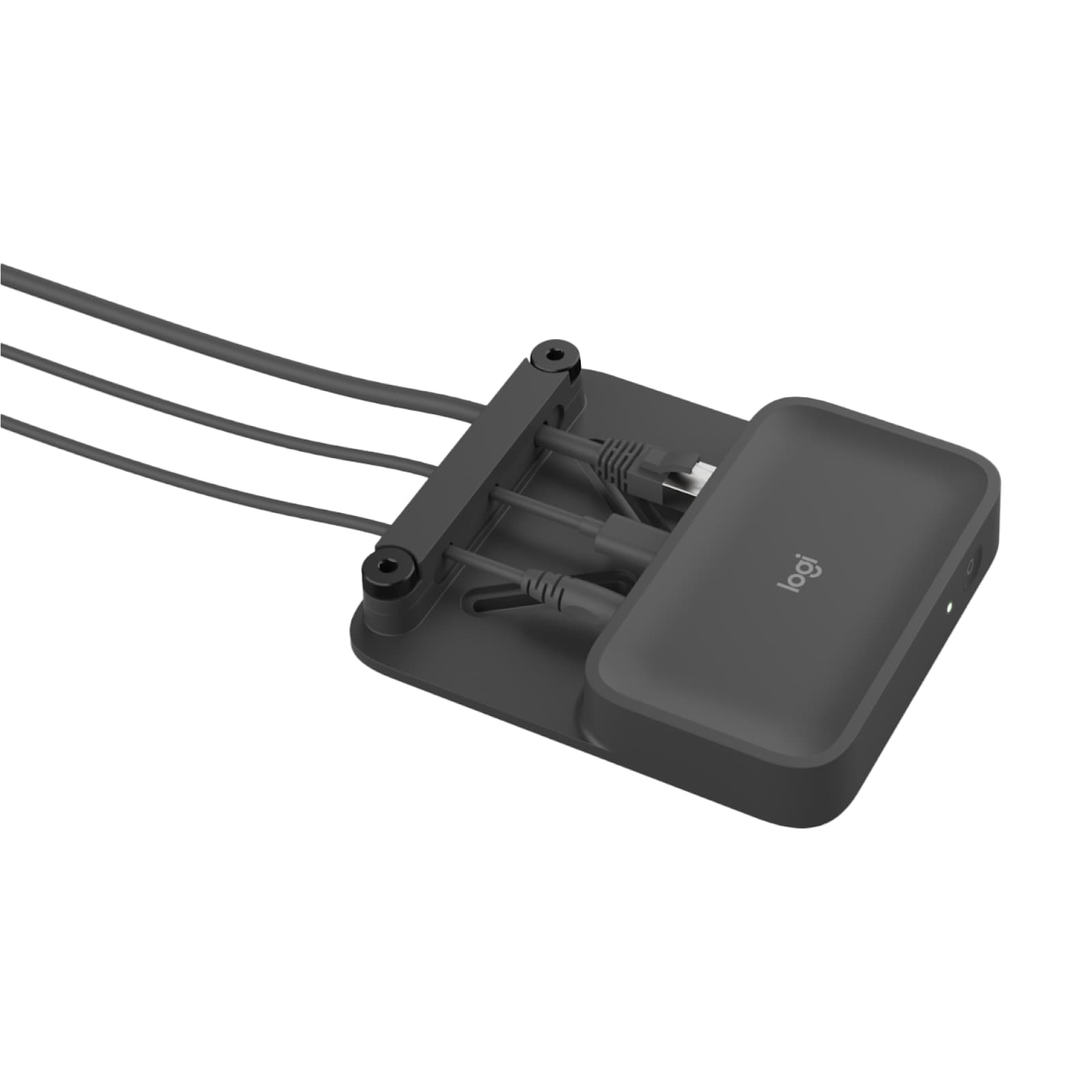

| Control side box | RJ45, USB-C and DC power connections, with mounting slots |
| Preset Buttons | Bluetooth Low Energy, powered by 2 x CR2032 batteries |
| Preset Button capacity | Up to 5 Preset Buttons per Rally Camera, plus 3 presets on the remote control |
Power & Cables
| Power supply | 100–240 V in, 48 V / 1.0 A out |
| USB-C to USB-C cable | 2 m |
| DC cable | 1.5 m |
Compatibility & Installation Options
The Streamline Kit connects to a laptop, room PC or lecture capture system over USB, so it works with Microsoft Teams, Zoom, Google Meet and other USB-based video and lecture capture platforms on Windows 10 and higher or the two most recent macOS versions.

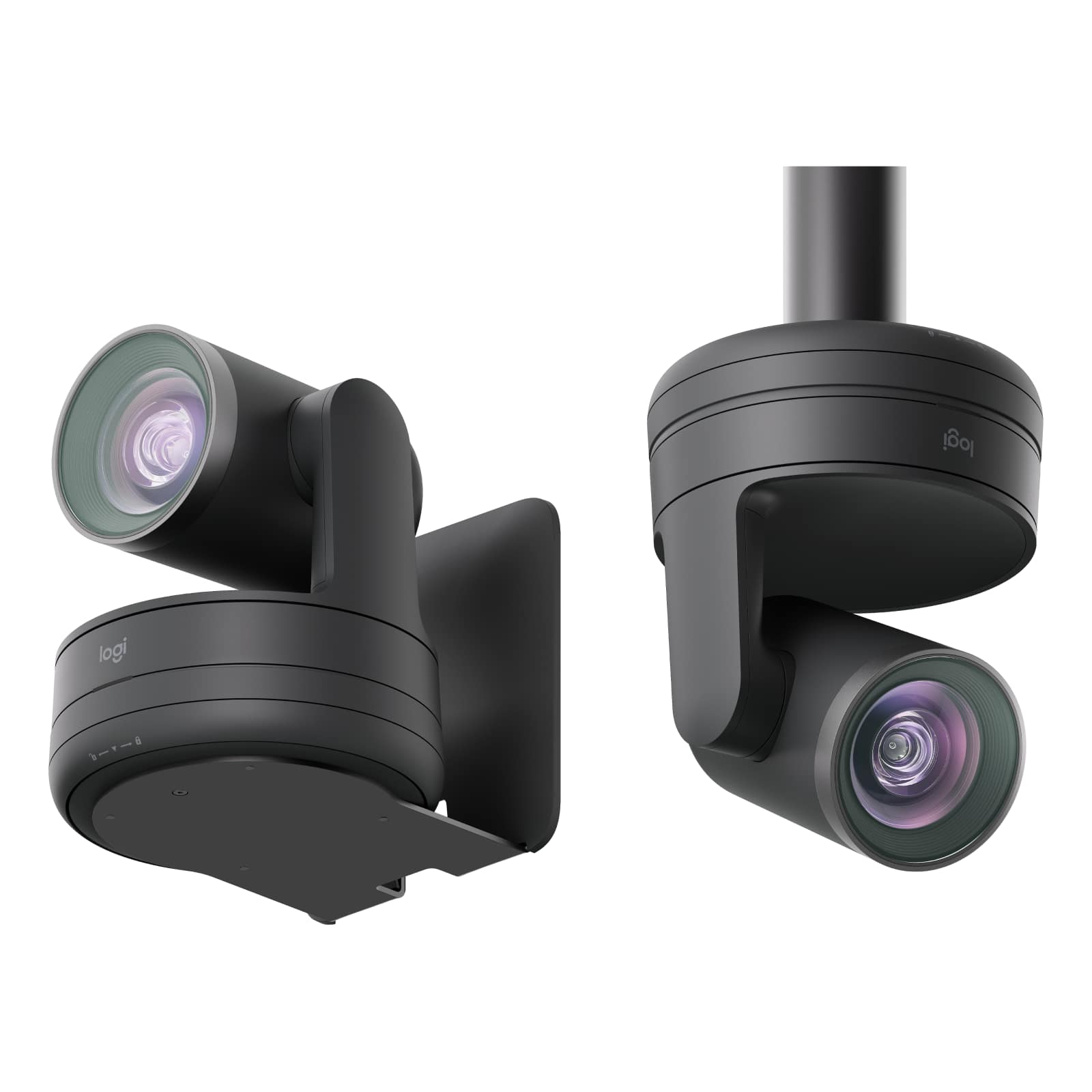

Mounting options in the box cover the common teaching-space installations: the wall mount for walls, blackboards and whiteboards, the 1.5 in NPT adapter for inverted mounting on standard 1.5 in NPT pipe, and a ⅝-27 to ¼-20 threaded adapter for tripods. The control side box can be fixed out of sight using its mounting slots.
Package Contents & Rally Camera Streamline Kit Ordering Information

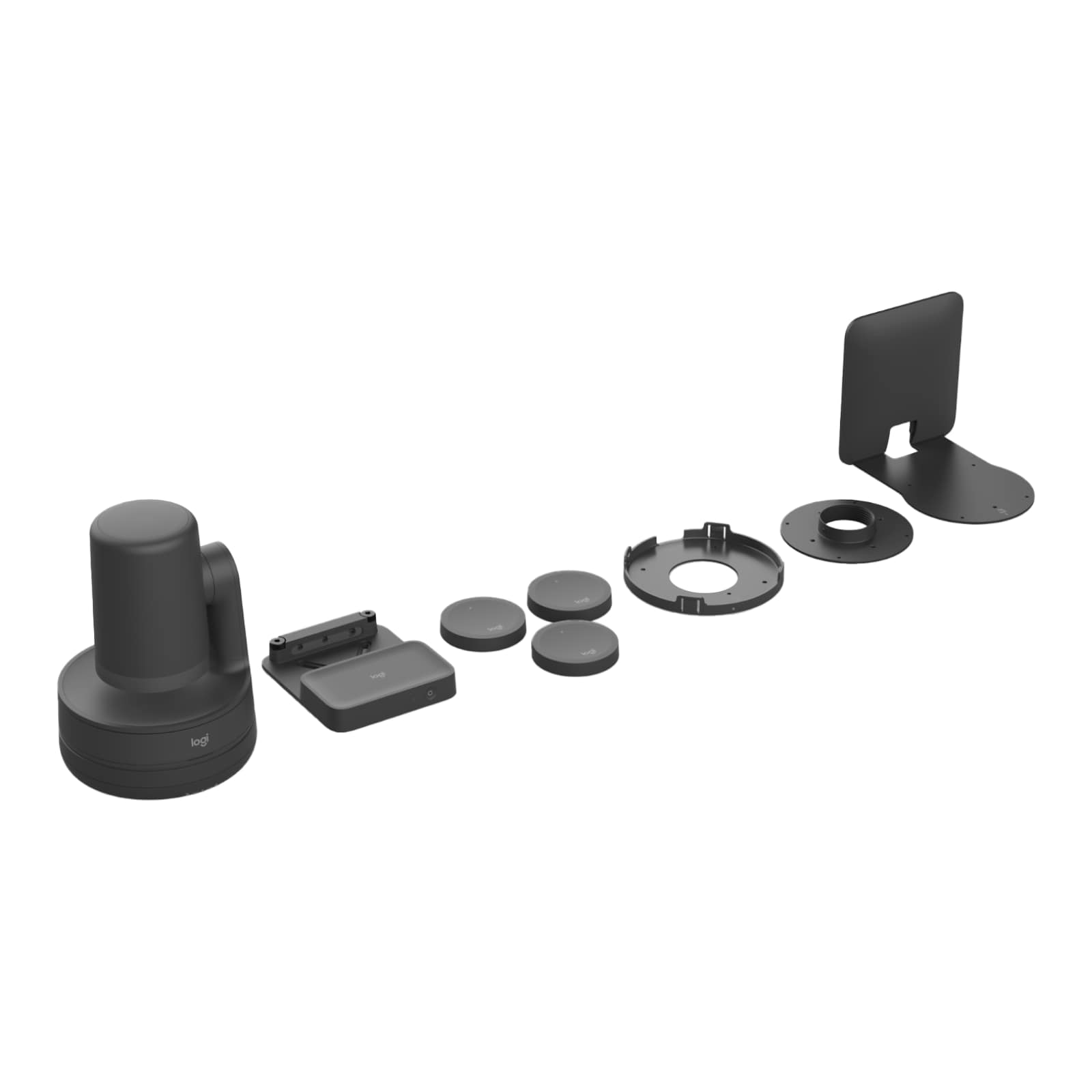

In the box: Rally Camera, remote control with CR2032 battery, camera side base, control side box, twist-to-lock mounting plate, power adapter with regional plugs, USB-C cables with USB-A adapter, ⅝-27 to ¼-20 threaded adapter, wall mount with cover and hardware, NPT adapter mount with hardware, and 3 x Preset Buttons with mounts and pre-installed CR2032 batteries.
Rally Camera Streamline Kit components and add-ons:
| Model | Part Number |
| Logitech Rally Camera Streamline Kit (this listing) | 991-000553 |
| Logitech Rally Camera | 960-001226 |
| Logitech Rally Camera Extension Kit | 952-000217 |
| Logitech Wall Mount for Rally Camera Extension Kit | 952-000223 |
| Logitech 1.5 in NPT Adapter for Rally Camera Extension Kit | 952-000220 |
| Logitech Rally Camera Preset Button | 952-000226 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Rally Camera Streamline Kit
What is the Streamline Kit designed for?
HyFlex learning, lecture capture and presentations in large spaces. Presenters switch between saved camera views with wireless Preset Buttons, while the camera can be installed up to 100 m from the USB-based AV equipment.
How far can the camera be from the computer?
Up to 100 m, using a single Cat5e or better category cable (up to 7.4 mm diameter) between the camera side base and the control side box.
Can I add more Preset Buttons?
Yes. Three are included and Rally Camera supports up to five Preset Buttons, in addition to the three presets on the remote control. Extra buttons are available as the Logitech Rally Camera Preset Button (952-000226).
Which platforms does it work with?
It is a USB solution, so it works with Microsoft Teams, Zoom, Google Meet and other USB-based video and lecture capture applications on Windows 10 and higher or the two most recent macOS versions.
What mounting options are included?
A wall mount with cover, a 1.5 in NPT adapter for inverted pipe mounting and a ⅝-27 to ¼-20 threaded adapter for tripods are all in the box.
Does it come with a local warranty?
Yes. Every Logitech Rally Camera Streamline Kit sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
