Logitech Rally Camera Extension Kit
PRODUCT DESCRIPTION
Logitech Rally Camera Extension Kit (952-000217) - 2 Years Local Warranty
Logitech Rally Camera Extension Kit — Place Rally Camera Up to 100 Metres Away on One Category Cable
The Logitech Rally Camera Extension Kit (952-000217) lets you position a Rally Camera virtually anywhere in the room using a single Cat5e-or-better category cable of up to 100 m, cut to the length the installation needs. The camera side base carries the camera, while the control side box sits at the computer or AV rack and provides the USB-C connection.
Clean Cabling and Flexible Multi-Camera Setups
The camera base cable routes neatly and an integrated screw secures Rally Camera to the twist-to-lock mount. With the camera free of the USB length limit, it becomes simple to add a second or third view — such as a presenter camera at the back of a lecture theatre — in Microsoft Teams, Zoom, Google Meet and other USB-based deployments.
Logitech Rally Camera Extension Kit Datasheet — Technical Specifications
General
| Part Number | 952-000217 |
| Product series | Logitech Rally Camera accessories |
| Compatibility | Requires Logitech Rally Camera; Windows 10 and higher, macOS (two most recent versions), USB 2.0 compatible devices |
| Category cable | Cat5e or better, up to 7.4 mm diameter, up to 100 m |
| Warranty | 2 Years Local Warranty (Singapore) |
Ports & Mounting
| Camera side base | Integrated USB-C cable, RJ45 to control side box, LED indicator |
| Control side box (front) | Reboot button, LED indicator |
| Control side box (rear) | USB-C, RJ45, DC power, cable retention, mounting slots |
| Mounting | VESA 75 x 75 mm, tripod ⅝-27 and ¼-20, twist-to-lock |
Power & Cables
| Power supply | 100–240 V in, 48 V / 1.0 A out |
| DC cable | 1.5 m |
| USB-C to USB-C cable | 2 m, with 37 mm USB-C to USB-A adapter |
Dimensions & Weight
| Camera side base | 153.3 mm diameter x 31.5 mm high, 255.8 g |
| Control side box | 134.7 x 117.2 x 22.8 mm, 137.5 g |
| Twist-to-lock mount plate | 137.6 mm diameter x 18.6 mm high, 42.1 g |
Compatibility & Installation Notes
The Extension Kit is designed for the Logitech Rally Camera and connects to the host over USB, so it suits USB-based rooms running Microsoft Teams, Zoom, Google Meet and other platforms on Windows 10 and higher or the two most recent macOS versions.
For wall installations add the Logitech Wall Mount for Rally Camera Extension Kit (952-000223); for inverted mounting on standard pipe add the 1.5 in NPT Adapter (952-000220). The Rally AI Camera and Rally AI Camera Pro use a different accessory, the Rally AI Cameras Extension Kit (952-000332).
Package Contents & Rally Camera Extension Ordering Information

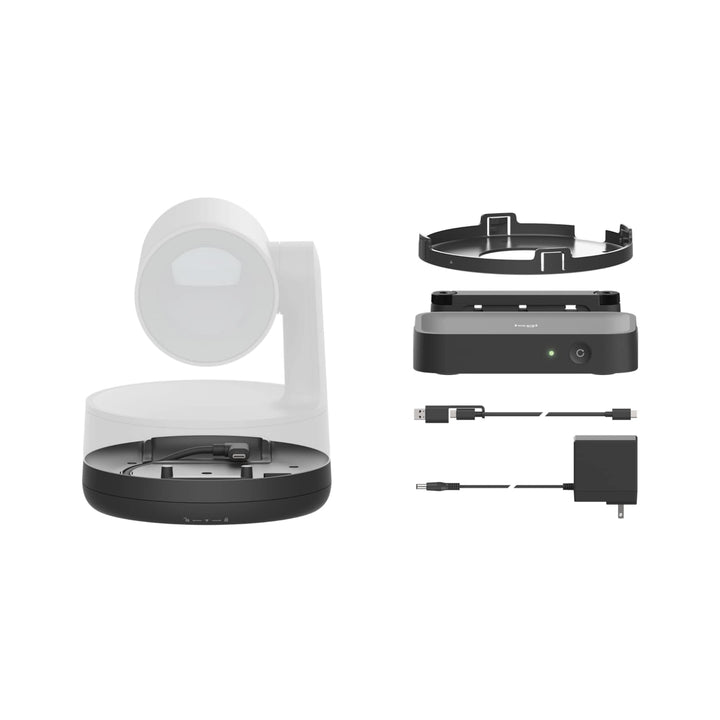

In the box: camera side base, control side box, twist-to-lock mounting plate, power adapter with regional plugs, USB-C to USB-C cable with USB-C to USB-A adapter (2 m) and ⅝-27 to ¼-20 threaded adapter. The category cable is not included, so it can be cut to the length the room needs.
Rally Camera Streamline Kit components and add-ons:
| Model | Part Number |
| Logitech Rally Camera Streamline Kit | 991-000553 |
| Logitech Rally Camera | 960-001226 |
| Logitech Rally Camera Extension Kit (this listing) | 952-000217 |
| Logitech Wall Mount for Rally Camera Extension Kit | 952-000223 |
| Logitech 1.5 in NPT Adapter for Rally Camera Extension Kit | 952-000220 |
| Logitech Rally Camera Preset Button | 952-000226 |
Datasheet & Downloads
Frequently Asked Questions — Logitech Rally Camera Extension Kit
Which cameras does it work with?
The Rally Camera Extension Kit requires the Logitech Rally Camera. For the Rally AI Camera or Rally AI Camera Pro, use the Rally AI Cameras Extension Kit (952-000332).
What cable do I need and how long can it be?
A Cat5e or better category cable, up to 7.4 mm in diameter and up to 100 m long. The cable is not included.
Does the camera need a power outlet at its location?
No. The power adapter connects at the control side box, and the camera is powered and connected over the single category cable.
Is the Extension Kit included in the Streamline Kit?
Yes. The Logitech Rally Camera Streamline Kit (991-000553) includes Rally Camera, this Extension Kit, a wall mount, an NPT adapter and three Preset Buttons.
Does it come with a local warranty?
Yes. Every Logitech Rally Camera Extension Kit sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
