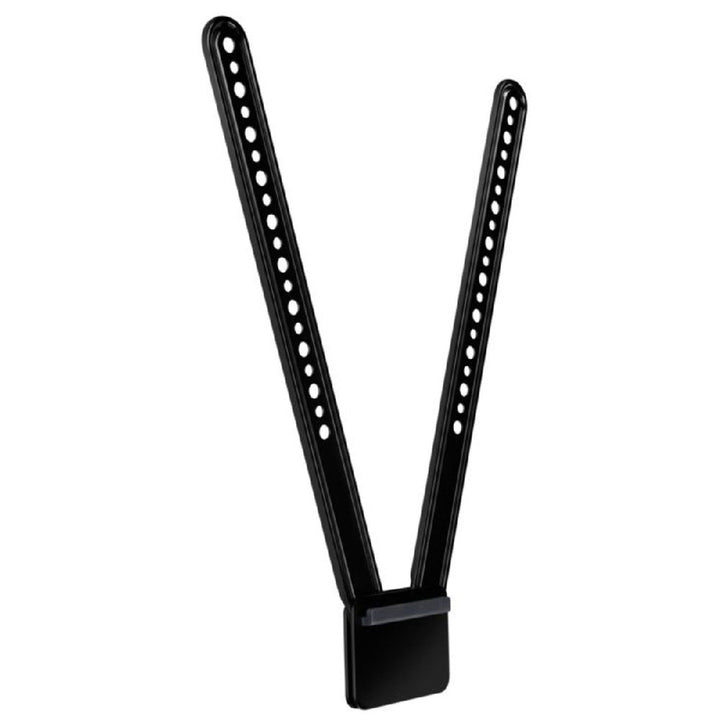

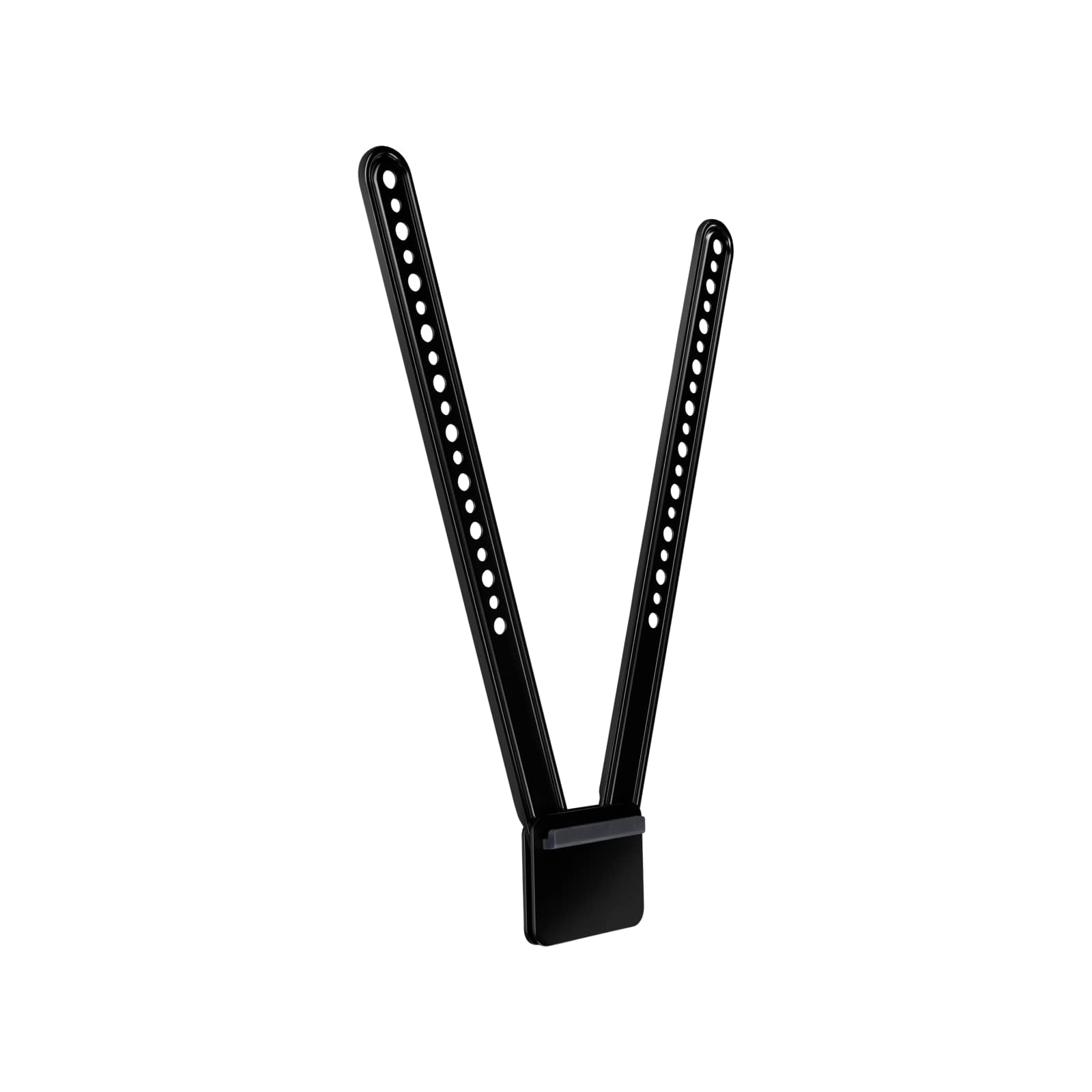

Logitech TV Mount XL for MeetUp and MeetUp 2
PRODUCT DESCRIPTION
Logitech TV Mount XL for MeetUp and MeetUp 2 (939-001656) - 2 Years Local Warranty
Logitech TV Mount XL for MeetUp — Mount the Camera Directly to the Display

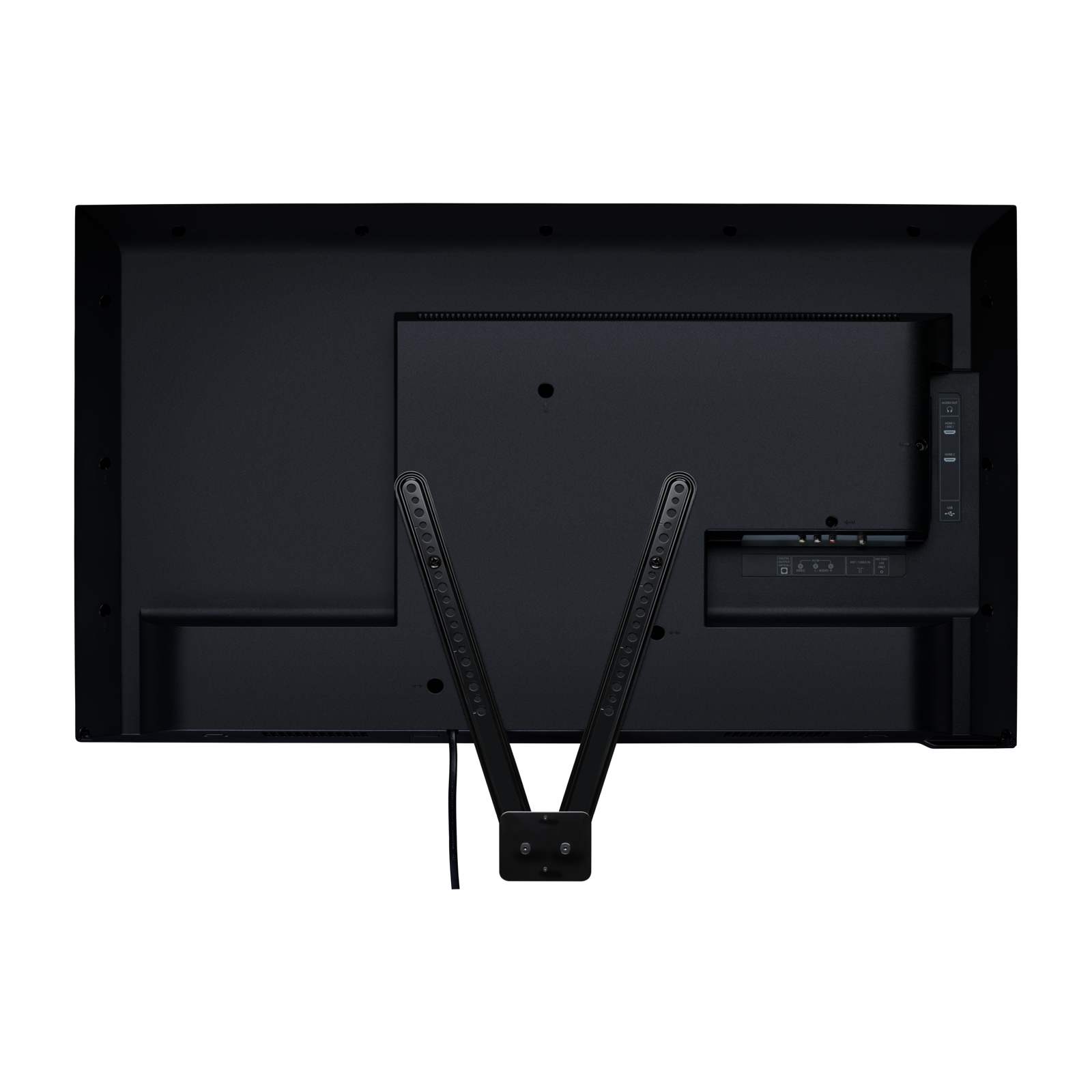

The Logitech TV Mount XL for MeetUp (939-001656) attaches the Logitech MeetUp ConferenceCam or Logitech MeetUp 2 directly to the back of your flat-panel display, mounted above or below the screen. The XL version is built for large-format displays of up to 90 inches, with a longer 700 mm bracket for the bigger VESA patterns used on large meeting-room screens.
Swing-Arm Design with Multiple VESA Mounting Holes
A swing-arm design and multiple mounting holes in a VESA-standard pattern, alternating 8 mm and 6 mm holes, fit almost any flat-panel monitor. For displays up to 55 inches, the shorter Logitech TV Mount for MeetUp is available.
Logitech TV Mount XL for MeetUp Datasheet — Technical Specifications
General
| Part Number | 939-001656 |
| Product series | Logitech MeetUp accessories |
| Compatibility | Logitech MeetUp ConferenceCam and Logitech MeetUp 2 |
| Maximum display size | Up to 90 in |
| Warranty | 2 Years Local Warranty (Singapore) |
Mounting
| Mounting pattern | VESA standard with alternating 8 mm and 6 mm holes |

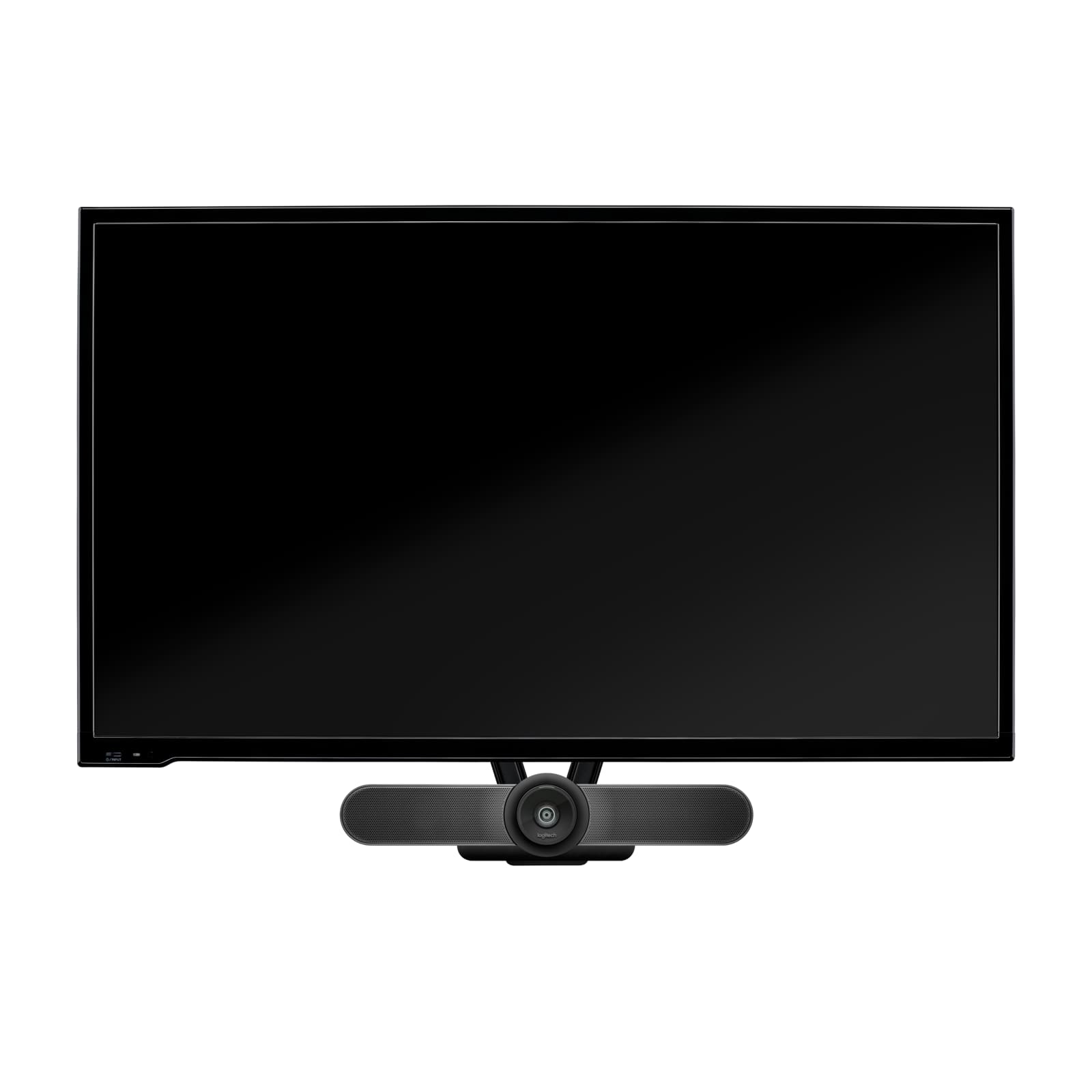

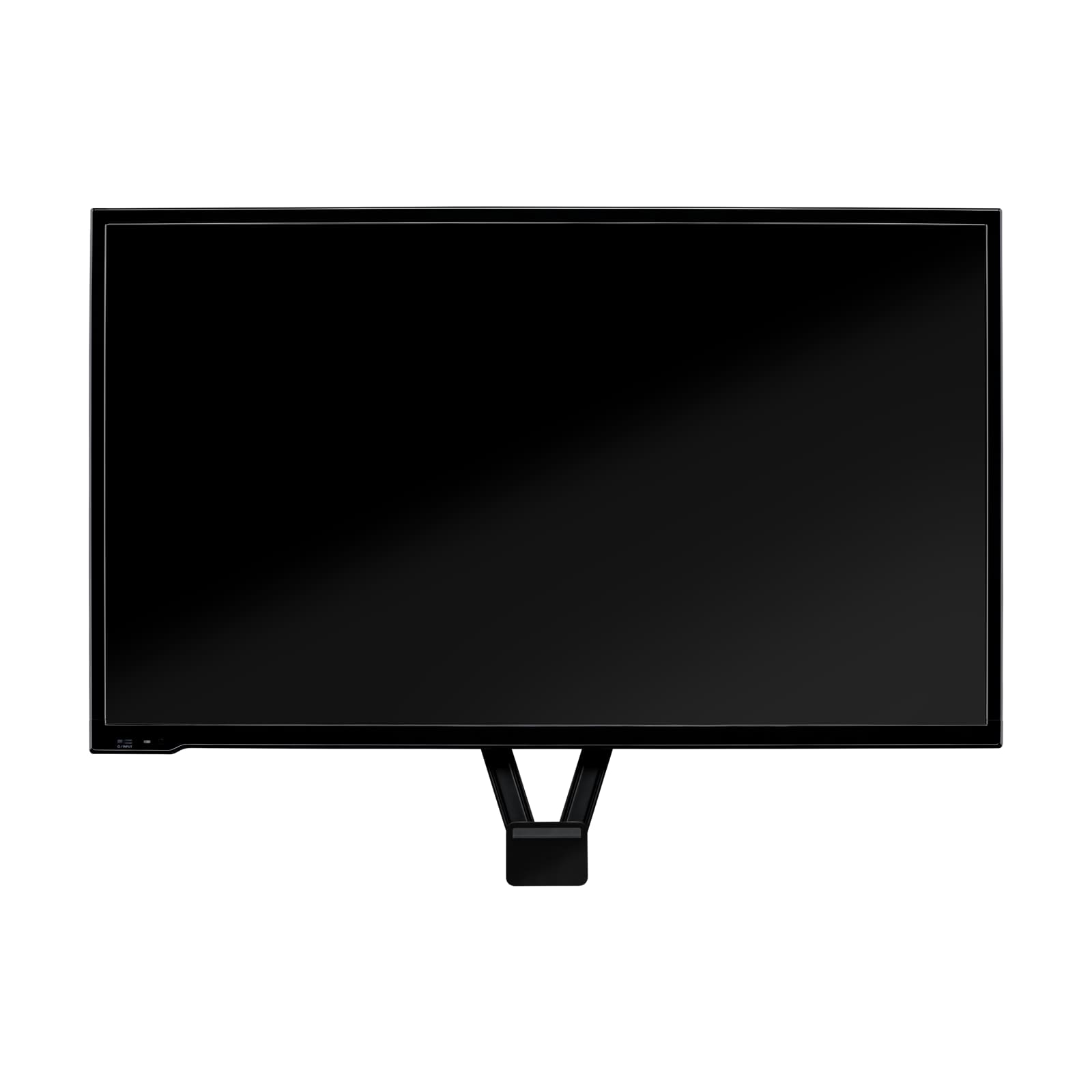

| Positions | Above or below the display |
| Design | Swing arm |
Dimensions
| Width x Height x Depth | 83 x 700 x 16 mm |
| Weight | 825 g |
Compatibility & Installation
The TV Mount XL for MeetUp is designed for the Logitech MeetUp ConferenceCam. Logitech also confirms that Logitech MeetUp 2 is compatible with the original MeetUp TV and wall mounts, and recommends a TV mount for mounting MeetUp 2 above a display.
For the best experience mount the camera as close to eye level as possible; in smaller rooms, mounting below the display typically gives the best results.
Package Contents & MeetUp Accessory Ordering Information
In the box: TV mount, mounting hardware, user documentation.
Logitech MeetUp range at SourceIT:
| Model | Part Number |
| Logitech MeetUp 4K ConferenceCam | 960-001101 |
| Logitech MeetUp 2 | 960-001681 |
| Logitech TV Mount for MeetUp | 939-001498 |
| Logitech TV Mount XL for MeetUp (this listing) | 939-001656 |
Datasheet & Downloads
Frequently Asked Questions — Logitech TV Mount XL for MeetUp
What display sizes does the TV Mount XL for MeetUp support?
Displays up to 90 in. For screens up to 55 in, the standard TV Mount for MeetUp is the smaller option.
Does it work with MeetUp 2?
Yes. Logitech confirms that Logitech MeetUp 2 is compatible with the original MeetUp TV and wall mounts.
Can the camera go above or below the screen?
Yes. The mount allows MeetUp to be mounted above or below the display. Logitech recommends keeping the camera close to eye level, which usually means below the display in smaller rooms.
Is a wall mount needed as well?
No. The TV mount attaches to the display's VESA holes. MeetUp and MeetUp 2 also ship with their own wall-mounting hardware if you prefer to mount the camera on the wall instead.
Does it come with a local warranty?
Yes. Every Logitech TV Mount XL for MeetUp sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
