Logitech LoRaWAN Gateway for Logitech Spot Sensors
PRODUCT DESCRIPTION
Logitech LoRaWAN Gateway for Logitech Spot (950-000123) - 2 Years Local Warranty
LoRaWAN Gateway for Logitech Spot — Connect Hundreds of Sensors Across the Workplace

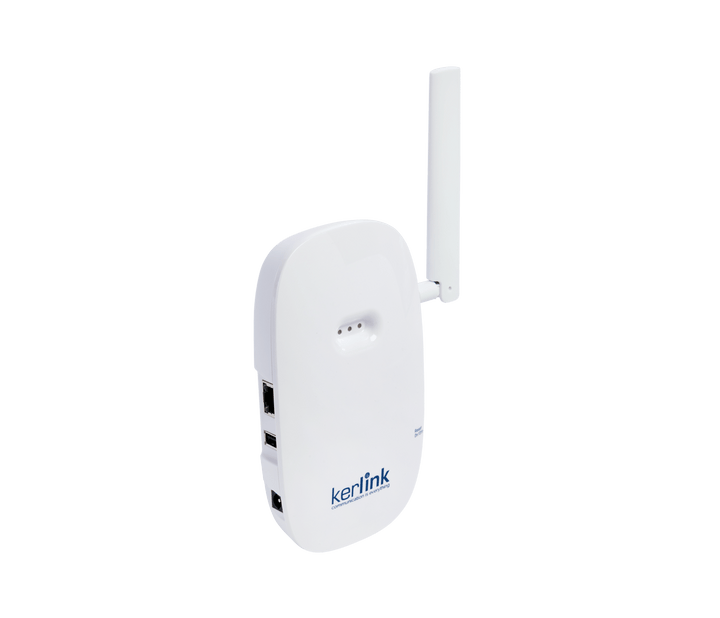

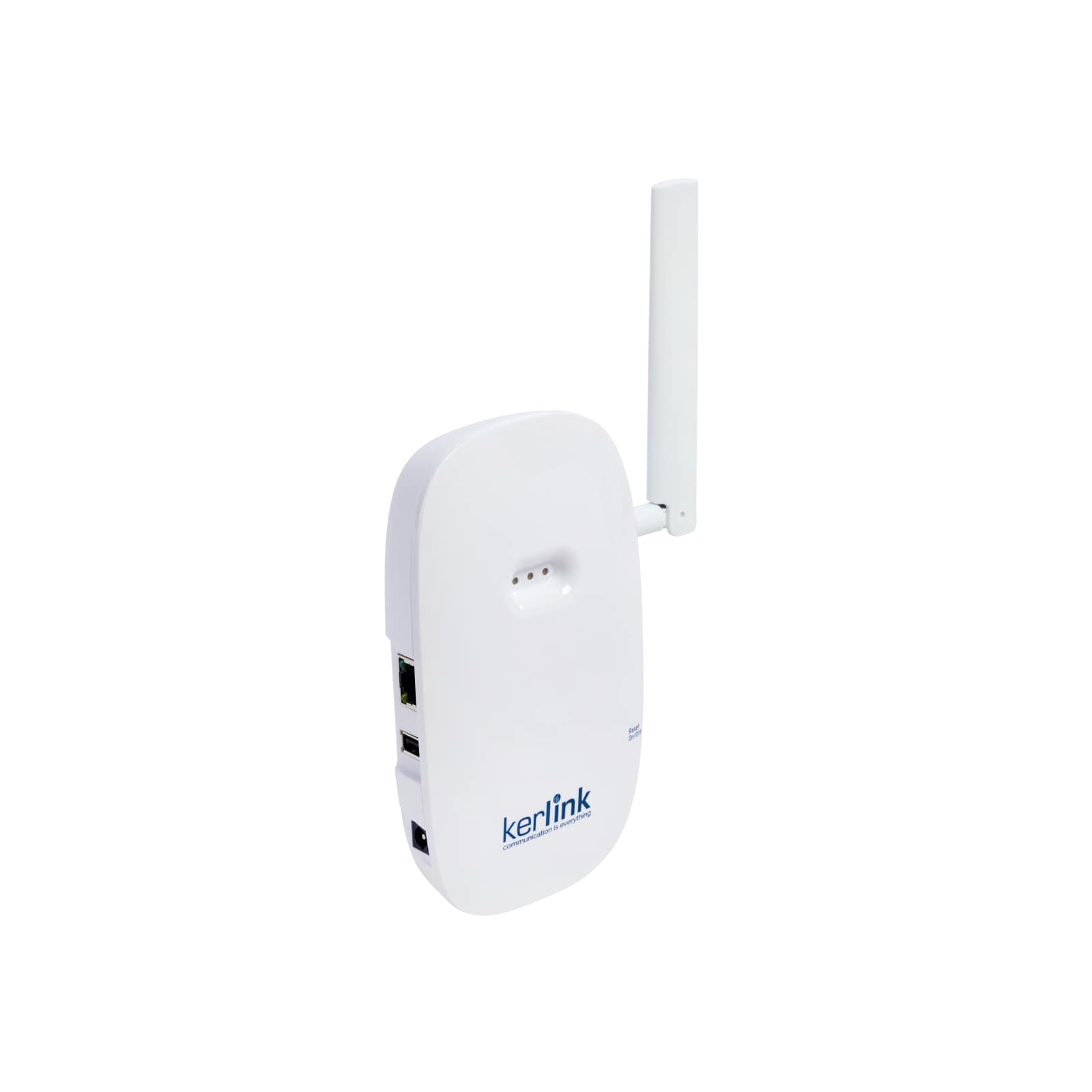

The LoRaWAN Gateway for Logitech Spot (950-000123) is an indoor gateway from Kerlink, configured for Logitech Spot presence and environmental sensors. Using long-range, wide area network (LoRaWAN) connectivity, one gateway can connect hundreds of Spot sensors throughout an office — including rooms with no video conferencing equipment — with no Wi-Fi or cabling needed between the sensors.
Secure and Separate from the Corporate Network
Spot sensors communicate with the gateway over the secure LoRaWAN protocol with end-to-end encryption, independent of the corporate Wi-Fi. The gateway itself is protected with SecureBoot signed firmware, TEE-based secure key storage and mTLS-secured backhaul over Ethernet or 2.4 GHz Wi-Fi.
Provision and Manage in Logitech Sync
Provision the gateway in Logitech Sync, then activate Spot sensors to complete the LoRaWAN connection. Monitoring and device administration take place in Sync alongside your Logitech meeting room devices.
LoRaWAN Gateway for Logitech Spot Datasheet — Technical Specifications
General
| Part Number | 950-000123 (Asia Pacific) |
| Product series | Logitech Spot accessories |
| Compatibility | Logitech Spot sensor only |
| Management | Logitech Sync |
| Warranty | 2 Years Local Warranty (Singapore) |
LoRaWAN Radio
| Rx sensitivity | -141 dBm (SF12) |
| TX conducted power | Configurable 5 dBm to 27 dBm |
| Antenna | LoRa swivel antenna, 3 dBi peak gain (SMA or RP-SMA) |
| Spectrum | Listen Before Talk (LBT) sniffer; spectrum analysis compliant |
Connectivity & Interfaces
| Backhaul | Ethernet (RJ45) 10/100 Mbps and Wi-Fi 2.4 GHz |

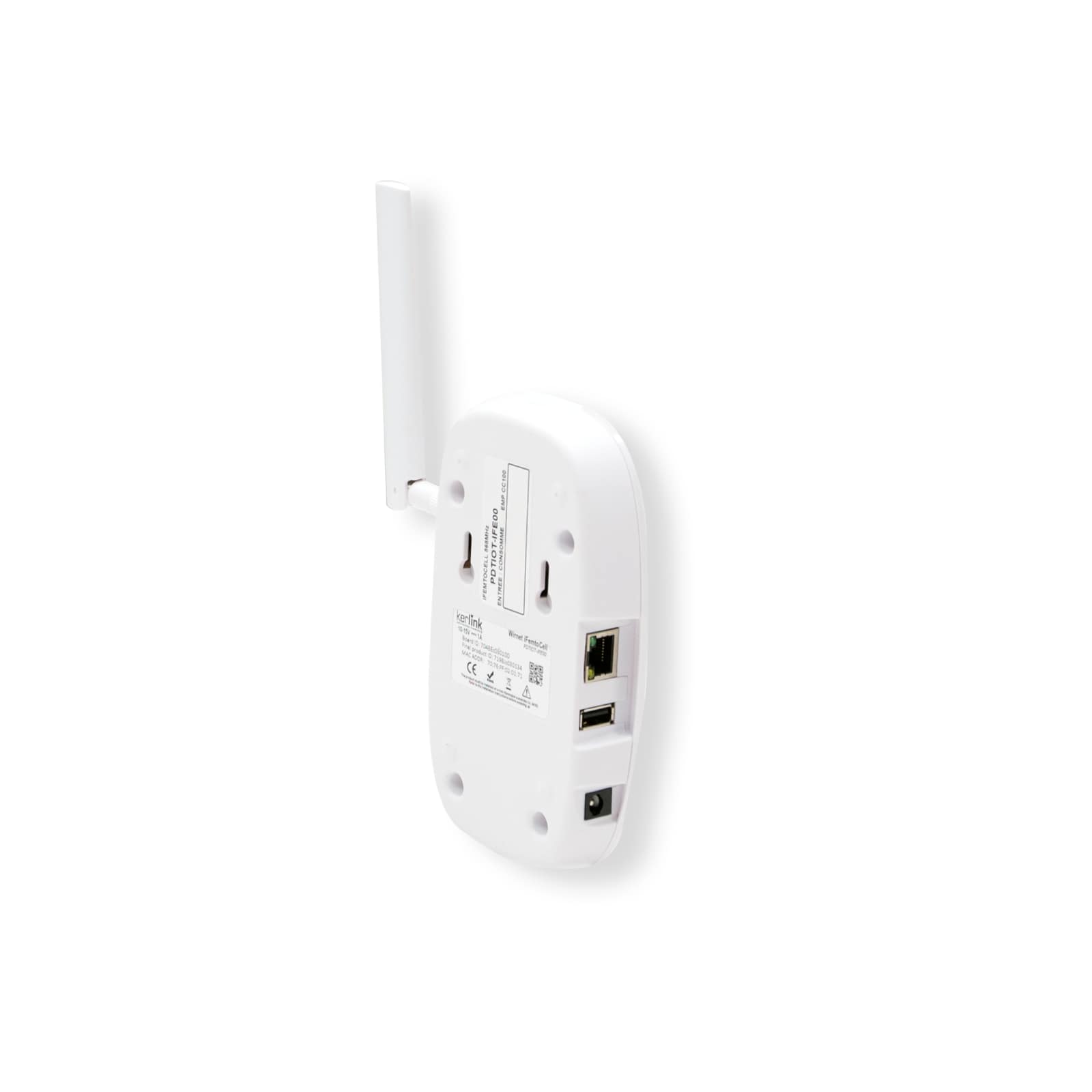

| Ports & buttons | RJ45, USB Type-A (configuration), WPS push button, reset button |
| LEDs | Power, backhaul and LoRa activity |
Hardware & Security
| CPU | ARM Cortex-A9 |
| Memory | 256 MB DDR RAM |
| Storage | 8 GB eMMC (6 GB available) |
| Security | SecureBoot, SecureStorage (TEE), mTLS-secured links and backhaul, watchdog reboot and recovery |
Design & Power
| Dimensions (H x W x D) | 160 x 90 x 35 mm |
| Weight | 162 g |
| Casing | IP30 |

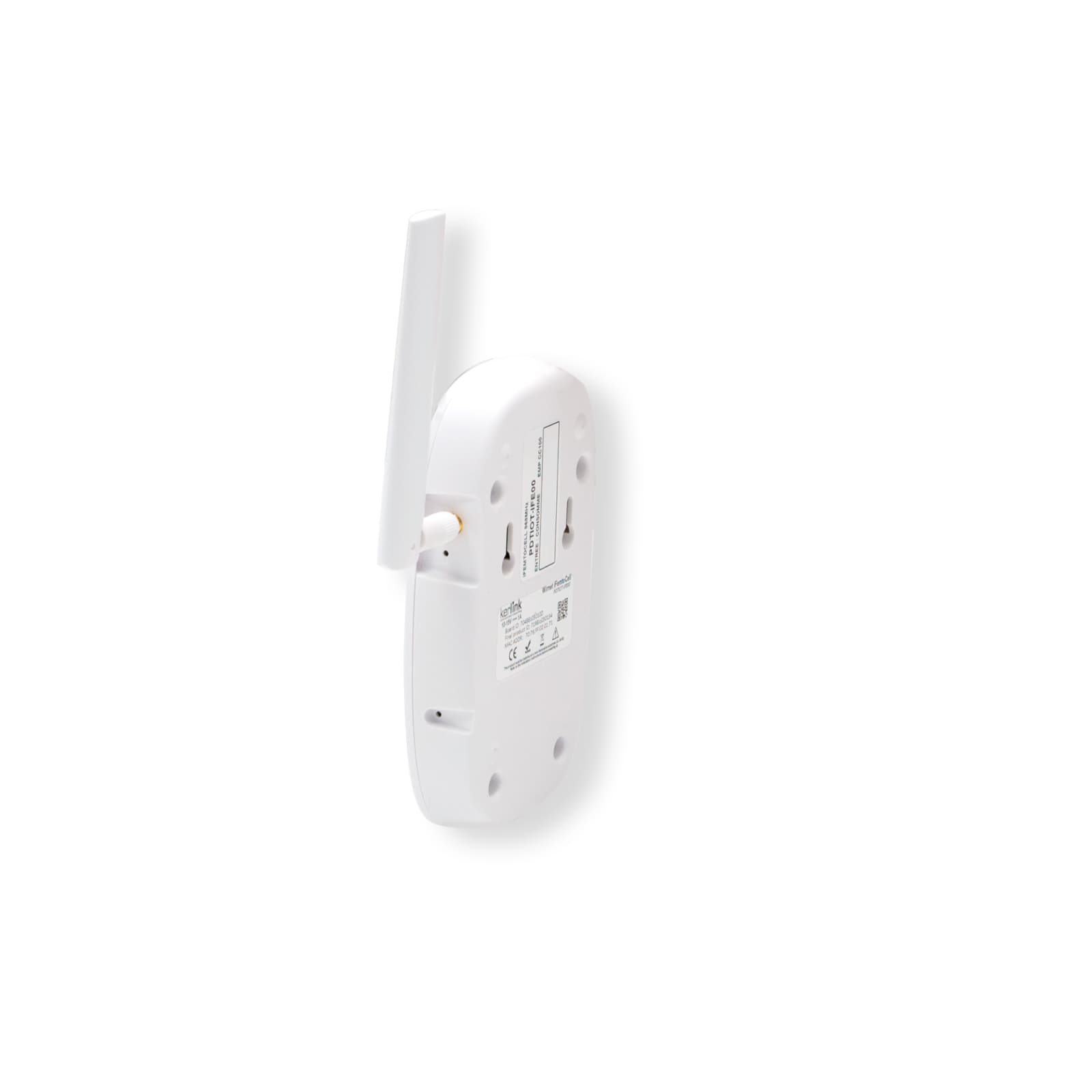

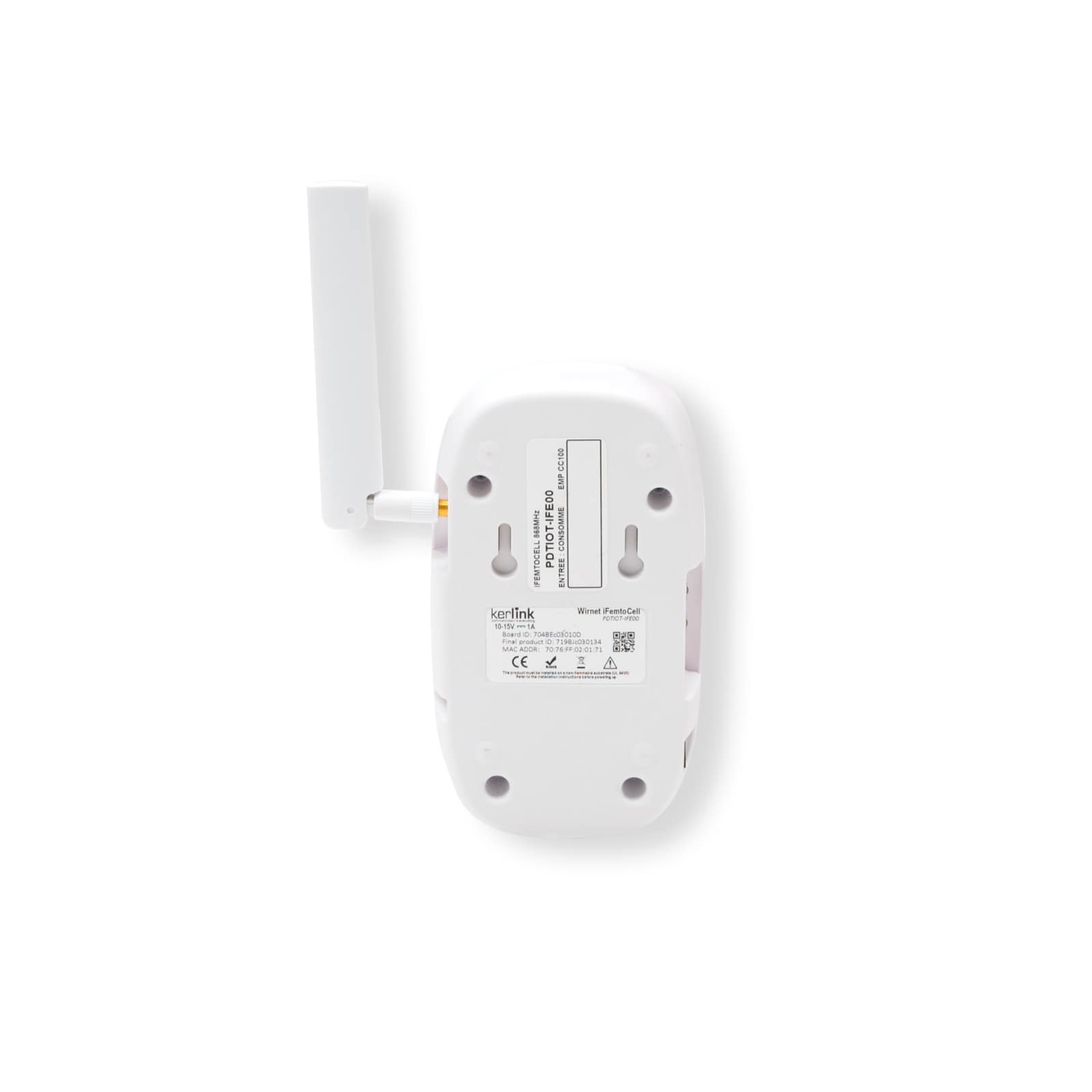

| Mounting | Wall (2 oblong holes) or table (4 domes) |
| Power supply | 100–240 V in, 12 V / 0.5 A out, 2.5/5.5 mm jack |
| Operating temperature | -20 to +55 °C (gateway only) |
| Humidity | 5% to 95% |
Compatibility & Regional Availability
The gateway works only with Logitech Spot presence and environmental sensors. Spot can connect either over Bluetooth through a compatible CollabOS device, such as a Tap Scheduler, or over LoRaWAN through this gateway — the LoRaWAN route is ideal for spaces without video conferencing equipment and for covering a large floor plate.
950-000123 is the Asia Pacific model. Logitech lists both Bluetooth and LoRaWAN connectivity as available for Logitech Spot in Singapore with this gateway SKU.
Package Contents & Logitech Spot Ordering Information
In the box: Indoor LoRa gateway, power supply with regional plug adapters and user documentation.
Logitech Spot at SourceIT:
| Model | Part Number |
| Logitech Spot Presence & Environmental Sensor Off-White | 950-000111 |
| LoRaWAN Gateway for Logitech Spot (this listing) | 950-000123 |
Datasheet & Downloads
Frequently Asked Questions — LoRaWAN Gateway for Logitech Spot
Do I need the gateway to use Logitech Spot?
Not always. Spot can also connect over Bluetooth through a compatible CollabOS device such as Tap Scheduler. The gateway is the choice for rooms without Logitech video equipment, or to connect many sensors across a large area.
How many Spot sensors can one gateway support?
Logitech states the gateway can connect hundreds of Spot sensors over its long-range LoRaWAN network.
Does it use our corporate Wi-Fi?
Sensors talk to the gateway over secure, end-to-end encrypted LoRaWAN, separate from the corporate Wi-Fi. The gateway's own backhaul can be Ethernet or 2.4 GHz Wi-Fi.
Is this the right model for Singapore?
950-000123 is the Asia Pacific model, and Logitech lists LoRaWAN connectivity for Spot as available in Singapore with this SKU.
Can it work with other LoRaWAN sensors?
No. The gateway is configured specifically for Logitech Spot and is compatible only with Logitech Spot sensors.
Does it come with a local warranty?
Yes. Every LoRaWAN Gateway for Logitech Spot sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
