Logitech GROUP 10m Extended Cable
PRODUCT DESCRIPTION
Logitech GROUP 10m Extended Cable (939-001487) - 2 Years Local Warranty

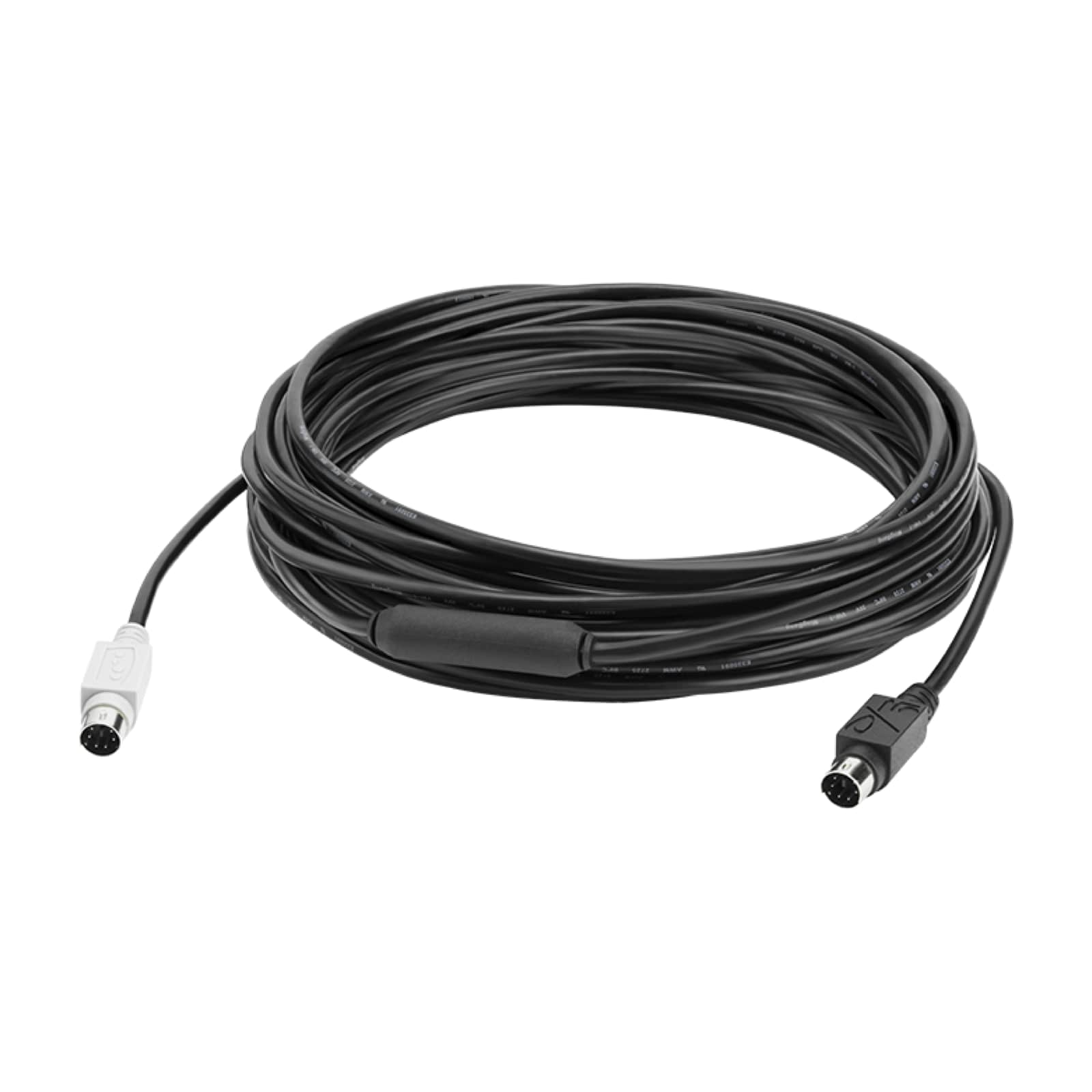

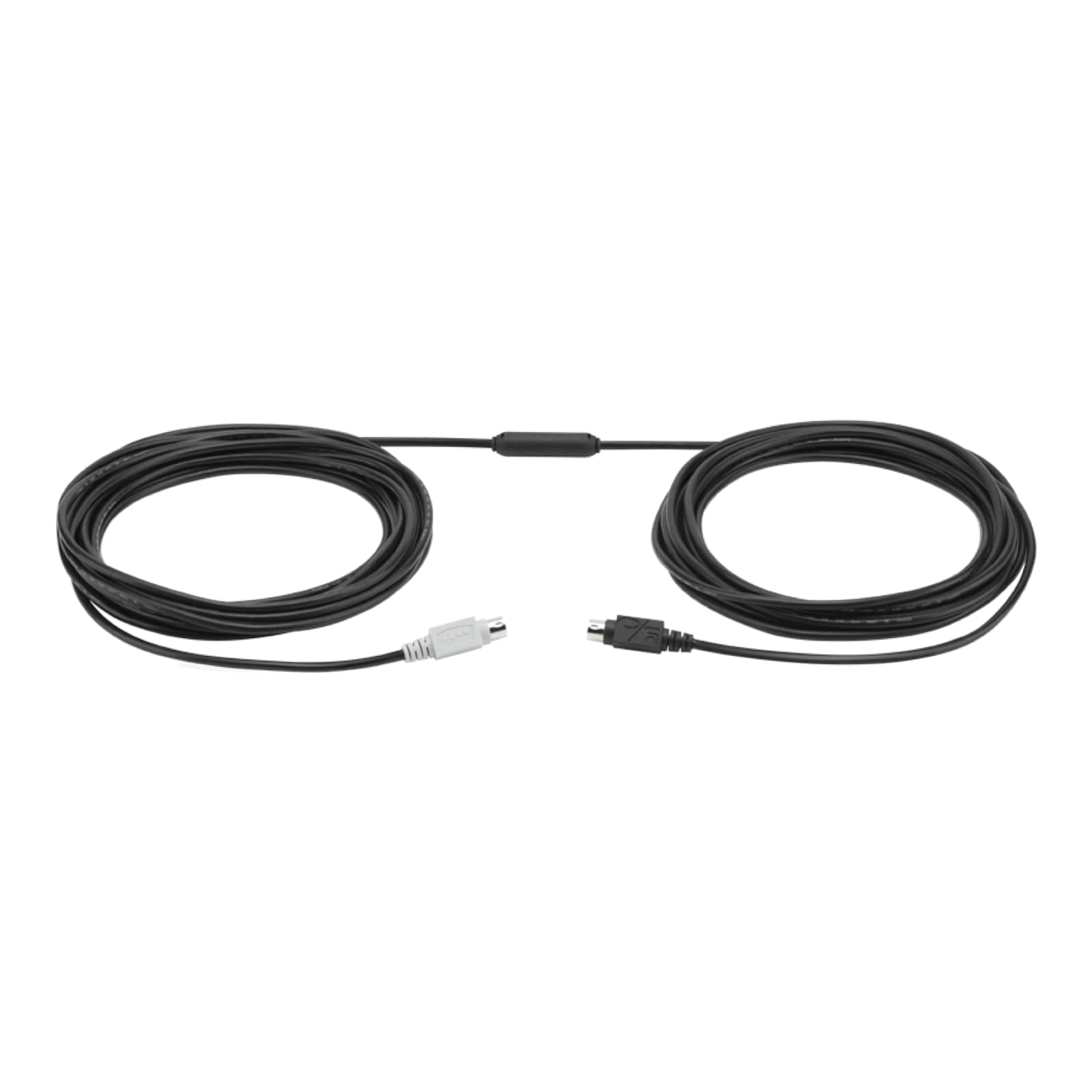

Logitech GROUP 10m Extended Cable — More Room Between Hub, Camera and Speakerphone
The Logitech GROUP 10m Extended Cable (939-001487) replaces the 5 m Mini-DIN cable supplied with Logitech GROUP and doubles the distance from the GROUP hub to the camera or speakerphone, up to 10 m (32.8 ft). It gives installers the freedom to place the camera at the display and the speakerphone at the centre of a long boardroom table.
Clean Installation Through Conduit or Raceway
The cable can be routed through a conduit or raceway for a tidy, permanent installation, and Velcro cable management straps are included. Note that the extended cables are unidirectional — follow the direction tags on each end when connecting.
Logitech GROUP 10m Extended Cable Datasheet — Technical Specifications
General
| Part Number | 939-001487 |
| Product series | Logitech GROUP accessories |
| Compatibility | Logitech GROUP video conferencing system |
| Warranty | 2 Years Local Warranty (Singapore) |
Cable
| Length | 10 m (32.8 ft) |
| Connection type | Mini-DIN-6 |
| Direction | Unidirectional — follow the tags on each end |
| Dimensions | 10 m x 4 mm cable; 50 x 12 mm repeater |
| Weight | 278 g (9.8 oz) |
Environment & Compliance
| Operating temperature | 0 to 50 °C |
| Storage temperature | -40 to 80 °C |
| Relative humidity | 0–80% |
| Compliance | FCC Class A, CE, UL/CSA Type CM, VW-1, RoHS |
Compatibility & Installation Notes
The 10m Extended Cable works only with the Logitech GROUP video conferencing system. It replaces either of the two 5 m Mini-DIN cables in the GROUP box — the hub-to-camera cable or the hub-to-speakerphone cable — so order two if both runs need extending.
Unlike the bi-directional 5 m cable supplied with GROUP, the 10 m and 15 m extended cables are unidirectional. Tags on each end show the correct orientation; connecting the cable the wrong way round will stop the system working correctly.
Package Contents & GROUP Ordering Information
In the box: One 10 m extended Mini-DIN cable and Velcro cable management straps.
Logitech GROUP family at SourceIT:
| Model | Part Number |
| Logitech GROUP Video Conferencing System | 960-001054 |
| Logitech GROUP 10m Extended Cable (this listing) | 939-001487 |
| Logitech GROUP 15m Extended Cable | 939-001490 |
| Logitech GROUP Expansion Mics | 989-000171 |
Datasheet & Downloads
Frequently Asked Questions — Logitech GROUP 10m Extended Cable
How far can I place the camera or speakerphone from the hub?
Up to 10 m (32.8 ft), compared with 5 m using the cable included with GROUP. If you need more reach, the GROUP 15m Extended Cable extends the run to 15 m.
Does the cable direction matter?
Yes. The extended cables are unidirectional. Follow the tags on each end; the 5 m cable supplied with GROUP is bi-directional, but the 10 m and 15 m cables are not.
Will it work with other Logitech systems such as MeetUp or Rally?
No. This is a Mini-DIN cable for the Logitech GROUP system only. For MeetUp expansion microphones see the MeetUp 10M Extended Cable.
Do I need one cable or two?
Each cable extends one connection. GROUP uses two 5 m cables — hub to camera and hub to speakerphone — so order two extended cables if both need the extra length.
Does it come with a local warranty?
Yes. Every Logitech GROUP 10m Extended Cable sold by SourceIT comes with 2 years local Singapore warranty and a GST invoice.
