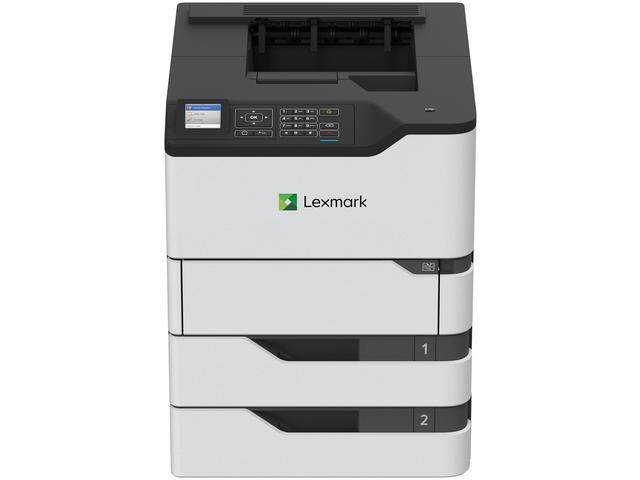

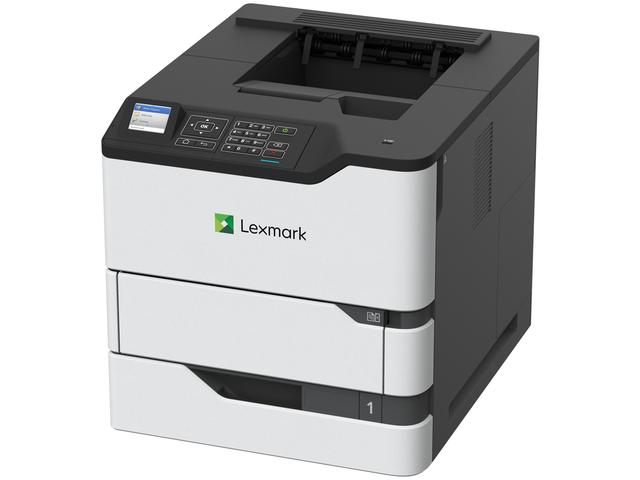

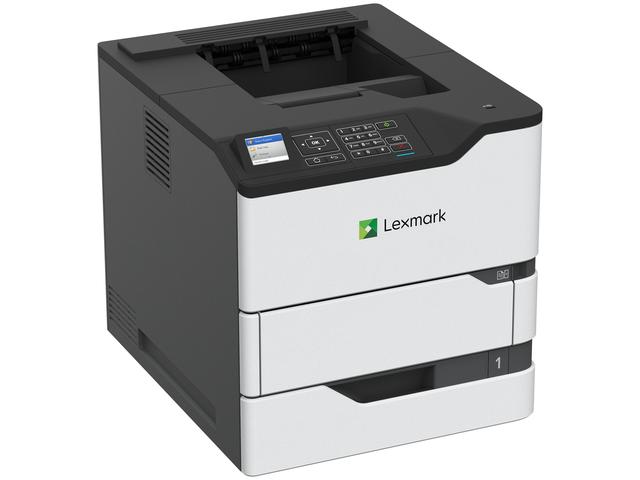

Lexmark MS823dn Mono Laser Printer
PRODUCT DESCRIPTION
Lexmark MS823dn A4 Mono Laser Printer, 61 ppm (50G0248) - 1 Year Local Onsite Warranty
Performance for Busy Workgroups
The Lexmark MS823dn is a monochrome laser printer for large workgroups, printing at up to 61 pages per minute on A4 with the first page out as fast as 4.2 seconds. Lexmark recommends a monthly volume of 5000 - 75000 pages.
Processing and Controls
A Dual Core, 1.0 GHz processor with 512 MB of memory keeps complex jobs moving; it is operated from a 2.4-inch (60 mm) Colour LCD display. Two-sided printing is built in.
Paper Handling
Standard input is 650 pages 75 gsm bond, expandable to 4400 pages 75 gsm bond. The output bin holds 550 pages 75 gsm bond.
Connectivity and Security
Standard ports: Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), USB 2.0 Specification Hi-Speed Certified (Type B), One Internal Card Slot. Wi-Fi is optional with the Lexmark MarkNet N8370. Security: IPSec, SNMPv3, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS.
Need help choosing? Email sales@sourceit.com.sg with your monthly volume, paper sizes and whether you need copy, scan or fax, and we will size it for you.
Lexmark MS823dn Datasheet — Technical Specifications
General
| Product Name | Lexmark MS823dn Mono Laser Printer |
| Part Number | 50G0248 |
| Series | Lexmark MS820 Mono Series |
| Device Type | Black & White Laser Printer |
| Functions | |
| Workgroup Size | Large Workgroup |
| Local Warranty (Singapore) | 1-year onsite repair, next business day response, supplied by SourceIT with a GST invoice |
Printing
| Print Speed | Up to Black: 61 ppm (A4) |
| Two-sided Print Speed | Up to Black: 37 spm (A4) |
| Time to First Page | As fast as Black: 4.2 seconds |
| Print Resolution | Black: 1200 x 1200 dpi, 2400 IQ (2400 x 600 dpi), 300 x 300 dpi, 600 x 600 dpi, 1200 IQ (1200 x 600 dpi) |
| Two-sided Printing | 2-sided Integrated Duplex |
| Printable Area | 4.2 mm of the top, bottom, right and left edges (within) |
| Print Languages | PCL 5e Emulation, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image, AirPrint™ |
Processor, Memory & Display
| Processor | Dual Core, 1.0 GHz |
| Memory (Standard) | 512 MB |
| Memory (Maximum) | 4608 MB |
| Storage | Hard Disk: Option available |
| Display | 2.4-inch (60 mm) Colour LCD display |
Paper Handling
| Paper Handling Included | 100-Sheet Multipurpose Feeder, Integrated Duplex, 550-Sheet Output Bin, 550-Sheet Input |
| Input Capacity (Standard) | 650 pages 75 gsm bond |
| Input Capacity (Maximum) | 4400 pages 75 gsm bond |
| Paper Inputs | Standard: 2, Maximum: 6 |
| Output Capacity (Standard) | 550 pages 75 gsm bond |
| Output Capacity (Maximum) | 2550 pages 75 gsm bond |
| Multipurpose Feeder | 100-Sheet Multipurpose Feeder |

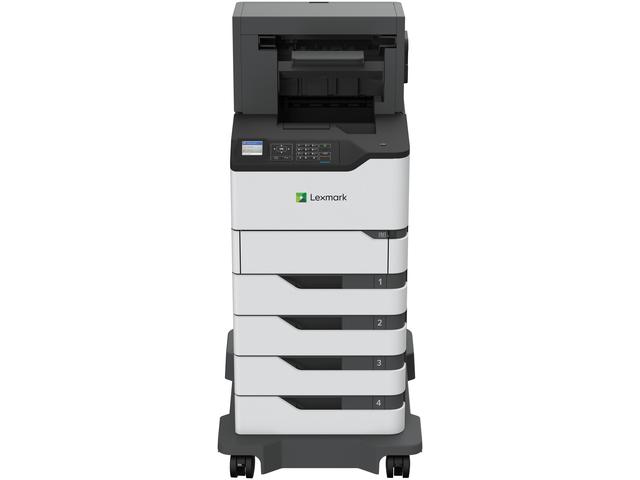

| Optional Paper Handling | 2100-Sheet Tray, Output Expander, 550-Sheet Lockable Tray, 250-Sheet Lockable Tray, 4-Bin Mailbox, Staple Finisher, 250-Sheet Tray, Staple Punch Finisher, High Capacity Output Expander, 550-Sheet Tray |
| Finishing | Yes |
| Media Types | Integrated Labels, Paper Labels, Card Stock, Plain Paper, Dual Web Labels, Transparencies, Envelopes, Refer to the Paper & Specialty Media Guide |
| Media Sizes | A6, Oficio, 7 3/4 Envelope, 9 Envelope, JIS-B5, A4, Legal, A5, Letter, B5 Envelope, Statement, C5 Envelope, Executive, Universal, DL Envelope, Folio, 10 Envelope |
| Media Weights | 60 - 176 gsm (Standard Tray) |
Usage
| Recommended Monthly Page Volume | 5000 - 75000 pages |
| Maximum Monthly Duty Cycle | Up to 300000 pages per month |
Connectivity
| Standard Ports | Gigabit Ethernet (10/100/1000), Front USB 2.0 Specification Hi-Speed Certified port (Type A), USB 2.0 Specification Hi-Speed Certified (Type B), One Internal Card Slot |
| Network | Ethernet Network: Yes |
| Wireless | Optional (Marknet N8370 WiFi Option) |
| Optional Network Ports | MarkNet N8230 Fiber Ethernet Print Server, Marknet N8370 WiFi Option |
| Optional Local Ports | Internal 1284-B Bidirectional Parallel, Internal RS-232C serial |
| Network Printing Methods | LPR/LPD, Direct IP (Port 9100), Telnet, FTP, TFTP, Enhanced IP (Port 9400), ThinPrint .print integration, IPP 1.0, 1.1, 2.0 (Internet Printing Protocol) |
Security
| Network Security | IPSec, SNMPv3, 802.1x Authentication: MD5, MSCHAPv2, LEAP, PEAP, TLS, TTLS |
Supplies
| Starter Toner (in box) | 11,000 4-page Return Program Toner Cartridge |
| Replacement Cartridge Yields | up to 7,500 4-page Cartridge, 15,000 4-page High Yield Cartridge, 35,000 4-page Extra High Yield Cartridge, 55,000 4-page Ultra High Yield Cartridge |
| Imaging Unit Yield | Up to 150000 pages, based on 3 average letter/A4-size pages per print job and ~ 5% coverage |
Physical & Environmental
| Dimensions (H x W x D) | 445 x 428 x 510 mm |
| Weight | 25.4 kg |
| Packaged Dimensions | 565 x 550 x 650 mm |
| Packaged Weight | 29.9 kg |
| Noise Level | 14 dBA (Idle), 58 dBA (Print); Duplex print 57 dBA |
| Power Consumption | 0.2 watts (Hibernate Mode), 1.6 watts (Sleep Mode), 34 watts (Ready Mode), 800 watts (Printing) |
| ENERGY STAR TEC | 0.90 kilowatt-hours per week |
| Operating Environment | Humidity: 8 to 80% Relative Humidity, Temperature: 10 to 32°C (50 to 90°F), Altitude: 0 - 2896 metres |
| Certifications | ENERGY STAR, Blue Angel RAL-UZ 205, ICES-003 Class A, BSMI Class A, VCCI Class A, US FDA, UL 60950-1, FCC Class A, cUL CAN/CSA-C22.2 60950-1, NOM, CB EN/IEC 60950-1, CB EN/IEC 60825-1, CE DoC, EFTA (CE), KCC, CCC, CECP, CEL, C-tick DoC, UL-AR, KC mark, UL GS mark, EC 1275, MET-I, ISO 532B, ECMA-370, TED, GOST-R, SII, TER, China Green Product (CGP) |
| Country of Origin | China (PRC) |
Compatibility & Software Support
Operating Systems
| Windows | Windows 10, Windows 8.1, Windows 8, Windows 8 x64, Windows 7 x64, Windows 8.1 x64, Windows 7 |
| Apple / macOS | Apple OS X (10.6, 10.7, 10.8, 10.9, 10.10, 10.11, 10.12, 10.13) |
| Unix | Sun Solaris x86 10, 11, Sun Solaris SPARC 10, 11, IBM AIX 6.1, 7.1 |
| Linux | Debian GNU/Linux 7.0, 8.0, Ubuntu 16.04 LTS, Fedora 23, 24, openSUSE Linux 42.3, Red Hat Enterprise Linux WS 6, 7, openSUSE Linux 13.2, SUSE Linux Enterprise Server 10, 11, 12 |
Print Languages
PCL 5e Emulation, PCL 6 Emulation, Personal Printer Data Stream (PPDS), PostScript 3 Emulation, PDF 1.7 emulation, Direct Image, AirPrint™
Optional Paper Handling (per Lexmark)
2100-Sheet Tray, Output Expander, 550-Sheet Lockable Tray, 250-Sheet Lockable Tray, 4-Bin Mailbox, Staple Finisher, 250-Sheet Tray, Staple Punch Finisher, High Capacity Output Expander, 550-Sheet Tray
Replacement Toner
up to 7,500 4-page Cartridge, 15,000 4-page High Yield Cartridge, 35,000 4-page Extra High Yield Cartridge, 55,000 4-page Ultra High Yield Cartridge
Supplies and options for this printer can be ordered through SourceIT — email sales@sourceit.com.sg with the part numbers you need.
Package Contents & Lexmark MS820 Mono Series Ordering Information
Lexmark MS820 Mono Series
| Model | Type | A4 Speed | Part No. |
| MS821dn | A4 Mono Laser Printer | 52 ppm | 50G0148 |
| MS822de | A4 Mono Laser Printer | 52 ppm | 50G0178 |
| MS823dn (this listing) | A4 Mono Laser Printer | 61 ppm | 50G0248 |
| MS826de | A4 Mono Laser Printer | 66 ppm | 50G0378 |
In the Box
Printer with starter supplies: 11,000 4-page Return Program Toner Cartridge. Lexmark notes that box contents may vary by country — ask us to confirm before ordering.
Datasheet & Downloads
| Lexmark product page | MS823dn on lexmark.com |
| Lexmark brochure | MS823dn Brochure (PDF) |
| User guide | Online User Guide |
| Drivers & downloads | Lexmark Drivers & Downloads |
Need a PDF sent directly? Email sales@sourceit.com.sg quoting 50G0248.
Frequently Asked Questions — Lexmark MS823dn
How fast is the Lexmark MS823dn?
Up to 61 pages per minute on A4, with the first page out as fast as 4.2 seconds.
Can it copy or scan?
No. This is a print-only model; see the multifunction models in the ordering table if you need copy and scan.
Does it have Wi-Fi?
Not built in. Wi-Fi can be added with the optional Lexmark MarkNet N8370.
Can it print on A3?
No. It is an A4 device (maximum sizes up to Legal / Oficio).
How much paper can it hold?
Standard input is 650 pages 75 gsm bond, expandable to 4400 pages 75 gsm bond with optional trays.
What warranty do I get?
1-year onsite repair with next business day response in Singapore, supplied by SourceIT with a GST invoice.
